- Place of Origin:Guangdong, China
- Brand Name:ETOP
- Model Number:ADS-U090S15L
- Output Type:DC
- Connection:Desktop
- Dimensions:145*60*32mm (could be modified)
- Warranty:2 years
- Input:100-240vac
- Certificate:CE FCC ROHS GS SAA
- Type:desk-top
- Efficiency:85% Min
- Packing:White Box+ Carton
- Output voltage:12Vdc,24VDC

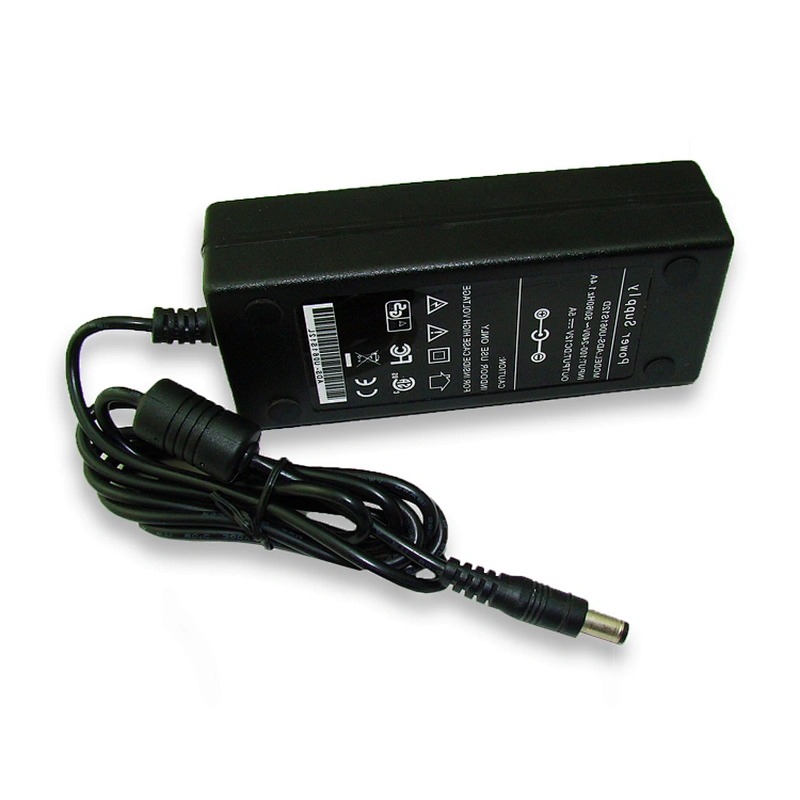

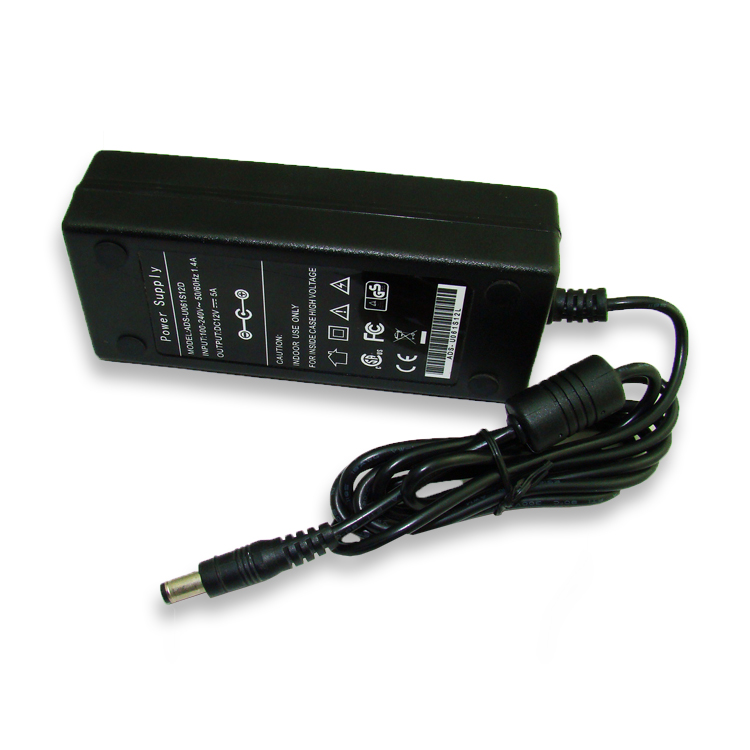

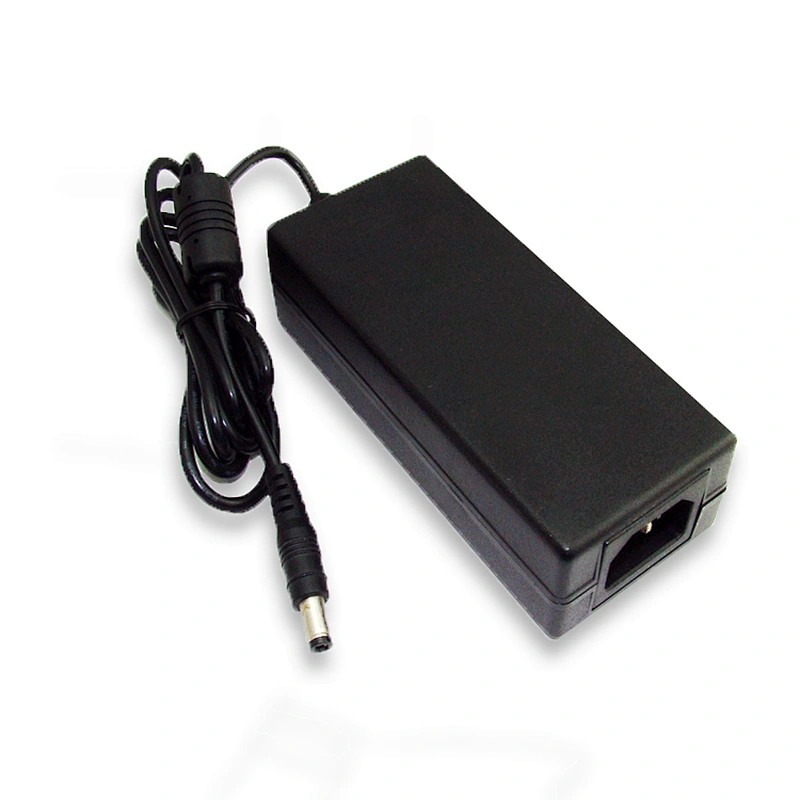

15V 5A AC/DC Power Supply Charger Adapter with 2.1mm x 5.5mm Tip Center
Model | ADS-U090S15L |
Input | |
Input Voltage(V) | 90VAC~264VAC |
Input Current (A) | 2A Max |
Frequency (Hz) | 47Hz–63Hz |
Efficiency | 81% Typ(230VAC Full Load) |
Inrush current(A) | Cold star <70A/230VAC |
Leakage current(mA) | <1mA/240VAC |
Output | |
Output Voltage(V) | +15Vdc |
Voltage Regulation | 5% |
Output Current(A) | 5A |
Current Range (A) | 0-5A |
Rated Power(W) | 75W |
Start time, hold-up time(ms) | Ton≤1000ms,Td≥20ms @230Vac Full Load |
Rise time(ms) | Typ:20ms @230Vac Full Load |
Ripple/Noise(mVp-p) | 80mVp-p |
Environment | |
working Temperature (°C) | -20°C - +50°C(refer derating curve) |
Storage Temperature(°C) | -20°C - +80°C |
Humidity(%) | 20% - 90% RH non condensing |
Safety/ EMC | |
Withstand voltage(VAC) | I/P-O/P:3KVAC,I/P-FG:1.5KVAC,OP-FG:0.5KVAC 1min |
Safety Standard | EN/UL60950-1,GB4943 |
EMC Standard | EN55022 Class B,EN61000-4-2,3,4,5,6,8,11 GB17626.5 Level3 |
Protection | |
Over voltage Protection | >115%-135% Rated output voltage |
Over load Protection | >105%-150% hiccup mode,Auto recovery |
Short circuit Protection | Latched |
Over Temperature Protection | Auto reboot |
Others | |
Dimension L*W*H(mm) | 145*60*32mm (could be modified) |
Specifications:
1.MOQ: 500pcs
2.Capacity: 100,000pcs/month
3.Lead time: 15 working days
4.Payment: TT, L/C.
5.Sample order is available
6.Packaging: Export standard carton box
7.OEM,ODM
Certifications
UL ,CE ,ROHS ,GS ,SAA ,FCC

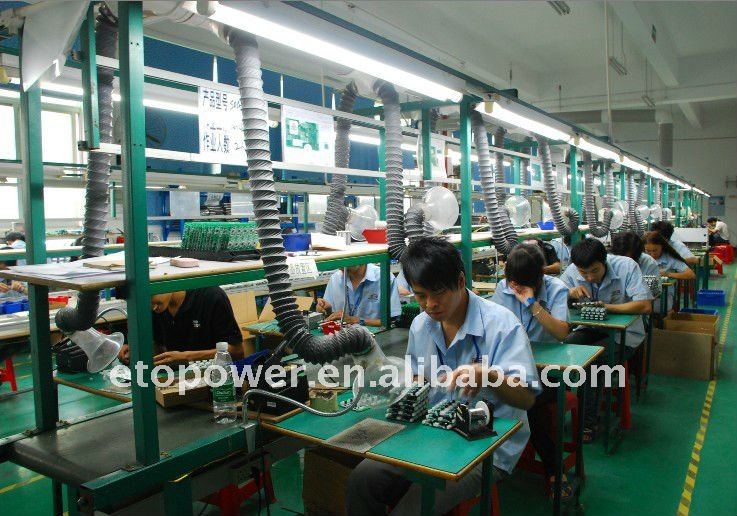

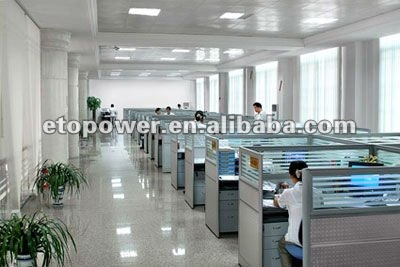

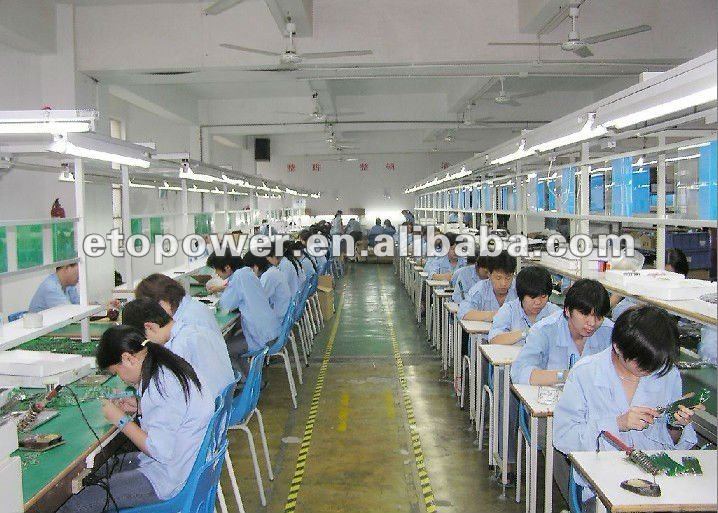

Workshop & Office
