- Place of Origin:Guangdong, China
- Brand Name:ETOP
- Model Number:ADS-U060S12L
- Output Type:Single
- Input Voltage:90VAC-264VAC
- Output Voltage:+12Vdc
- Output Frequency:50/60HZ
- Output Current:5A
- Output Power:60w
- Dimensions:145*60*32mm (could be modified)
- Certification:CE FCC ROHS
- Warranty:2 Years
- Type:Constant Voltage
- Input:100-240VAC 50/60Hz
- MOQ:500pcs
- Efficiency:89%
- Packing:White Box + Carton
- Payments:T/T
- Application:LED Lighting

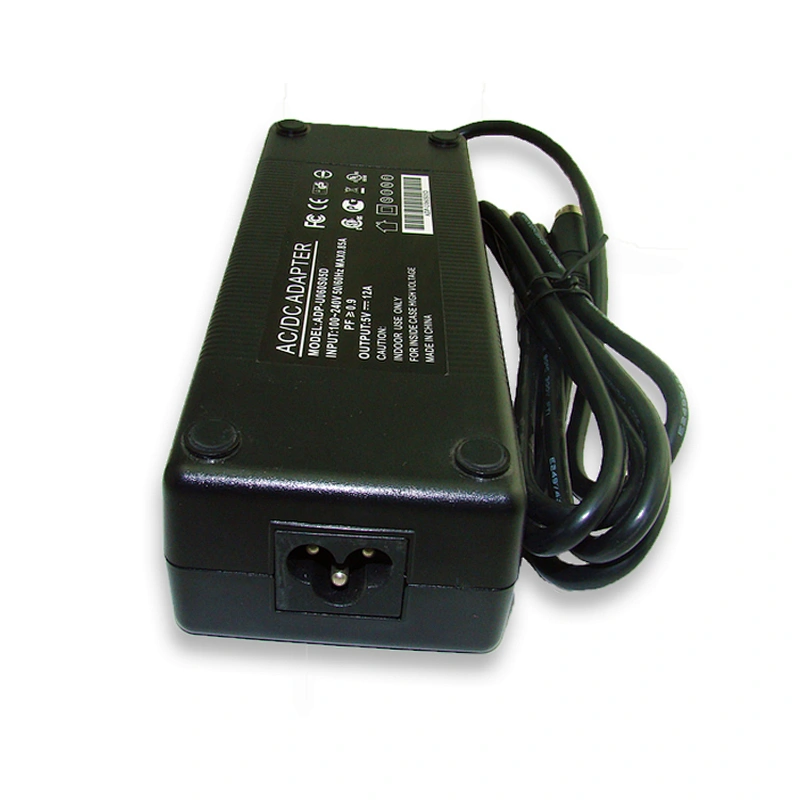

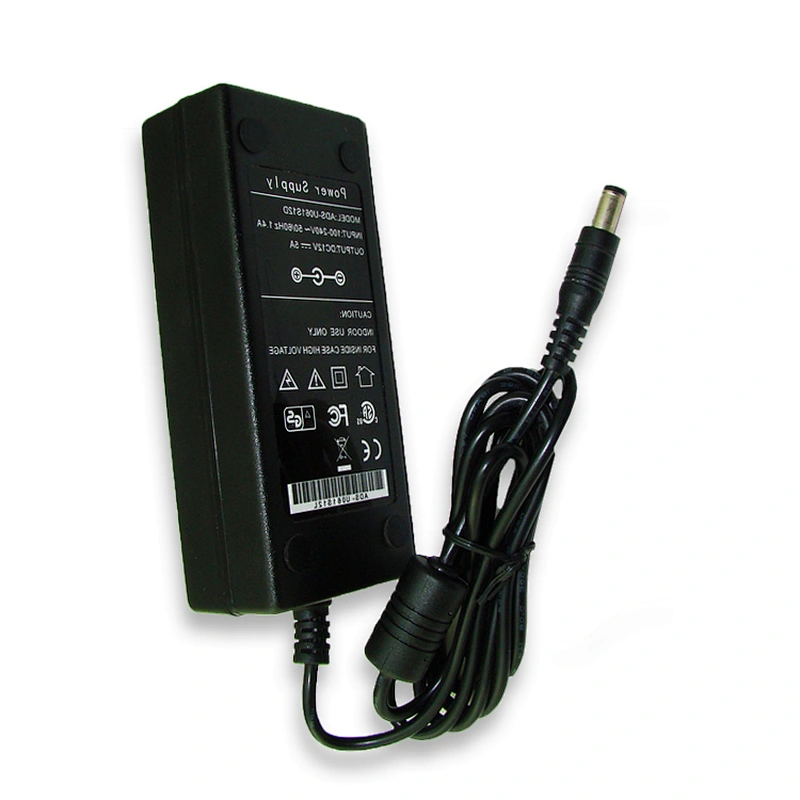

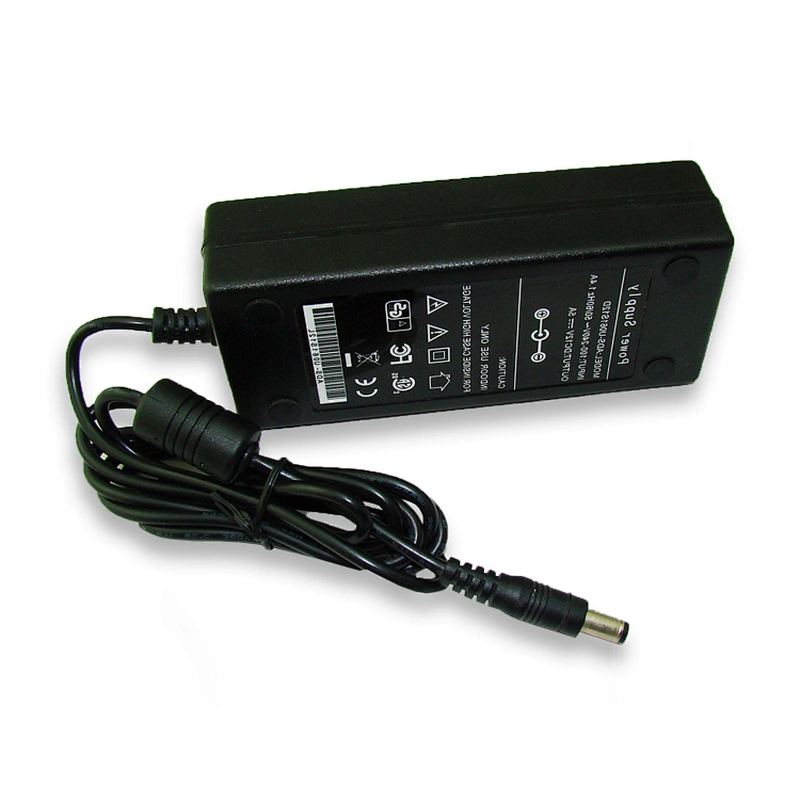

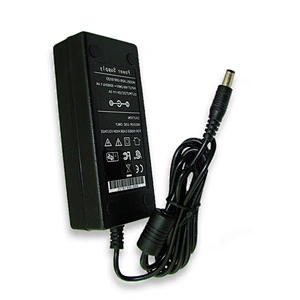

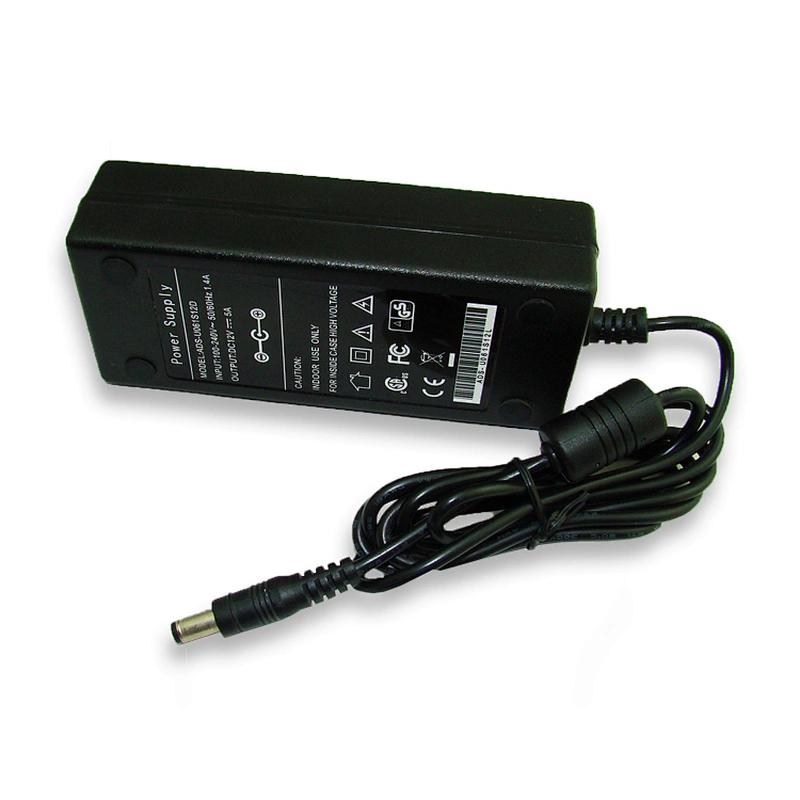

High quality laptop ac adapter output 12v
Model | ADS-U060S12L |
Input | |
VOLTAGE RANGE | 90~264VAC l27~370VDC |
FREQUENCY RANGE | 47~63Hz |
EFFICIENCY (Typ.) | 89% |
AC CURRENT | lA/115VAC 0.5A/230VAC |
INRUSH CURRENT (max.) | 65A/230VAC |
LEAKAGE CURRENT (max.) | 0.75mA/ 240VAC |
Output | |
DC VOLTAGE | l2V |
RATED CURRENT | 6A |
CURRENT RANGE | 0~6A |
RATED POWER | 60W |
RIPPLE & NOISE (max. | 100mVp-p |
SETUP, RISE | lOOOms,30ms /230VAC lOOOms,30ms/ll5VAC(at full load) |
HOLD UP TIME | 50ms /230VAC l5ms/ll5VAC (at full load) |
Environment | |
WORKING TEMP. | -30~+60°C C37 C35 |
WORKING HUMIDITY | 20~90% RH, non-condensing |
STORAGE TEMP., HUMIDITY | -40~+ 85°C , 10~95% RH |
TEMP. COEFFICIENT | 0.03%/°C (0~50°C) |
VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes |
Safety/ EMC | |
WITHSTAND VOLTAGE | I/p-0/P: 3KVAC I/p-FG: 1.5KVAC 0/p-FG: 0.5KVAC |
ISOLATION RESISTANCE | I/P-0/P, I/P-FG, 0/P-FG: 100M Ohms/500VDC/25°C/70% RH |
EMC EMISSION | Compliance to EN55022 class B, EN61000-3-2,3, FCC PART 15 / CISPR22 class B, CNS13438 class B, GB9254 class B, GB17625.1 |
EMC IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,8,11, light industry level, criteria A |
Protection | |
Over load Protection | 105 ~ 150% rated output power |
Protection type : Hiccup mode, recovers automatically after fault condition is removed | |
Over voltage Protection | 12.6~16.2V |
Protection type : Shut down o/p voltage, re-power on to recover | |
Others | |
MTBF | ≥ 711 Khrs MIL-HDBK-217F(25°C) |
DIMENSION | 125*50*31.5mm (L*W*H) |
PACKING | 0.28Kg |
Specifications:
1.MOQ: 500pcs
2.FOB Price: $1-10 Shenzhen
2.Supply Ability : 100,000pcs/month
3.Lead time: 15 working days
4.Payment Terms: TT, L/C,Western Union,O/A,Money Gram
5.Sample order is available
6.Packaging: with standard carton box
7.OEM,ODM

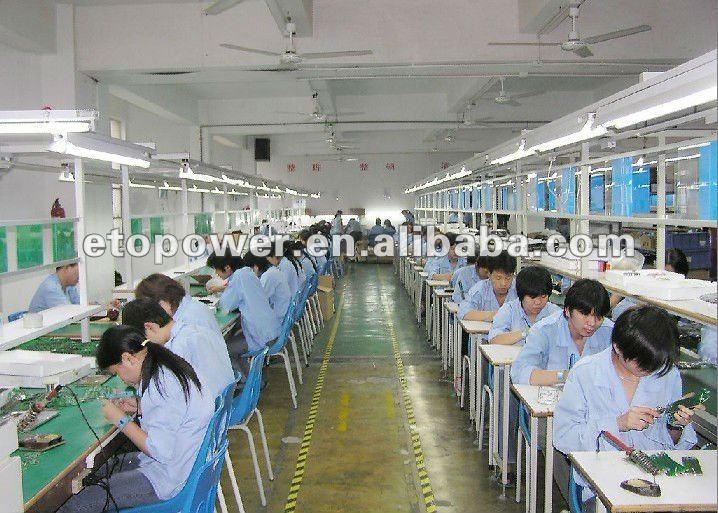

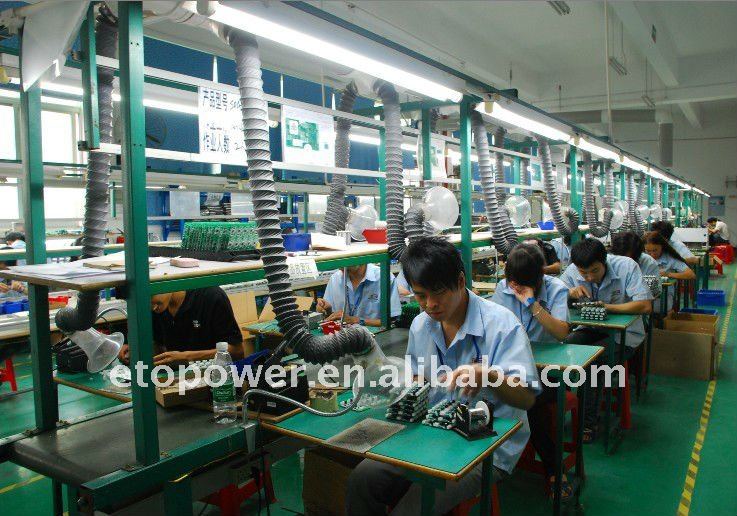

Production
