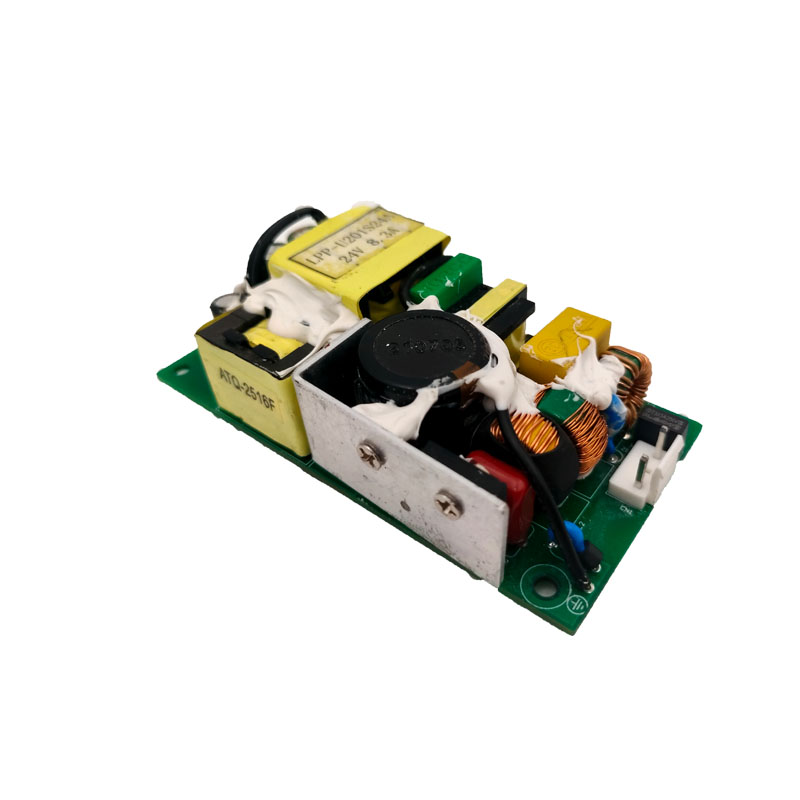

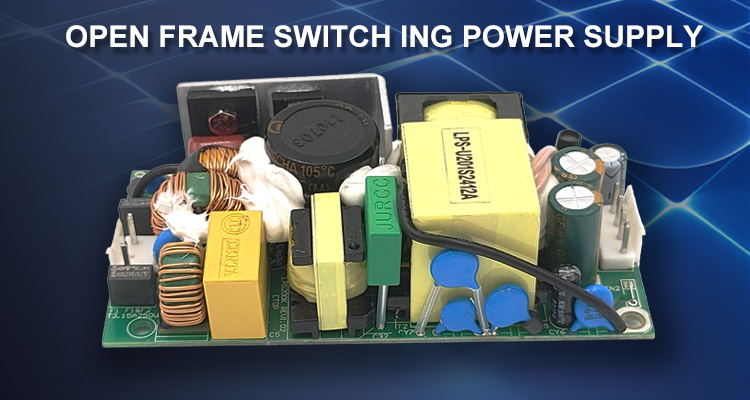

Embedded Mini Open Frame Power Supply 120W 12V 10A 24V 5A IEC60601-1 IEC62368-1 PSU
Our product series include:
industrial power supply, power adaptor, LED driver etc., which are widely used in communication, power electronics, automation control, railway, military industry, medical care and a good deal of others.
Specification

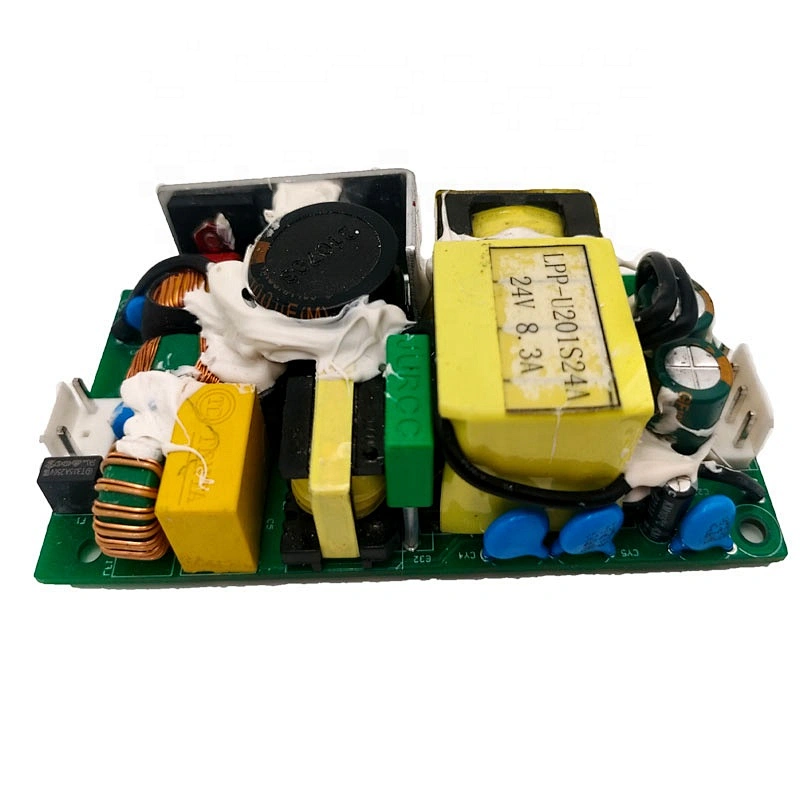

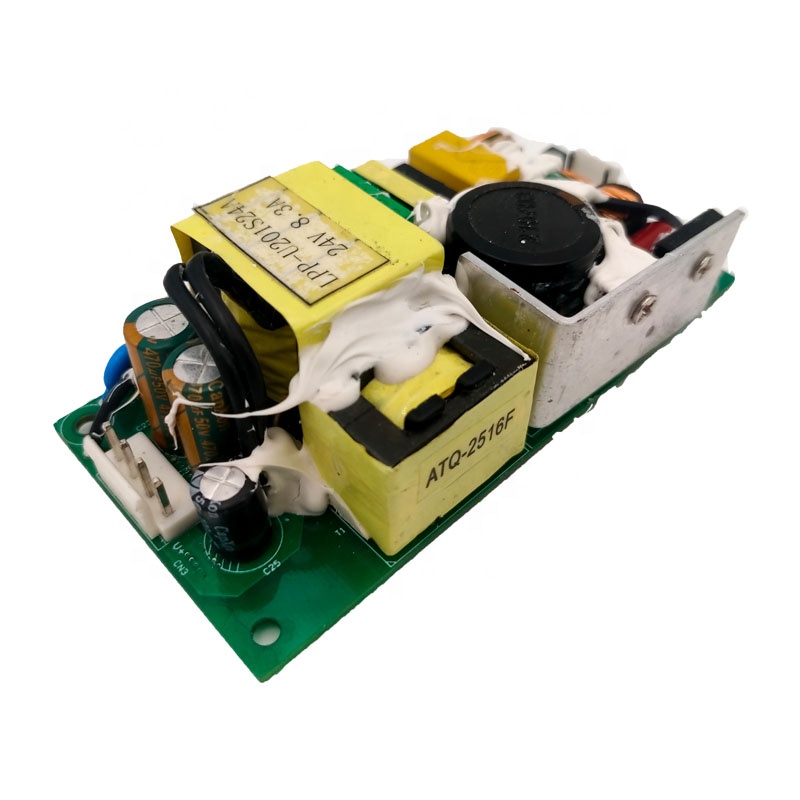

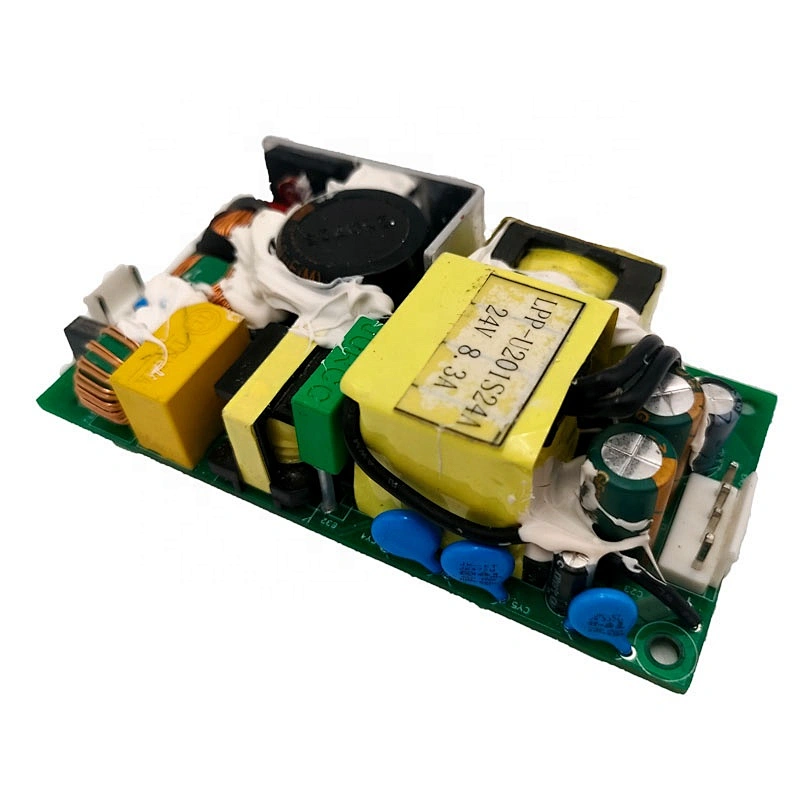

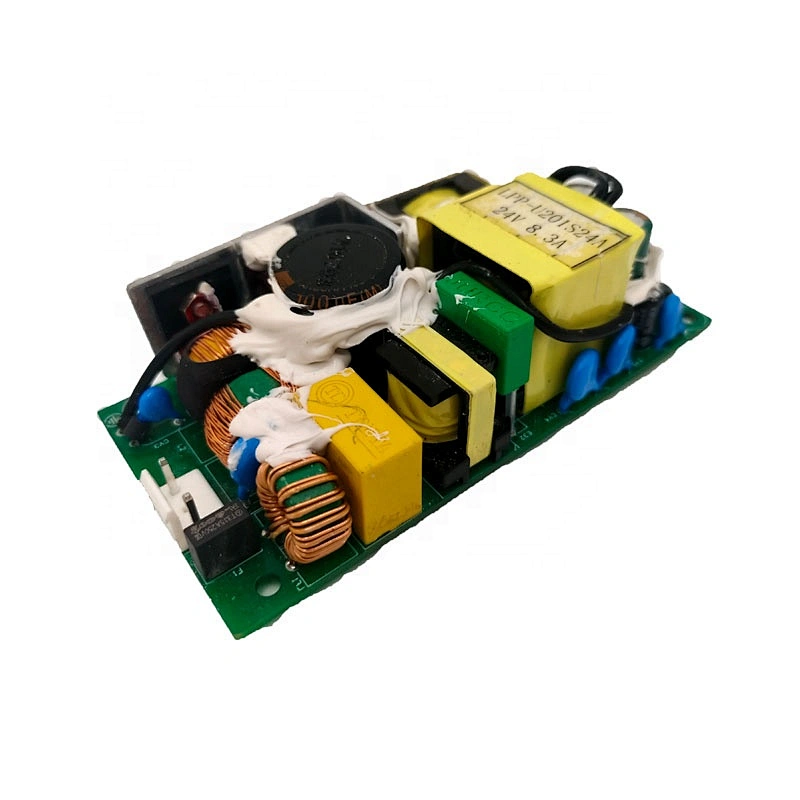

MODEL | LPP-U201S24A | |
OUTPUT | DC VOLTAGE | 24V |
Rated current | 8.3A | |
CURRENT RANGE | 0-8.3A | |
RATED POWER | 200W | |
RIPPLE & NOISE (max.) | 350mVp-p | |
INPUT | VOLTAGE RANGE | 100-240VAC |
EFFICIENCY(Typ.) | 90% | |
AC CURRENT | 0.5A/110VAC 0.25A/240VAC | |
INRUSH CURRENT(max.) | 60A/240VAC 30A/110VAC | |
LEAKAGE CURRENT(max.) | 0.75mA/240VAC | |
PROTECTION | Short circuit protection | output impedance is less than 0.1 ohm, power supply will be protected, and there will be no danger of damage to components,connectors, etc. |
Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
ENVIRONMENT | WORKING TEMP. | -10~+65°C(Refer to"Derating Curve") |
WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
STORAGE TEMP., HUMIDITY | -25~+ 75°C , 10~95% RH | |
TEMP. COEFFICIENT | 0~50°C | |
VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
SAFETY & EMC | WITHSTAND VOLTAGE | I/p-0/P: 4KVAC I/P-PG:1.5KVAC |
EMC Standard | EN55032 Class B EN6100-3-2 EN61000-4-2,3,4,5,6 | |
OTHERS | MTBF | ≥ 100K hrs. MIL-HDBK-217F (25°C ) |
DIMENSION | 102*51*30mm | |
Noral irrigator, hemodialysis machine,medical monitors sleep apnea devices ,pumps machine,POE switches, electric bed,coffee machine
