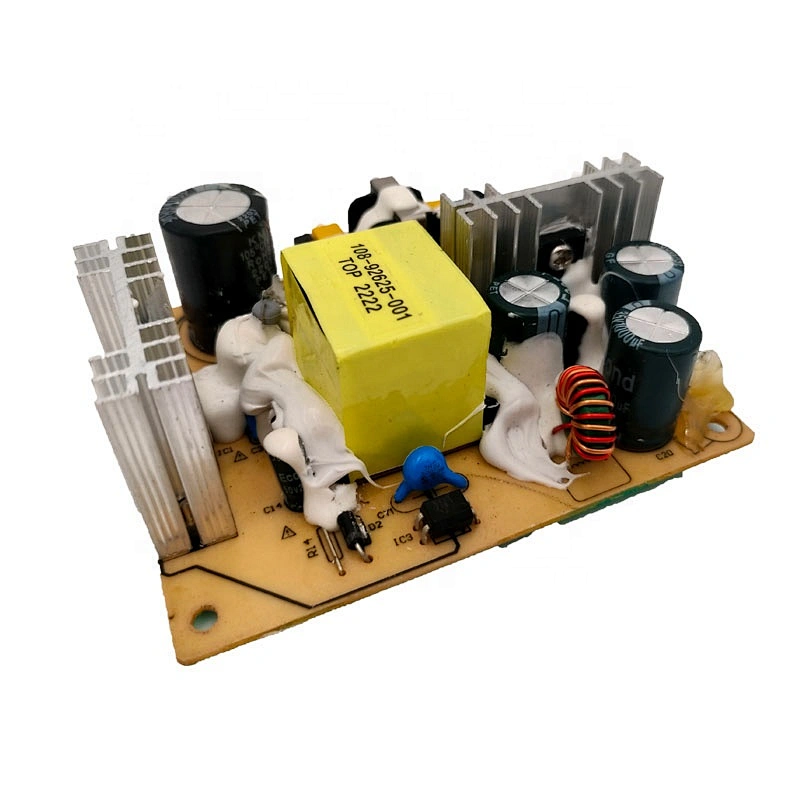

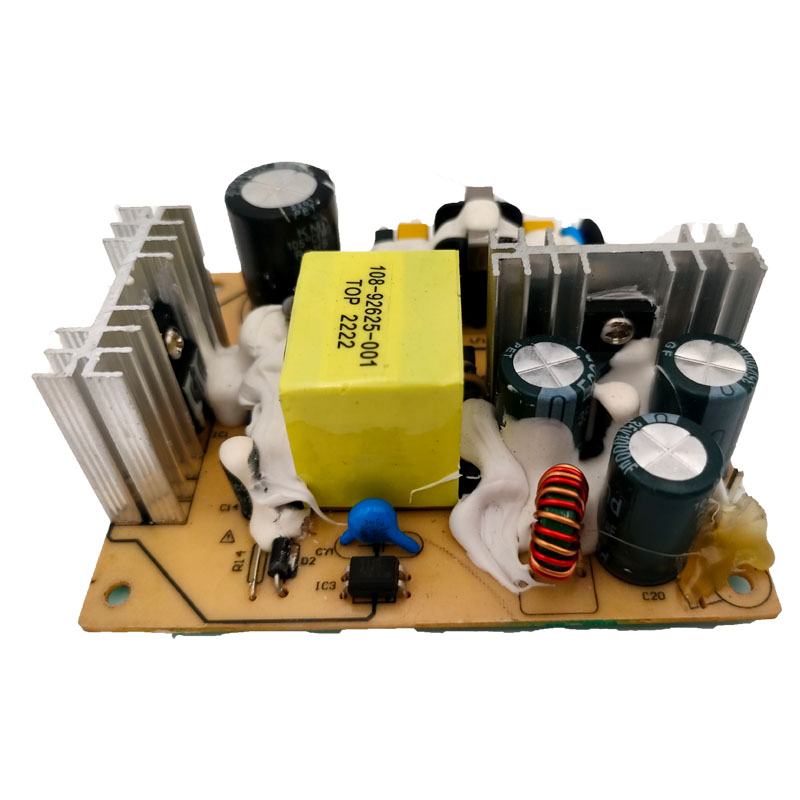

High Efficiency Universal Open Frame Power Supply 72W AC DC Converter 24V 3A Single Output Stabilized Power Supply Unit
Product Description
| MODEL | OUTPUT | RIPPLE & NOISE (max.) | Voltage accuracy | Linear adjustment rate | Load Regulation | EFFICIENC |
| LPS-U048S12A | 12V/4A | 200mVp-p | ±5% | ±1% | ±5% | 80% |
| LPS-U048S24A | 24V/2A | 240mVp-p | ±5% | ±1% | ±3% | 87% |
| LPS-U060S12A | 12V/5A | 200mVp-p | ±5% | ±1% | ±3% | 88% |
| LPS-U060S15A | 15V/4A | 200mVp-p | ±5% | ±1% | ±3% | 86% |
| LPS-U072S24A | 24V/3A | 240mVp-p | ±5% | ±1% | ±3% | 80% |
| LPS-U090S48A | 48V/1.8A | 480mVp-p | ±5% | ±1% | ±3% | 88% |
| Input Voltage & Frequency | 100-240VAC 47~63Hz |
| Input Current | 1.4A/115VAC 0.7A/230VAC |
| Start inrush current | 65A/230VAC |
| LEAKAGE CURRENT(max.) | 0.75mA/240VAC |
| SETUP, RISE TIME | 2000ms, 30ms/230VAC 3000ms, 30ms/115VAC at full load |
| HOLD UP TIME (Typ.) | 50ms/230VAC 15ms/115VAC at full load |
| WORKING TEMP., HUMIDITY | -10~+50°C(Refer to"Derating Curve") 20 ~ 90% RH non-condensing |
| STORAGE TEMP., HUMIDITY | -25~+ 60°C , 10~95% RH |
| TEMP. COEFFICIENT | ±3%/°C (0~50°C) |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes |
| WITHSTAND VOLTAGE | I/p-0/P: 3KVAC I/p-PG: 1.0KVA O/p-PG: 0.5KVAC |
| MTBF | ≥ 500K hrs. MIL-HDBK-217F (25°C ) |
| DIMENSION | 95*75*37mm (L*W*H) |
