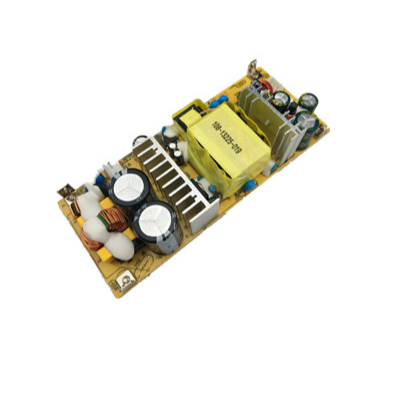

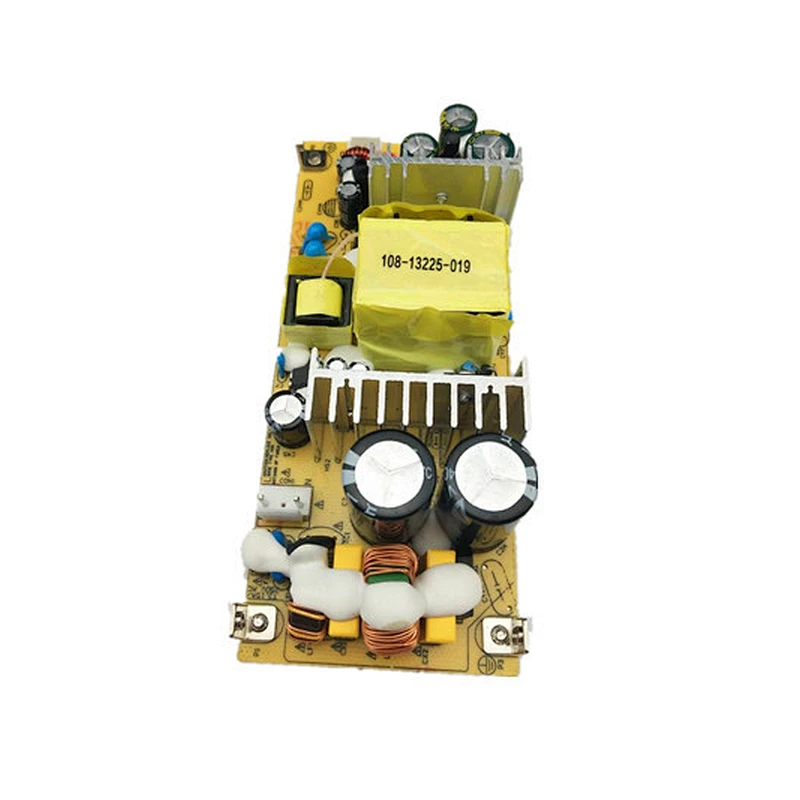

dual output power supply 12v 24v 100w open frame switching power supply

dual output power supply 12v 24v 100w open frame switching power supply

Model NO.: LPS-U101D1205A
Price:: $ 7.50-15.00 / piece
Minimum order quantity: 1 piece
Country of Origin: shenzhen

Quantity:

Product Description

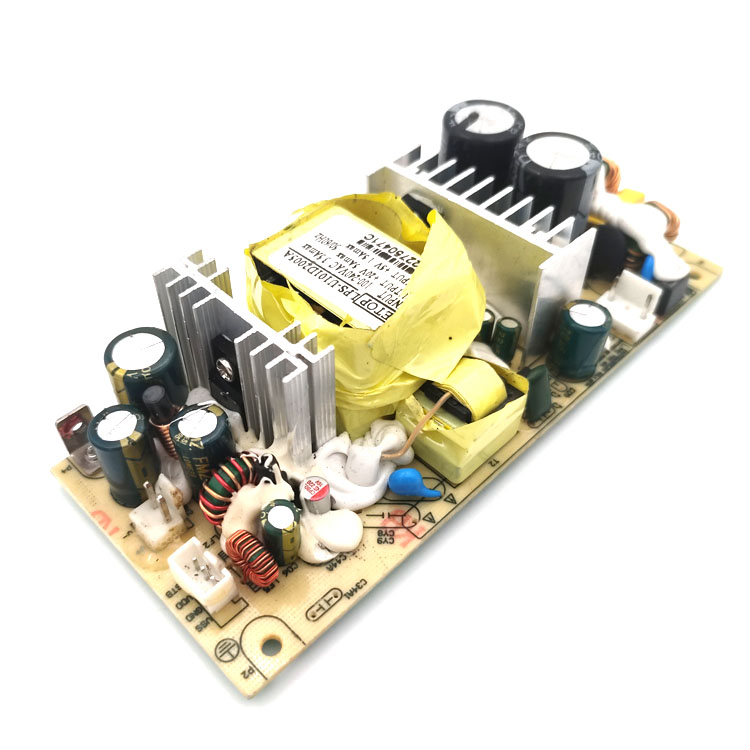

Low cost AC DC Dual Output 100W 20V 5V 110-240VAC Switching Power Supplies Certificate Open Frame power supply module bare board

Product Description

Our product series include

1.MOQ: 500PCS, sample order is

available

2.Production Capacity: 800pcs/day ,

3000pcs/week

3. Payment:T/T, Western Union, Paypal, Escromer ...4.Lead time: 3-7days for sample,

15-20daysfor mass production

5.Warranty:2 years warranty
6.Shipping method: DHL,UPS,FEDEX,

TNT,EMS,Hongkong/china post, by

air,by sea etc

7.Package: OPP bag or poly bag,

whitebox,artistic bag, by customer'

requirement.

Our product series include
industrial power supply, power adaptor, LED driver etc., which are widely used in communication, power electronics, automation control, railway, military industry,medical care and a good deal of others.

Specification

Model	R&N	TOL.	Line regulation	Load regulation	Efficiency
LPS-U101D2412L	100MVP-P	±5%	±1%	±5%	83%
	100MVP-P	±5%	±1%	±5%	83%
Input voltage range & frequency range	100V-2400VAC 47-63HZ
Input current	0.3A/115VAC 0.15A/230VAC
Inrush current( Max.)	30A/115VAC 60A/230VAC
Leakage current(Max.)	0.75ma/240Vac
Set up,rise time	2000ms,30ma/230vac 3000ms,30ms/115vac(at full load)
Hold up time	50ms/230vac 15ms/115vac(at full load)
Working tem.&humidity	-10~+65℃(refer to deration curve ,20%~90% RH non-condensing
storag tem.&humidity	-25~+75℃,10-95% RH
tem.coefficicient	±0.03%/℃(0~50℃)
vibration resistance	10-500HZ,2G 10MIN./1cycle,period for 60 min.each along X,Y,Z axes
withstand voltage	I/P-O/P:1.5KVAC I/P-PG:1.5KVAC O/P-PG:1.5KVAC
over load	>105%~150% hiccup mode,Auto recovery
short circuit	>115%~135%,rate output current( constant power)

Certifications

Product Certificates
Almost all of our products get CE/CCC/ROHS/FCC etc certificates,and if you have Special requirements of certificates,we can help to apply it for you.And our company pass ISO9001and ISO14001.

Packing & Delivery

Our Product Package

In order to protect products,the inner package is often use PP bags or Anti Static bags,and the use white box to pack each product,then put each one into the strong carton,at last finish packing.
Transportation ways of products
You can choose any way which you like to ship the goods,we will try our best tohelp you save shipping cost.
