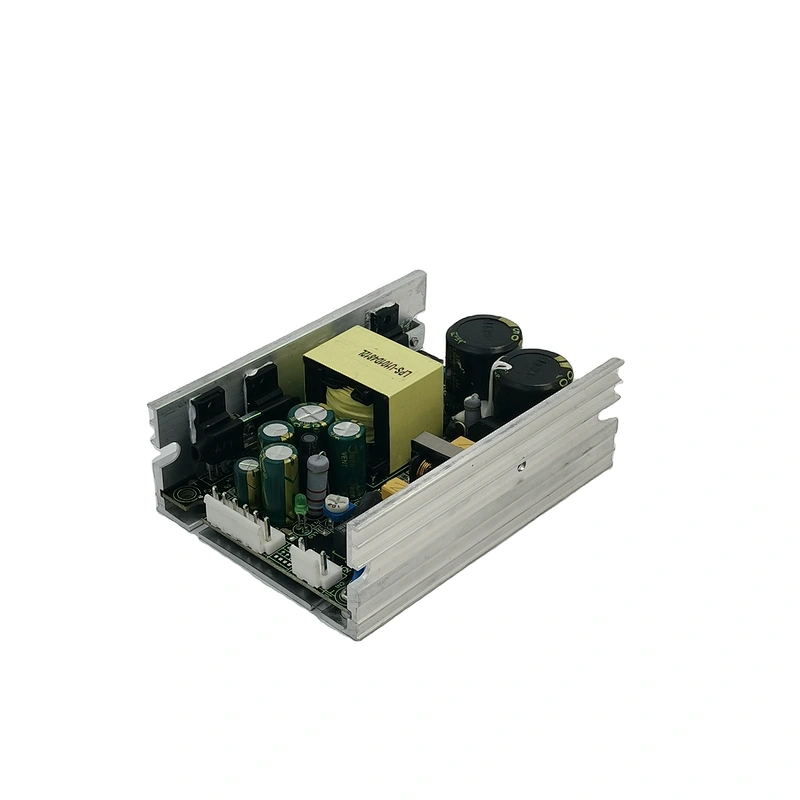

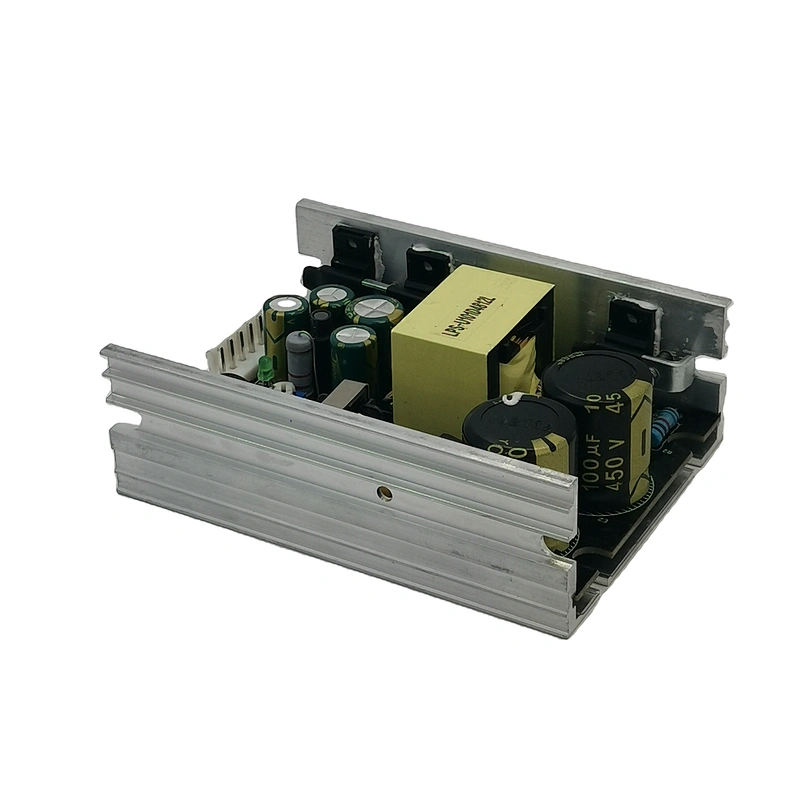

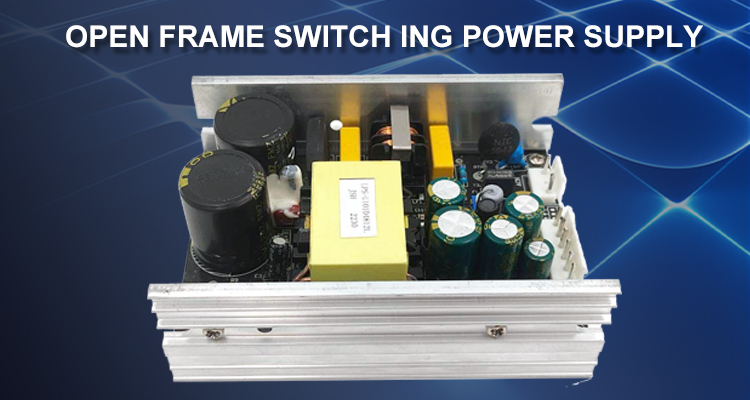

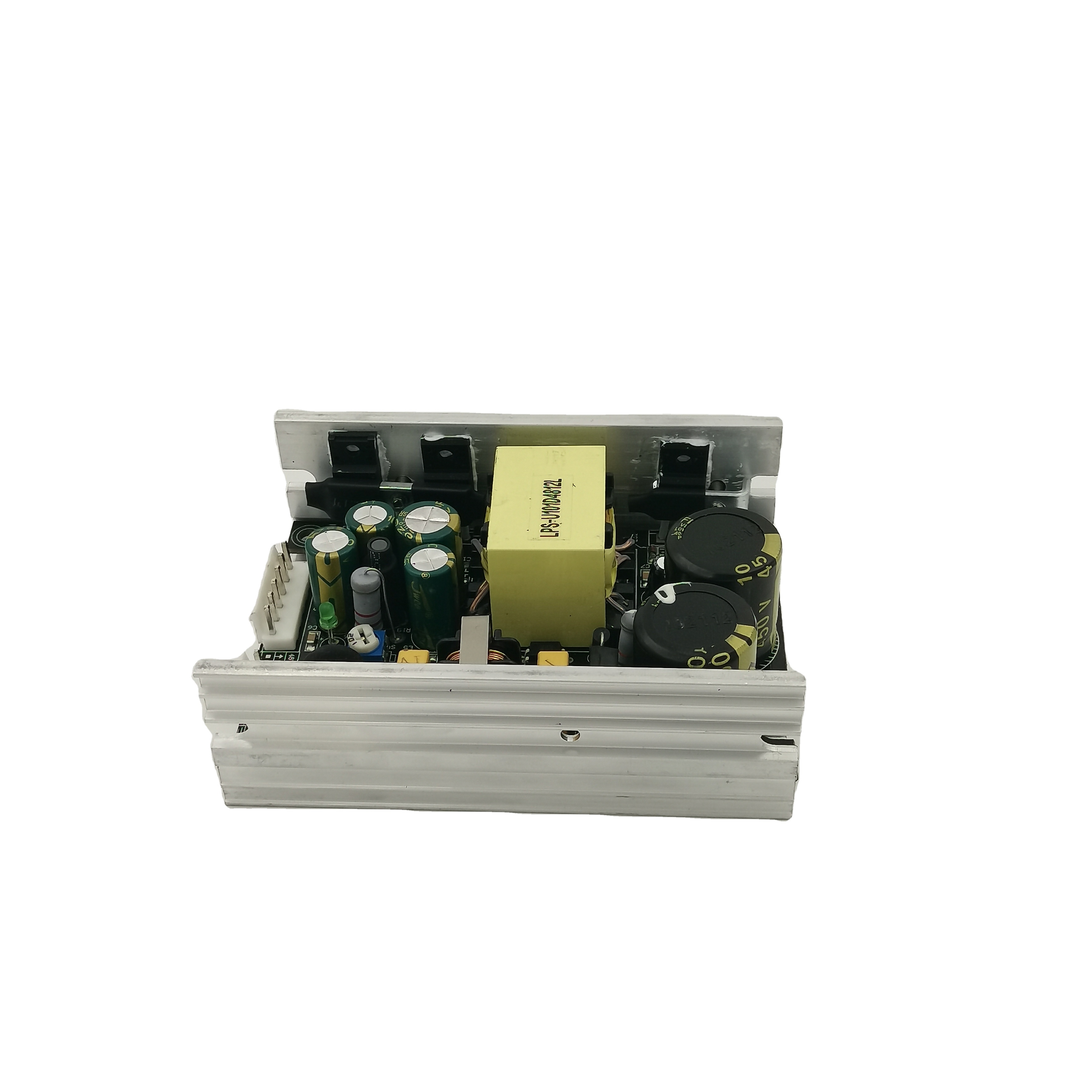

High Quality Open Frame 100W 48V 12V 2A 0.5A AC DC Converter Dual Output Industrial Switching Power Supply
Product Description
| MODEL | LPS-U101D4812L | ||
| OUTPUT | Output Voltage(V) | 12V | 24V |
| Output Current(A) | 0.5A | 4A | |
| Current Range (A) | 0-0.5A | 0-4A | |
| Rated Power(W) | 100W | ||
| Ripple/Noise(mVp-p) | 150mVp-p | 240mVp-p | |
| Voltage Regulation | ±5% | ±5% | |
| Line Regulation | ±1% | ||
| Load Regulation | ±5% | ||
| Start time, Rise time(ms) | 2000mS,30mS/230VAC 3000mS,30mS/115VAC(at full load) | ||
| hold-up time(ms) | 50mS/230VAC 15mS/115VAC(full load) | ||
| INPUT | Input Voltage(V) | 90-264VAC | |
| Frequency (Hz) | 47-63Hz | ||
| Efficiency | 80% | ||
| Input Current (A) | 4A/115VAC 2A/230VAC | ||
| Inrush current(A) | 65A/230VAC | ||
| Leakage current(mA) | 0.75mA/240VAC | ||
| PROTECTION | Over voltage Protection | >115%-175% Rated output voltage | |
| Protected Mode: Hiccup mode, the load automatically after fault condition is removed to restore | |||
| Short circuit Protection | Less than 0.1 ohm output impedance, the power supply will be protected and will not appear components, connectors and other damage to the danger | ||
| Protected Mode: Hiccup mode, output short circuit fault condition is removed automatically after recovery | |||
| ENVIRONMENT | working Temperature (°C) | 0~+50°C | |
| Humidity(%) | 20~90%RH,non-condensing | ||
| Storage Temperature(°C)&Humidity(%) | ‘-20~+85°C,10-95%RH | ||
| TEMP. COEFFICIENT | ±0.03%/°C(0-50°C) | ||
| Vibration | 10-500Hz,2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||
| SAFETY & EMC | SAFETY STANDARDS | UL60950-1,EN60950-1,CCC GB4943,J60950-1(exce[t for 48V)approved | |
| Withstand voltage(VAC) | I/P-O/P:3KVAC I/P-PG:1.5KVAC O/P-PG:0.5KVAC | ||
| ISOLATION RESISTANCE | I/P-O/P,I/P-FG,50M Ohms/500VDC/25°C/70%RH | ||
| EMC EMISSION | Compliance to EN55022 class B EN61000-3-2.3 GB9254,GB17625.1 | ||
| EMC IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,8,11, light industry level, criteria A | ||
| OTHER | MTBF | ≥711Khrs MIL-HDBK-217F(25°C) | |
| Dimession | 160*95*35mm(L*W*H) | ||
