- Place of Origin:CN;GUA
- Output Type:DC
- Connection:Plug In
- Brand Name:ETOP
- Model Number:ADS-U012S09A
- Product Name:IP44 switching power adapter
- Input:100-240v
- Rated Power:12W
- Output Voltage:5v 7v 9v 12v
- Output Current:0.1-2.4A
- Protection:OVP OCP OTP SCP
- Certification:CE RoHS FCC UL1310 (outdoor)
- Appearance Dimension:77.9*44.9*74.4mm (L*W*H)
- Color:Black
- Warranty:3 Years

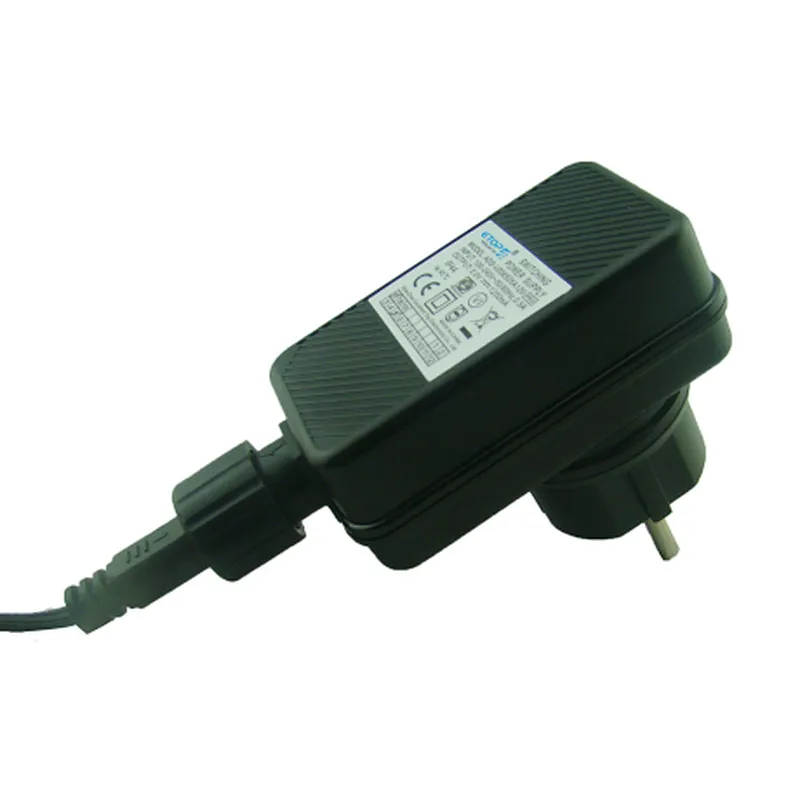

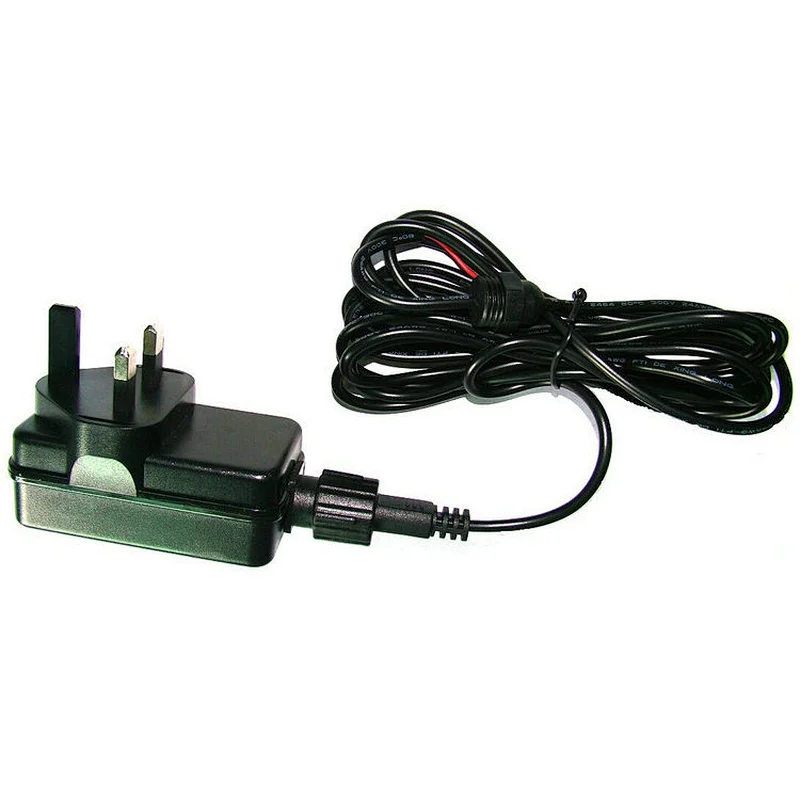

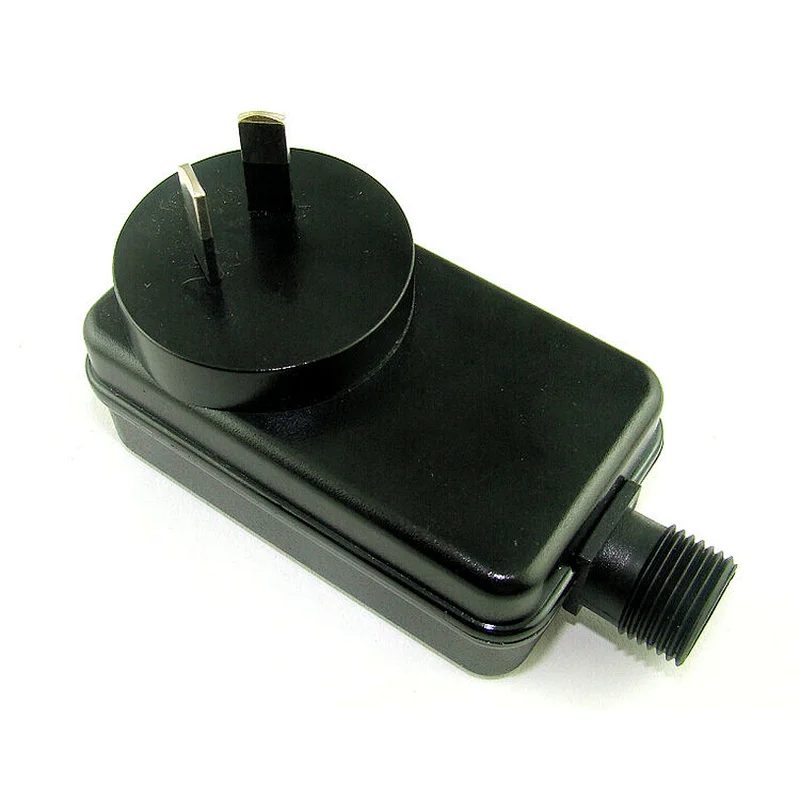

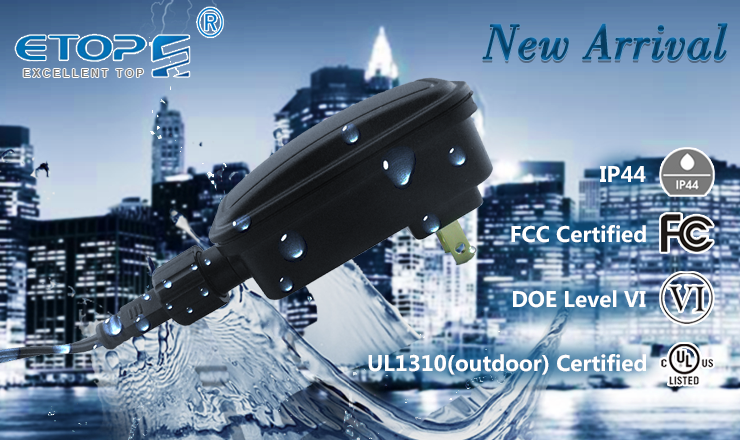

ac dc adapter 9v 5v 12v IP44 switching power adapter

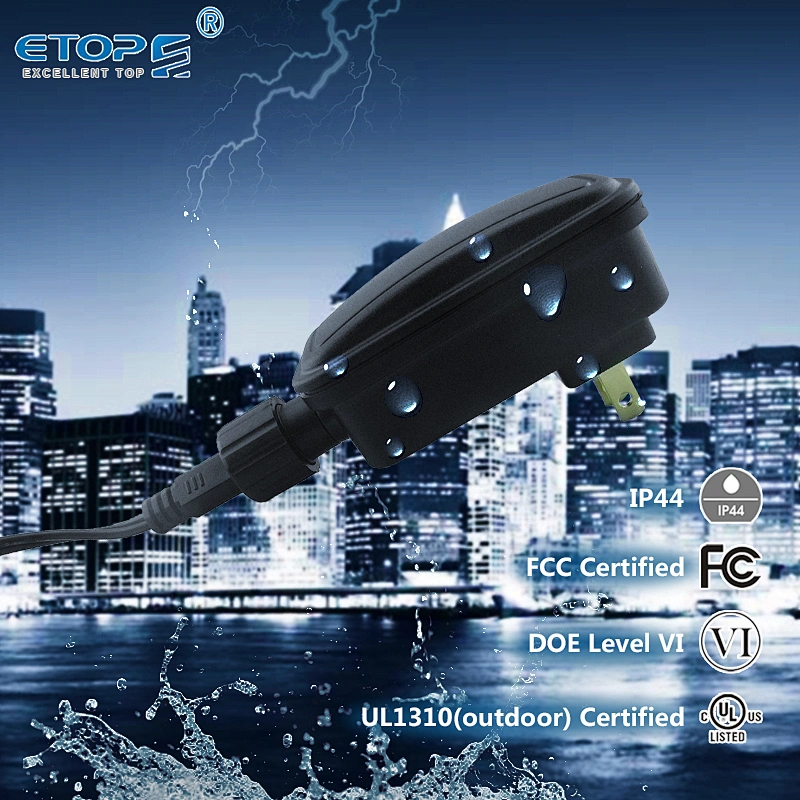

Features:
1. Universal AC input/full range;
2. 100% full load burn-in testing;
3. Constant voltage type;

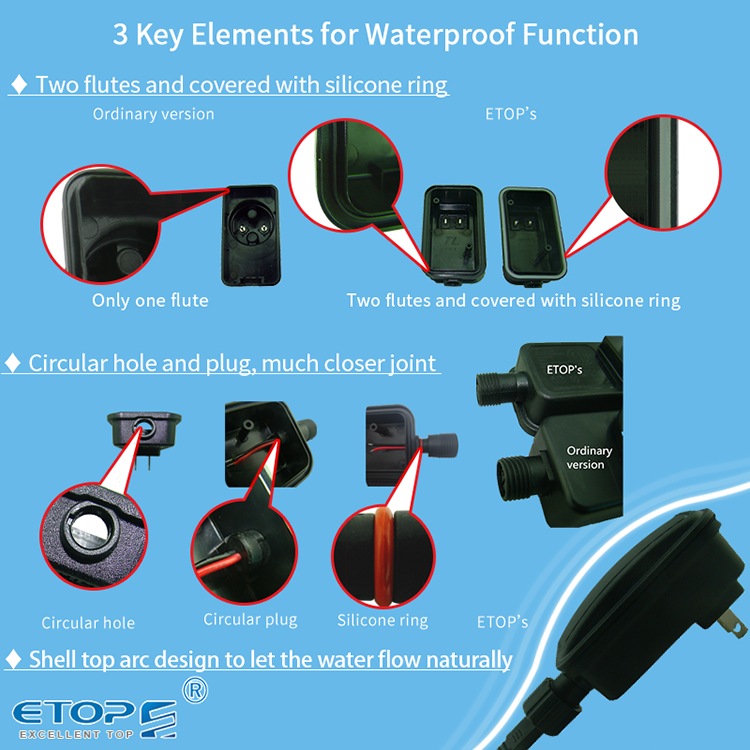

4. Waterproof fully enclosed plastic case;
5. UL1310(outdoor) approved;
6. DOE level VI approved;
7. FCC approved;
8. IP44 approved;
9. 3-year warranty;

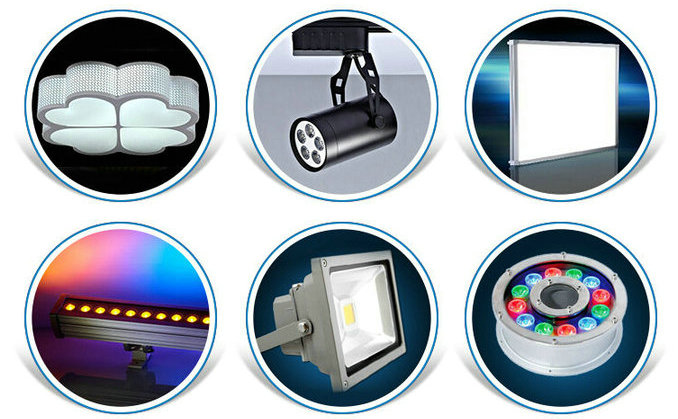

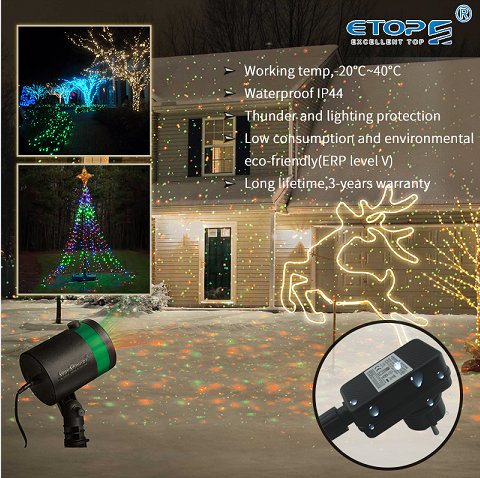

10. Widely used for Xmas lights, landscape lighting,
household electrical appliance, outdoor electronic products, etc.
Parameters:
| Model | Output | R&N | TOL. | Line regulation | Load regulation | Effi. |
| ADS-U010S05A | 5V/2A | 120mVp-p | ±5% | ±1% | ±5% | 80% |
| ADS-U010S07A | 7V/1.42A | 70mVp-p | ±5% | ±1% | ±5% | 82% |
| ADS-U010S09A | 9V/1.1A | 120mVp-p | ±5% | ±1% | ±5% | 83% |
| ADS-U010S12A | 12V/0.83A | 120mVp-p | ±5% | ±1% | ±5% | 87% |
| ADS-U012S05A | 5V/2.4A | 120mVp-p | ±5% | ±1% | ±5% | 79% |
| ADS-U012S07A | 7V/1.7A | 120mVp-p | ±5% | ±1% | ±5% | 82% |
| ADS-U012S09A | 9V/1.33A | 120mVp-p | ±5% | ±1% | ±5% | 83% |
| ADS-U012S12A | 12V/1A | 120mVp-p | ±5% | ±1% | ±5% | 85% |
| Input | AC 100-240V (90-264V) 50/60Hz |
| output | 5V 1.2A 12V 2A~12V 10A( Voltage can be 5V-48V) |
| Protection | Over voltage protection |
| Over Current Protection | |
| Short circuit protection | |
| Certificates | CE, GS, BS, SAA, UL, CUL, EMC, LVD, FCC,ROHS,REACH |
| AC Plug | USA/UK/EU/AU/Korean/Japenese/Chinese optional |
| Outlet Way | with cable |
| Material | ABS |
| Energy efficiency | Class V |
| Color Available | Black, customize |
| Compatible | LED, Electronic cigarette, Tablet, Water purifier, Router, CCTV camera, LCD, Motor, Fan, Toys |
Medical machine, POS machine, Beauty & Health equipment, Humidifier, LED lights,Minitor,Fans, Xmas lights, landscape lighting | |
Our Product Package:
We provie quality power supply products and service:
- Open frame type power supply
- Enclosed type power supply
- LED driver waterproof series
- Power adapter
- ODM/OEM order
Our advantage:
1.Good and High efficiency Team. OEM&ODM Services.
2. Transportation ways of products:
By air, By sea, By express, Pick up in factory.
3. Product Certificates:
Almost all of our products get CE/CCC/ROHS/FCC etc certificates,And our company pass ISO9001and ISO14001.
4. We are maufacturer, with office and workshop in Shenzhen.

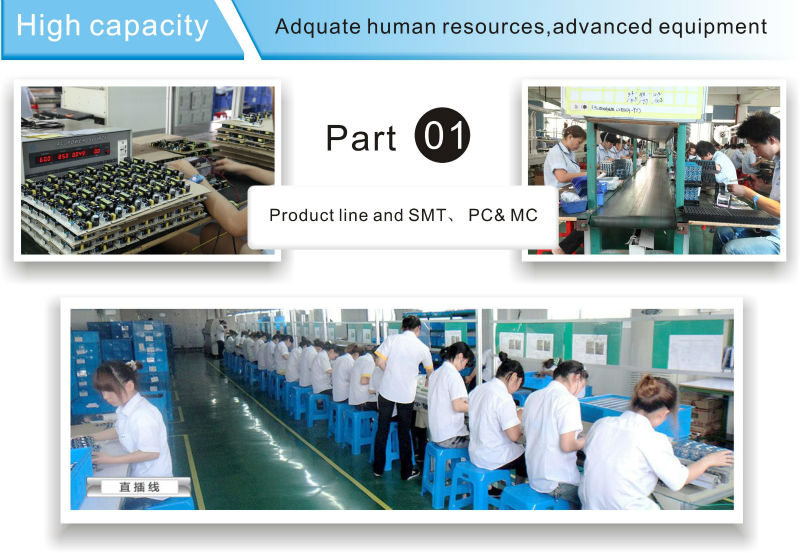

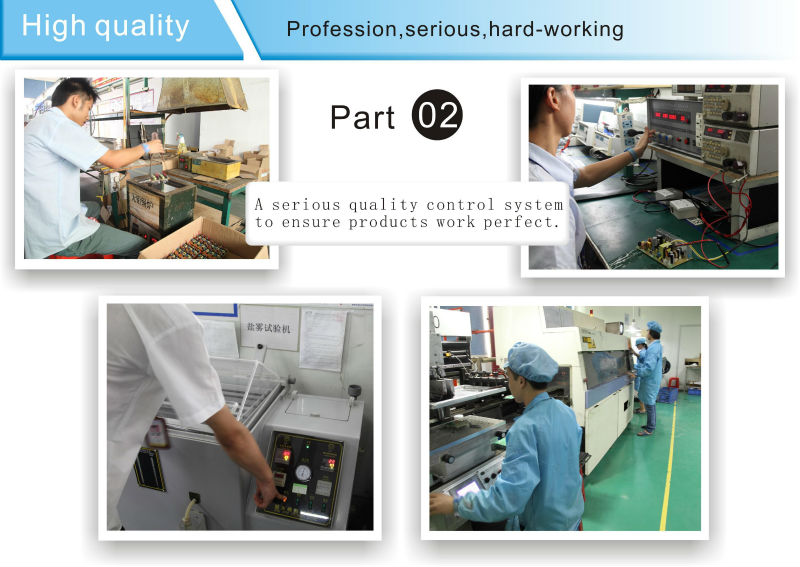

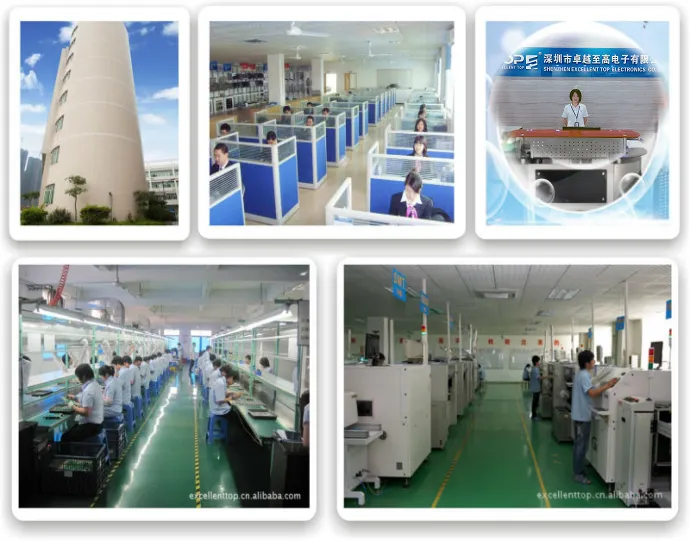

Our Teams and working place:
1. Q: Is sample available?
A: Yes, sample order is welcome.
2. Q: Can you factory provide ODM/OEM service?
A: ETOP factory have professional engineer team.
Your ODM/OEM order is welcome !
