- Place of Origin:CN;GUA
- Output Type:DC
- Connection:Plug In
- Usage:car stereo and stage light and lcd
- Brand Name:ETOP
- Model Number:ADS-U024XXL
- Size:86*48*30.5
- Material:Plastic
- Protections:short circuit/ over load/ over voltage/over temp
- Color:Black
- Input voltage:110-240VAC 47/63HZ
- working environment:0-40℃
- temperature coefficient:±0.03%/℃(0-50℃)
- over load:>110%-200%,hiccup mode, auto recovery
- over votage:>115%-135%,hiccup mode, auto recovery
- leakage current:0.75mA/240VAC

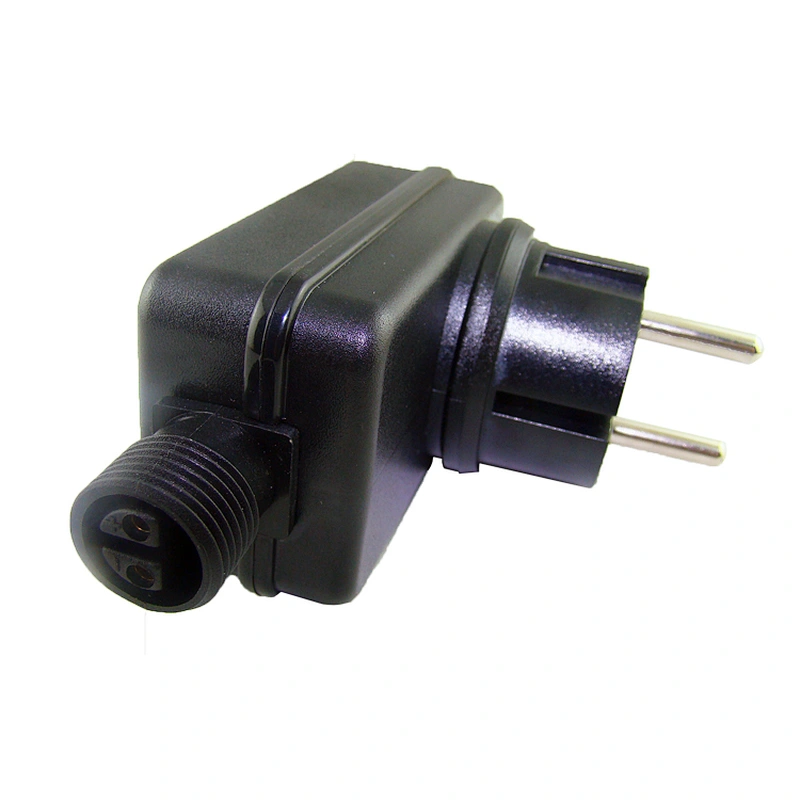

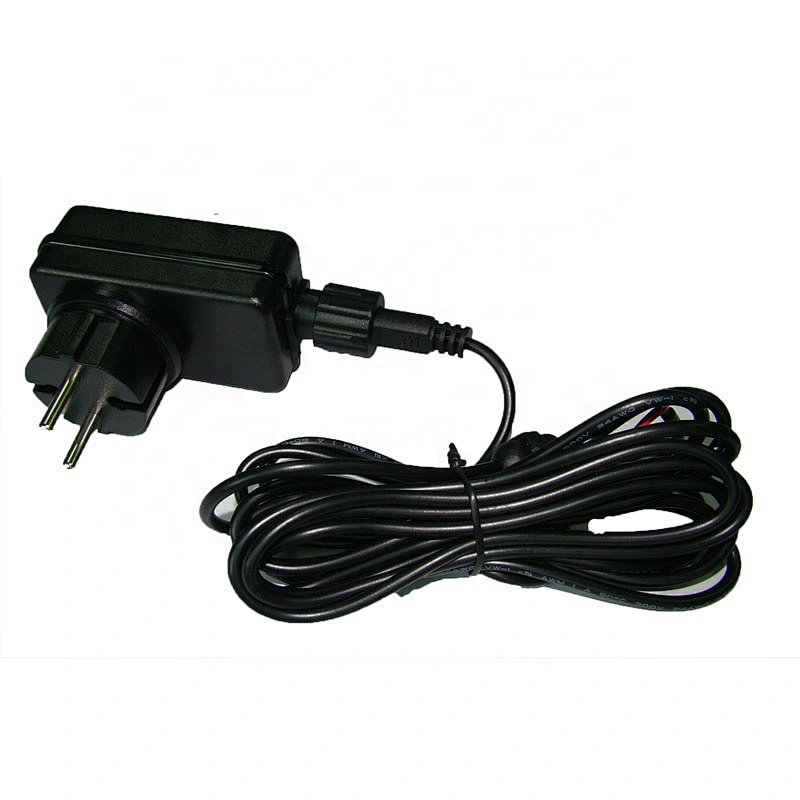

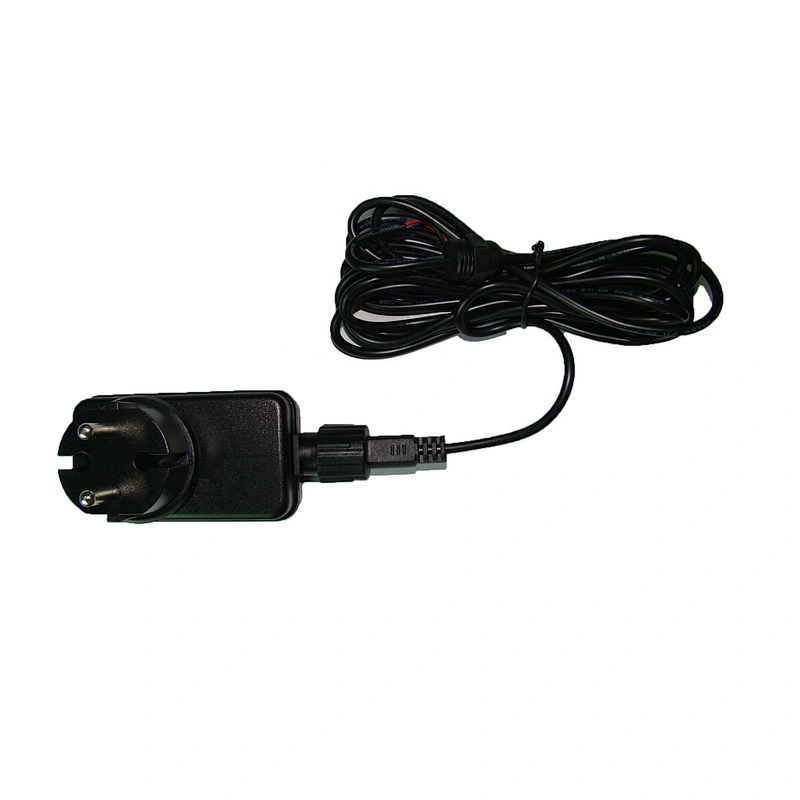

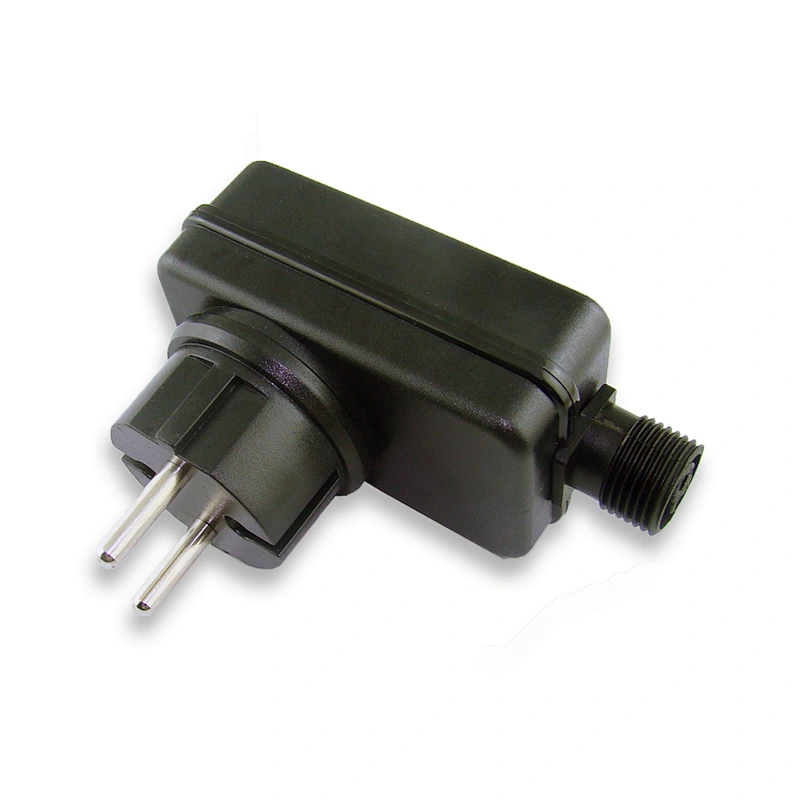

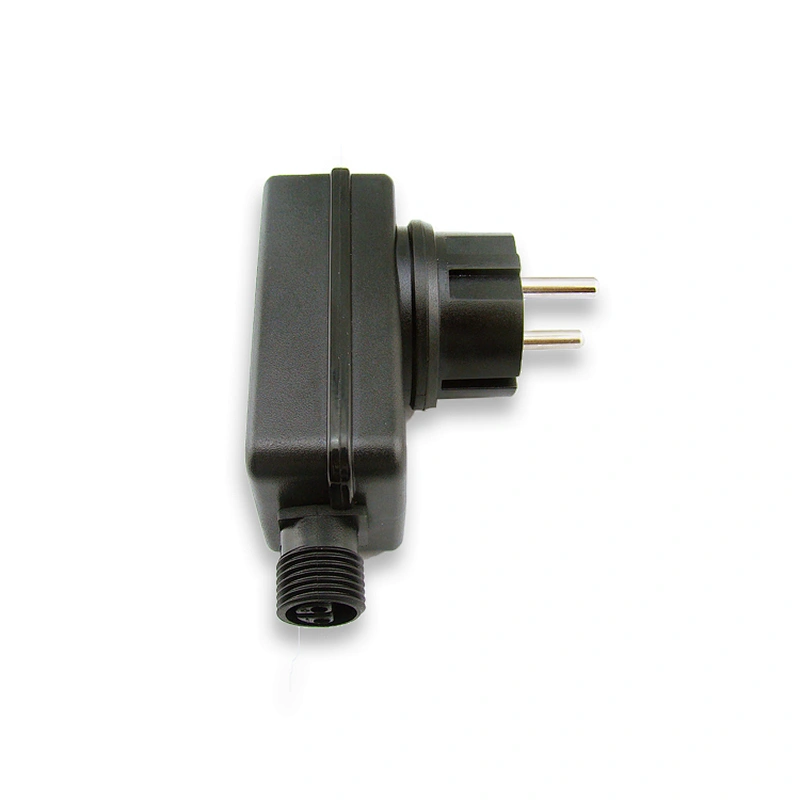

Ip44 2 or 3 plug 24w 12v outdoor Waterproof AC Power Supply Adaptor for led
Features:
1. Universal AC input/full range;
2. 100% full load burn-in testing;
3. Constant voltage type

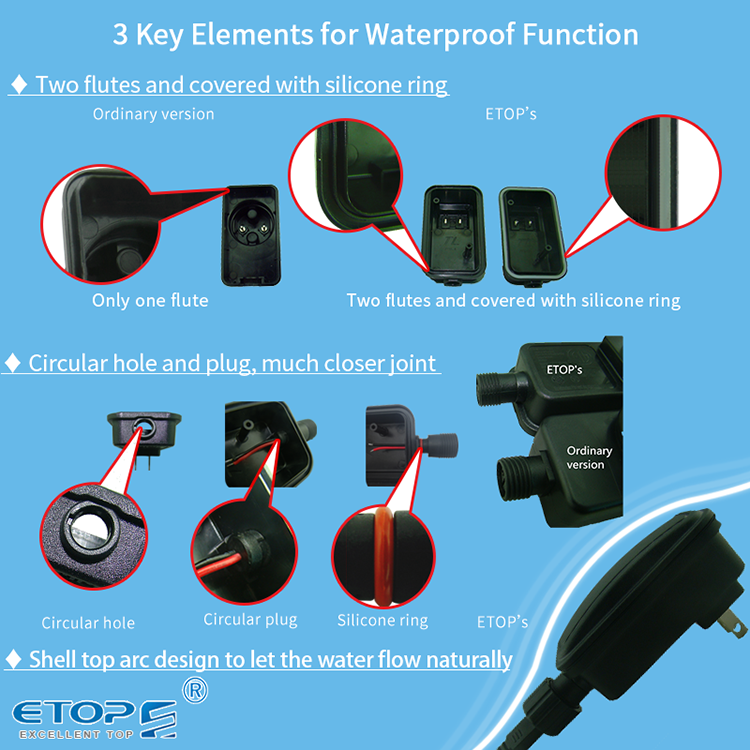

4. Waterproof fully enclosed plastic case;
5.Low cost, LED indicator
6. DOE level VI approved;
7. FCC approved;
8. IP44 approved;
9. 3-year warranty;

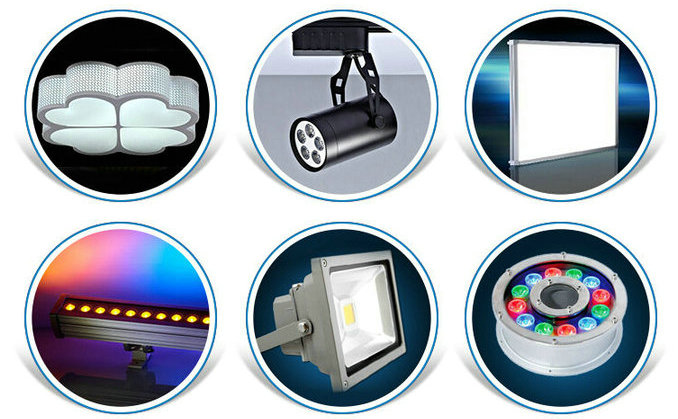

10. Widely used for Xmas lights, landscape lighting,household electrical appliance, outdoor electronic products, etc.
Parameters:
| Model | Output | R&N | TOL. | Line regulation | Load regulation | Effi. |
| ADS-U024S05A | 5V/4A | 100mVp-p | ±5% | ±1% | ±5% | 78.5% |
| ADS-U024S7.5A | 7.5V/2.93A | 100mVp-p | ±5% | ±1% | ±5% | 81.5% |
| ADS-U024S12A | 12V/2.08A | 120mVp-p | ±5% | ±1% | ±5% | 82.5% |
| ADS-U024S15A | 15V/1.66A | 120mVp-p | ±5% | ±1% | ±5% | 84.5% |
| ADS-U024S18A | 18V/1.38A | 150mVp-p | ±5% | ±1% | ±5% | 84.5% |
| ADS-U024S24A | 24V/1.04A | 180mVp-p | ±5% | ±1% | ±5% | 85.5% |
| ADS-U024S48A | 48V/0.52A | 240mVp-p | ±5% | ±1% | ±5% | 87.5% |
| Input | AC 100-240V (90-264V) 50/60Hz |
| output | 5V 1.2A 12V 2A~12V 10A( Voltage can be 5V-48V) |
| Protection | Over voltage protection |
| Over Current Protection | |
| Short circuit protection | |
| Certificates | CE, GS, BS, SAA, UL, CUL, EMC, LVD, FCC,ROHS,REACH |
| AC Plug | USA/UK/EU/AU/Korean/Japenese/Chinese optional |
| Outlet Way | with cable |
| Material | ABS |
| Energy efficiency | Class V |
| Color Available | Black, customize |
| Compatible | LED, Electronic cigarette, Tablet, Water purifier, Router, CCTV camera, LCD, Motor, Fan, Toys |
Medical machine, POS machine, Beauty & Health equipment, Humidifier, LED lights,Minitor,Fans, Xmas lights, landscape lighting | |
We provie quality power supply products and service:
- Open frame type power supply
- Enclosed type power supply
- LED driver waterproof series
- Power adapter
- ODM/OEM order
Our advantage:
1.Good and High efficiency Team. OEM&ODM Services.
2. Transportation ways of products:
By air, By sea, By express, Pick up in factory.
3. Product Certificates:
Almost all of our products get CE/CCC/ROHS/FCC etc certificates, And our company pass ISO9001and ISO14001.
4. We are maufacturer, with office and workshop in Shenzhen.

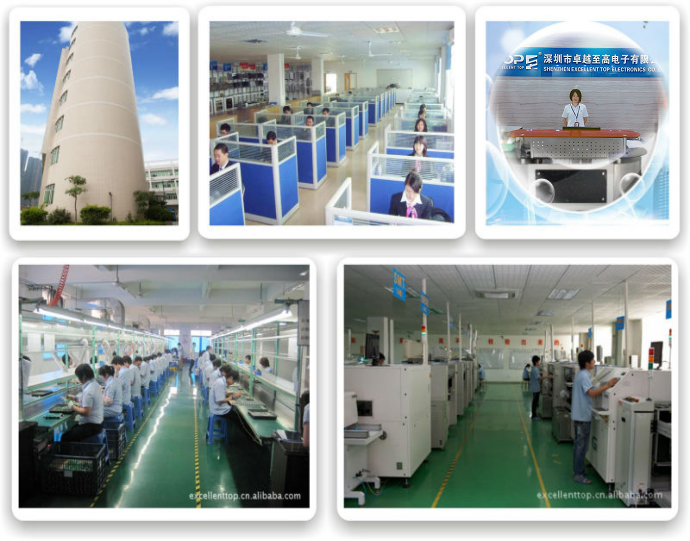

Our Teams and working place:
1. Q: Is sample available?
A: Yes, sample order is welcome.
2. Q: Can you factory provide ODM/OEM service?
A: ETOP factory have professional engineer team.
Your ODM/OEM order is welcome !
