- Place of Origin:CN;GUA
- Output Power:51 - 100W
- Output Type:Single
- Brand Name:ETOP
- Model Number:HPS--U060XXA
- Input Voltage:176--264VAC
- Output Frequency:47--63HZ
- Output Current:1.3A 2.5A 4A 5A 12A
- Output Voltage:5V 12V 15V 24V 48V
- Wiring Type:Terminals
- Package:Inner Box
- Warranty:24 Months
- Size:99*82*30mm
- Efficiency:82%
- Protections:Shortcuit Overtemp Overload Overvoltage
- Working temperature:-25~+70℃
- Output:5V 12V 15V 24V 48V
- Material:Aluminium
- Feature:Low Cost

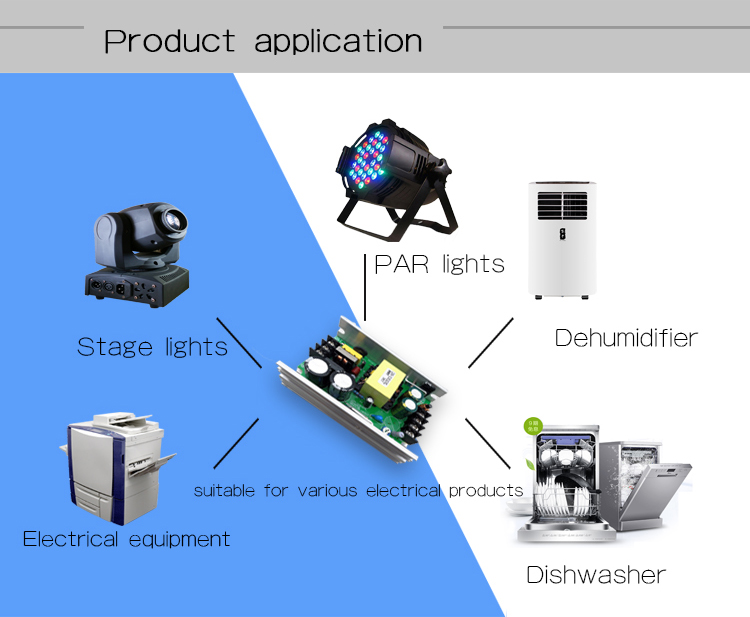

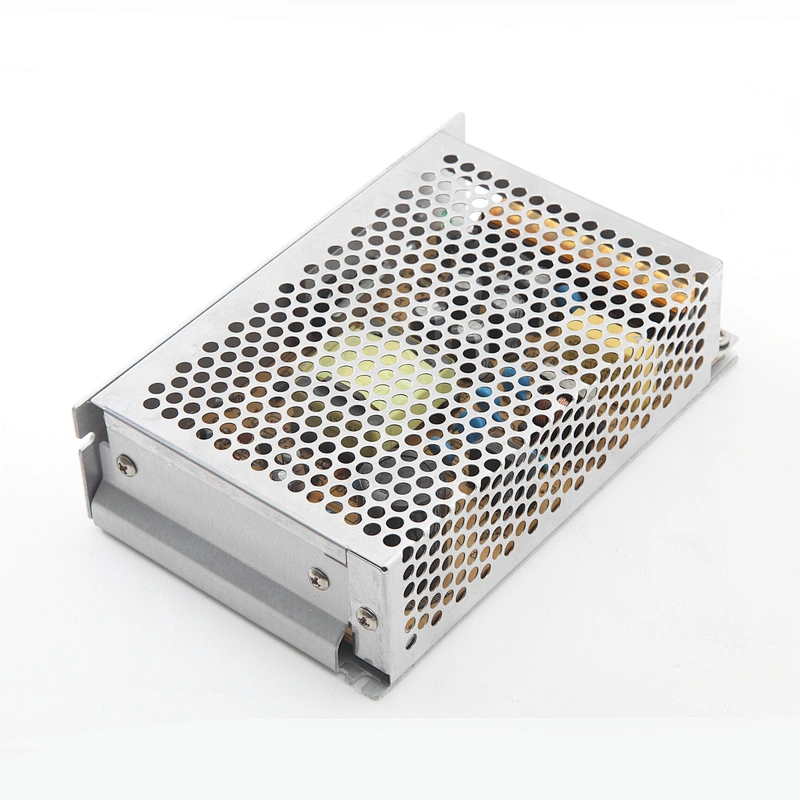

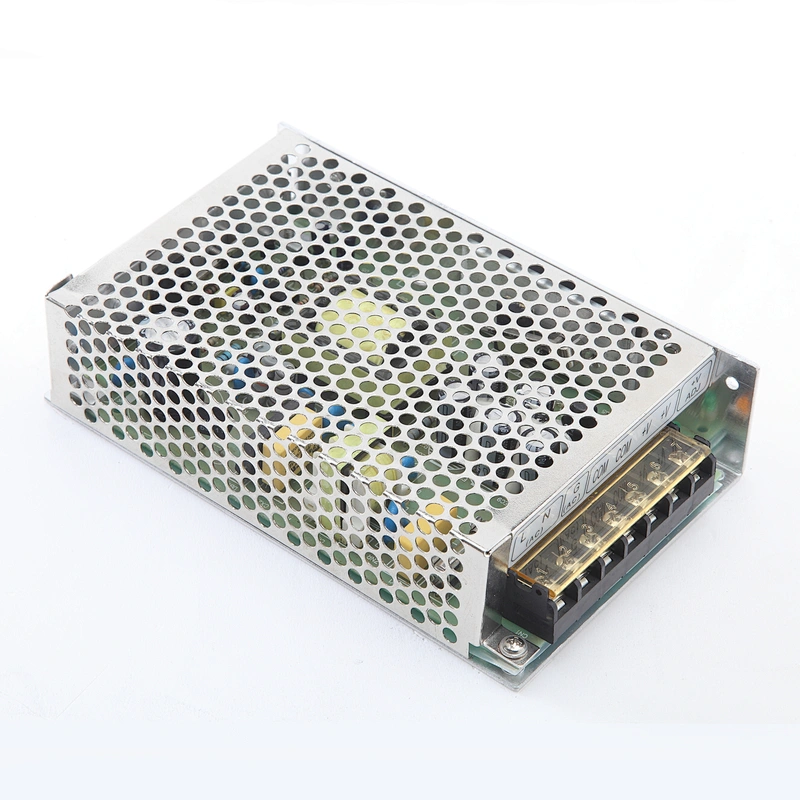

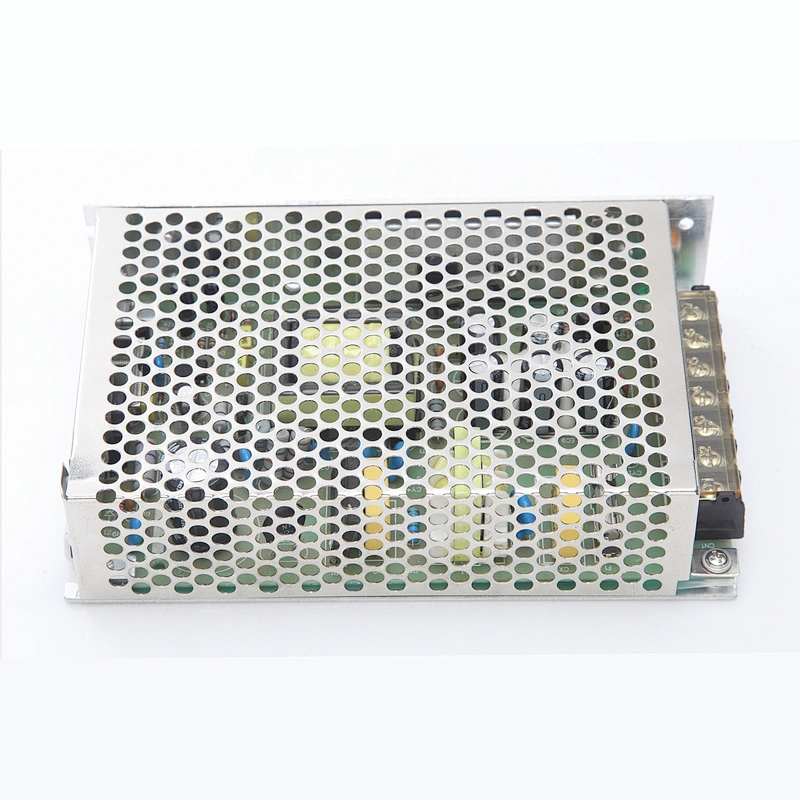

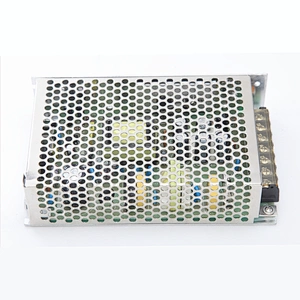

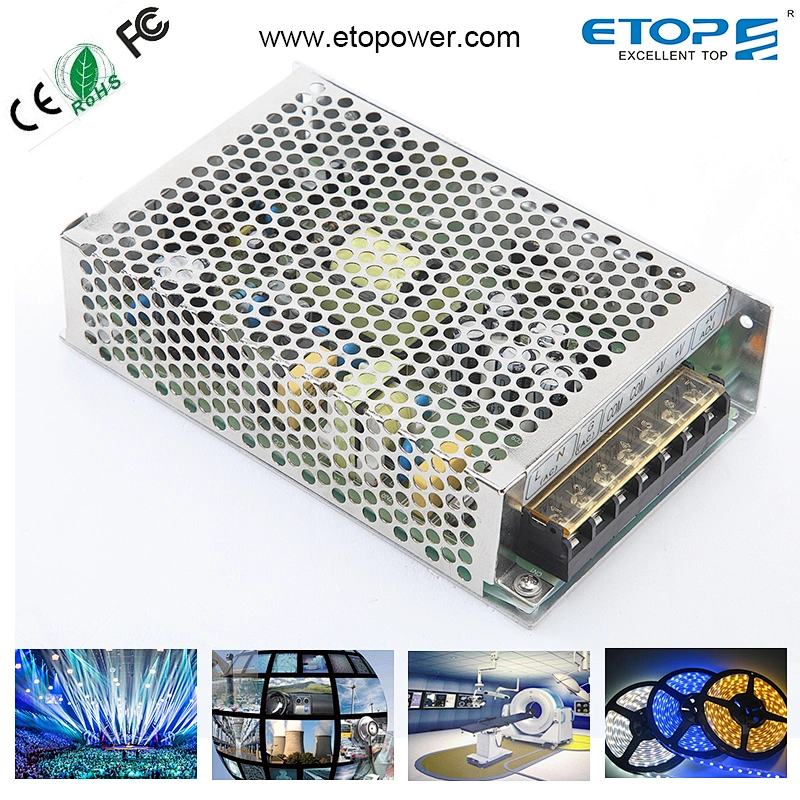

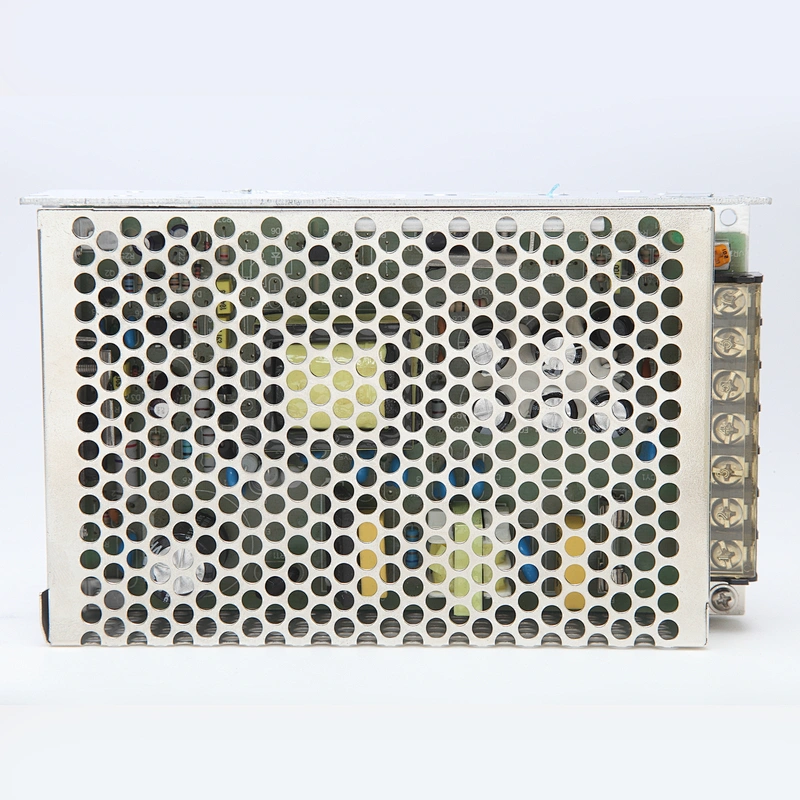

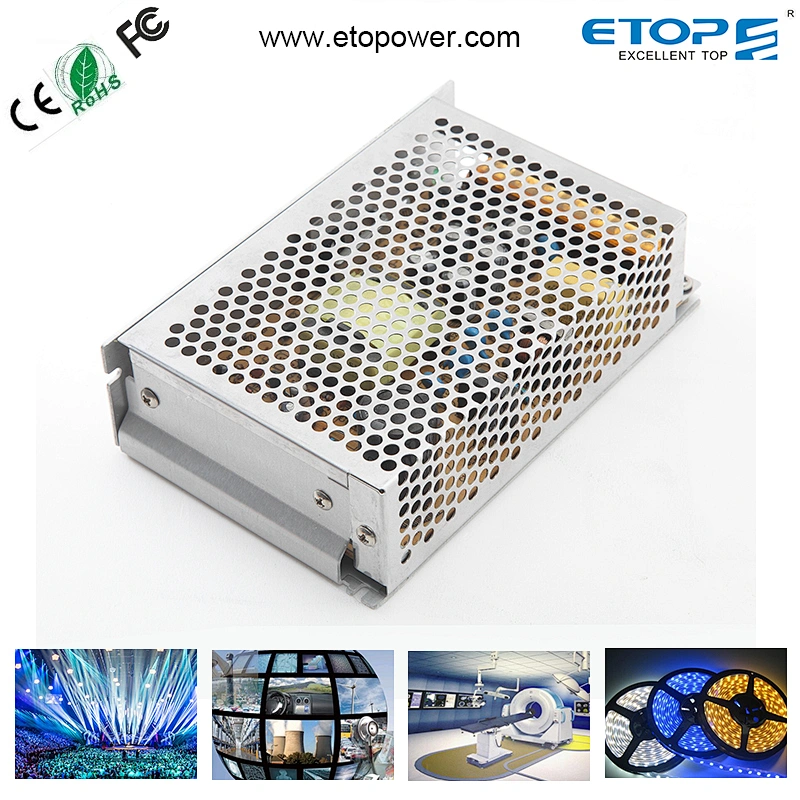

120v to 24v 180w adjustable AC DC power supply for stage light
Product Description

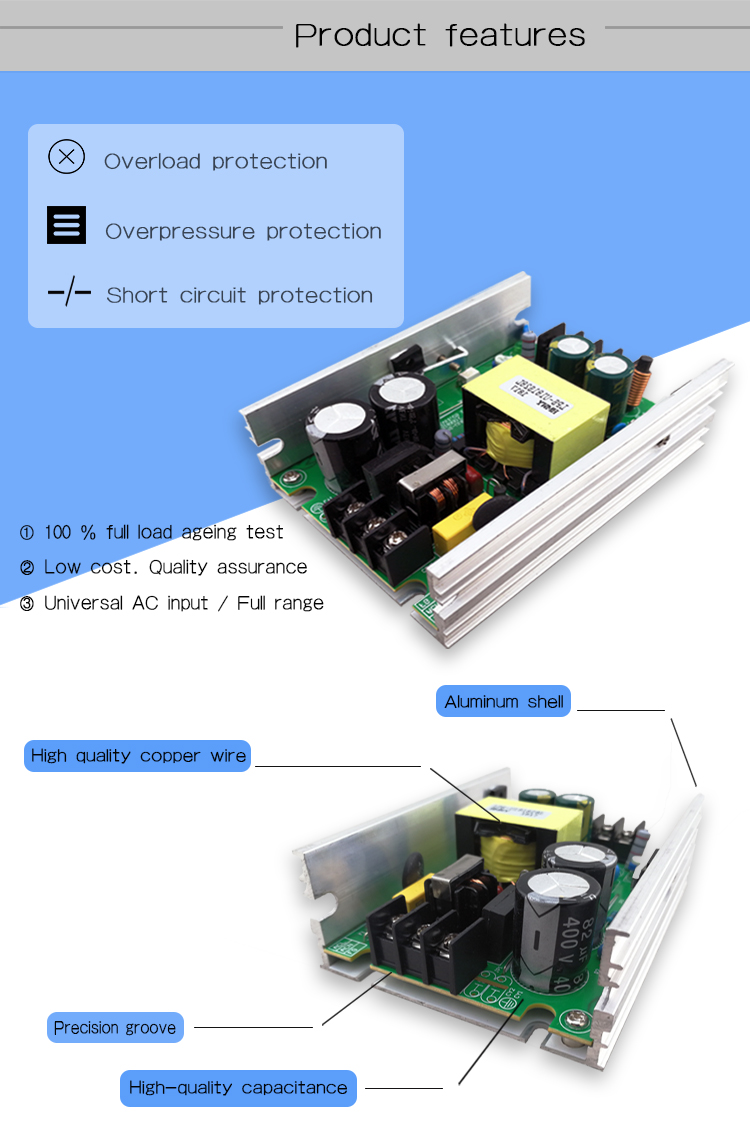

Features:
- Universal AC input/ Full range
- Constant voltage output
- Class I power(with earth pin)
- Protections:Short circuit/Overcurrent/Over voltage
- With adjustable output voltage range
- Provide customize service, OEM/ODM
Parameter table:
| Model | Output | R&N | TOL. | Line regulation | Load regulation | Effi. |
| LPS-U60S05L | 5V/16A | 80mVp-p | ±2% | ±0.5% | ±0.5% | 77% |
| LPS-U60S12L | 12V/8.5A | 120mVp-p | ±2% | ±0.5% | ±0.5% | 82% |
| LPS-U60S15L | 15V/7A | 150mVp-p | ±2% | ±0.5% | ±0.5% | 83% |
| LPS-U60S24L | 24V/4.5A | 200mVp-p | ±2% | ±0.5% | ±0.5% | 86% |
| LPS-U60S48L | 48V/ .3A | 240mVp-p | ±2% | ±0.5% | ±0.5% | 87% |
| Input current | 1.8A/115VAC 0.9A/230VAC |
| Inrush current (Max.) | 30A/115VAC 60A/230VAC |
| Leakage current(Max) | 0.75mA /240Vac |
| Set up , rise time | 2000ms,30ms/230VAC 3000ms,30ms/115VAC(at full load) |
| Hold up time | 50mS/230VAC 15mS/115VAC(at full load) |
| Working tem.& Humidity | 0~ +40℃ (Refer to "Derating Curve"),20% ~ 90% RH non-condensing |
| storage tem.& Humidity | - 25 ~ +75℃ , 10 ~ 95% RH |
| Tem. coefficicient | ±0.03%/℃(0~50℃) |
| Vibration resistance | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes |
| Withstand voltage | I/P-0/P: 1.5KVAC I/P-PG: 1.0KVA O/P-PG: 0.5KVAC C |
| Safety standards | EN60950-1,CCC GB4943,J60950-1 |
| EMC standard | En55022 classB EN61000-3-2.3 EN61000-4-2,3,4,5,6,8,11 |
| Over temp. | N/C |
| Over load | >110%-200% hiccup mode,Auto recovery |
| Short circuit | >115%~135%,hiccup mode,Auto recovery |
| MTBF | ≥30Khrs MIL-HDBK-217F ( 25℃ ) |
| Size | 199*99*50m (L*W*H) |
| Packing | could be customized |
Packaging & Shipping
FAQ
1. Q: Is sample available?
A: Yes, your sample order is welcome.
2. Q: Can you factory provide ODM/OEM service?
A: ETOP factory have professional engineer team.
Your ODM/OEM order is welcome !
