- Certification:CE FCC ROHS
- Warranty:24 Months
- Protections:Shortcuit Overtemp Overload Overtemp
- Size:199*98*38mm
- Efficiency:82%
- Weight:0.6Kg
- Over load:>130%-150%
- over current:>110-150%
- Safety Standards:EN55015/EN61000-3-2/EN61000-3-3
- Feature:High Reliability
- Output Power:101 - 200W
- Output Type:Single
- Output Voltage:5V 12V 15V 24V 48V
- Place of Origin:CN;GUA
- Brand Name:ETOP
- Model Number:HPS-U151XXA
- Input Voltage:88-132VAC or 176-264VAC
- Output Frequency:47-63HZ
- Output Current:26A 12.5A 10A 6.5A 3.3A

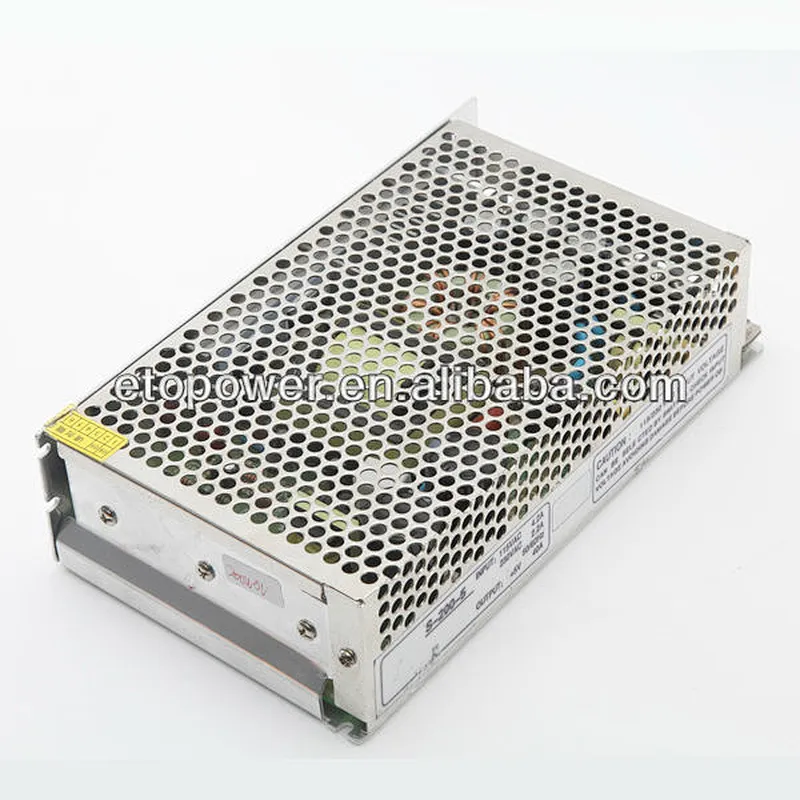

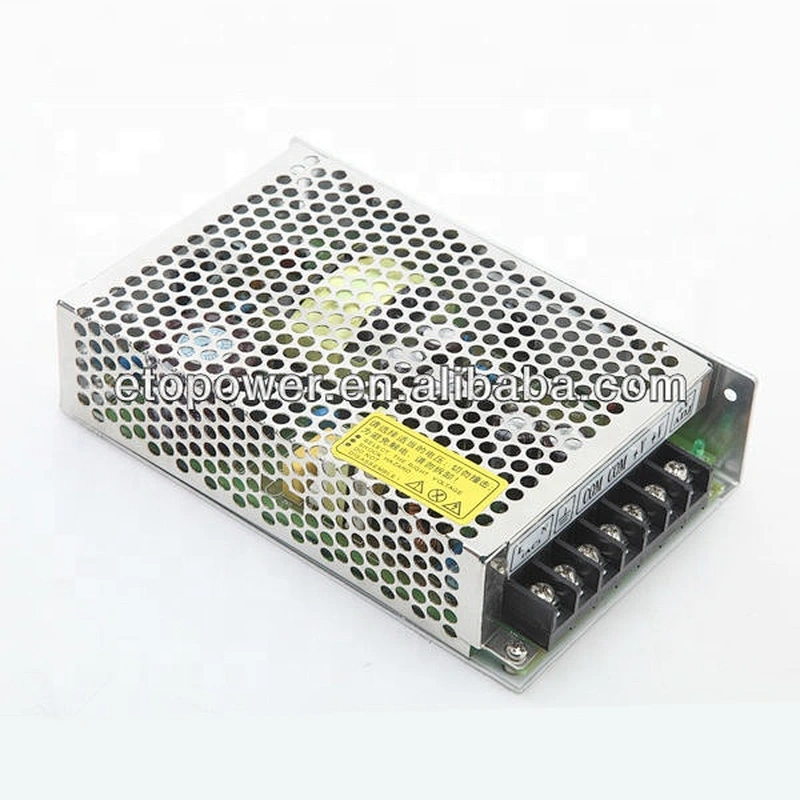

metal kasa high quality 150W 48V regulated AC DC power supply power source
Product Description

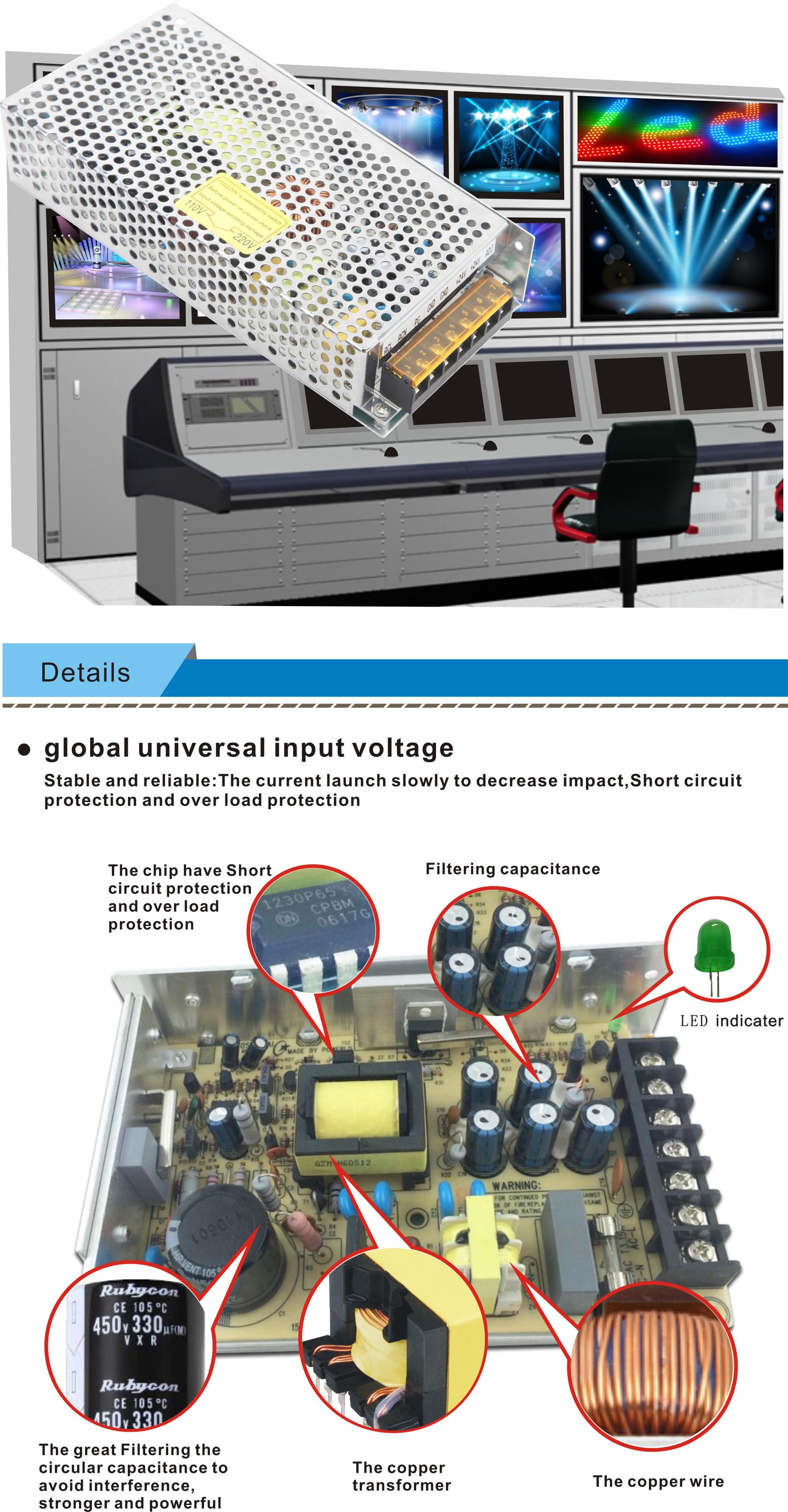

Features:
- Universal AC input/ Full range
- Constant voltage output
- Class I power(with earth pin)
- Protections:Short circuit/Overcurrent/Over voltage
- With adjustable output voltage range
- Provide customize service, OEM/ODM
Parameter table:
| Model | Output | R&N | TOL. | Line regulation | Load regulation | Effi. |
| LPS-U151S05A | 5V/26A | 60mVp-p | ±2% | ±0.5% | ±1% | 78% |
| LPS-U151S12A | 12V/12.5A | 120mVp-p | ±2% | ±0.5% | ±1% | 83% |
| LPS-U151S15A | 15V/10A | 120mVp-p | ±2% | ±0.5% | ±1% | 83% |
| LPS-U151S24A | 24V/6.5A | 220mVp-p | ±2% | ±0.5% | ±1% | 85% |
| LPS-U151S48A | 48V/3.3A | 240mVp-p | ±2% | ±0.5% | ±1% | 85% |
| Input voltage range & frequency range | 88-132 or 176-264AC 47-63Hz |
| Input current | 1.8A/115VAC 0.9A/230VAC |
| Inrush current (Max.) | 30A/115VAC 60A/230VAC |
| Leakage current(Max) | 0.75mA /240Vac |
| Set up , rise time | 2000ms,30ms/230VAC 3000ms,30ms/115VAC(at full load) |
| Hold up time | 50mS/230VAC 15mS/115VAC(at full load) |
| Working tem.& Humidity | 0~ +40℃ (Refer to"Derating Curve"),20% ~ 90% RH non-condensing |
| storage tem.& Humidity | - 25 ~ +75℃ , 10 ~ 95% RH |
| Tem. coefficicient | ±0.03%/℃(0~50℃) |
| Vibration resistance | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes |
| Withstand voltage | I/P-0/P: 1.5KVAC I/P-PG: 1.0KVA O/P-PG: 0.5KVAC C |
| Safety standards | EN60950-1,CCC GB4943,J60950-1 |
| EMC standard | En55022 classB EN61000-3-2.3 EN61000-4-2,3,4,5,6,8,11 |
| Over temp. | N/C |
| Over load | >110%-200% hiccup mode,Auto recovery |
| Short circuit | >115%~135%,hiccup mode,Auto recovery |
| MTBF | ≥30Khrs MIL-HDBK-217F ( 25℃ ) |
| Size | 199*99*50m (L*W*H) |
| Packing | could be customized |
Our products have a complete certificate UL,CE ,ROHS ,GS,SAA,FCC,ETC
Packaging & Shipping
FAQ
1.Q: Is sample available?
A: Yes, your sample order is welcome.
2.Q: Can you factory provide ODM/OEM service?
A: ETOP factory have professional engineer team.
Your ODM/OEM order is welcome !
