- Model Number:HPS-U151SXXA
- type:constant voltage type
- Packing:white box+carton
- Certification:CE ROHS FCC UL
- Warranty:2 Years
- Working temperature:-25°~+70°
- Protection:short circit,over voltage,over load
- Size:199*98*38mm
- Efficiency:85%
- Feature:low cost,high reliability
- Output Power:101 - 200W
- Output Type:Single
- Output Voltage:24V
- Place of Origin:CN;GUA
- Brand Name:ETOP
- Model Number:HPS-U151SXXA
- Input Voltage:88~132VAC/176~264VAC
- Output Frequency:47~63Hz
- Output Current:6.5A

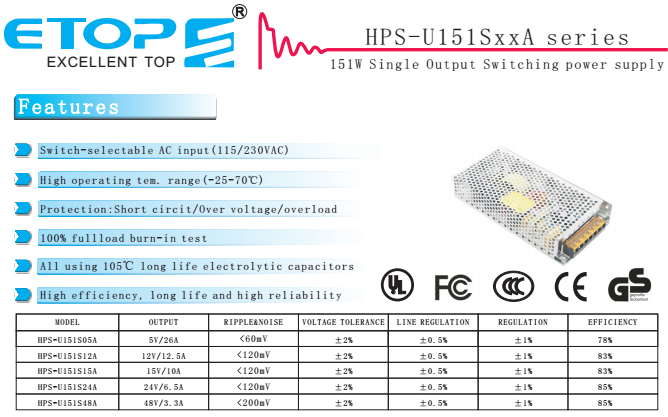

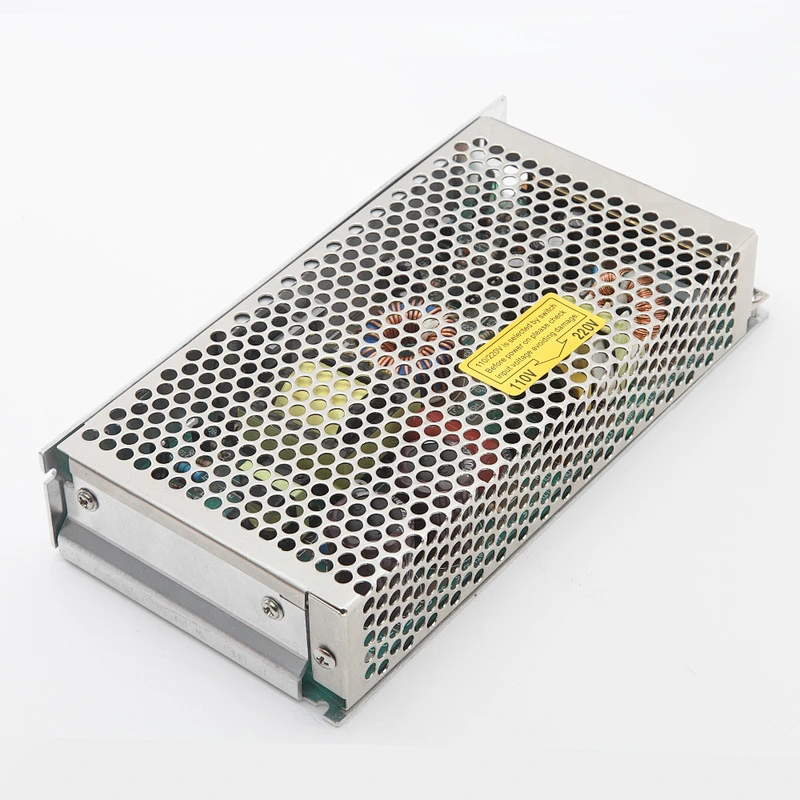

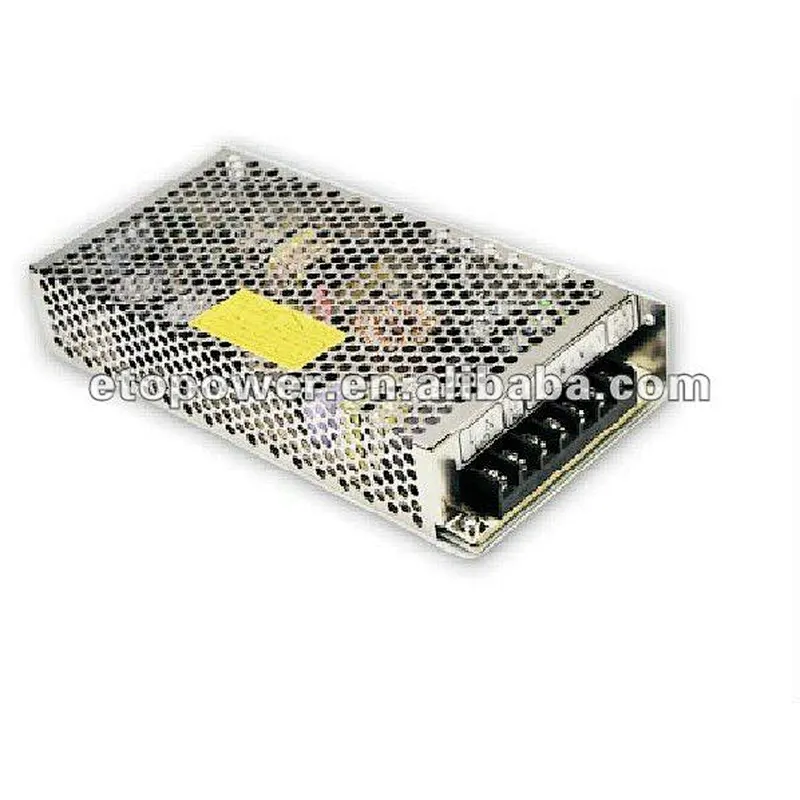

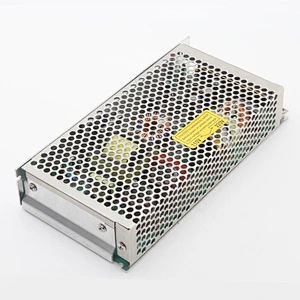

China manufacturer of led driver circuit 150w
Model | HPS-U151SXXA | |
Input | Input Voltage(V) | 88VAC-132VAC/176VAC-264VAC(by switch) |
Input Current (A) | 3A Max | |
Frequency (Hz) | 47Hz–63Hz | |
Efficiency | 85% Typ(230VACFull Load) | |
Inrush current(A) | Cold star, <40A/230VAC | |
Leakage current(mA) | <3mA/240VAC | |
Output | Output Voltage(V) | +15Vdc |
Voltage Regulation | 3% | |
Output Current(A) | 10A | |
Current Range (A) | 0~10A | |
Rated Power(W) | 150W | |
Start time | <2S/120VAC | |
Rise time(ms) | <1S/230VAC (Full load) | |
Ripple/Noise(mVp-p) | 120mVp-p | |
Environment | working Temperature (°C) | -25°C - +70°C(refer derating curve) |
Storage Temperature(°C) | -20°C - +60°C | |
Humidity(%) | 20% - 90% RH non condensing | |
Safety/ EMC | Withstand voltage(VAC) | I/P-O/P:1.5KVAC,I/P-FG:1.5KVAC,OP-FG:0.5KVAC 1min |
Safety Standard | EN/UL60950-1,GB4943 | |
EMC Standard | EN55022 Class B,EN61000-4-2,3,4,5,6,8,11 GB17626.5 Level3 | |
Protection | Over voltage Protection | >115%-135% Rated output voltage |
Over load Protection | >105%-150% ,Auto recovery | |
Short circuit Protection | Latched | |
Over Temperature Protection | N/A | |
Others | MTBF | ≥220K hrs 25°C |
Dimension L*W*H(mm) | 199*98*38mm | |
Weight g/pcs | 686g/pcs | |
Specifications:
1.MOQ: 500pcs
2.Capacity: 100,000pcs/month
3.Lead time: 15 working days
4.Payment: TT, L/C.
5.Sample order is available
6.Packaging: Export standard carton box
7.OEM,ODM
Certificate
