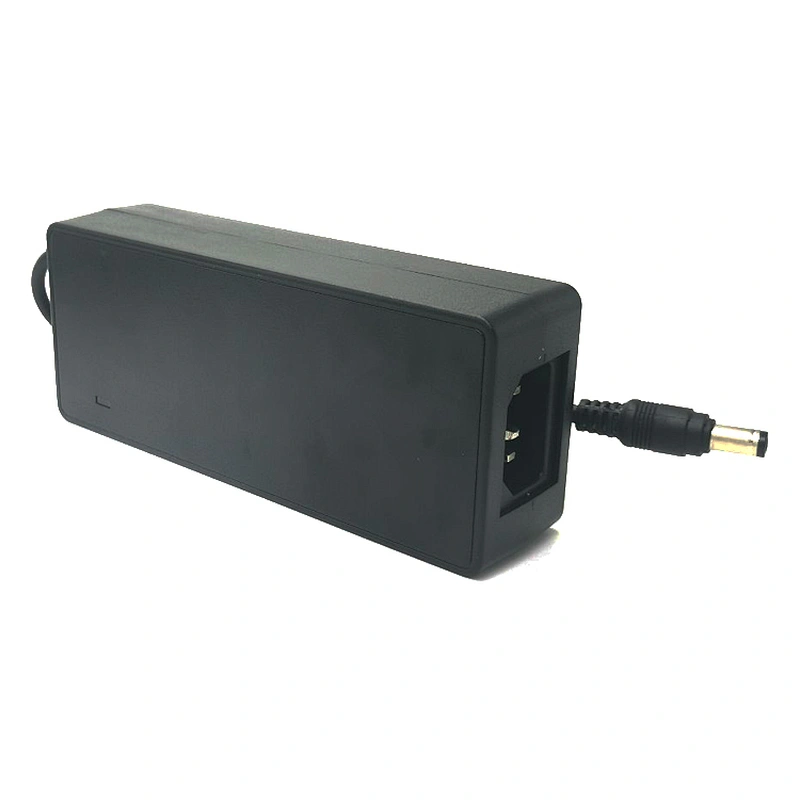

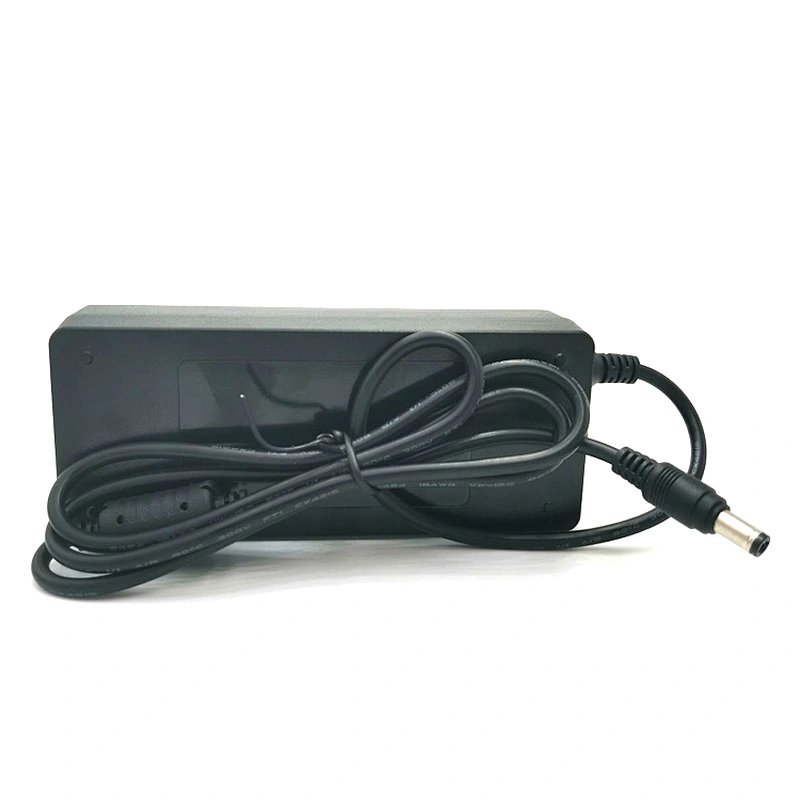

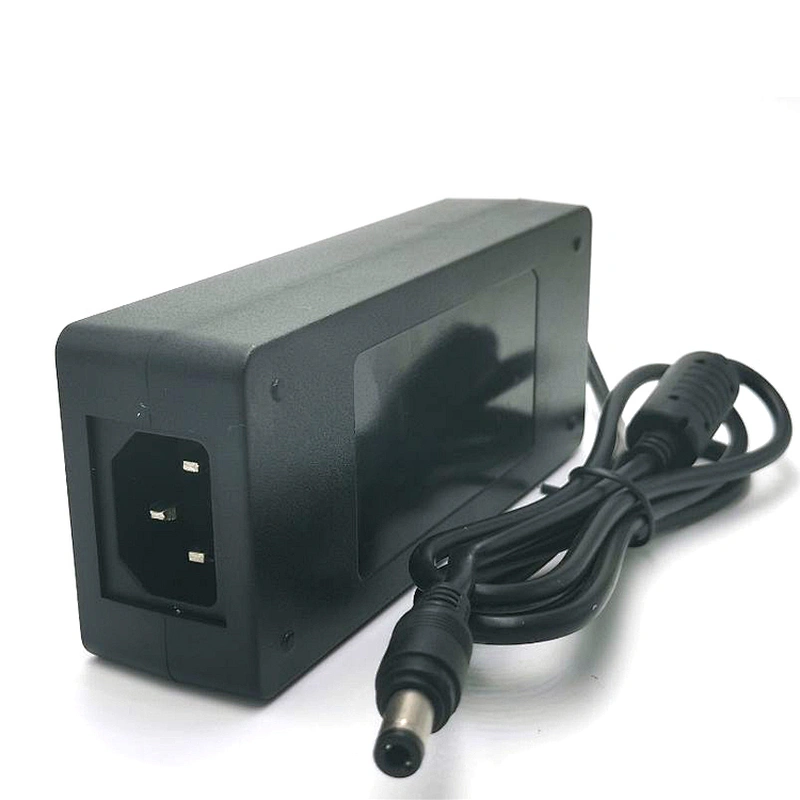

12V 19V 24V 30V 36V 48V OEM ODM Dc Adaptor 100W EU US UK Plug Power Supply Charger Desktop Power Supply Adapter

12V 19V 24V 30V 36V 48V OEM ODM Dc Adaptor 100W EU US UK Plug Power Supply Charger Desktop Power Supply Adapter

Model NO.: ADS-U101S12L
Price:: $ 10.60-11.60 / piece
Minimum order quantity: 1 piece
Country of Origin: shenzhen

Quantity:

Product Description

Place of Origin:Guangdong, China
Brand Name:ETOP
Model Number:ADS-U101S12L
Output Type:DC
Connection:Desktop
Product Name:Power Adapter
Certificate:CE FCC ROHS
Warranty:3 Years
Type:DESK
MOQ:500
Input voltage:100~240VAC
Efficiency:82.%
Size:140*60*35mm (L*W*H)
Packing:Carton
Output:12V 8.4A

12V 19V 24V 30V 36V 48V OEM ODM Adaptor 100W With Eu Us Uk Power Supply Adapters Desktop Power Supply Adapter

Product Description

Featurer

1.MOQ: 100PCS, sample order is available
2.Production Capacity: 800pcs/day ,

3000pcs/week
3.Payment:T/T, Western Union, Paypal,

Escromer ...
4.Lead time: 3-7days for sample, 15-20days

for mass production

5.Warranty:2 years warranty
6.Shipping method:DHL,UPS,FEDEX,TNT,EMS,

Hongkong/china post, by air,by sea etc
7.Package: OPP bag or poly bag, white box,

artistic bag, by customer' requirement.

Our product series include

industrial power supply, power adaptor, LED driver etc., which are widely used in communication, power electronics, automation control, railway, military industry,medical care and a good deal of others.

Specification

MODEL	OUTPUT	RIPPLE & NOISE (max.)	Voltage accuracy	Linear adjustment rate	Load Regulation	EFFICIENC
ADS-U090S19L	19V/4.7A	200mVp-p	±5%	±1%	±5%	81%
ADS-U0101S12L	12V/8.4A	200mVp-p	±5%	±1%	±5%	82%
ADS-U0101S24L	24V/4.2A	240mVp-p	±5%	±1%	±5%	86%
ADS-U0101S30L	30V/3.3A	300mVp-p	±5%	±1%	±5%	86%
ADS-U0101S36L	36V/2.8A	360mVp-p	±5%	±1%	±5%	88%
ADS-U0101S48L	48V/2.1A	380mVp-p	±5%	±1%	±5%	88%

Input Voltage & Frequency	100-240VAC 47~63Hz
Input Current	2A/115VAC 0.5A/230VAC
Start inrush current	65A/230VAC
LEAKAGE CURRENT(max.)	0.75mA/240VAC
SETUP, RISE TIME	2000ms, 30ms/230VAC 3000ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.)	50ms/230VAC 15ms/115VAC at full load
WORKING TEMP., HUMIDITY	-10~+50°C(Refer to"Derating Curve") 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY	-25~+ 60°C , 10~95% RH
TEMP. COEFFICIENT	±3%/°C （0~50°C）
VIBRATION	10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
WITHSTAND VOLTAGE	I/p-0/P: 1.5KVAC I/p-PG: 1.0KVA O/p-PG: 0.5KVAC
MTBF	≥ 500K hrs. MIL-HDBK-217F (25°C )
DIMENSION	1406035mm (LWH)

Company Profile

Our advantage

1.Good and High efficiency Team:

our company have sales team,R&D team,purchase team,PMT team,production team and quality team etc.Our teams works hard together with highefficiency,and our teams have the same target--Excellent quality,the highest service !

2.OEM&ODM Services:

Our company have professional engineers,so we cancustomize products ccording to your detailed requirements,your samples or your ideas.

3.High efficiency automatic SMT machine and production process:

it is fast,high-efficient and standard.Professional surface-mounting and trough-hole soldering technology.-our production process must through below steps to guarantee good quality Inspecting Raw Materials-Auto machine to SMT--Plug-in module--Pass wave-soldering (Auto solder)--Angle cutter cutting angles--Post-solder &Assembling--QC Inspection--FQC Testing Products--Ageing --Quality department spot-check goods--Packing--Shipping out.
