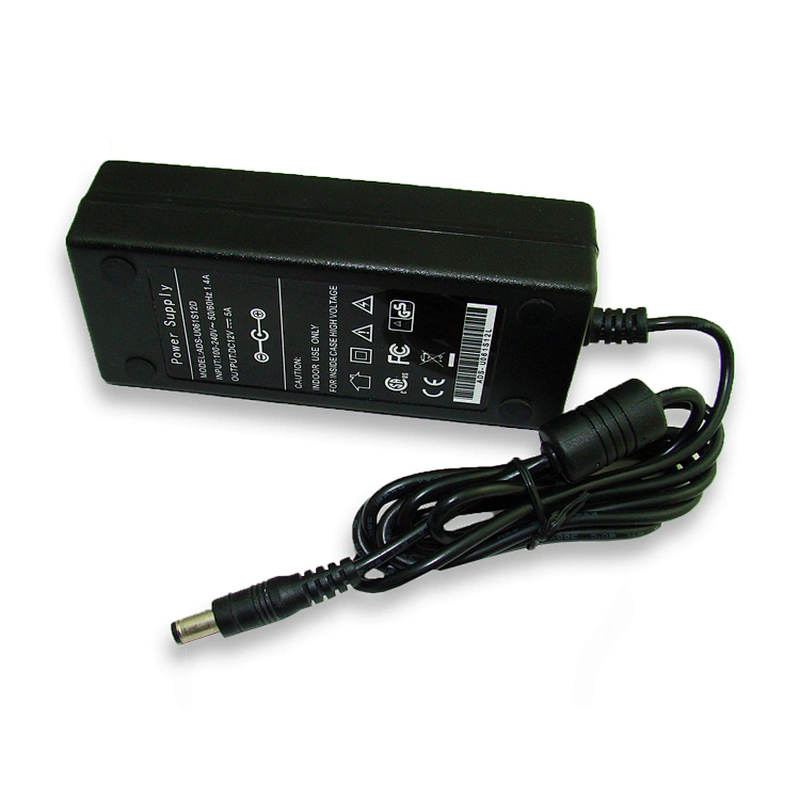

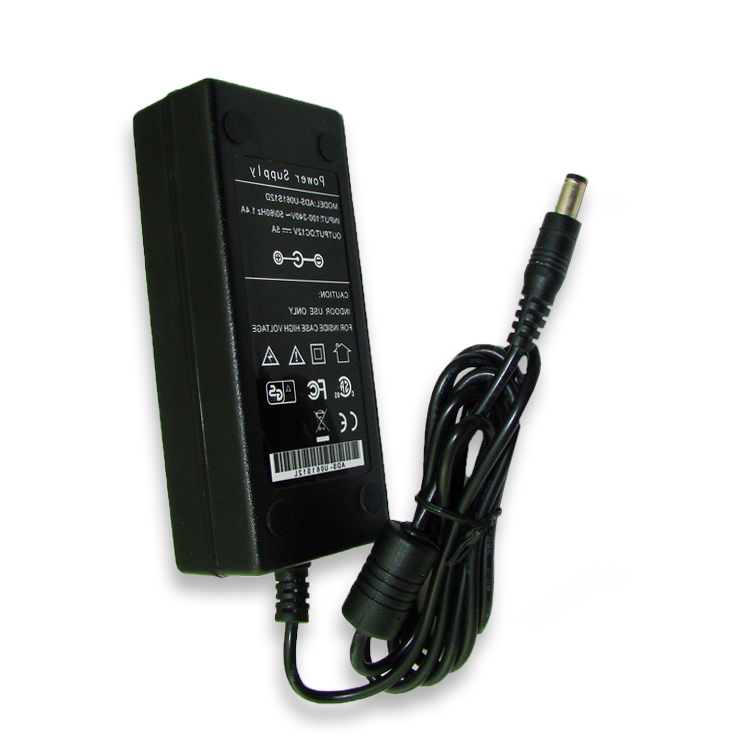

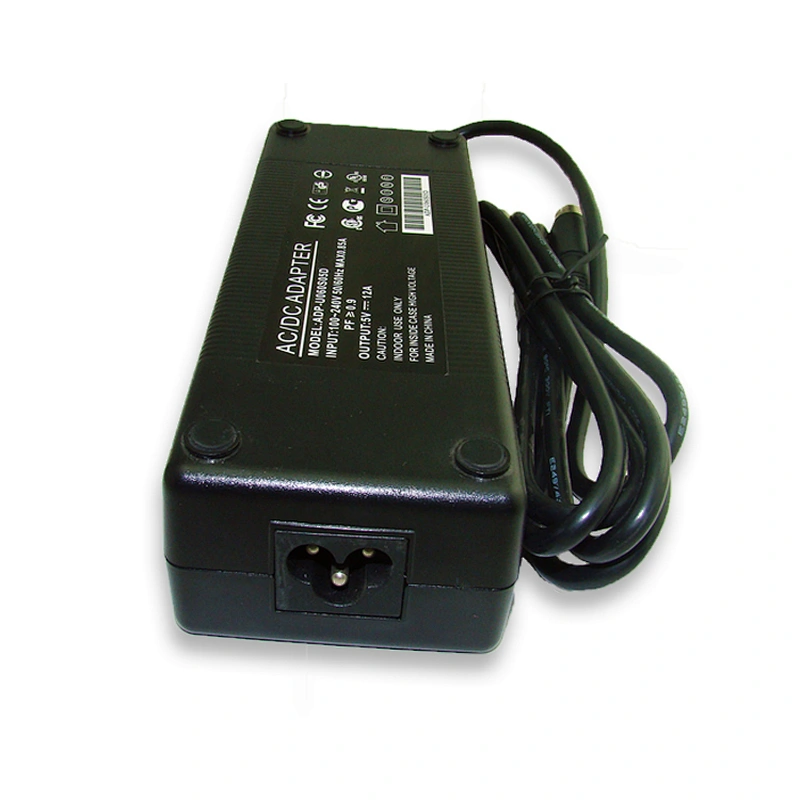

60W 220V DC 12V Transformer Laptop SMPS POE Power supply 12 Volt 5 Amp desktop power adapter 24v 36v 48v for led strip light

60W 220V DC 12V Transformer Laptop SMPS POE Power supply 12 Volt 5 Amp desktop power adapter 24v 36v 48v for led strip light

Model NO.: ADS--U060SxxL
Price:: $ 4.00-6.50 / piece
Minimum order quantity: 1 piece

Quantity:

Product Description

Place of Origin:China
Brand Name:ETOP
Model Number:ADS--U060SxxL
Output Type:DC
Connection:Desktop
Dimension:120*53*31mm
Input voltage:AC 100V-240V
Output voltage:12V 24V
Output current:5A 2.5A
Power:60W

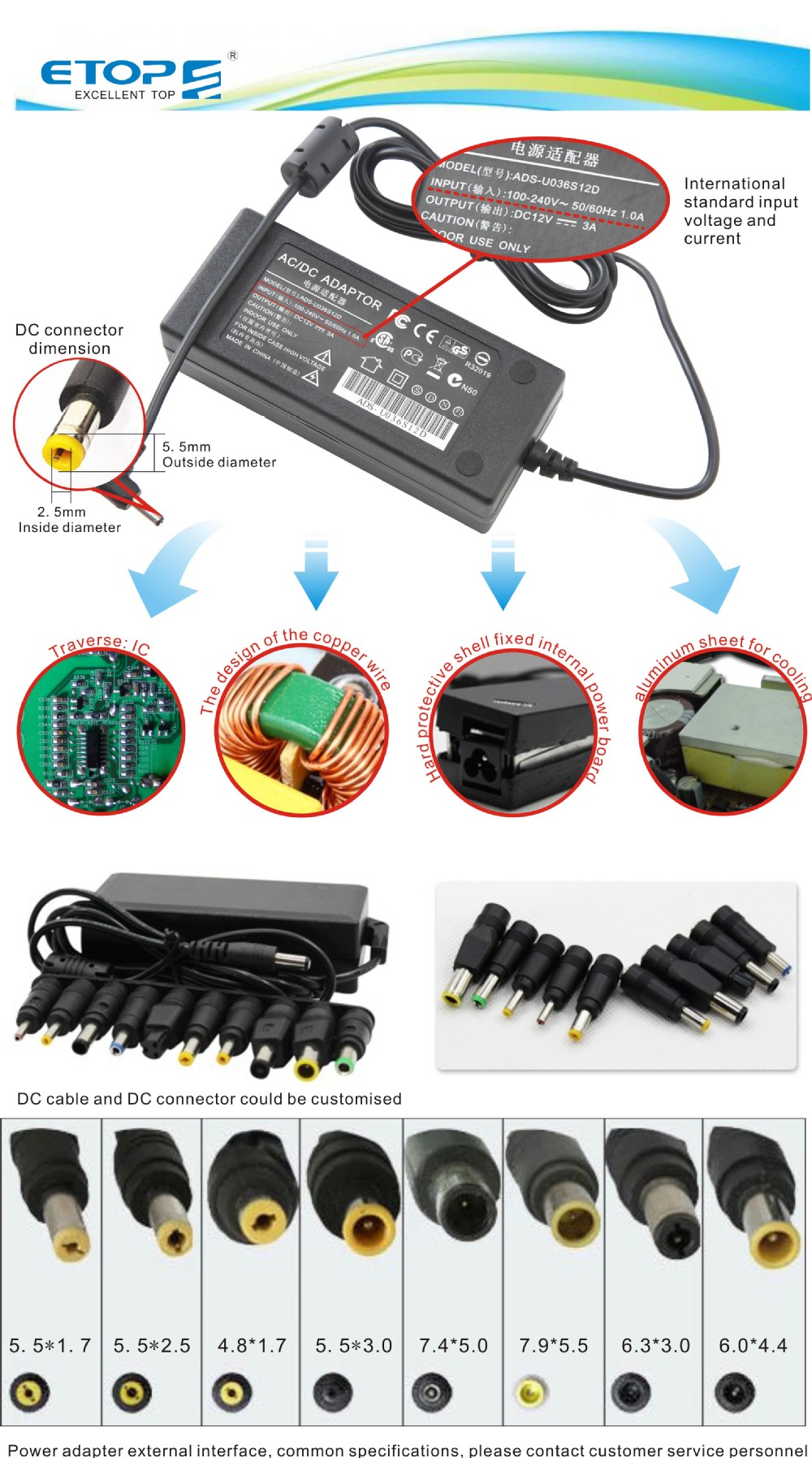

DC connector:5.5*2.5mm / 5.5*2.1mm etc
DC Cable:1.2m 1.5m 1.8m 2m etc
Efficiency:88%
Certification:CE,ROHS,FCC,C-tick
Warranty:2 years

Product Description

60W 220V DC 12V Transformer 12 Volt 5 Amp desktop power adapter 24v 36v 48v for led strip light

Module NO.		ADS-U060S09L	ADS-U060S12L	ADS-U060S24L
OUTPUT	DC VOLTAGE	9V	12V	24V
	RATED CURRENT	6A	5A	2.5A
	CURRENT RANGE	0~A	0~5A	0~2.5A
	RATED POWER	60W	60W	60W
	RIPPLE & NOISE (max.	200mVp-p	200mVp-p	200mVp-p
	VOLTAGE TOLERANCE	+/-3.0%	+/-3.0%	+/-3.0%
	LINE REGULATION	+/-1.0%	+/-1.0%	+/-1.0%
	LOAD REGULATION	+/-3.0%	+/-3.0%	+/-3.0%
	SETUP, RISE	lOOOms,30ms /230VAC lOOOms,30ms/ll5VAC((at full load))
	HOLD UP TIME	50ms /230VAC 15ms/ll5VAC ((at full load))
INPUT	VOLTAGE RANGE	100~240VAC
	FREQUENCY RANGE	47~63Hz
	EFFICIENCY (Typ.)	90%
	AC CURRENT	1.4A/ 115VAC lA/230VAC
	INRUSH CURRENT (max.)	65A/ 230VAC
	LEAKAGE CURRENT (max.)	0.75mA/ 240VAC
PROTECTION	OVERLOAD	Protection type : Hiccup mode, recovers automatically after fault condition is removed
	OVER VOLTAGE	Protection type : Shut down o/p voltage, re-power on to recover
	OVER TEMPERATURE	RTH2 >70℃
		Protection type : Shut down o/p voltage, re-power on to recover
ENVIRONMENT	WORKING TEMP.	-10~+50℃
	WORKING HUMIDITY	20~90% RH,non-condensing
	STORAGE TEMP., HUMIDITY	-40~+ 85℃, 10~95% RH
	TEMP. COEFFICIENT	+/-0.03%/℃(0~50℃)
	VIBRATION	10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC	WITHSTAND VOLTAGE	I/p-0/P: 1.5KVAC I/p-FG: 1.5KVAC 0/p-FG: 0.5KVAC
	ISOLATION RESISTANCE	I/P-0/P, I/P-FG, 0/P-FG: 100M Ohms/500VDC / 25℃ / 70% RH
	EMC EMISSION	Compliance to EN55022 classB,EN61000-3-2,3,FCCPART 15/C[SPR22 classB,CNSl3438 classB,GB9254 classB,GBl7625,1
	EMC IMMUNITY	Compliance to EN61000-4-2,3,4,5,6,8,11, light industry level, criteria A
OTHERS	MTBF	≥ 711 Khrs MIL-H DBK-217F( 25℃ )
	DIMENSION	120×52×31.5mm (LWH)

Our product series include:industrial power supply, power adaptor, LED driver etc., which arewidely used in communication, power electronics, automation control, railway, military industry,medical care and a good deal of others.

Our Services

1.Good and High efficiency Team:our company have sales team,R&D team,purchase team,PMT team,productionteam and quality team etc.Our teams works hard together with highefficiency,and our teams have the same target--Excellent quality,the highest service !

2.OEM&ODM Services: Our company have professional engineers,so we cancustomize products ccording to your detailed requirements,your samples or your ideas.

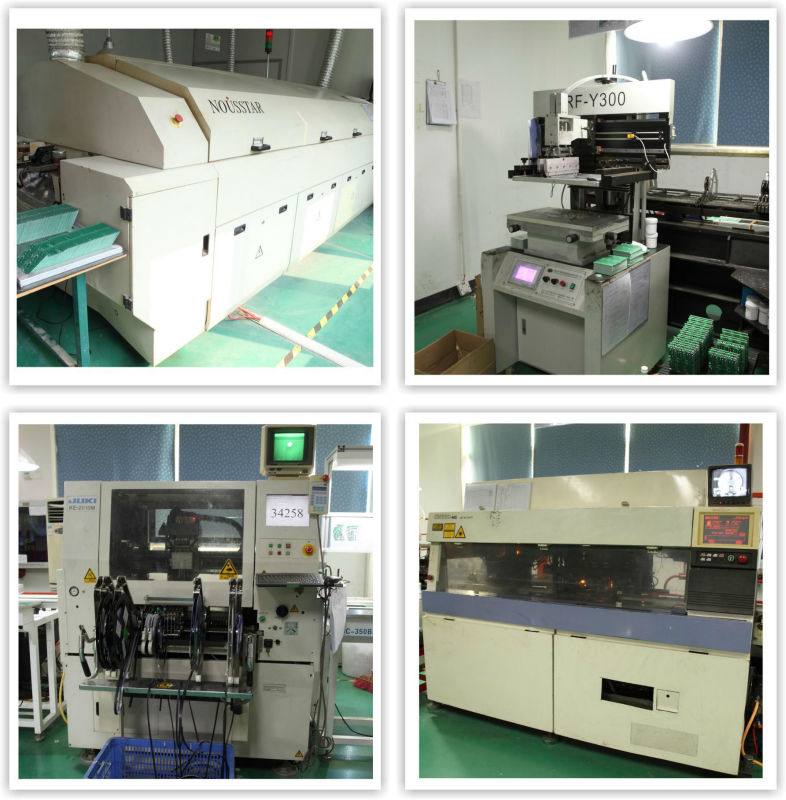

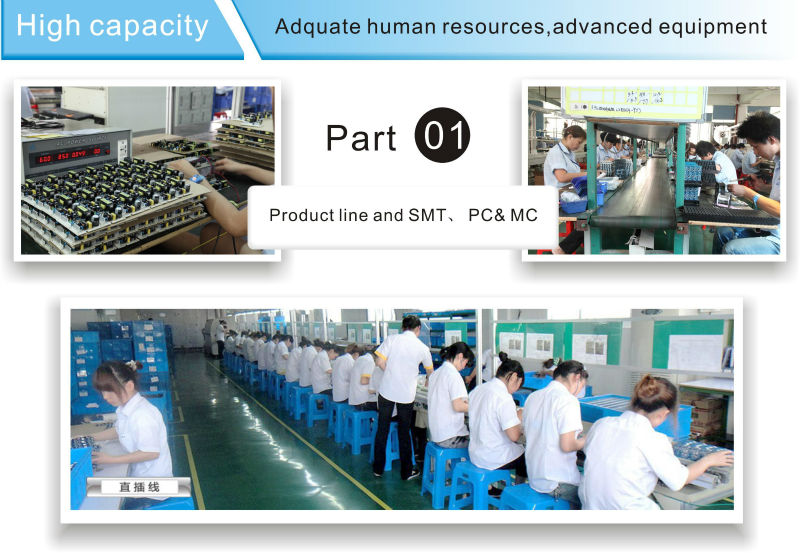

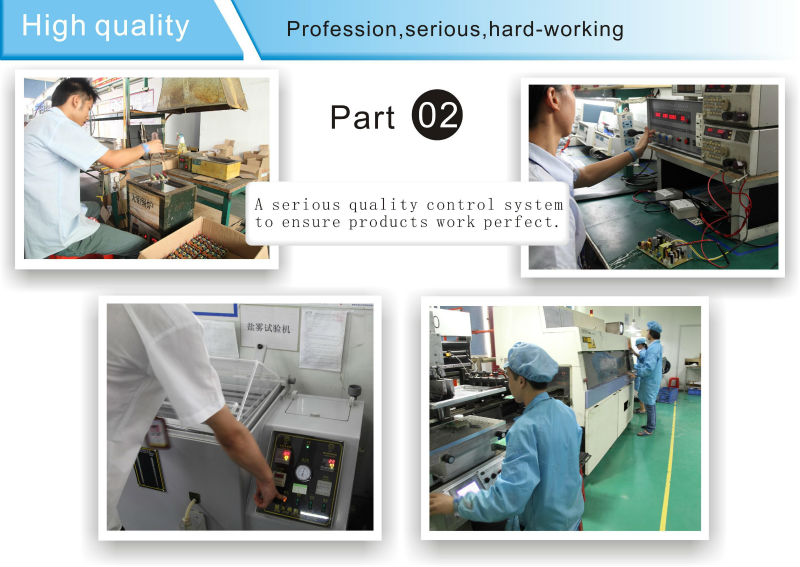

3.High efficiency automatic SMT machine and production process:itis fast,high-efficient and standard.Professionalsurface-mounting and trough-hole soldering technology.-our production process must through below steps to guarantee good quality Inspecting Raw Materials-Auto machine to SMT--Plug-in module--Pass wave-soldering (Auto solder)--Angle cutter cutting angles--Post-solder &Assembling--QC Inspection--FQC Testing Products--Ageing--Quality department spot-check goods--Packing--Shipping out.

4. Excellent geographical location: Our company locate in good place,the transportation isvery convenient.It takes short time to reach our company.

Packaging & Shipping

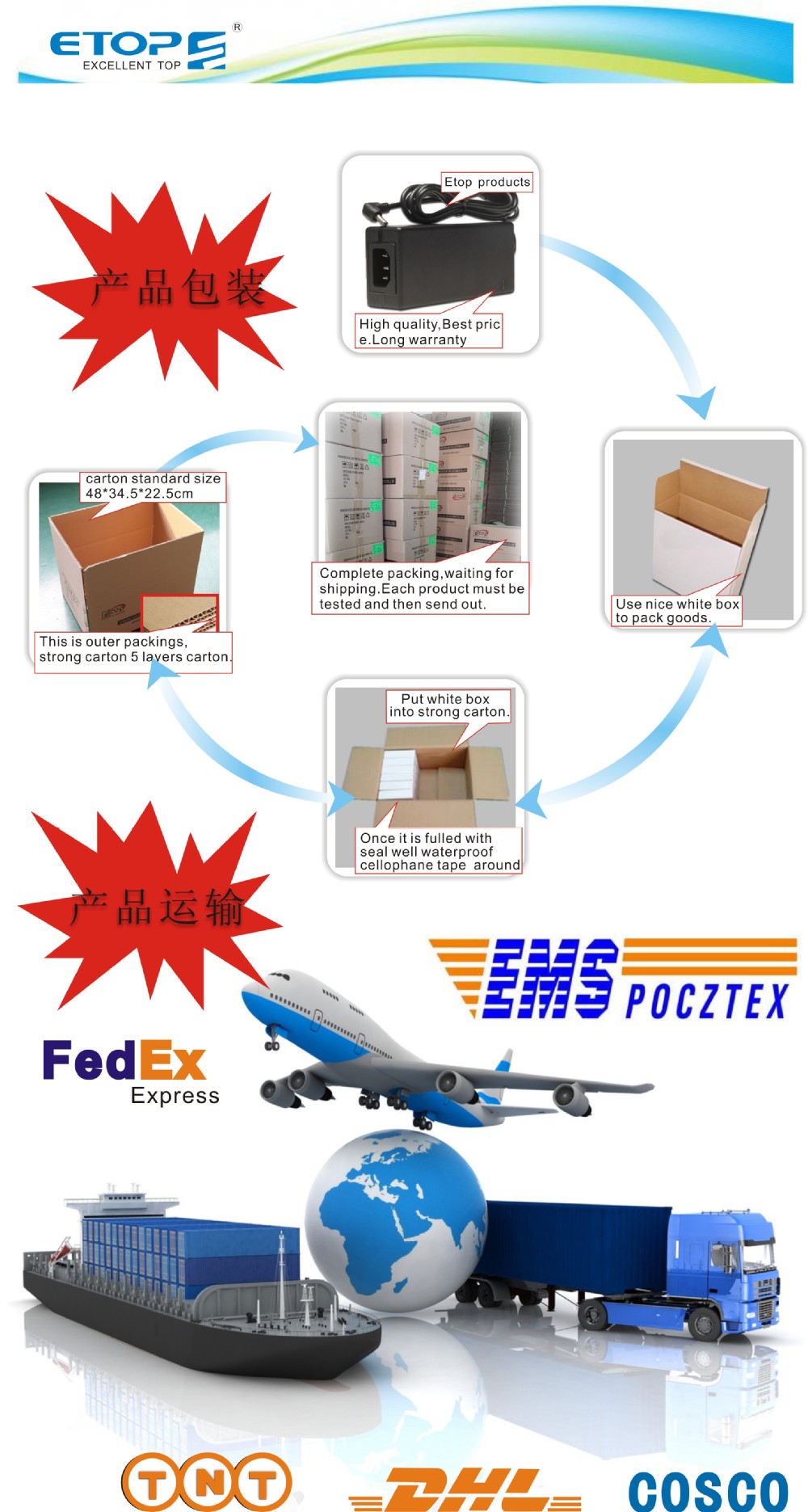

Our Product Package &Transportation ways of products:

In order to protect products,the inner package is often use PP bags or Anti Static bags,and the use white box to pack each product,then put each one into the strong carton,at last finish packing.
