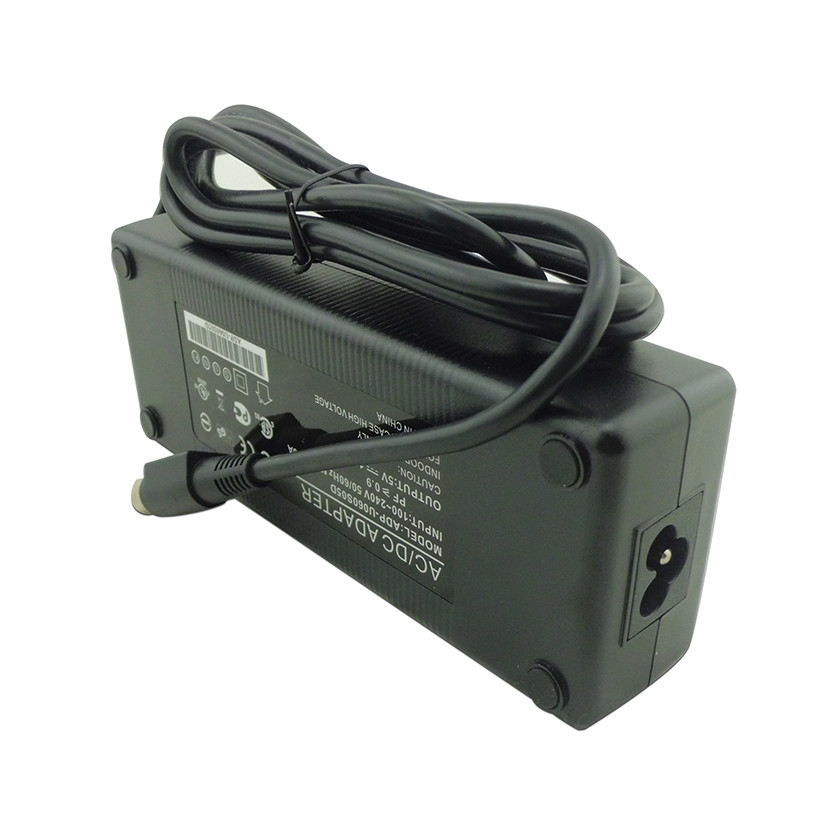

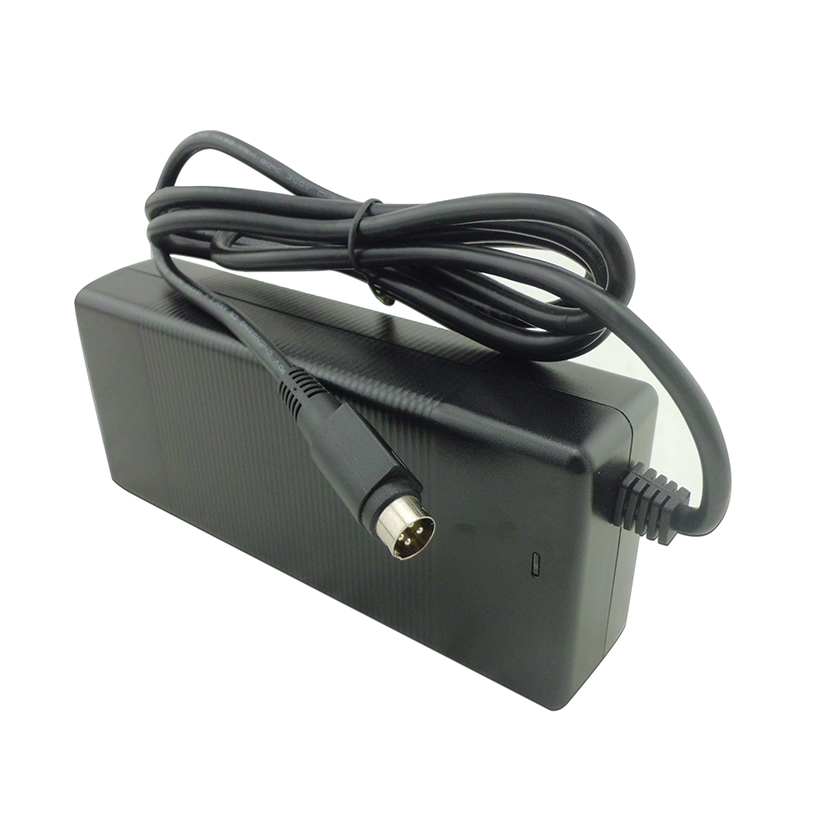

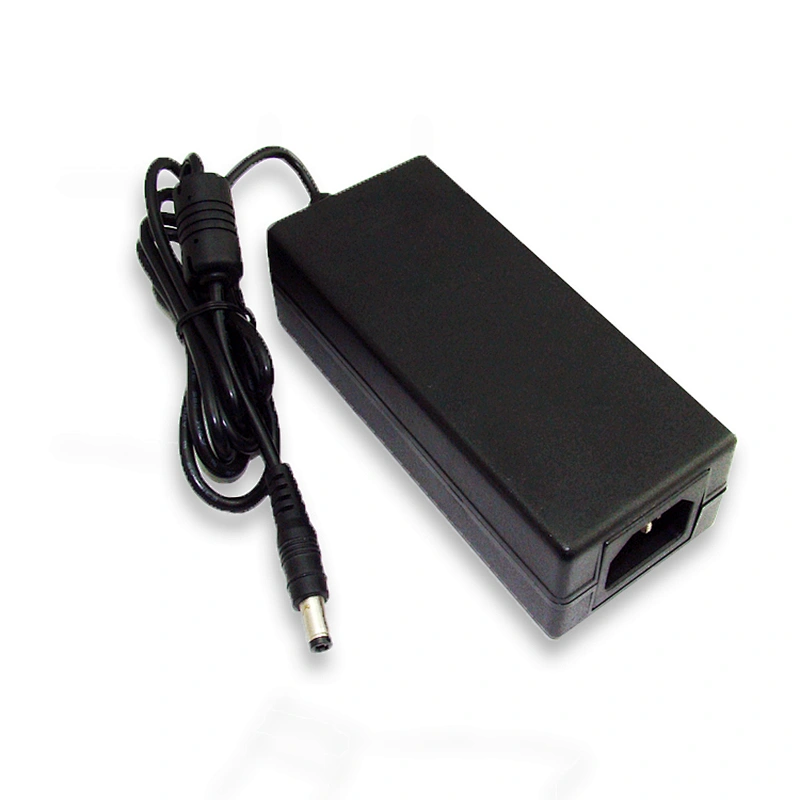

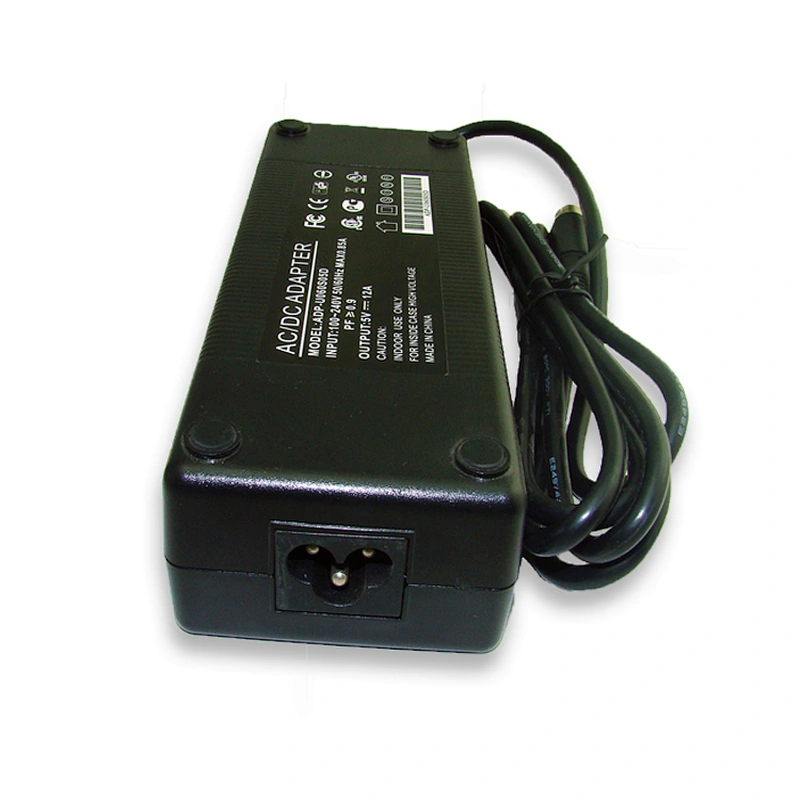

- Place of Origin:Guangdong, China
- Brand Name:ETOP
- Model Number:ADS-U065SXXL
- Output Type:DC
- Connection:Desktop
- Dimension:120*52*31.5MM
- Output voltage:30V 48V
- Output current:30V/2.15A 48V/1.35A
- Output power:65W

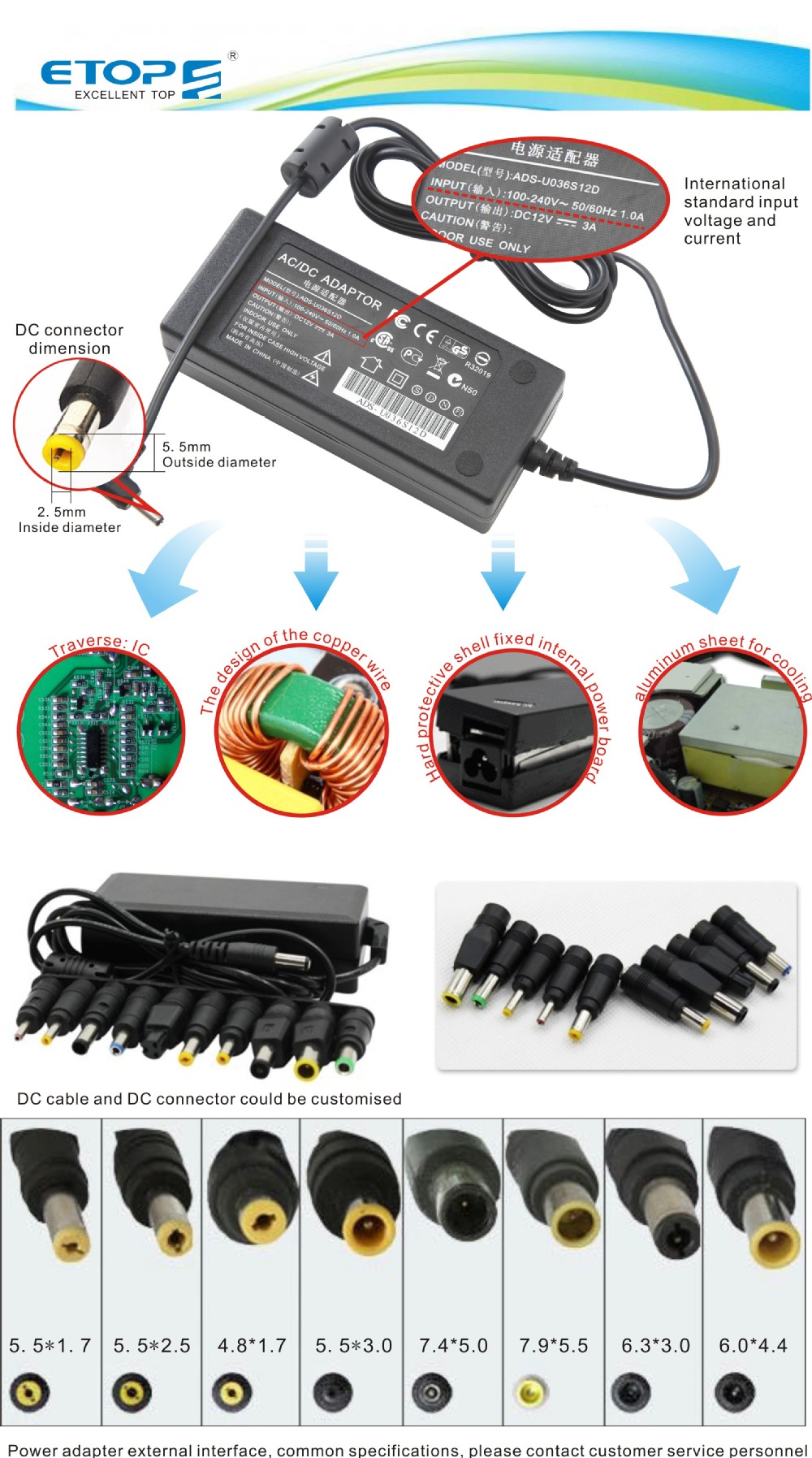

- DC connector:5.5*2.5mm / 5.5*2.1mm etc
- Input voltage:100V-240V
- Protection:Over Voltage/Over Current/Short Circuit
- Application:Medical Device , Led strip lignt, LCD Display
- Certification:CE,ROHS,FCC,C-tick
- Warranty:2 years
Input voltage range & frequency range | 100-240VAC 47-63Hz |
Input current | 1.4A/115VAC 1A/230VAC |
Inrush current (Max.) | 30A/115VAC 60A/230VAC |
Leakage current(Max) | 0.75mA /240Vac |
Set up ,rise time | 2000ms,30ms/230VAC3000ms,30ms/115VAC(atfullload) |
Hold up time | 50ms/230VAC 15ms/115VAC (at full load) |
Working tem.& Humidity | -10 ~ +45℃(Refer to"Derating Curve"),20% ~ 90% RH non-condensing |
storage tem.& Humidity | -25 ~ +75℃, 10 ~ 95% RH |
Tem.Coefficient | ±0.03%/℃(0~40℃) |
Vibration resistance | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes |
Withstand voltage | I/P-0/P:3 KVAC I/P-PG: 2 KVAC O/P-PG: 0.5KVAC |
Safety standards | Compliance to EN 60950-1,CCC GB4943,J60950-1 |
EMC standard | Compliance to EN 55022 classB EN61000-3-2.3 EN61000-4-2,3,4,5,6,8,11 |
Over load | >105%-150% hiccup mode,Auto recovery |
Over voltage | >115%~135%, hiccup mode,Auto recovery |
MTBF | ≥200Khrs MIL-HDBK-217F(25℃) |
1.Good and High efficiency Team:
our company have sales team,R&D team,purchase team,PMT team,production team and quality team etc.Our teams
works hard together with highefficiency,and our teams have the same target--Excellent quality,the highest service !
2.OEM&ODM Services:
Our company have professional engineers,so we cancustomize products ccording to your detailed requirements,your samples or your ideas.
Our Promise:
Provide good quality and reasonable price to meet customers satisfaction.
Payment term:
1.T/T 30% in advance, T/T 70% before delivery for bulk order.
2.Others: Paypal, Western union, L/C
Lead time:

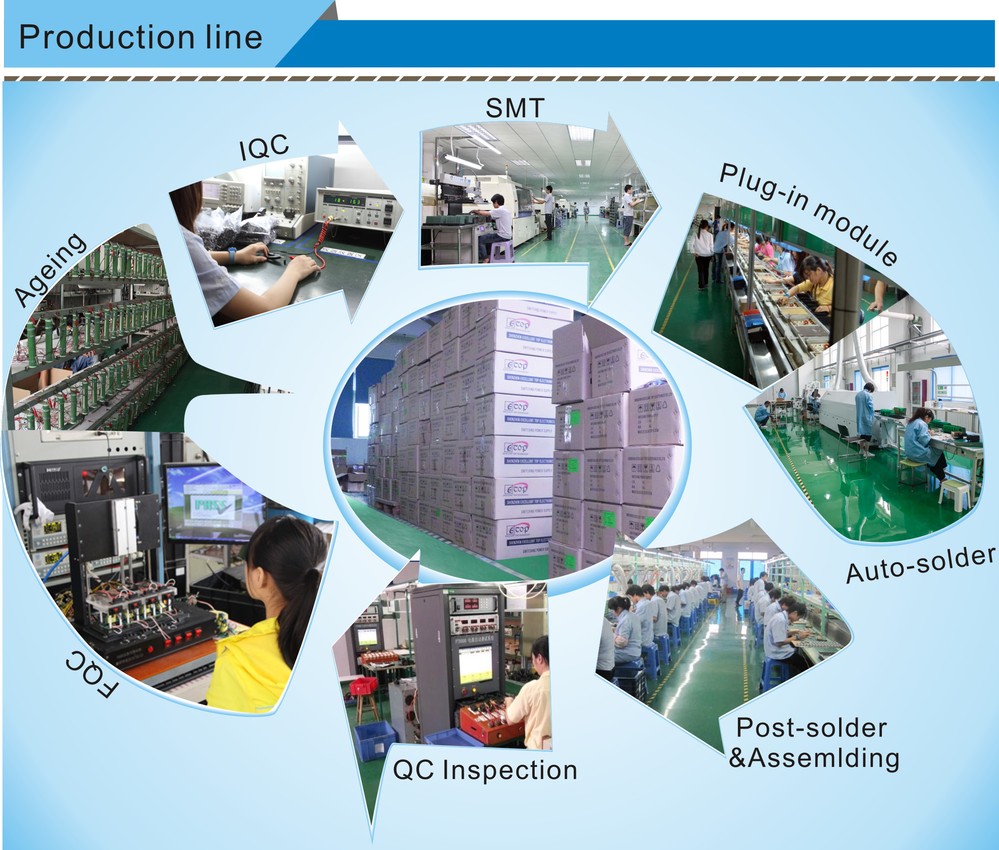

1. About big order: Our producing capacity is 100,000pcs each month, your order will according to real producing planning, be finished in 20-25 days after we get the deposit.
2. About sample order: if do not have stock for sample or it is customized type, we will take 5-12 days to prepair, include time for purchaing material, producing and delivery.
If sample just is in stock, sample delivery time is 5-7 days to destination.
What is MOQ ?
We will have different MOQ for each models, from 500pcs to 5000pcs. But for waterproof adapter, we had enough quantity in stock, small order are available for quick delivery.
