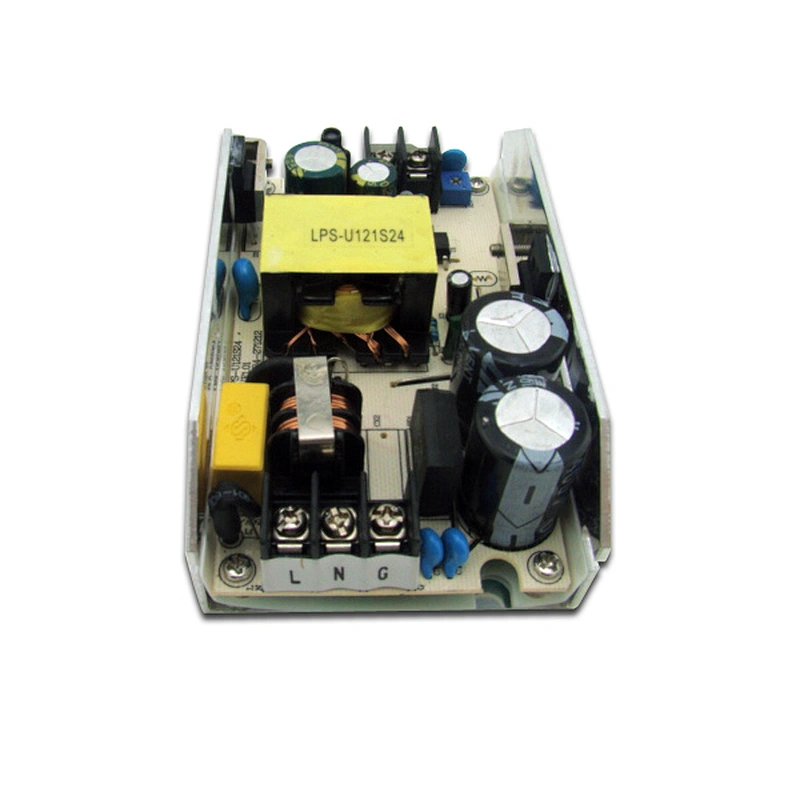

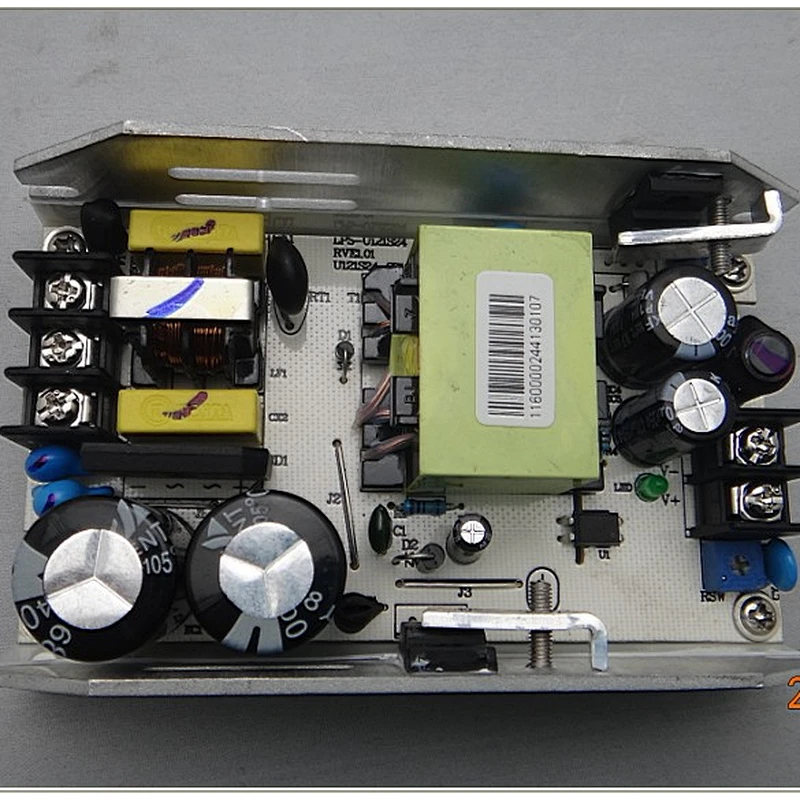

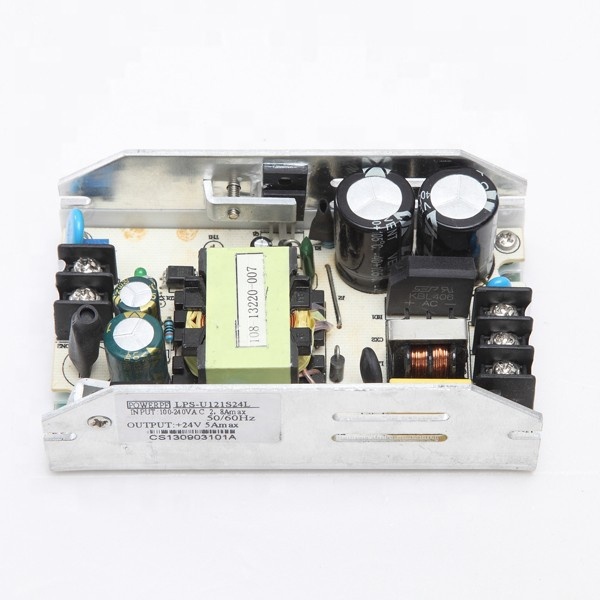

120W-150w inverter power 110v 220v 50/60 hz SMPS
| Model | LPS-U121S12L | |
| Input | Input Voltage(V) | 110/220VAC |
| Input Current (A) | 1.40A Max | |
| Frequency (Hz) | 47Hz–63Hz | |
| Efficiency | 89% Typ(230VACFull Load) | |
| Inrush current(A) | Cold star <80A/230VAC | |
| Leakage current(mA) | <0.75mA/240VAC | |
| Output | Output Voltage(V) | 12Vdc |
| Voltage Regulation | 3% | |
| Output Current(A) | 10A | |
| Current Range (A) | 0-10A | |
| Rated Power(W) | 150W | |
| Start time, hold-up time(ms) | Ton≤3000ms,Td≥20ms @230Vac Full Load | |
| Rise time(ms) | Typ:80ms @230Vac Full Load | |
| Ripple/Noise(mVp-p) | 200mVp-p | |
| Environment | working Temperature (°C) | 0°C - +40°C |
| Storage Temperature(°C) | ‘-20°C - +80°C | |
| Humidity(%) | 20% - 90% RH non condensing | |
| Safety/ EMC | Withstand voltage(VAC) | I/P-O/P:1.5KVAC,I/P-FG:1.5KVAC,OP-FG:0.5KVAC 1min |
| Protection | Over voltage Protection | >115%-135% Rated output voltage |
| Over load Protection | >105%-150% Auto recovery | |
| Short circuit Protection | Latched | |
| Over Temperature Protection | Auto reboot | |
| Others | Dimension L*W*H(mm) | 107*64.5*34.5mm |
Our product series include: industrial power supply, power adaptor, LED driver etc., which are widely used in communication, power electronics, automation control, railway, military industry,medical care and a good deal of others.
Our advantage:
1.Good and High efficiency Team:our company have sales team,R&D team,purchase team,PMT team,production team and quality team etc.Our teams works hard together with highefficiency,and our teams have the same target--Excellent quality,the highest service !
2.OEM&ODM Services: Our company have professional engineers,so we cancustomize products ccording to your detailed requirements,your samples or your ideas.

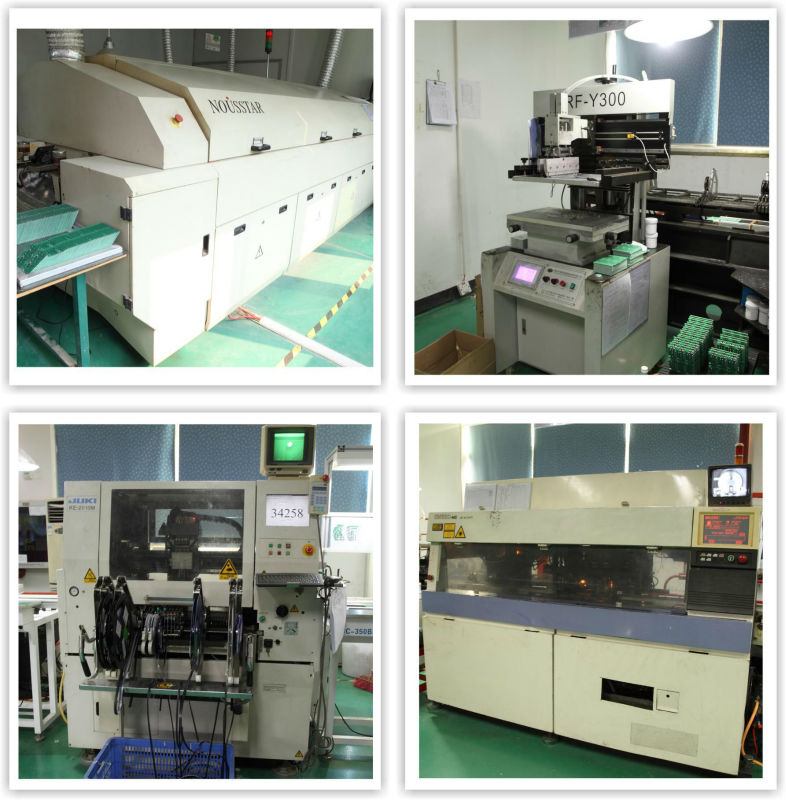

3.High efficiency automatic SMT machine and production process:it is fast,high-efficient and standard.Professional surface-mounting and trough-hole soldering technology.-our production process must through below steps to guarantee good quality Inspecting Raw Materials-Auto machine to SMT--Plug-in module--Pass wave-soldering (Auto solder)--Angle cutter cutting angles--Post-solder &Assembling--QC Inspection--FQC Testing Products--Ageing --Quality department spot-check goods--Packing--Shipping out.
4. Excellent geographical location: Our company locate in good place,the transportation is very convenient. It takes short time to reach our company.
Our Product Package:
In order to protect products,the inner package is often use PP bags or Anti Static bags,and the use white box to pack each product,then put each one into the strong carton,at last finish packing.
