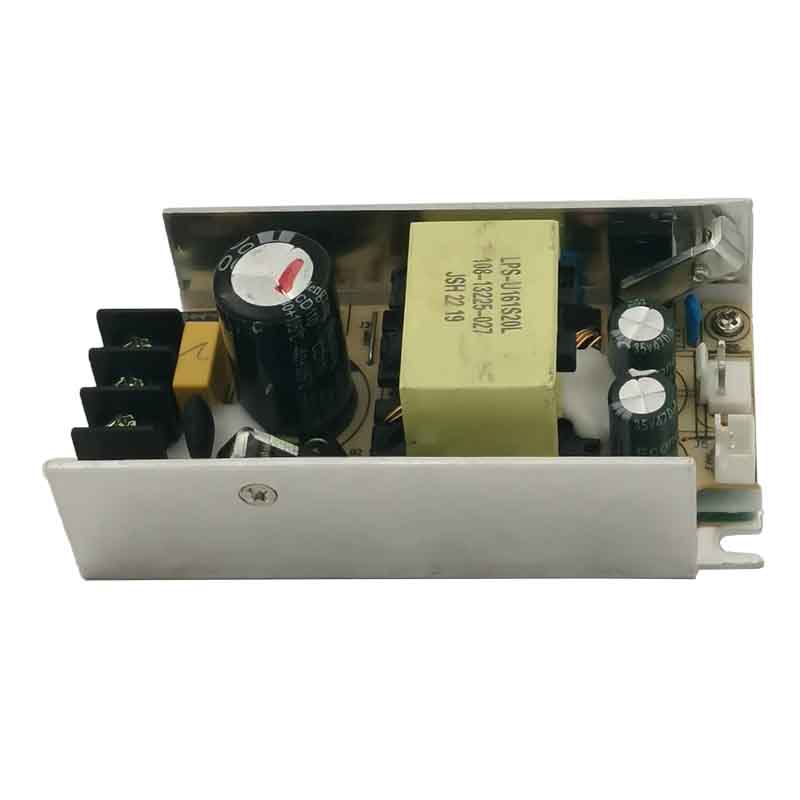

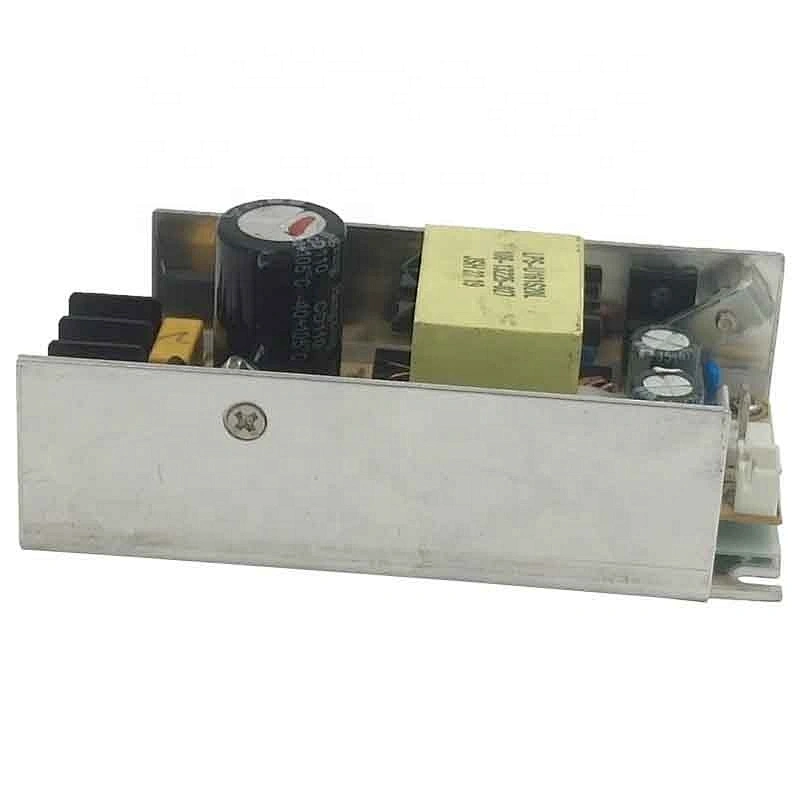

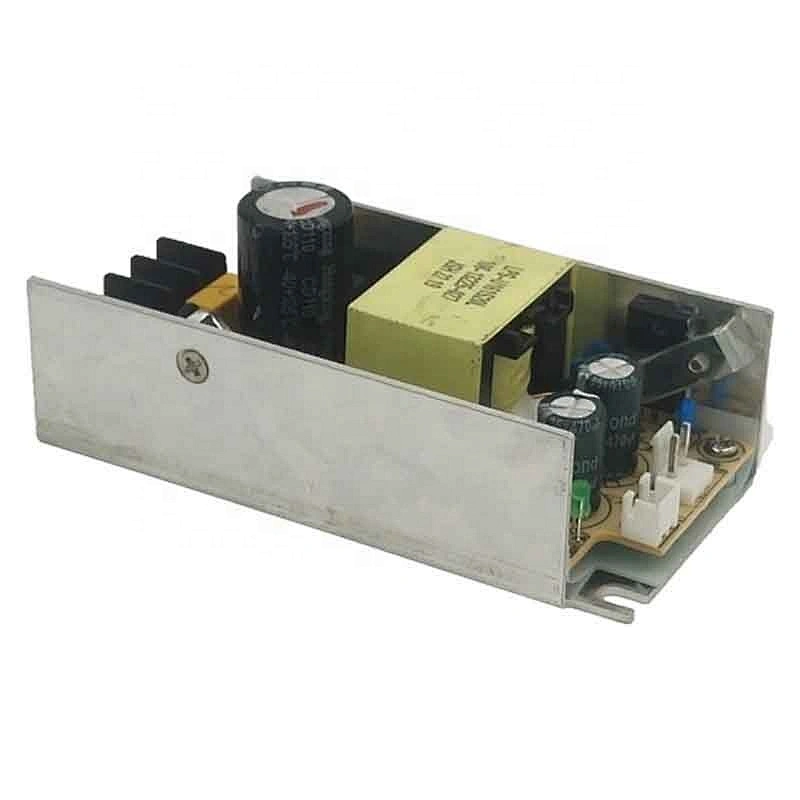

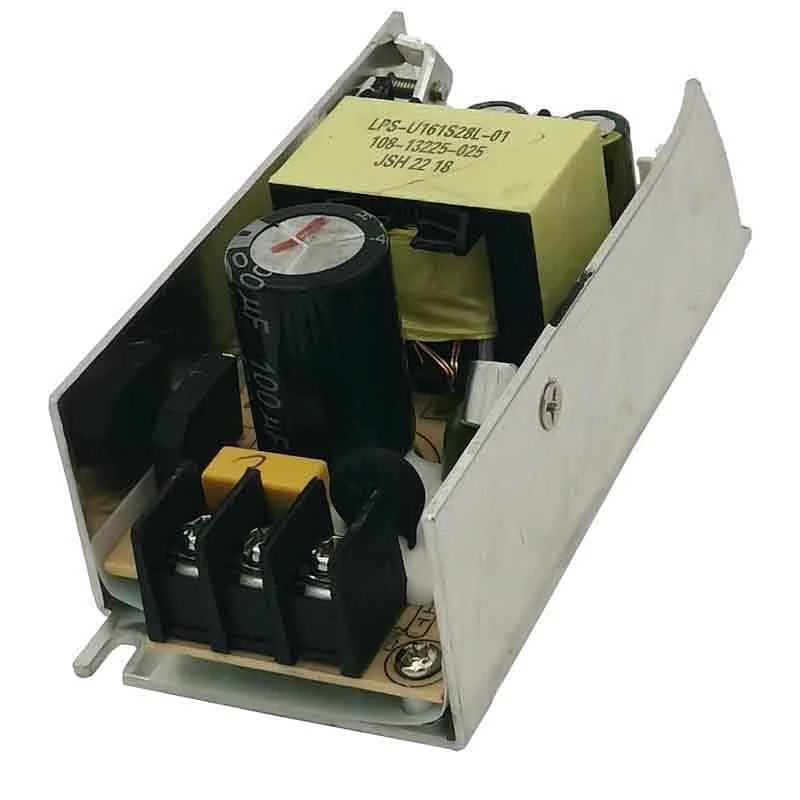

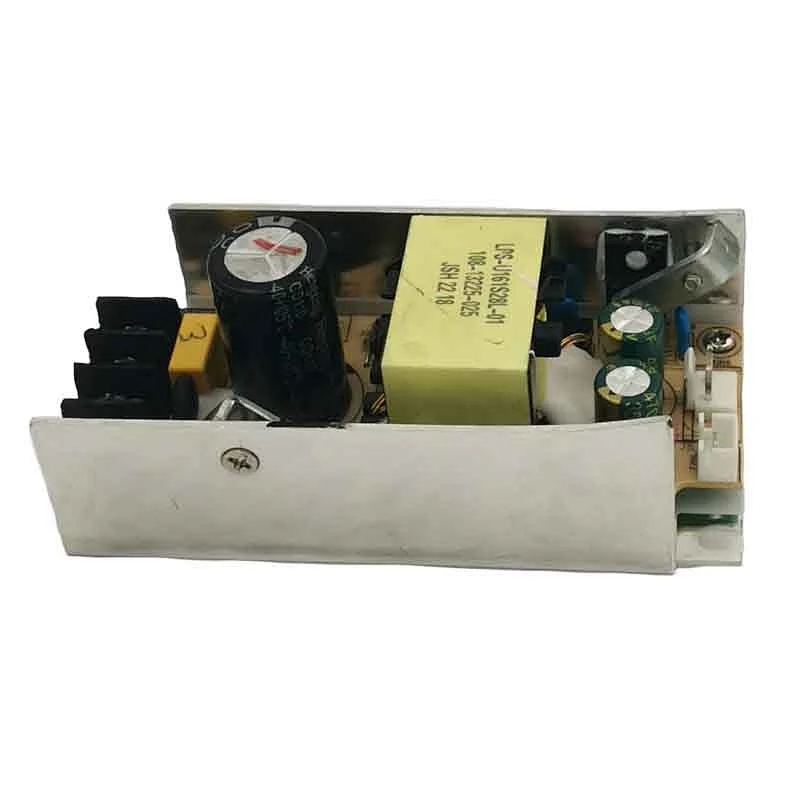

160W 23V 24V 6.67A Power Circuit Board U-frame Switching Mode Power Supply SMPS Module
Product Description
| MODEL | LPS-U161S20L | |||
| OUTPUT | DC VOLTAGE | 20V | ||
| Output Current(A) | 8A | |||
| CURRENT RANGE | 0-8A | |||
| RATED POWER | 160W | |||
| RIPPLE & NOISE (max.) | 600mVp-p | |||
| SETUP, RISE TIME | 2000ms, 30ms/240VAC 3000ms, 30ms/110VAC at full load | |||
| HOLD UP TIME (Typ.) | 50ms/240VAC 15ms/110VAC at full load | |||
| INPUT | VOLTAGE RANGE | 110-240VAC | ||
| FREQUENCY RANGE | 47~63Hz | |||
| EFFICIENCY(Typ.) | 85% | |||
| AC CURRENT | 2.4A/110VAC 1.2A/240VAC | |||
| INRUSH CURRENT(max.) | 60A/240VAC 30A/110VAC | |||
| LEAKAGE CURRENT(max.) | 0.75mA/240VAC | |||
| PROTECTION | OVER LOAD | 110~ 200% rated output power | ||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||||
| Short circuit protection | output impedance is less than 0.1 ohm, power supply will be protected, and there will be no danger of damage to components, connectors, etc. | |||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||||
| ENVIRONMENT | WORKING TEMP. | -10~+65°C(Refer to"Derating Curve") | ||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||
| STORAGE TEMP., HUMIDITY | -25~+ 75°C , 10~95% RH | |||
| TEMP. COEFFICIENT | 0~50°C | |||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |||
| SAFETY & EMC | WITHSTAND VOLTAGE | I/p-0/P: 1.5KVAC | ||
| ISOLATION RESISTANCE | I/p-0/P:> 100M Ohms/500VDC | |||
| OTHERS | MTBF | ≥ 100K hrs. MIL-HDBK-217F (25°C ) | ||

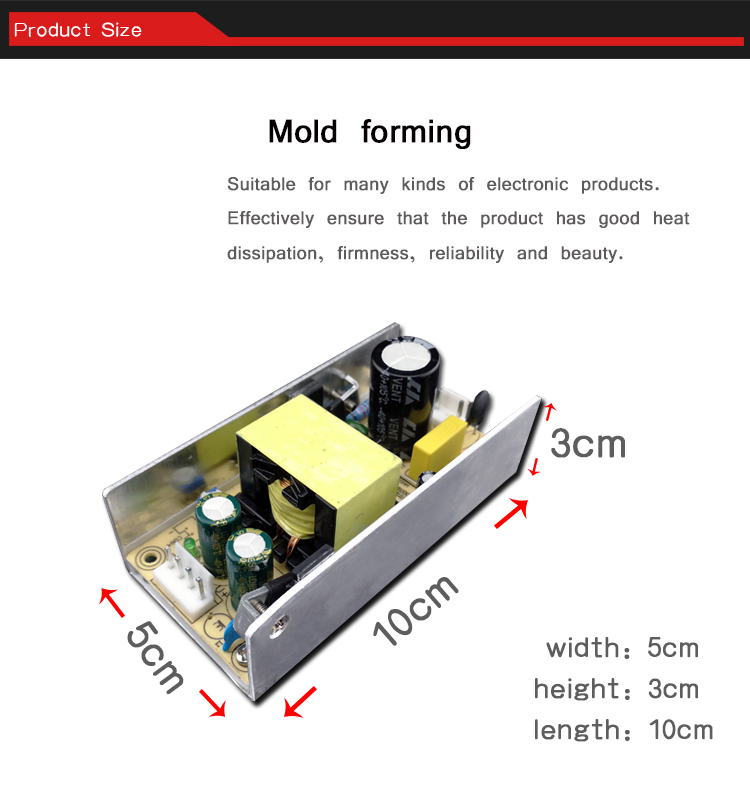

| DIMENSION | 103*46*35mm (L*W*H) | |||
