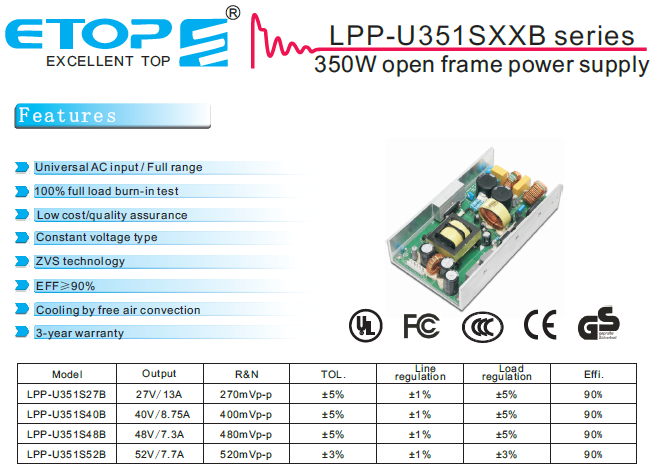

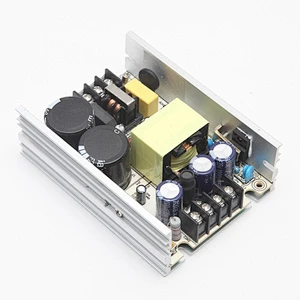

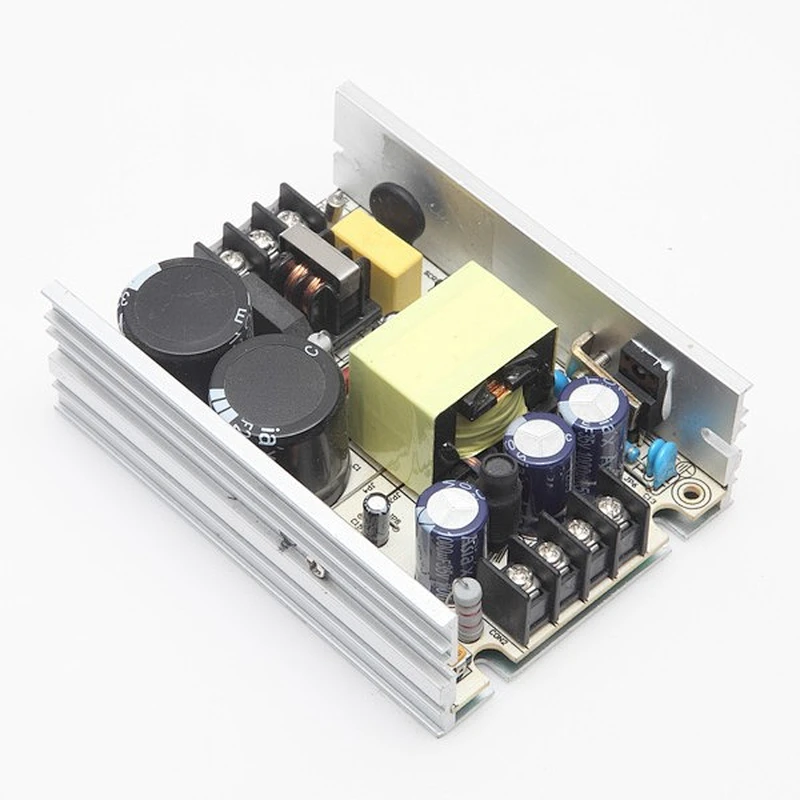

90-264Vac 50/60Hz Industrial Metal Case 300-450W AC DC U-bracket Universal Power Supply Unit
Universal AC input / Full range
100% full load burn-in test
Low cost/quality assurance
Constant voltage type
ZVS technology
EFF≥90%
Cooling by free air convection
3-year warranty
Parameter table:
| Input voltage range & frequency range | 100~240VAC 47-63Hz |
| Input current | 3.6A/115VAC 1.8A/230VAC |
| Inrush current (Max.) | 70A/230VAC |
| Leakage current(Max) | 0.75mA /240Vac |
| Set up , rise time | 2000ms,30ms/230VAC 3000ms,30ms/115VAC(at full load) |
| Hold up time | 50ms/230VAC 15ms/115VAC(at full load) |
| Working tem.& Humidity | 0 ~ +40℃ (Refer to "Derating Curve"),20% ~ 90% RH non-condensing |
| storage tem.& Humidity | - 20 ~ +85℃ , 10 ~ 95% RH |
| Tem. coefficicient | ±0.03%/℃(0~50℃) |
| Vibration resistance | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes |
| Withstand voltage | I/P-O/P:3KVAC I/P-PG:1.5KVAC O/P-PG:0.5KVAC |
| Safety standards | Compliance to EN60950-1,CCC GB4943,J60950-1 |
| EMC standard | Compliance to EN55022 classB EN61000-3-2.3 EN61000-4-2,3,4,5,6,8,11 |
| Insulation resistance | I/P-O/P,I/P-FG,50M Ohms/500VDC/25℃/ 70%RH |
| Over load | >110%-175% hiccup mode,Auto recovery |
| Over voltage | >115%~135%,rate output current(constant power) |
| MTBF | ≥7 1 1 Khrs MIL-HDBK-217F ( 25℃ ) |
| Size | 180*100*45mm (L*W*H) |
| Packing | could be customized |
Our product series include: industrial power supply, power adaptor, LED driver etc., which are widely used in
communication, power electronics, automation control, railway, military industry, medical care and a good deal of others.
We provie quality power supply products and service:
- Open frame type power supply
- Enclosed type power supply
- LED driver waterproof series
- Power adapter
- ODM/OEM order
Our advantage:
1.Good and High Efficiency Team.
2.OEM&ODM Services:
customize products ccording to your detailed requirements, your samples or your ideas.
3.High efficiency automatic SMT machine and production process.
1. Transportation ways of products:
By air, By sea, By express, Pick up in factory.
You can choose any way which you like to ship the goods,we will try our best to help you save shipping cost.
2. Product Certificates:
Almost all of our products get CE/CCC/ROHS/FCC etc certificates, and if you have Special requirements of certificates, we can help to apply it for you.And our company pass ISO9001and ISO14001.
