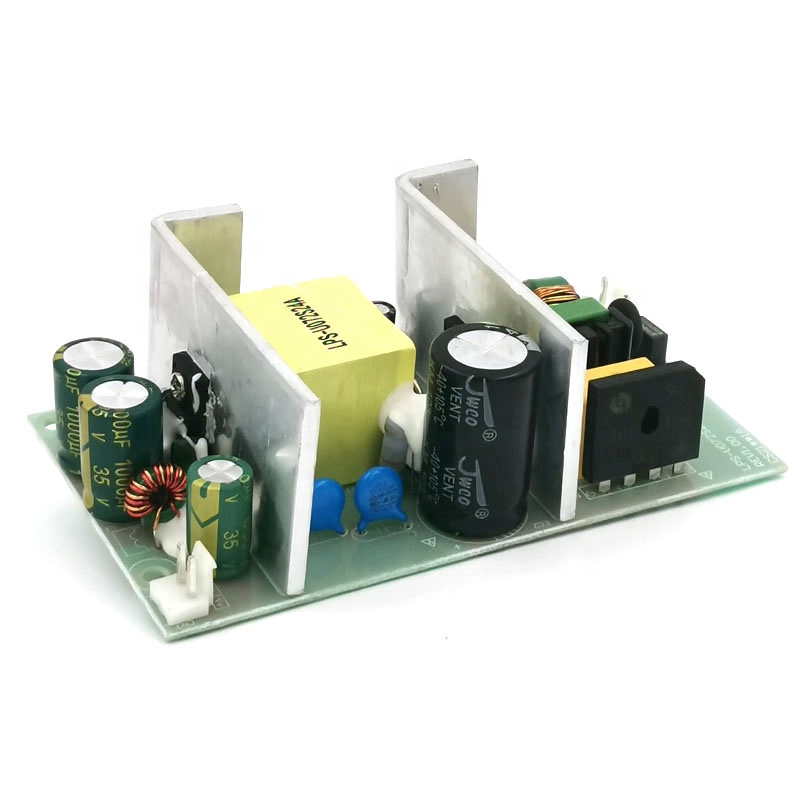

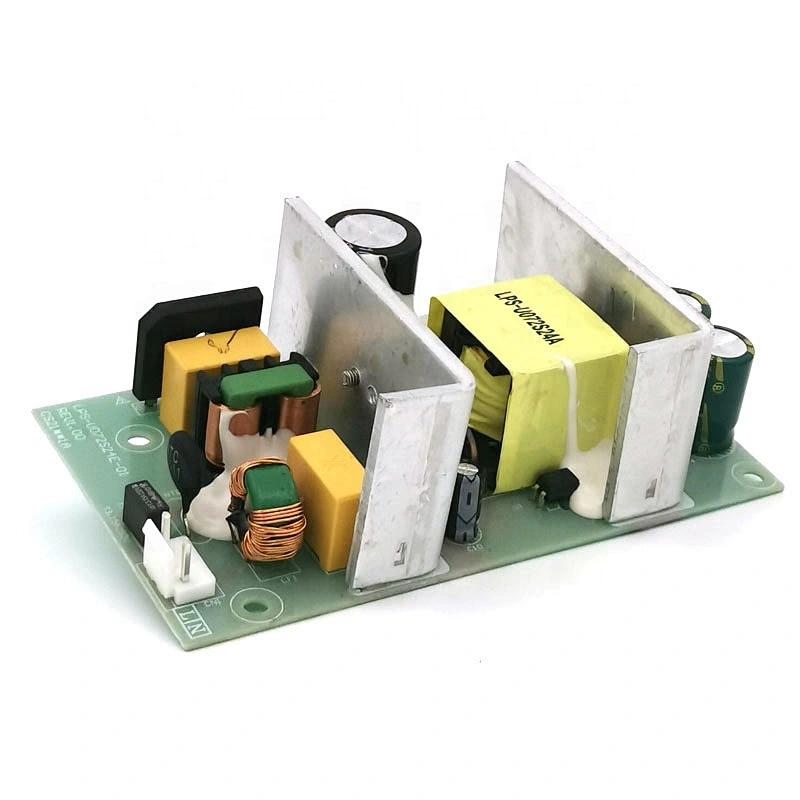

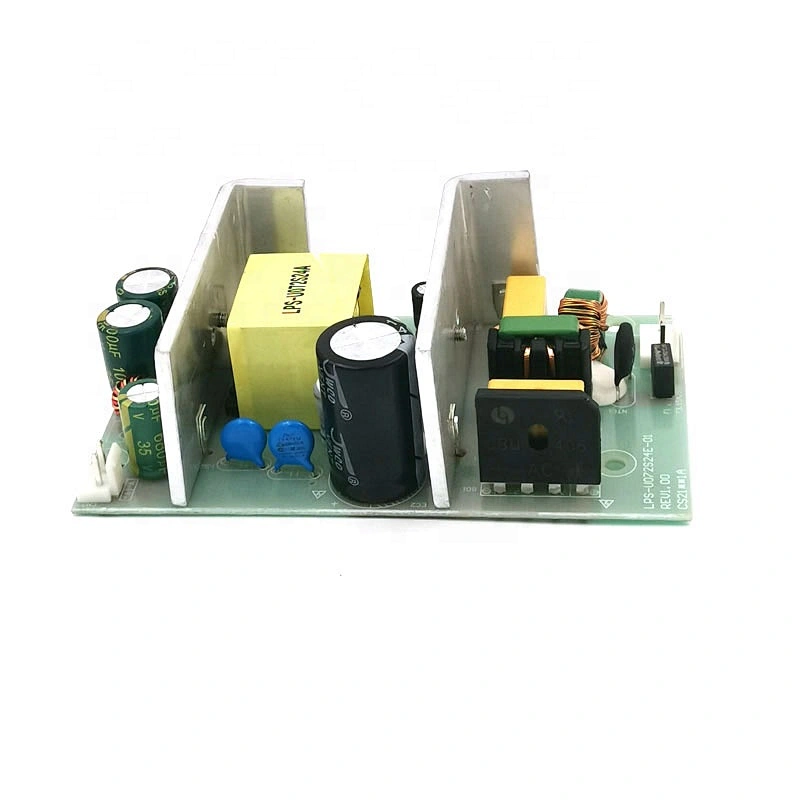

oem odm custom smps 72W 24V 3A universal open frame power supply pcb Certification AC DC Stabilized switching power supply board
Product Description
Features
· Widely used in different field. · Provide customizing service · Protections:Short circuit/
Over load/Over voltage/ Over temp · 3 years warranty · 100% full load burn-in test · Use Imported machine to test,
such as Chroma machine · Lead time: 15 working days
after receiving deposit · Payment: TT,L/C,Paypal etc, · Sample is available · L/T of sample :7 days
Our product series include industrial power supply, power adaptor, LED driver etc., which are widely used in communication, power electronics, automation control, railway, military industry,medical care and a good deal of others.
Specification
MODEL
LPS-U072S24E-01
OUTPUT
DC VOLTAGE
24V
Rated voltage
3A
CURRENT RANGE
0-3A
RIPPLE & NOISE (max.)
100mVp-p
Voltage accuracy
±5%
Linear adjustment rate
±1%
Load Regulation
±5%
SETUP, RISE TIME
2000ms, 30ms/230VAC 3000ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.)
20ms/230VAC 10ms/115VAC at full load
INPUT
VOLTAGE RANGE
100-240VAC
FREQUENCY RANGE
47~63Hz
EFFICIENCY(Typ.)
87% @220VAC
AC CURRENT
1.4A/110VAC 0.64A/220VAC
INRUSH CURRENT(max.)
30A/230VAC 30A/115VAC
LEAKAGE CURRENT(max.)
0.5mA/240VAC
PROTECTION
OVER LOAD
150~ 200% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
Short circuit protection
output impedance is less than 0.1 ohm, power supply will be protected, and there will be no danger of damage to components, connectors, etc.
Protection type : Hiccup mode, recovers automatically after fault condition is removed
ENVIRONMENT
WORKING TEMP.
-10~+65°C(Refer to"Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-25~+ 75°C , 10~95% RH
TEMP. COEFFICIENT
±0.03%/°C（0~50°C）
VIBRATION
10 - 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
