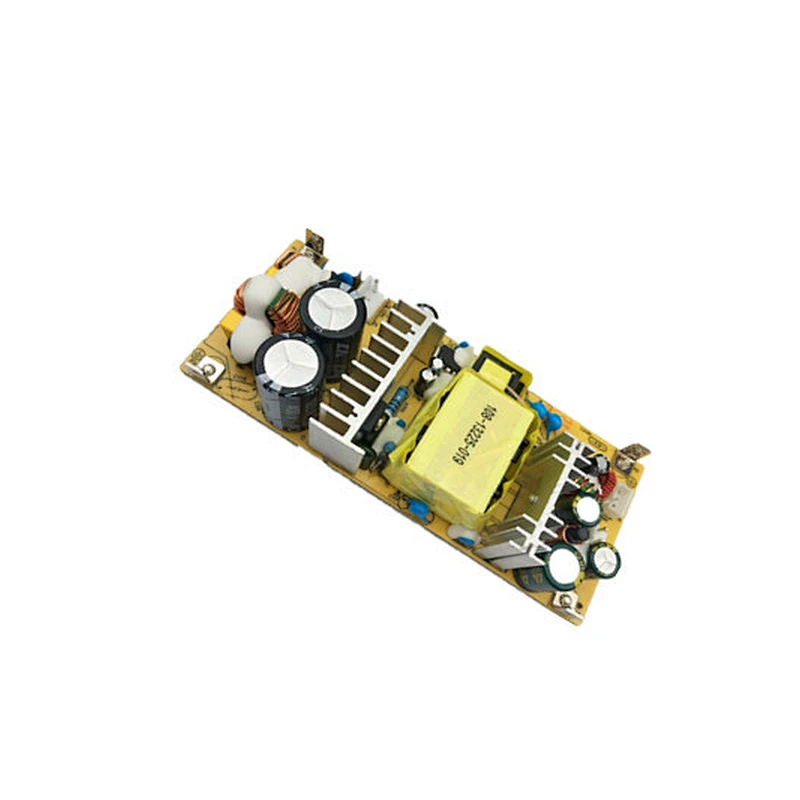

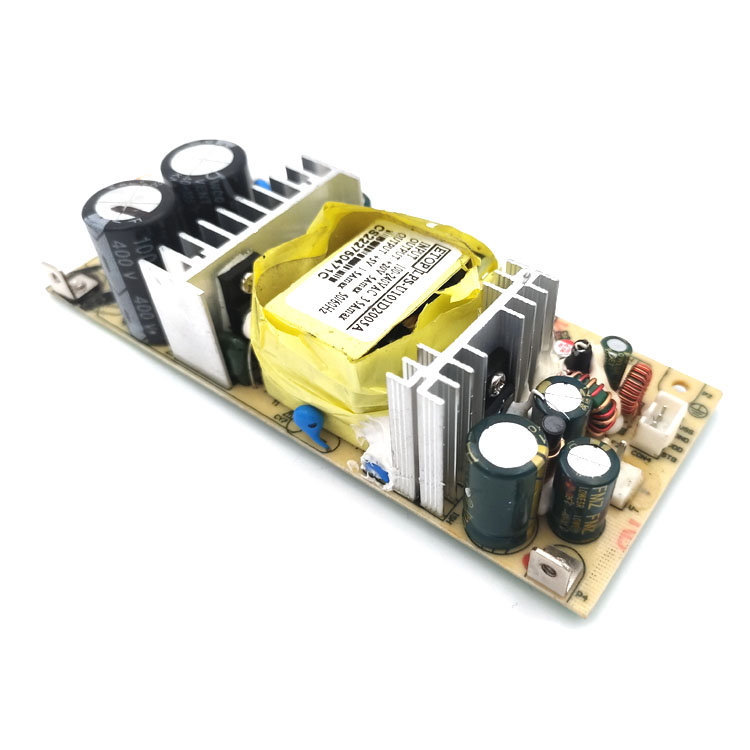

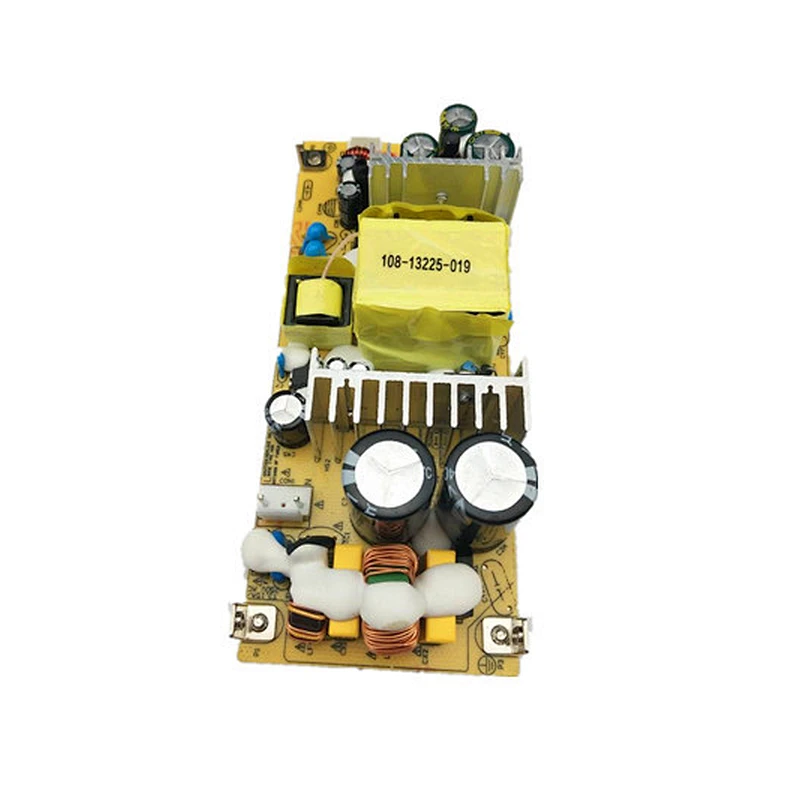

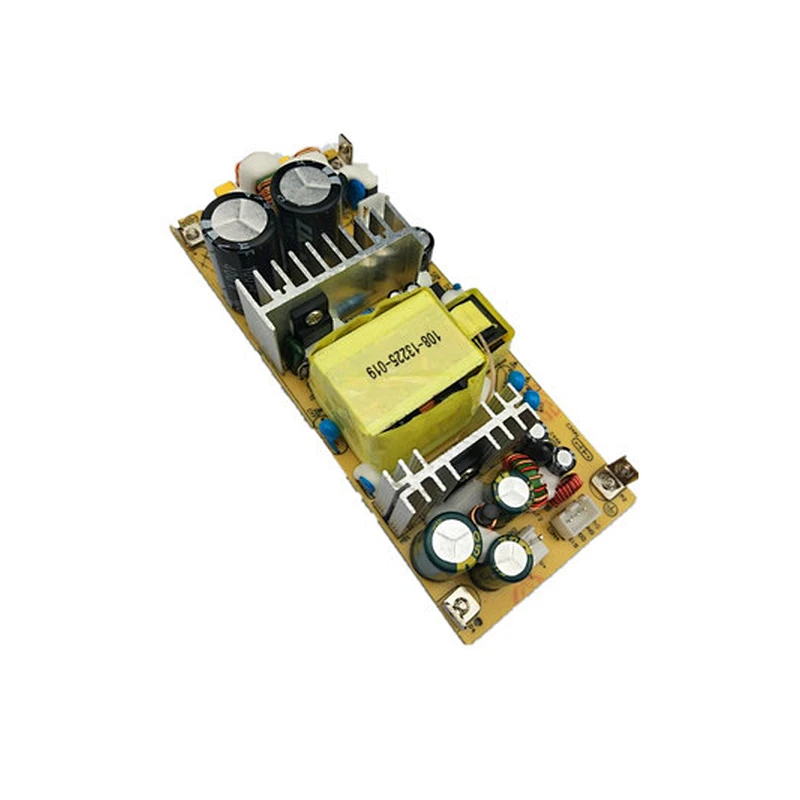

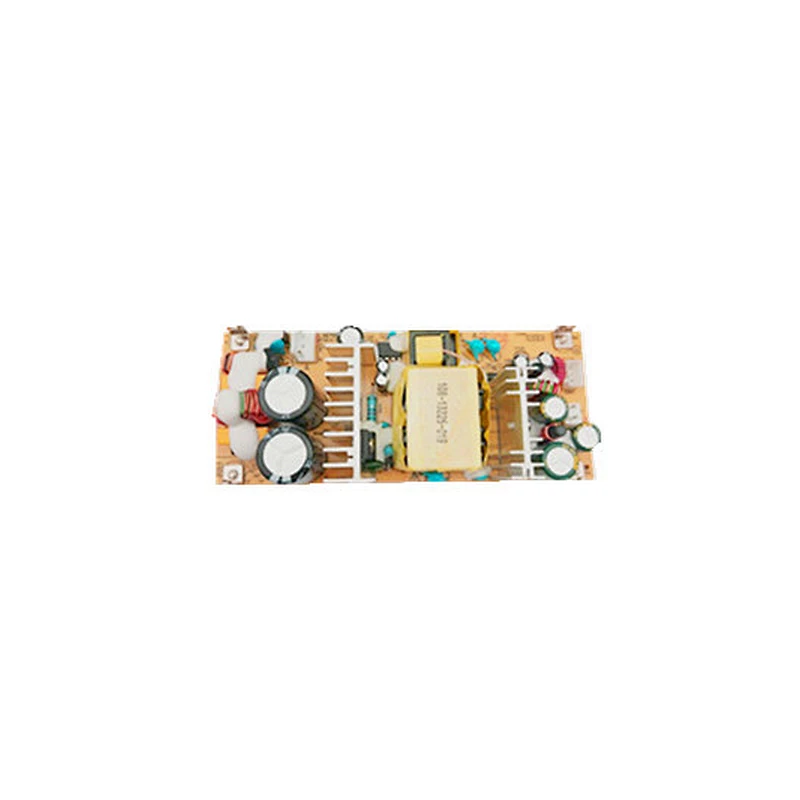

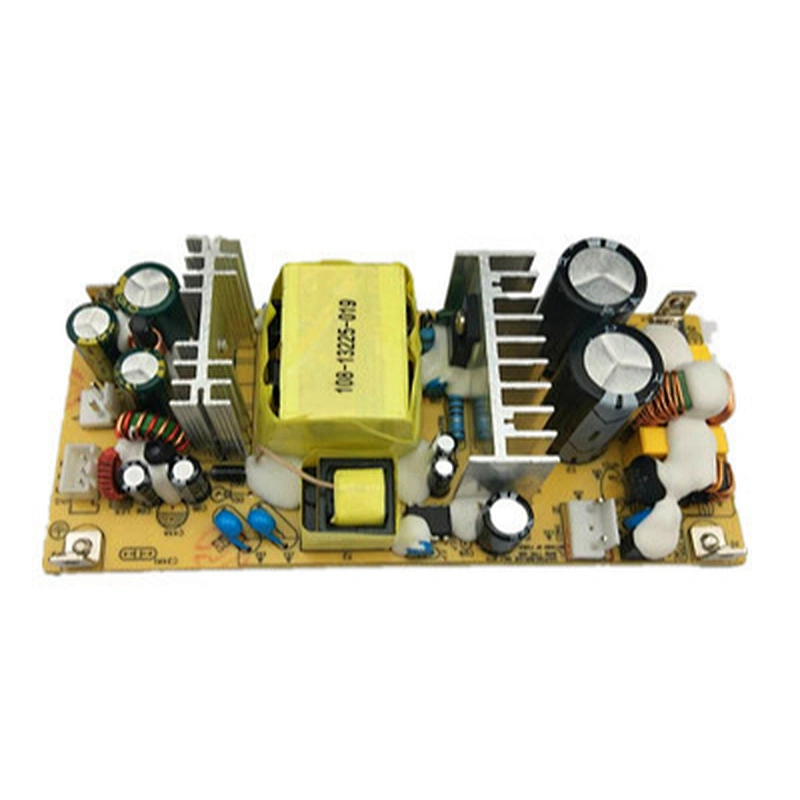

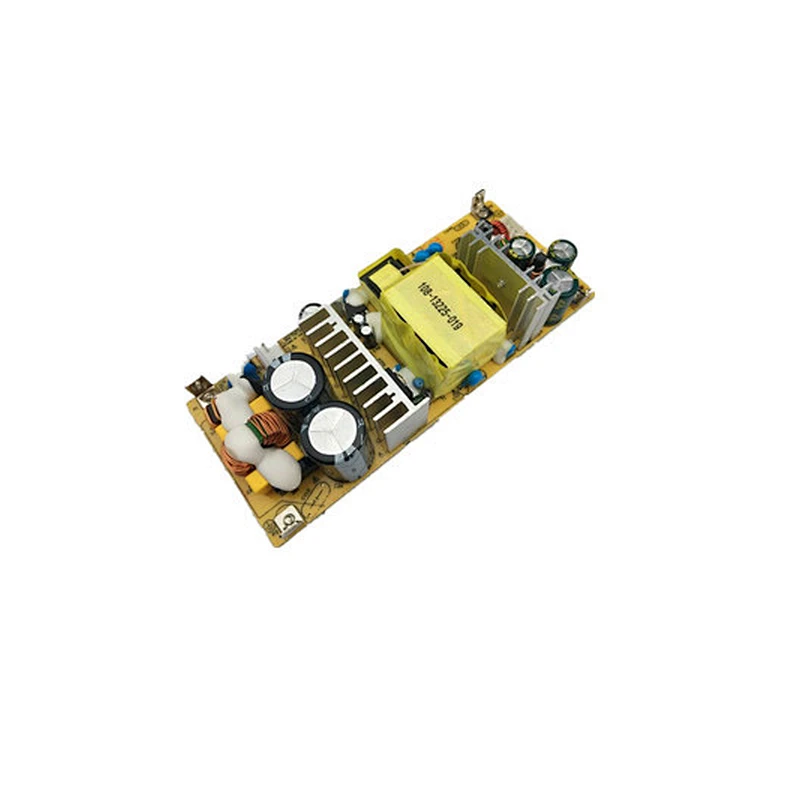

100W Open Frame For Audio Amplifier Soundbar 20V 5V Dual Output High Efficiency SMPS Switching Power Supply
Product Description
| Model | R&N | TOL. | Line regulation | Load regulation | Efficiency | ||||
| LPS-U101D2412L | 100MVP-P | ±5% | ±1% | ±5% | 83% | ||||
| 100MVP-P | ±5% | ±1% | ±5% | 83% | |||||
| Input voltage range & frequency range | 100V-2400VAC 47-63HZ | ||||||||
| Input current | 0.3A/115VAC 0.15A/230VAC | ||||||||
| Inrush current( Max.) | 30A/115VAC 60A/230VAC | ||||||||
| Leakage current(Max.) | 0.75ma/240Vac | ||||||||
| Set up,rise time | 2000ms,30ma/230vac 3000ms,30ms/115vac(at full load) | ||||||||
| Hold up time | 50ms/230vac 15ms/115vac(at full load) | ||||||||
| Working tem.&humidity | -10~+65℃(refer to deration curve ,20%~90% RH non-condensing | ||||||||
| storag tem.&humidity | -25~+75℃,10-95% RH | ||||||||
| tem.coefficicient | ±0.03%/℃(0~50℃) | ||||||||
| vibration resistance | 10-500HZ,2G 10MIN./1cycle,period for 60 min.each along X,Y,Z axes | ||||||||
| withstand voltage | I/P-O/P:1.5KVAC I/P-PG:1.5KVAC O/P-PG:1.5KVAC | ||||||||
| over load | >105%~150% hiccup mode,Auto recovery | ||||||||
| short circuit | >115%~135%,rate output current( constant power) | ||||||||
