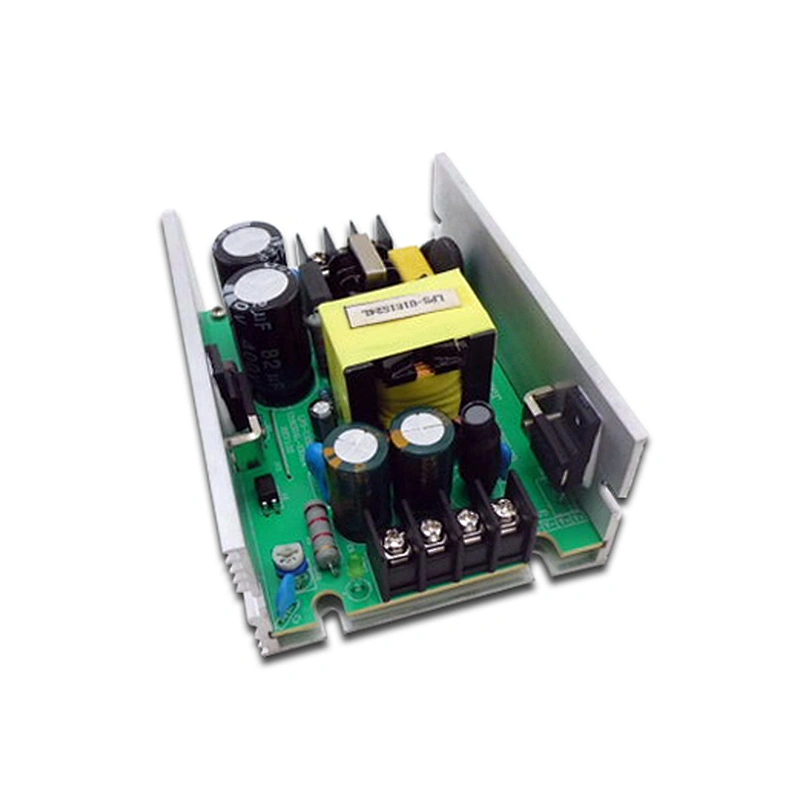

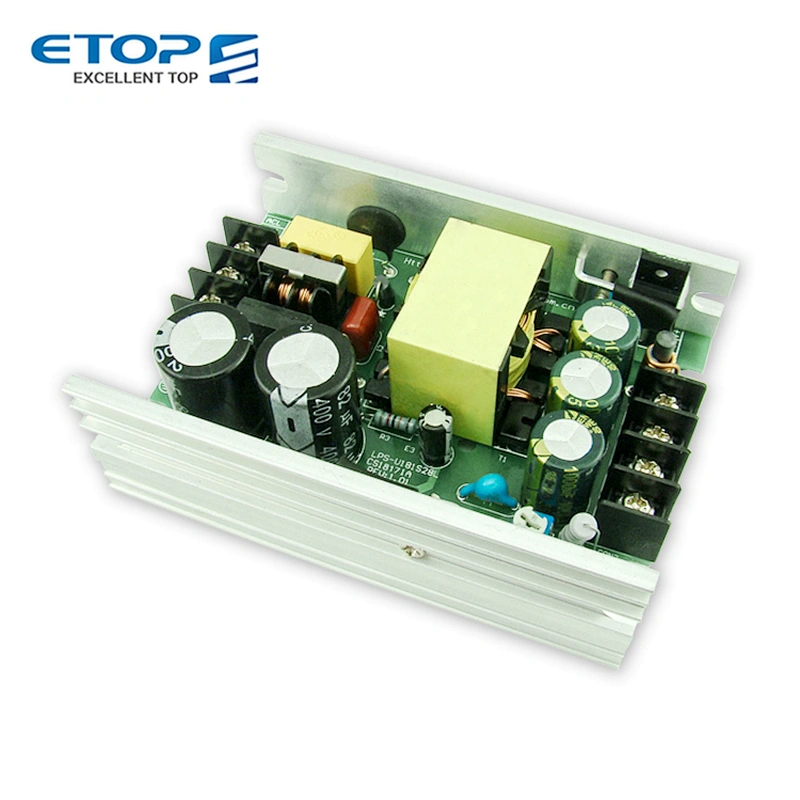

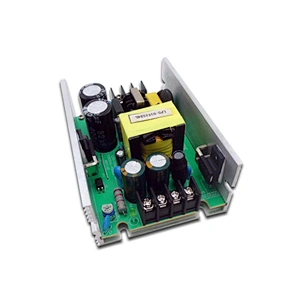

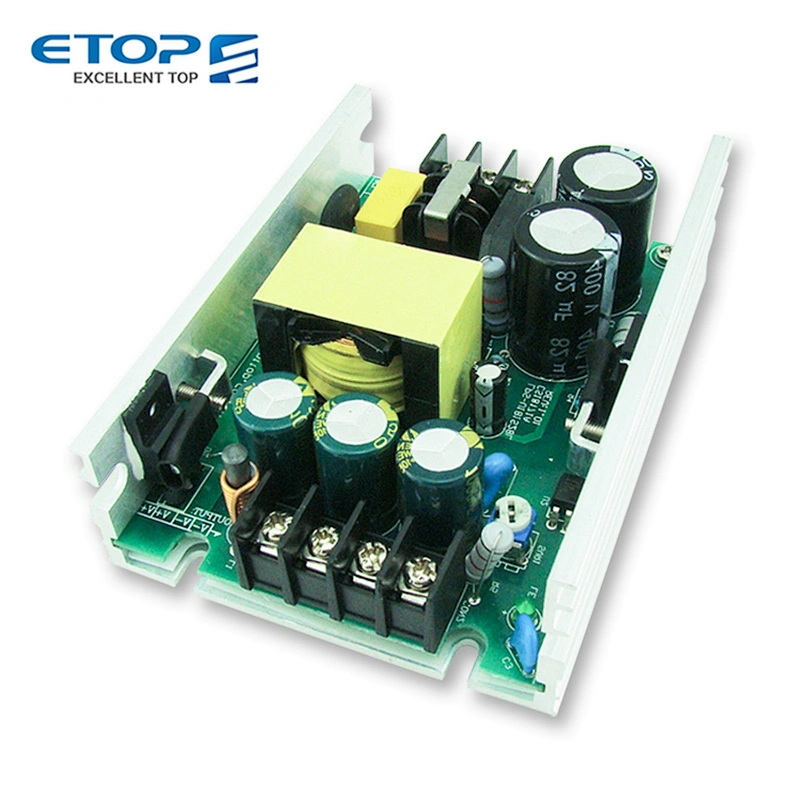

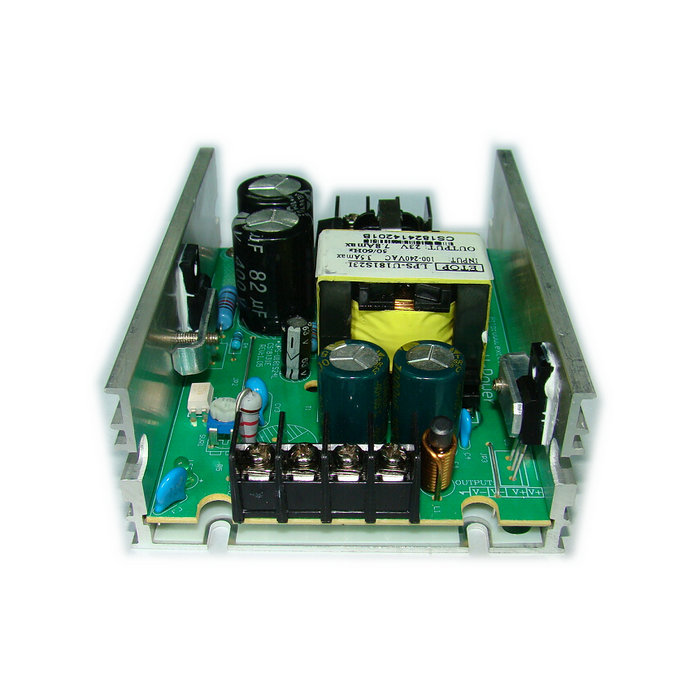

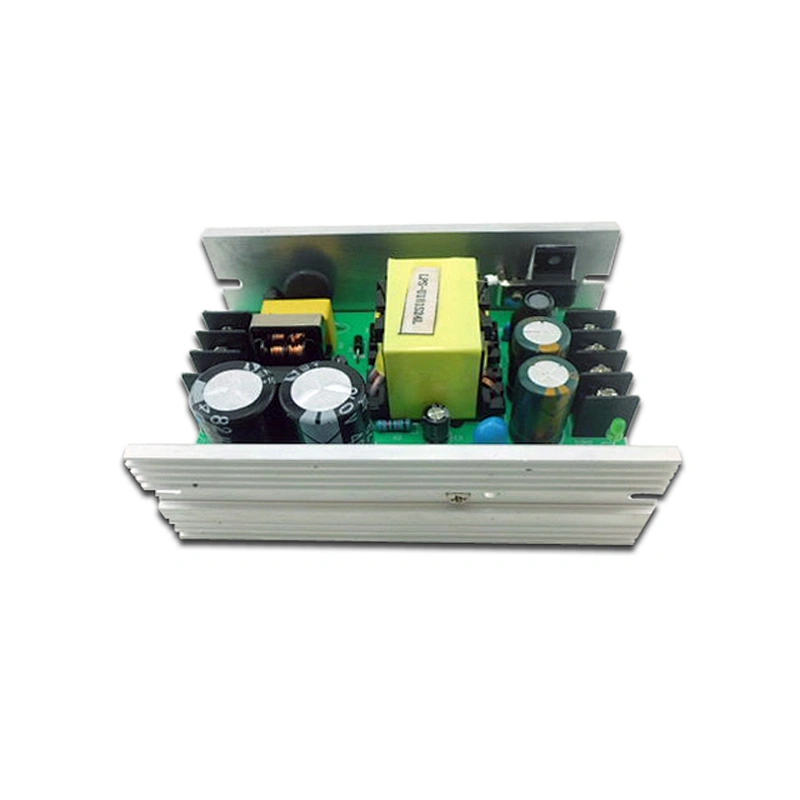

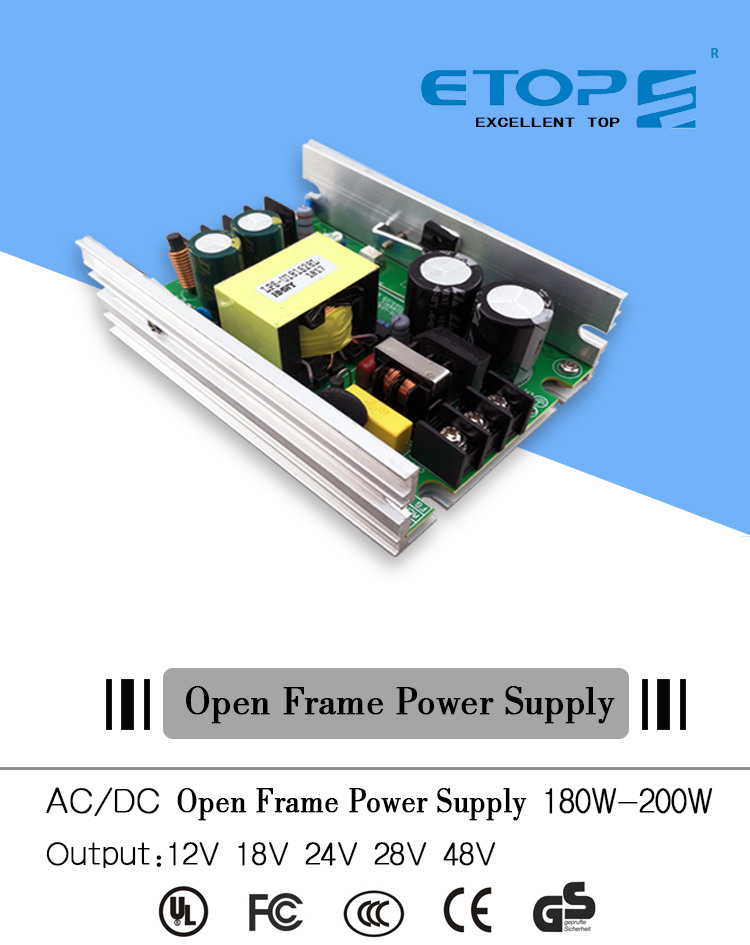

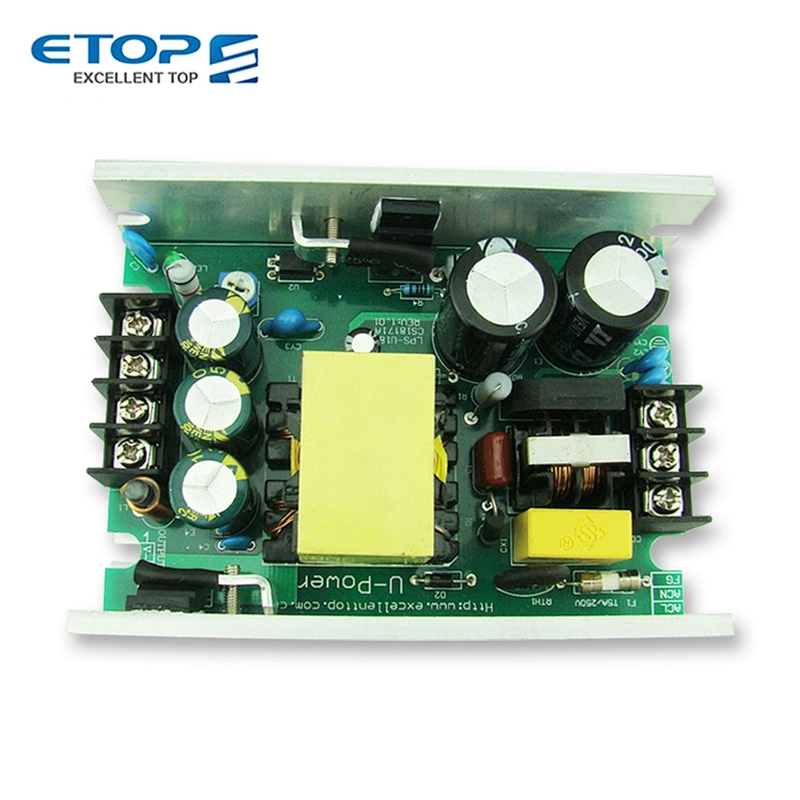

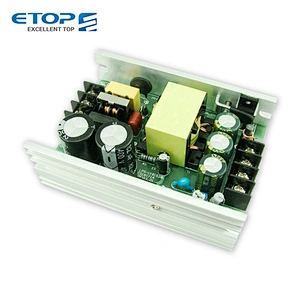

Best Sale 180W--200W Open Frame TV CCTV Power Supply 24V 48V SMPS PCD Board Switch Mode Universal Switching Power Supply
Product Description
| Model | 12V | 18V | 24V | 48V (could be customised ) | |
| Input | Input Voltage(V) | 100-240VAC | |||
| Input Current (A) | 1.8A/115VAC 0.9A/230VAC | ||||
| Frequency (Hz) | 47Hz–63Hz | ||||
| Connector | KF25-3 PIN 7.62mm Terminal input | ||||
| Inrush current(Max.) | 30A/115VAC 60A/230VAC | ||||
| Leakage current(Max.) | 0.75mA /240Vac | ||||
| Output | Output Voltage(V) | 12Vdc | 18Vdc | 24Vdc | 48Vdc |
| Voltage Regulation | 5% | ||||
| Output Current(A) | 10A | 8.5A | 7.5A | 3.75A | |
| Current Range (A) | 0-10A | 0-8.5A | 0-7.5A | 0-3.75A | |
| Rated Power(W) | 180W | ||||
| Start time, Rise time(ms) | 2000ms,30ms/230VAC 3000ms,30ms/115VAC(at full load) | ||||
| Hold up time(ms) | 50mS/230VAC 15mS/115VAC(at full load) | ||||
| Ripple/Noise(mVp-p) | 120-300mVp-p | ||||
| Environment | Working tem.& Humidity | 0°C - +40°C, 20% ~ 90% RH non-condensing | |||
| Storage tem.& Humidity | - 25 ~ +75℃ , 10 ~ 95% RH | ||||
| Tem. coefficicient | ±0.03%/℃(0~50℃) | ||||
| Safety/ EMC | Withstand Voltage(VAC) | I/P-0/P: 1.5KVAC I/P-PG: 1.0KVA O/P-PG: 0.5KVAC | |||
| Safety Standard | EN60950-1,CCC GB4943,J60950-1 | ||||
| EMC Standard | En55022 classB EN61000-3-2.3 EN61000-4-2,3,4,5,6,8,11 | ||||

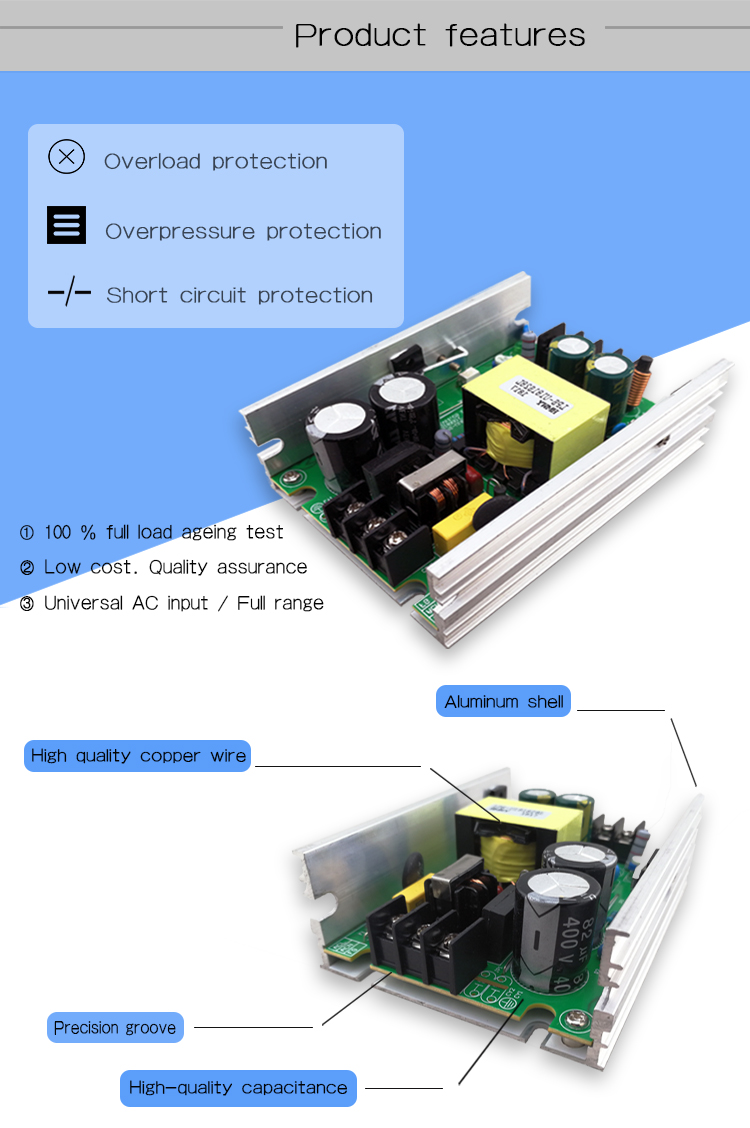

| Protection | Over Voltage Protection | >115%-135% Rated output voltage | |||
| Over load Protection | >110%-200% hiccup mode,Auto recovery | ||||
| Short Circuit Protection | >115%~135%,hiccup mode,Auto recovery | ||||
| MTBF | ≥ 30Khrs MIL-HDBK-217F ( 25℃ ) | ||||
| Others | Dimension L*W*H (mm) | 10.7*6.45*3.45cm(L*W*H) | |||
Our product series include: industrial power supply, power
adaptor, LED driver etc., which are widely used in
communication, power electronics, automation control, railway,
military industry, medical care and a good deal of others.
