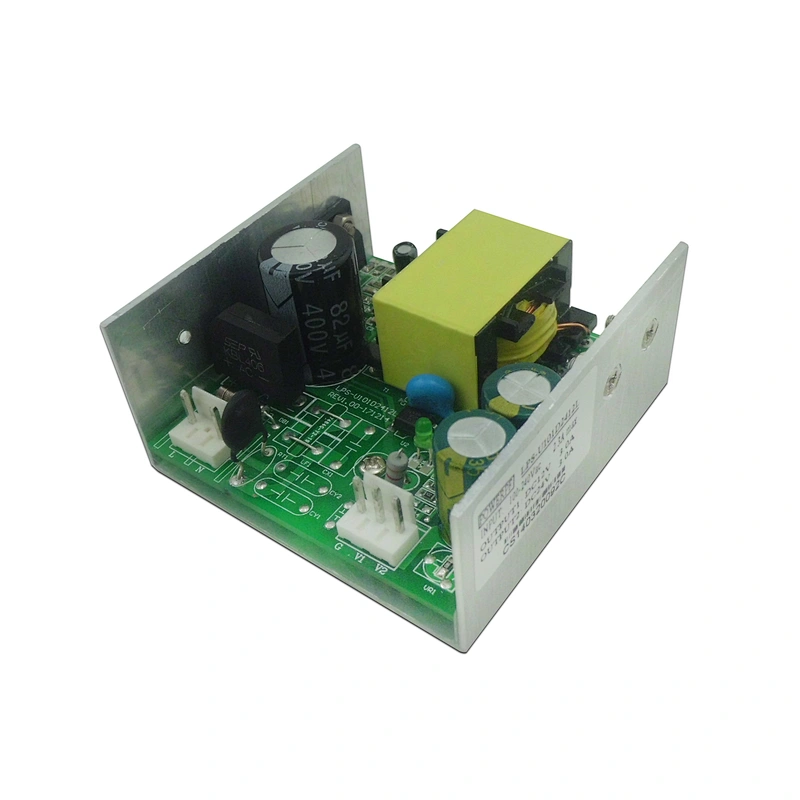

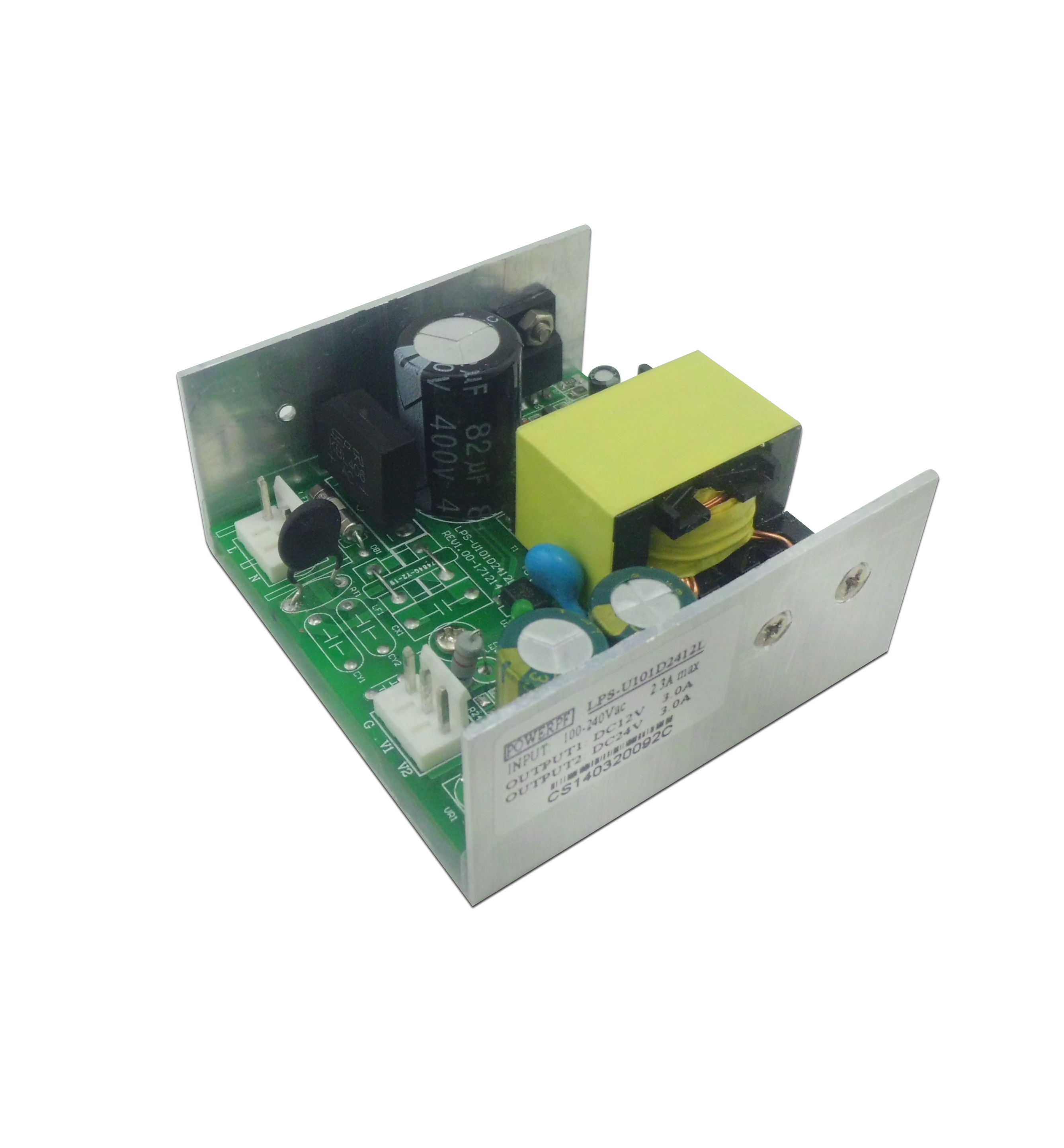

100W dual output 24v5a Switching Power Supply
Feature:
· Universal AC input/Full range(100-240VAC)
· Provide customization service
· Protections:Short circuit/Over load/Over voltage/ Over temp
· 100% full load burn-in test
· Use Imported machine to test,such as Chroma machine
· Lead time: 15 working days after receiving deposit
· Payment: TT,L/C,Paypal etc,
· Sample is available
· Lead time of sample :7 days
Model No.: | Output | R&N | TOL. | Line Regulation | Load Regulation | Effi. |
LPS-U101D2412L | 12V/ 3.0A | 100mVp-p | ±5% | ±1% | ±5% | 83% |
24V/ 3.0A | 100mVp-p | ±10% | ±1% | ±10% | 83% |
Input voltage range & frequency range | 100~240VAC 47-63Hz |
Input current | 0.5A/115VAC 0.3A/230VAC |
Inrush current (Max.) | 60A/230VAC 30A/115VAC |
Leakage current(Max) | 0.75mA /240Vac |
Set up , rise time | 2000mS,30mS/230VAC 3000mS,30mS/115VAC (at full load) |
Hold up time | 50ms/230VAC 15ms/115VAC(at full load) |
Working tem.& Humidity | -10 ~ +65℃ (Refer to"Derating Curve"),20% ~ 90% RH non-condensing |
storage tem.& Humidity | - 25 ~ +75℃ , 10 ~ 95% RH |
Tem. coefficient | ±0.03%/℃(0~50℃) |
Vibration resistance | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes |
Withstand voltage | I/P-O/P: 1.8 KVAC I/P-PG: 1.5KVAC O/P-PG: 1.5KVAC |
Over temp. | N/C |
Over load | >105%-150% hiccup mode,Auto recovery |
Short circuit | >115%~135%,rate output current(constant power) |
MTBF | ≥ 100Khrs MIL-HDBK-217F ( 25℃ ) |
Size | 74.5*70.5*35.5mm (L*W*H) |
Packing | could be customized |

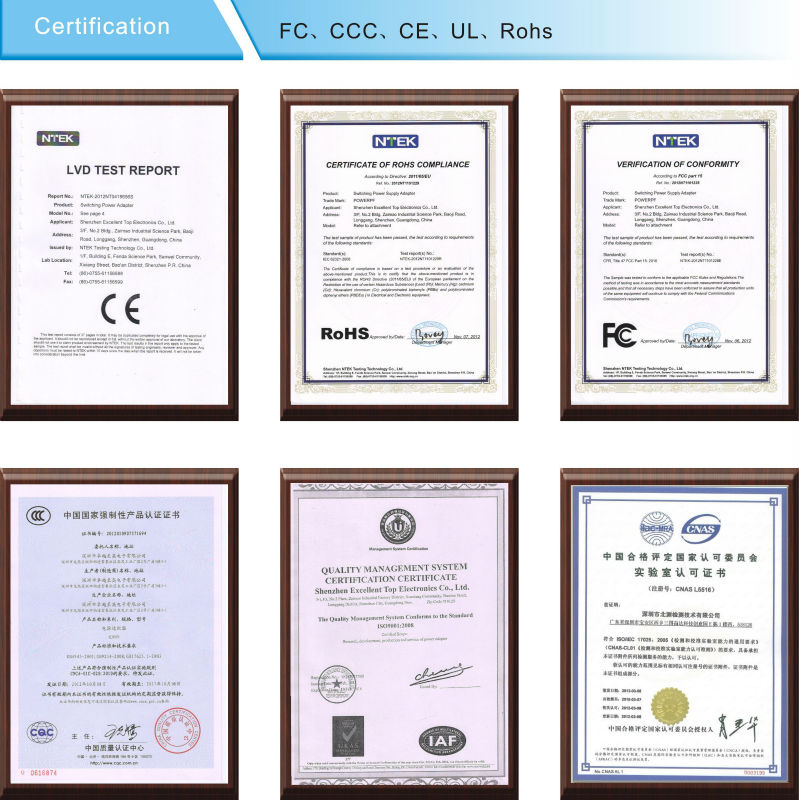

Certificates:
Our products are 100% through high temperature ageing, which accords with CCC, CE, FCC,Rohs and many
other authoritative organization security authentication standard.
