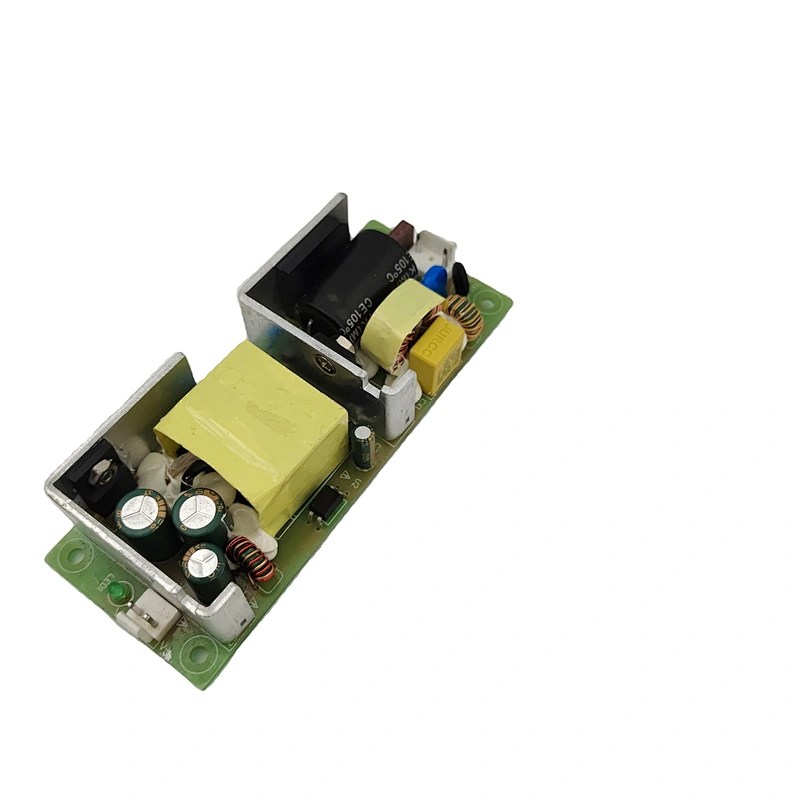

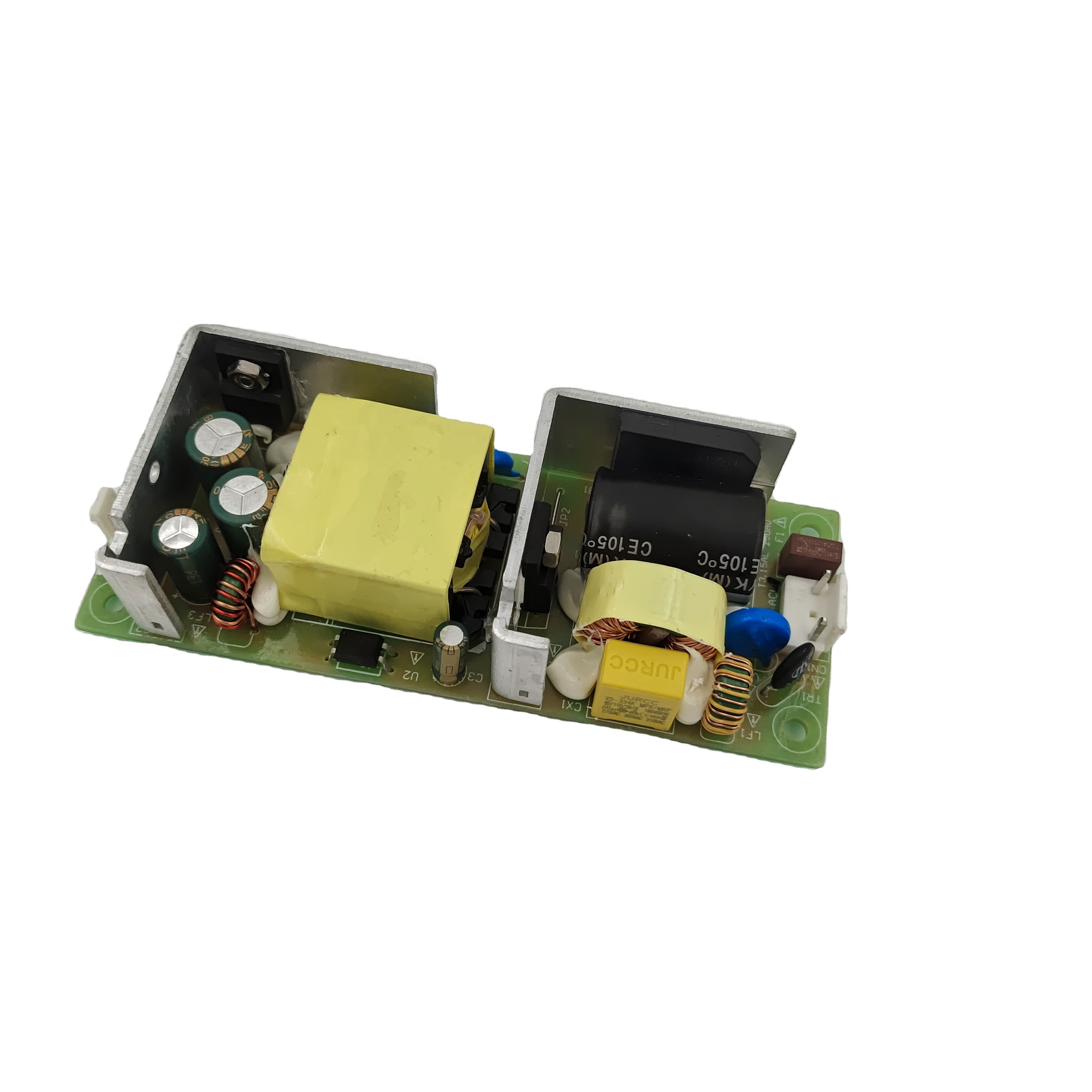

Open Frame Power 60W 12V 5A AC DC Adapter SMPS Circuit Board For Breathing Apparatus
Features
· Universal AC input/Full range,input voltage 90V-264V output 48W
· Single output constant current&constant voltage output power supply
· Widely used in different field.
· Provide customizing service
· Protections:Short circuit/Over load/Over voltage/ Over temp
· 3 years warranty
· Class II power
· Accord with CE ROHS CCC FCC
· 100% full load burn-in test
· Use Imported machine to test,such as Chroma machine
· Capacity: 100,000pcs/month
· Lead time: 15 working days after receiving deposit
· Various kinds of transportation . By sea ,by air ,by express etc.
· Payment: TT,L/C,Paypal western union etc,
· Sample is available
· L/T of sample :5 days
Parameter Table
Model | LPFS-U060S12A | ||
Input | Input Voltage(V) | 90VAC~264VAC | |
Input Current (A) | 1.0A Max | ||
Frequency (Hz) | 47Hz–63Hz | ||
Efficiency | 80% Typ(230VAC Full Load) | ||
Inrush current(A) | Cold star, <30A/230VAC | ||
Leakage current(mA) | <2mA/240VAC | ||
Output | Output Voltage(V) | +12Vdc | |
Voltage Regulation | 3% | ||
Output Current(A) | 5A | ||
Current Range (A) | 0-5A | ||
Rated Power(W) | 60W | ||
Start time, hold-up time(ms) | Ton≤1000ms,Td≥20ms @230Vac Full Load | ||
Rise time(ms) | Typ:20ms @230Vac Full Load | ||
Ripple/Noise(mVp-p) | 100 | 150 | |
Environment | working Temperature (°C) | -20°C - +70°C(refer derating curve) | |
Storage Temperature(°C) | -20°C - +80°C | ||
Humidity(%) | 20% - 90% RH RH non condensing | ||
Safety/ EMC | Withstand voltage(VAC) | I/P-O/P:3KVAC,I/P-FG:1.5KVAC,OP-FG:0.5KVAC 1min | |
Safety Standard | EN/UL60950-1,GB4943 | ||
EMC Standard | EN55022 Class B,EN61000-4-2,3,4,5,6,8,11 GB17626.5 Level3 | ||
Protection | Over voltage Protection | >115%-135% Rated output voltage | |
Over load Protection | >105%-150% hiccup mode,Auto recovery | ||
Short circuit Protection | Latched | ||
Over Temperature Protection | Auto reboot | ||
Others | Dimension L*W*H(mm) | 114*44*28mm | |
Our certifications:Mostof our producs have passed the certifications of ROHS
CCC CE FCC.And our company passed ISO9001 ISO14001.
Advantage of our products and our company:
(1) Original, good quality materials.
(2)Etop have our own SMT department ,All the PCB board are all produced by ourself by
automatic SMT machine import from japan .and 100% machined and manualinspect .It is fast,
high-efficient and standard and the quality can be made sure at source
(3) Strict and complete production process
(4) OEM & ODM order are available:
