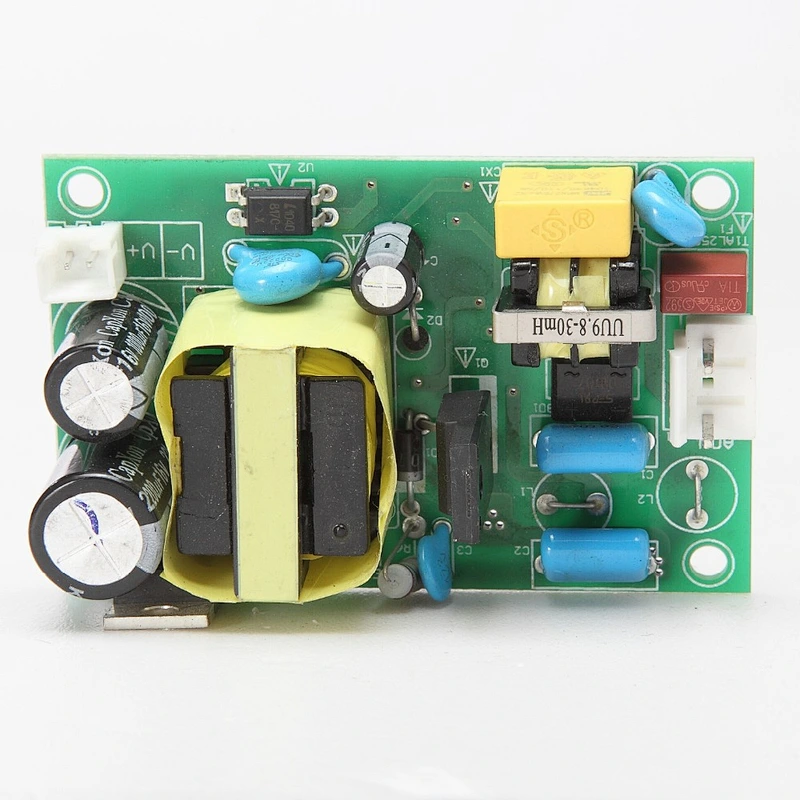

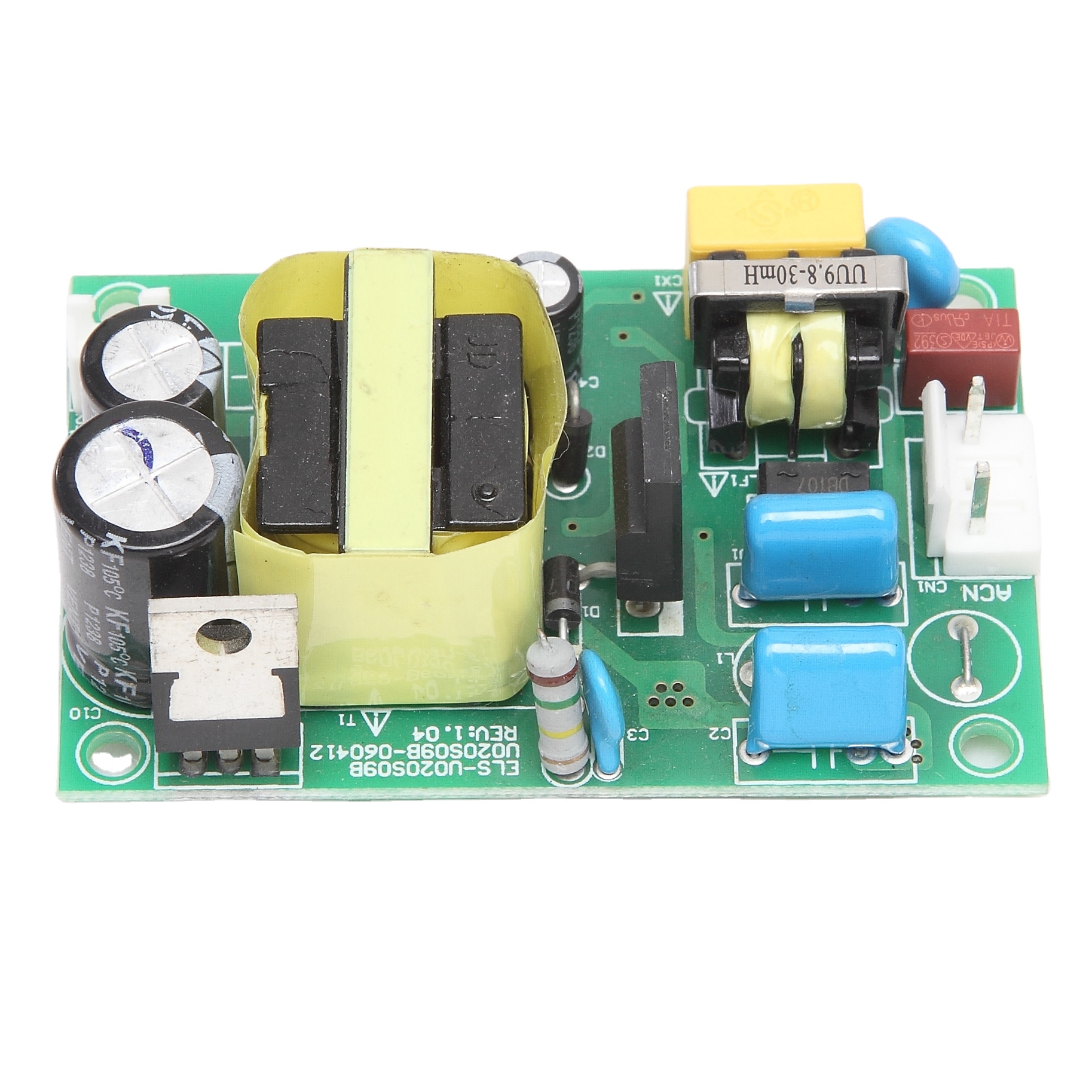

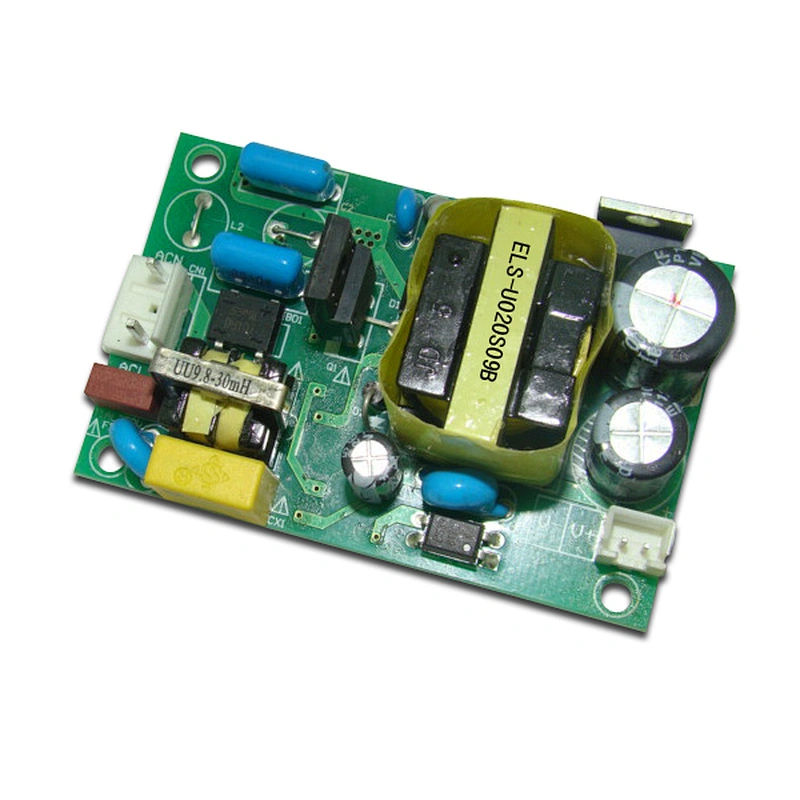

ETOP 20w 10v 2a/ 9V 2.2A for stage light 12v dc switching power supply
· Universal AC input/Full range(100-240VAC)
· Widely used in different field.
· Provide customizing service
· Protections:Short circuit/Over load/Over voltage/ Over temp
· 3 years warranty
· 100% full load burn-in test
· Use Imported machine to test,such as Chroma machine
· Lead time: 15 working days after receiving deposit
· Payment: TT,L/C,Paypal etc,
· Sample is available
· L/T of sample :7 days
Parameter table :
| ORDER NO. | ELP-U020SXXB | |||||||
| OUTPUT | DC VOLTAGE | 9V 10V | ||||||
| RATED CURRENT | 2.2A 2A | |||||||
| CURRENT RANGE | 0~2.2A 0-2A | |||||||
| RATED POWER | 20W | |||||||
| RIPPLE & NOISE (max. | 120mVp-p | |||||||
| VOLTAGE TOLERANCE | +/-5.0% | |||||||
| LINE REGULATION | +/-1.0% | |||||||
| LOAD REGULATION | +/-3.0% | |||||||
| SETUP, RISE, HOLD UP TIME | 500ms,20ms,30ms/230VAC 3000ms,20ms, 10ms/115VAC(at full load) | |||||||
| INPUT | VOLTAGE RANGE | 90~264VAC | ||||||
| FREQUENCY RANGE | 47~63Hz | |||||||
| EFFICIENCY (Typ.) | 75.0% | |||||||
| AC CURRENT | 0.15A/ 115VAC 0.1A/ 230VAC | |||||||
| INRUSH CURRENT (max.) | COLD START 25A / 115VAC 45A / 230VAC | |||||||
| LEAKAGE CURRENT (max.) | 0.25mA/240VAC | |||||||
| PROTECTION | OVERLOAD | >150% rated output power | ||||||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||||||||
| OVER VOLTAGE | 115%°C~150% | |||||||
| Protection type : Clamp by zener diode | ||||||||
| OVER TEMPERATURE | U1 Tj 140°C typically (U1) Detect on main control IC | |||||||
| Protection type : Shut down o/p voltage, recovers automatically after temperature goes down | ||||||||
| ENVIRONMENT | WORKING TEMP. | 0 ~ +40°C | ||||||
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | |||||||
| STORAGE TEMP., HUMIDITY | --20 ~ +85°C , 10 ~ 95% RH | |||||||
| TEMP. COEFFICIENT | +/-0.03%/°C(0~40°C) | |||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |||||||
| SAFETY & EMC | WITHSTAND VOLTAGE | I/p-0/P: 1.5KVAC | ||||||
| ISOLATION RESISTANCE | I/p-0/P: 100M Ohms / 500VDC / 25°C / 70% RH | |||||||
| EMC EMISSION | Compliance to EN55022, EN61204-3, EN61000-3-2,3, FCC part15 class B | |||||||
| EMC IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,8,11, EN61204-3, light industry level, criteria A | |||||||
| OTHERS | MTBF | ≥ 1414.6Khrs MIL-HDBK-217F ( 25°C ) | ||||||
| DIMENSION | 71*45*23 (L*W*H) | |||||||
About Our Factory :
ETOP:It has got ISO9001 certification in 2002. And in 2004, we finished renewing the ISO9001:2000 quality
management system certification. Moreover, ETOP passed the ISO14001 environmental management system
certification and GB/T28001 occupational health and safety management system certification in 2005.
Our Certificates:
Our products are 100% through high temperature ageing, which accords with CCC, CE, FCC,Rohs and many
other authoritative organization security authentication standard.
(1) Provide customizing service:We are good at designing and developing various products.We can
customize all kinds of power supples you expect as long as you can provide us your detailed comments .

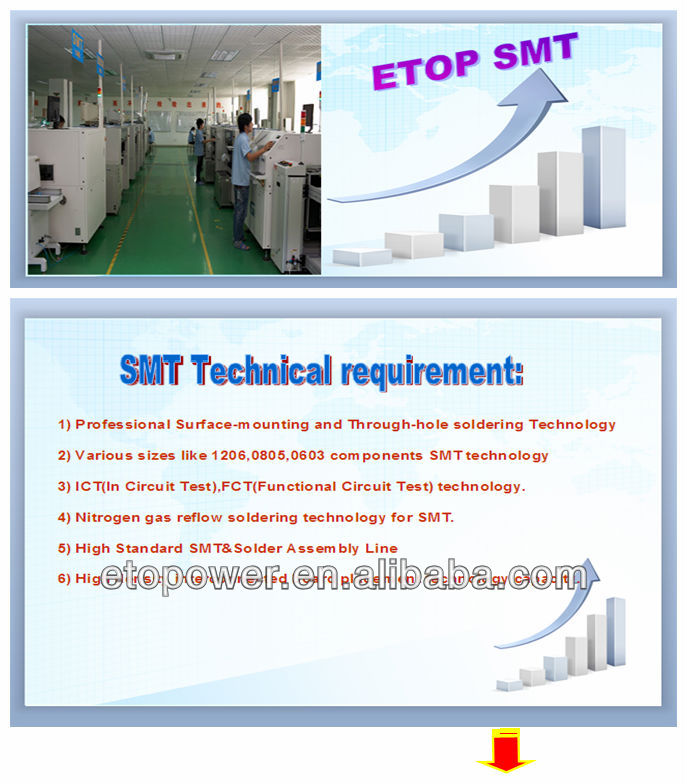

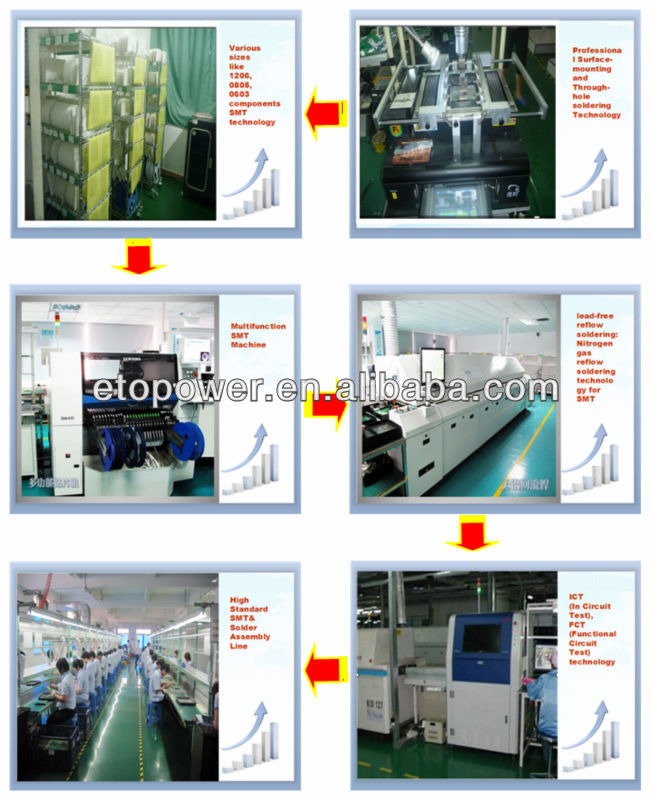

(2) SMT---High Efficiency & High Quality: largely adopt SMT components because of its tight mechanism,
small volume and exquisite appearance.
