- Place of Origin:CN;GUA
- Output Type:DC
- Connection:Plug In

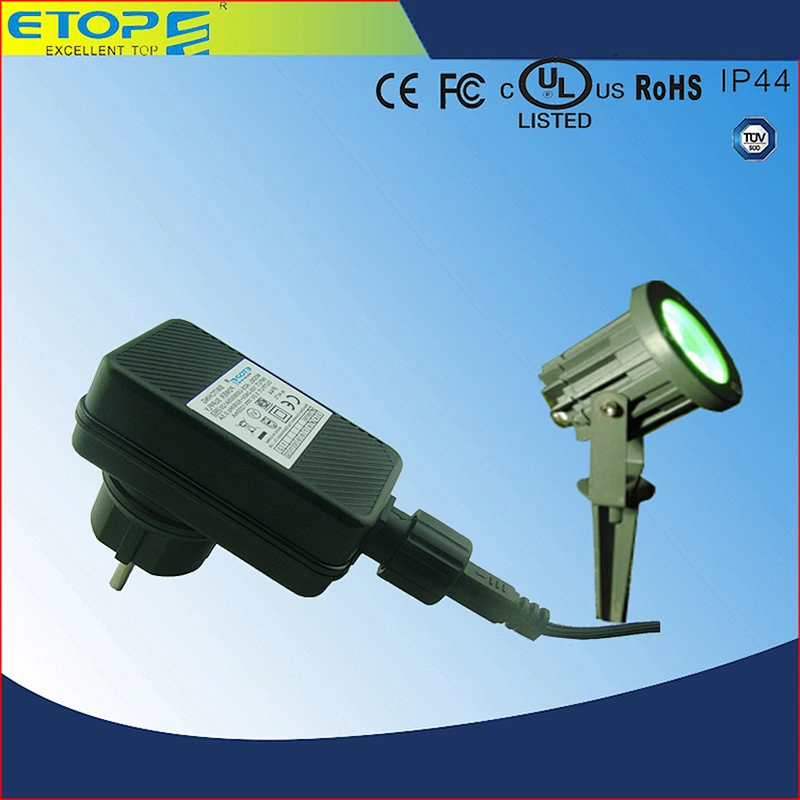

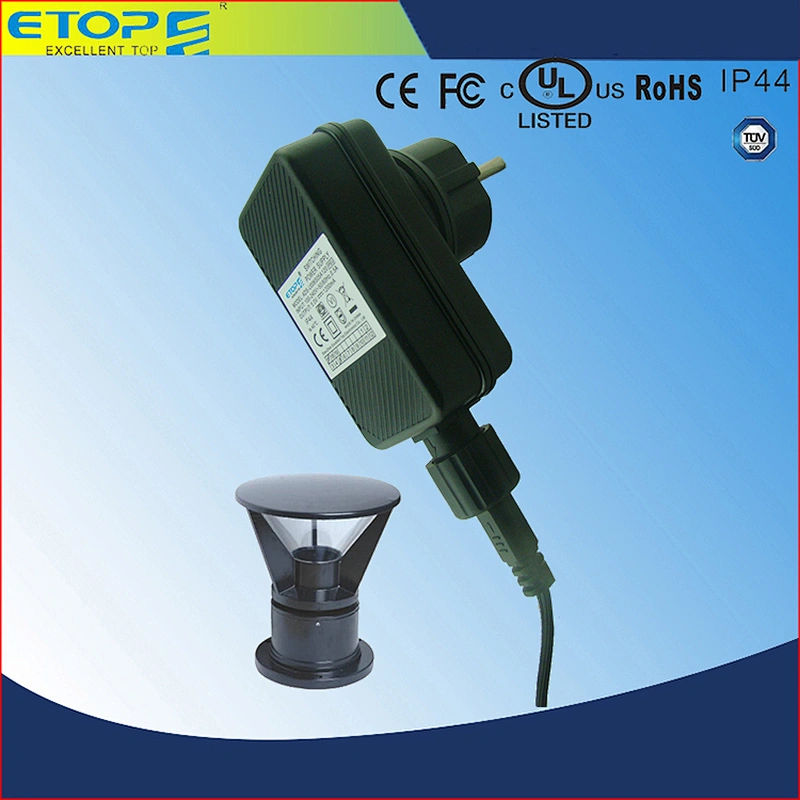

- Usage:outdoor light,Christma light, Garden light,LED light
- Brand Name:ETOP
- Model Number:ADS-U012SxxxA
- Output voltage:5V-24V
- Certification:CE FCC ROHS UL SAA GS CCC
- Warranty:3 Years
- Input voltage:AC 110-240V 50/60HZ
- MOQ:500PCS
- Color:Black
- Payment:T/T
- Delivery time:20-25days
- Type:Wall-mounted
- Efficiency:87%

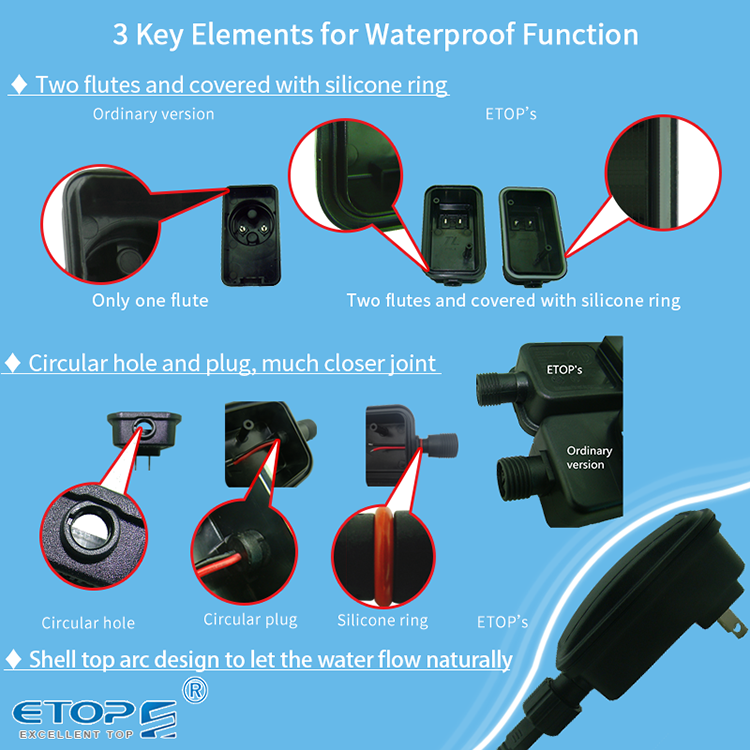

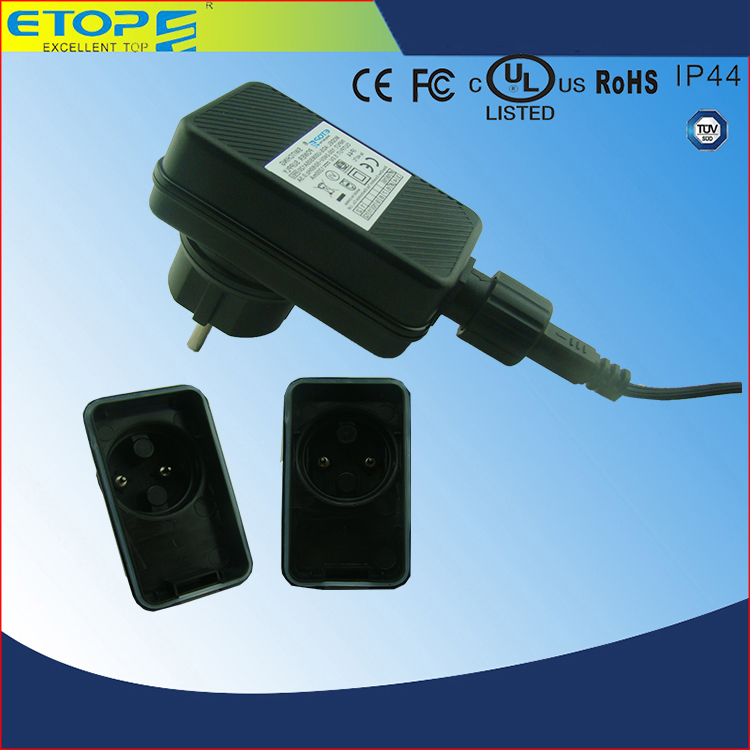

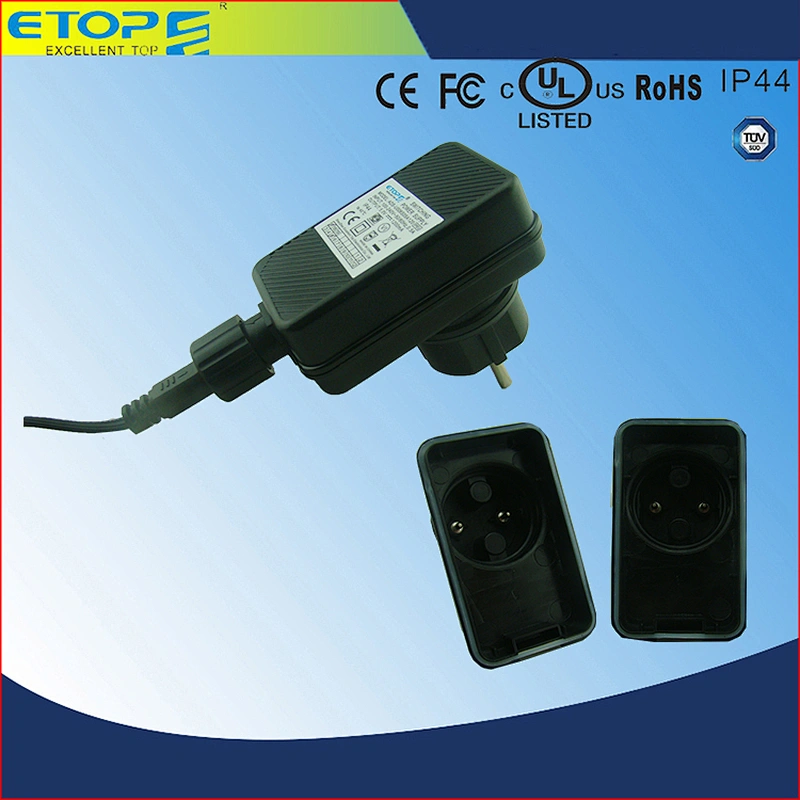

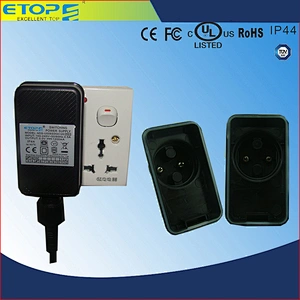

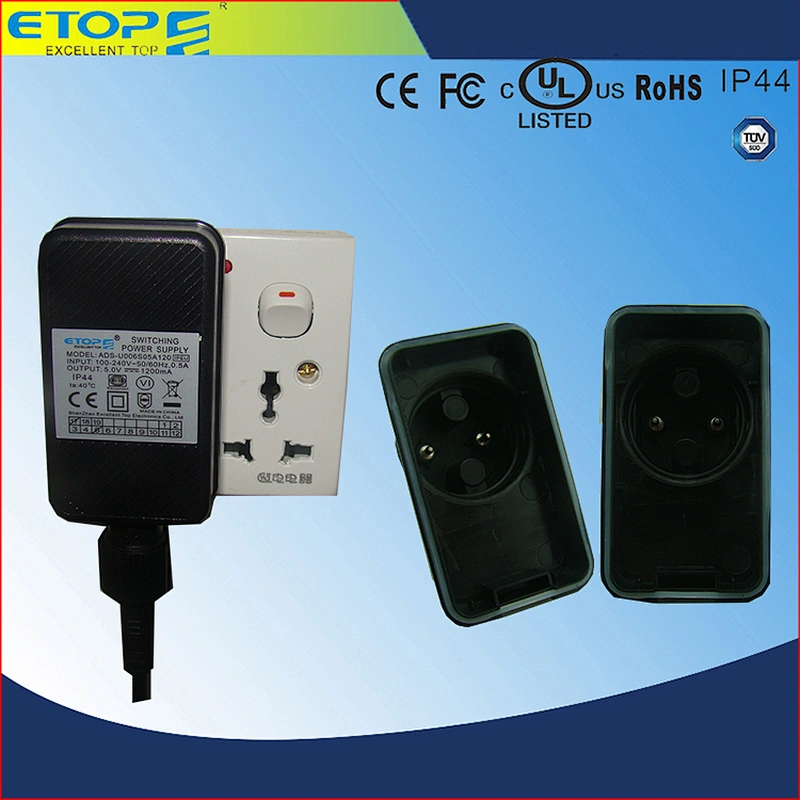

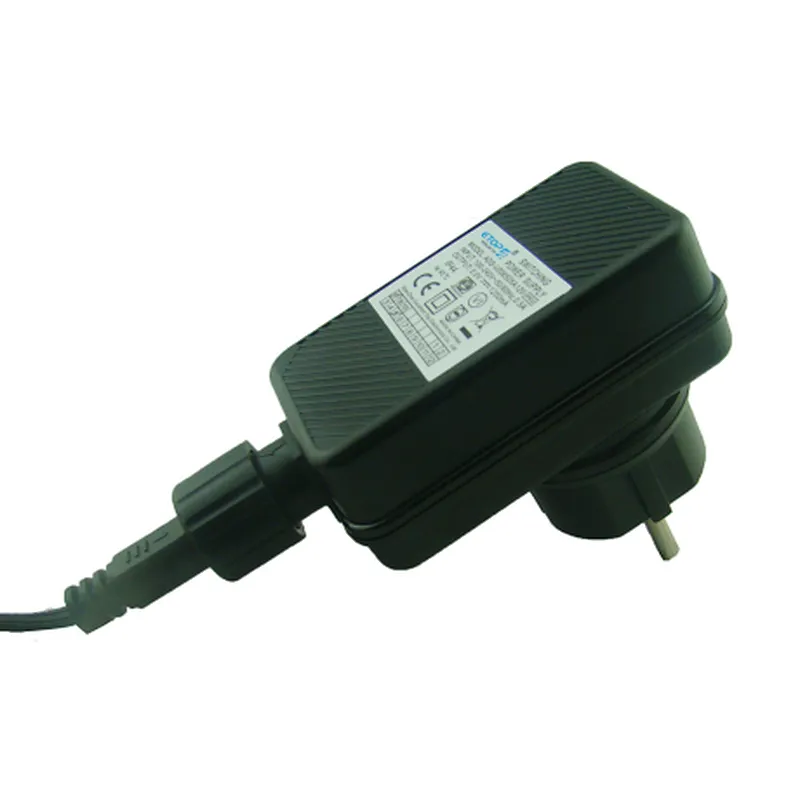

Outdoor use Waterproof adapter IP44

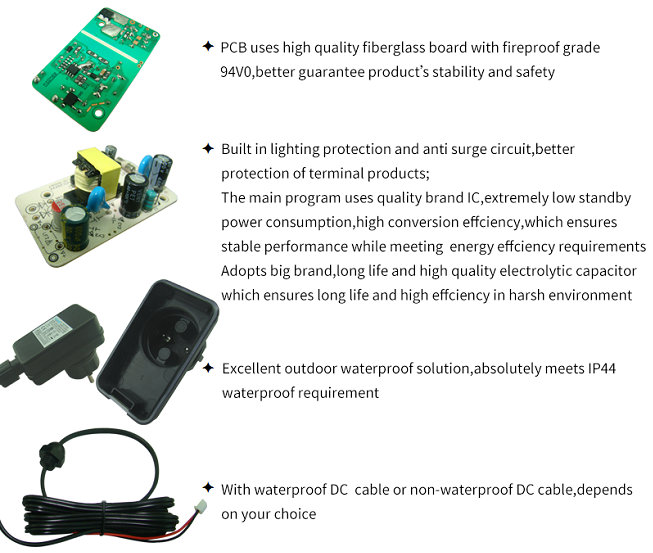

Feature
1.Universal AC input/full range;
2.100% full load burn-in testing;
3.Constant voltage type;
4.Waterproof fully enclosed plastic case;
5.SGS CE,CB approved;
6.SGS RoHS approved;
7.SGS ERP level V approved;
8.SGS IP44 waterproof approved;
9.3-year warranty.
Parameter table
| Model | Output | R&N | TOL. | Line regulation | Load regulation | Eff. |
| ADS-U010S05A | 5V/2A | 120mvp-p | ±5% | ±1% | ±5% | 80% |
| ADS-U010S07A | 7V/1.42A | 70mvp-p | ±5% | ±1% | ±5% | 82% |
| ADS-U010S09A | 9V/1.1A | 120mvp-p | ±5% | ±1% | ±5% | 83% |
| ADS-U010S12A | 12V/0.83A | 120mvp-p | ±5% | ±1% | ±5% | 87% |
| ADS-U012S05A | 5V/2.4A | 120mvp-p | ±5% | ±1% | ±5% | 79% |
| ADS-U012S07A | 7V/1.7A | 120mvp-p | ±5% | ±1% | ±5% | 82% |
| ADS-U012S09A | 9V/1.33A | 120mvp-p | ±5% | ±1% | ±5% | 83% |
| ADS-U012S12A | 12V/1A | 120mvp-p | ±5% | ±1% | ±5% | 85% |
| Input | Voltage range | 100-240vac |
| Frequency range | 47~63hz | |
| AC current | 0.5a/115vac 0.25A/230VAC | |
| Inrush current(Max.) | 50A/230VAC | |
| Leakage current(Max.) | 0.75ma/240Vac | |
| Protection | Over temperature | when the working tem.reach 145℃±10℃,the products turn into output hiccup mode |
| Over load | 110%-200% of the rated output power Protection type:hiccup mode,recovers automatically after fault condition is removed | |
| Over voltage | >115%~135%,hiccup mode,auto recovery | |
| Enviroment | Working temperature | -20~60℃ |
| working humidity | 20~90% RH,non-condensing | |
| Storage temperature,humidity | -30~+85℃,10~95%RH | |
| temperature coefficient | ±0.03%/℃(0~50℃) | |
| vibration | 10~500HZ,2G 10Min./1 cycle,period of 60 min.each along X,Y,Z axes | |
| Safety& EMC | Safty Standard | UL1310 |
| Withstand voltage | I/P-O/P:3kvac I/P-FG:1.5KVAC O/P-FG:0.5KVAC | |
| Isolation Resistance | I/P-0/P,I/P-FG:50M Ohms/500vdc/25 | |
| Emc Immunity | Compliance to FCC Part 15 Subpart B: 2016,ANSI C63.4:2014 |

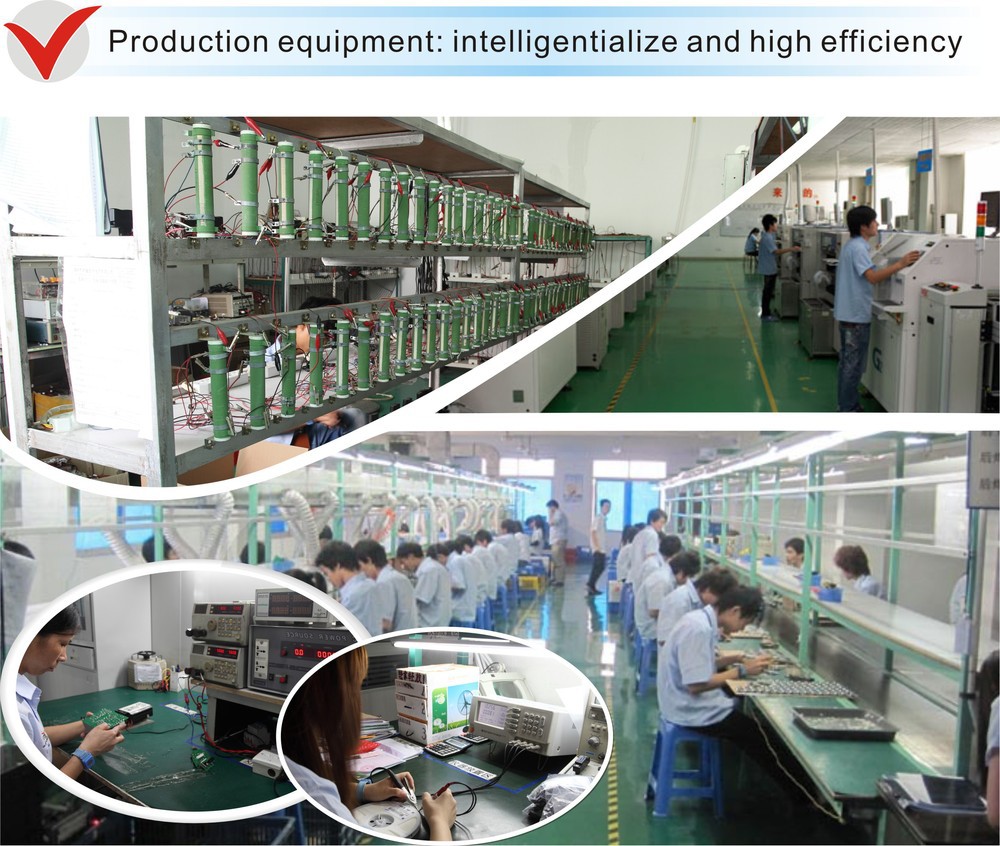

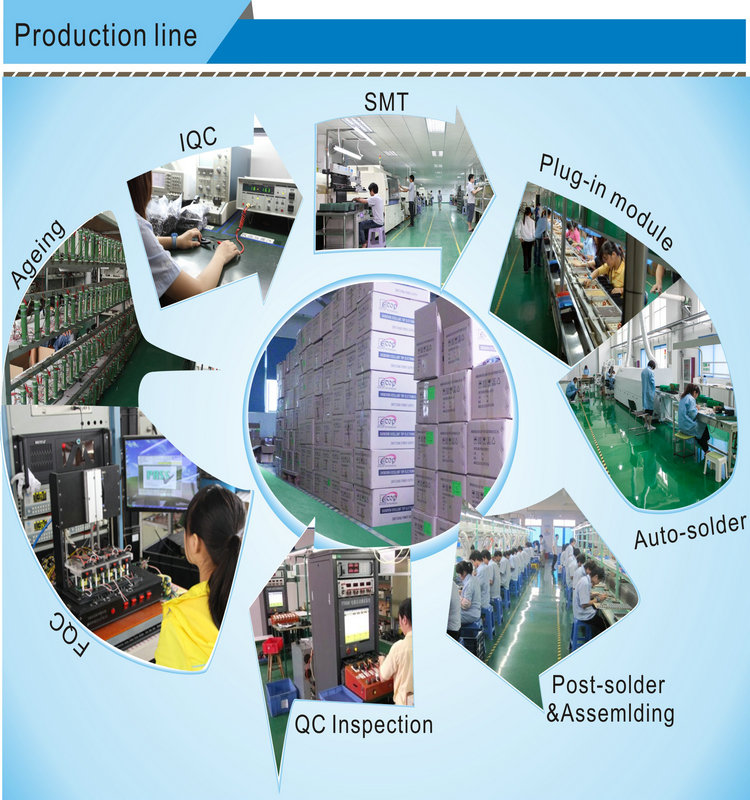

Production picture

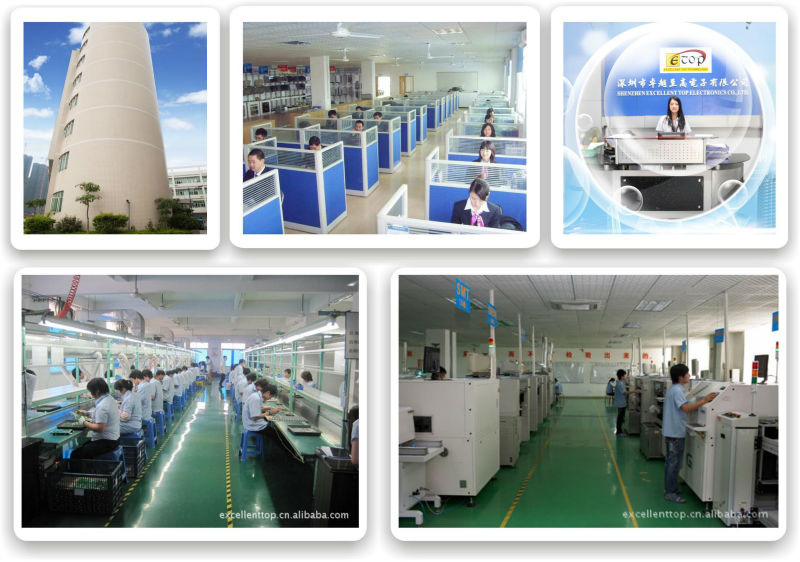

Factory picture
Our Promise:
Customers satisfaction, provide good quality and reasonable price be to engaged in 100% of us
The above sample photos are coming from main production.
Thanks and the first cooperation to be expected.
How to pay?
1.T/T 30% in advance, T/T 70% before delivery.
2.Others: Paypal, Western union, L/C
Production cycle:
1. About big order: Our producing capacity is 100,000pcs each month, your order will according to real producing planning, finished in 20-25 days.
2. About sample: if sample do not have stock or it is customize type, we will need 5-12 days to ready, include purchaing material, producing time and delivery time. If sample have stock, sample time is 5-7 days.
About certificates:
Our products have approved CE,FCC and RoHS certificates. If you need others certificate in your market, pls tell us, we willing to invest in certificates, and we are able to do, but according to your quantity.
What is our MOQ?
We will have different MOQ in each models, from 500pcs to 5000pcs.
