- Place of Origin:CN;GUA
- Output Type:DC
- Connection:Plug In
- Usage:lighting, camera
- Brand Name:ETOP
- Model Number:ADS-U012S05A
- Product name:waterproof power adapter
- Power:6W 10W 12W
- Apply to:Xmas lights, LED lights, CCTV camera
- Frequency:47-63Hz
- Input voltage:100- 240VAC
- Output:DC 3V-12V, 0.1A-2.4A
- Protection:OVP OCP OTP SCP
- Certification:CE RoHS FCC UL1310 (outdoor)
- Warranty:3 Years
- Dimension:77.9*44.9*74.4mm (L*W*H)
China supplier new IPX4 waterproof 220v ac dc 5v power adapter 7v 9v 12v
Features:
1. Universal AC input/full range;
2. 100% full load burn-in testing;
3. Constant voltage type;

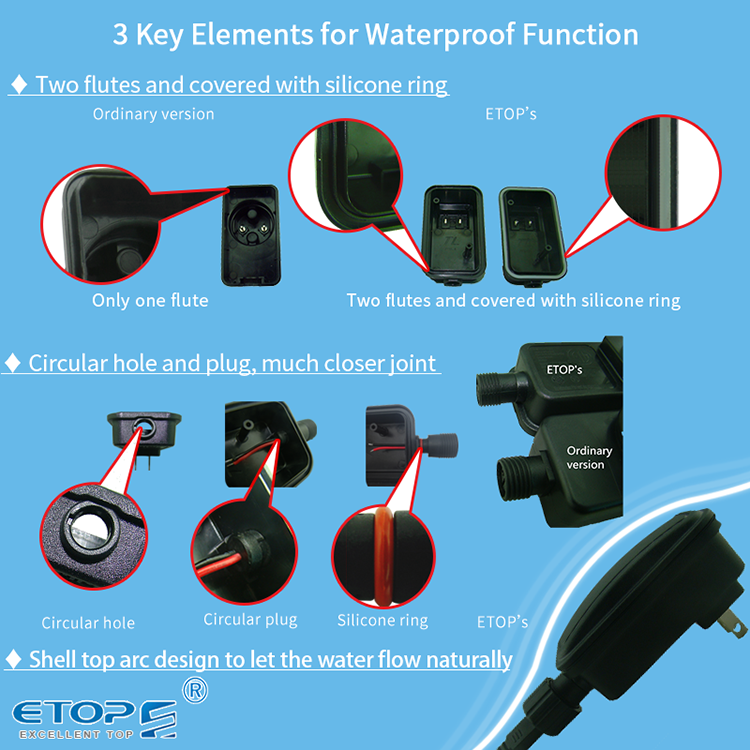

4. Waterproof fully enclosed plastic case;
5. UL1310(outdoor) approved;
6. DOE level VI approved;
7. FCC approved;
8. IP44 approved;
9. 3-year warranty;

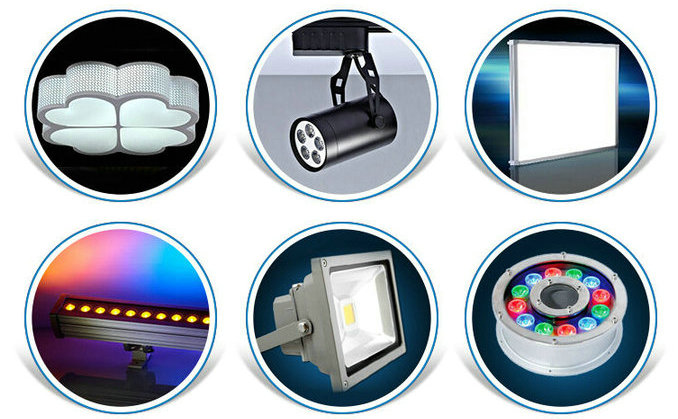

10. Widely used for Xmas lights, landscape lighting,
household electrical appliance, outdoor electronic products, etc.
Parameters:
| Model | Output | R&N | TOL. | Line regulation | Load regulation | Effi. |
| ADS-U010S05A | 5V/2A | 120mVp-p | ±5% | ±1% | ±5% | 80% |
| ADS-U010S07A | 7V/1.42A | 70mVp-p | ±5% | ±1% | ±5% | 82% |
| ADS-U010S09A | 9V/1.1A | 120mVp-p | ±5% | ±1% | ±5% | 83% |
| ADS-U010S12A | 12V/0.83A | 120mVp-p | ±5% | ±1% | ±5% | 87% |
| ADS-U012S05A | 5V/2.4A | 120mVp-p | ±5% | ±1% | ±5% | 79% |
| ADS-U012S07A | 7V/1.7A | 120mVp-p | ±5% | ±1% | ±5% | 82% |
| ADS-U012S09A | 9V/1.33A | 120mVp-p | ±5% | ±1% | ±5% | 83% |
| ADS-U012S12A | 12V/1A | 120mVp-p | ±5% | ±1% | ±5% | 85% |
| Input | AC 100-240V (90-264V) 50/60Hz |
| output | 5V 1.2A 12V 2A~12V 10A( Voltage can be 5V-48V) |
| Protection | Over voltage protection |
| Over Current Protection | |
| Short circuit protection | |
| Certificates | CE, GS, BS, SAA, UL, CUL, EMC, LVD, FCC,ROHS,REACH |

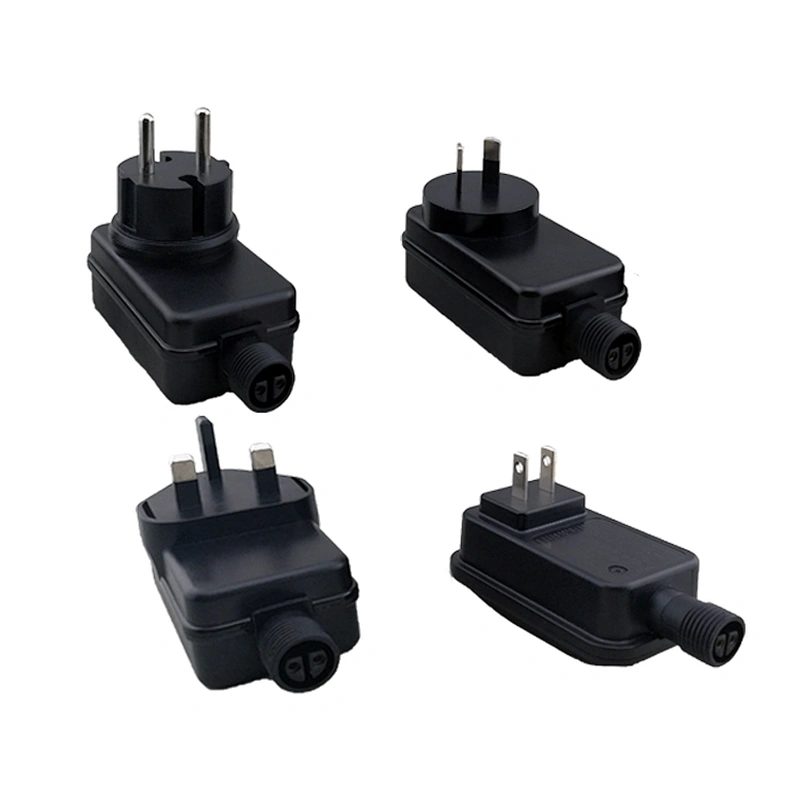

| AC Plug | USA/UK/EU/AU/Korean/Japenese/Chinese optional |
| Outlet Way | with cable |
| Material | ABS |
| Energy efficiency | Class V |
| Color Available | Black, customize |
| Compatible | LED, Electronic cigarette, Tablet, Water purifier, Router, CCTV camera, LCD, Motor, Fan, Toys |
Medical machine, POS machine, Beauty & Health equipment, Humidifier, LED lights,Minitor,Fans, Xmas lights, landscape lighting | |
Our Product Package:
We provie quality power supply products and service:
- Open frame type power supply
- Enclosed type power supply
- LED driver waterproof series
- Power adapter
- ODM/OEM order
Our advantage:
1.Good and High efficiency Team. OEM&ODM Services.
2. Transportation ways of products:
By air, By sea, By express, Pick up in factory.
You can choose any way which you like.
3. Product Certificates:
Almost all of our products get CE/CCC/ROHS/FCC etc certificates, and if you have Special requirements of certificates, we can help to apply it for you.And our company pass ISO9001and ISO14001.
4. We are maufacturer, with office and workshop in Shenzhen.

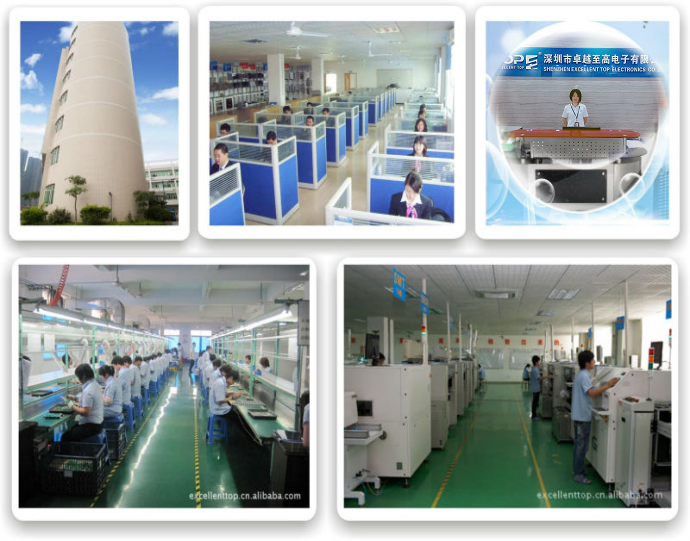

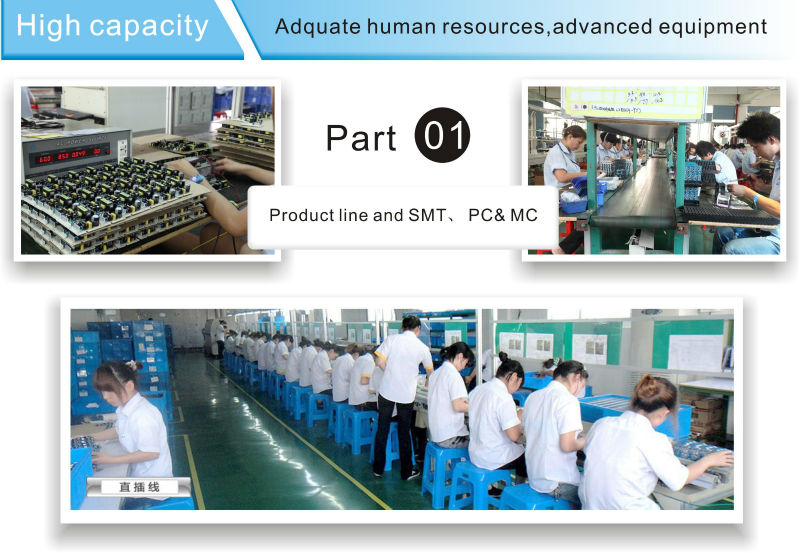

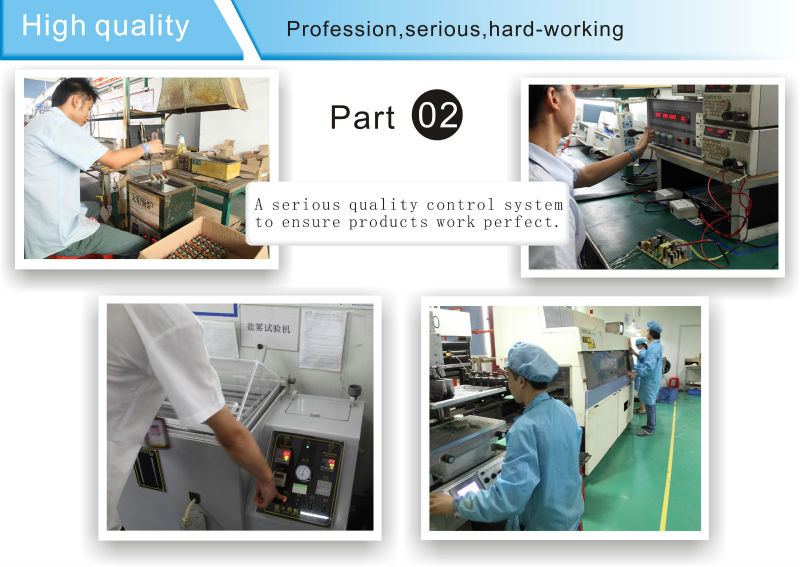

Our Teams and working place:
1. Q: Is sample available?
A: Yes, sample order is welcome.
2. Q: Can you factory provide ODM/OEM service?
A: ETOP factory have professional engineer team.
Your ODM/OEM order is welcome !

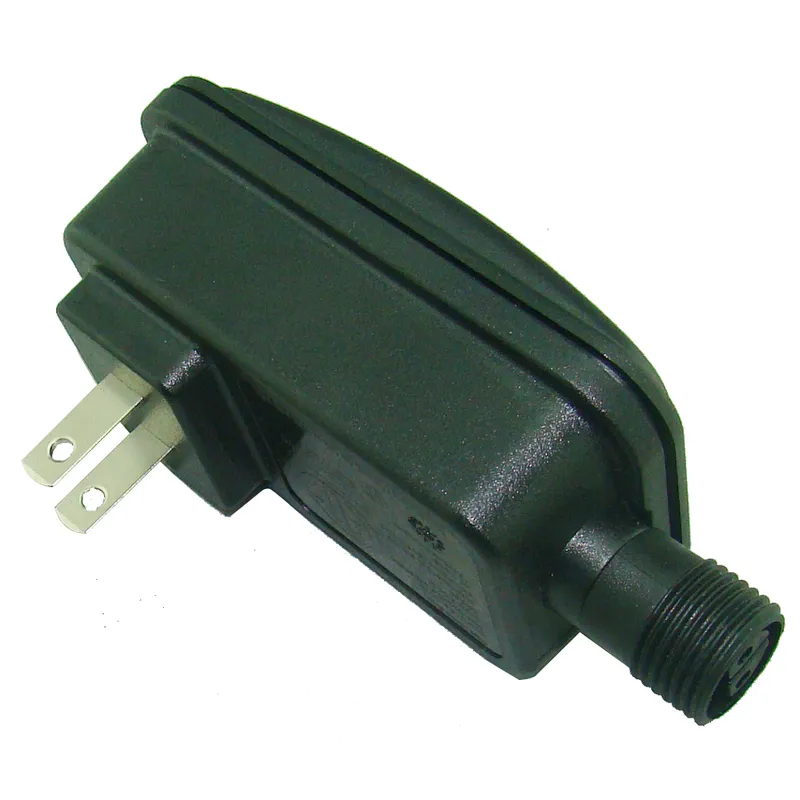

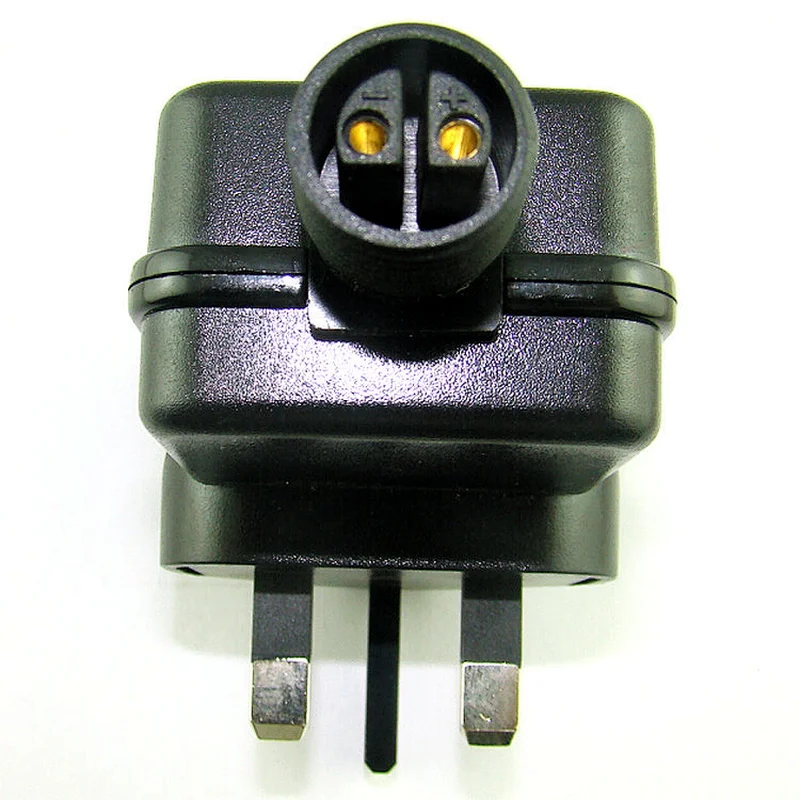

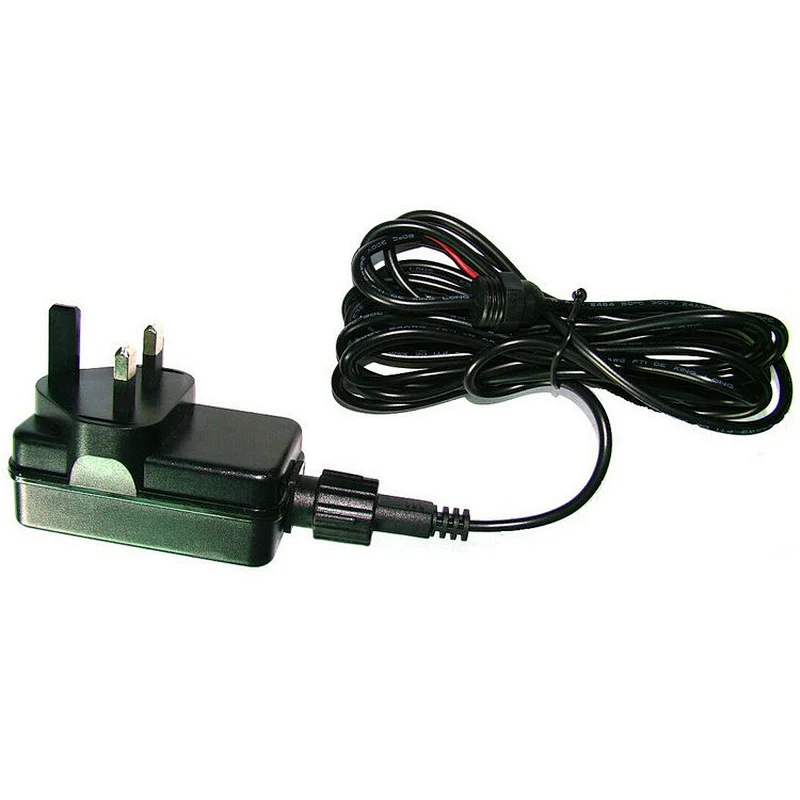

Waterproof 5V 7V 9V 12V ac dc power adapter for LED lights
Waterproof 5V 7V 9V 12V ac dc power adapter for LED lights
