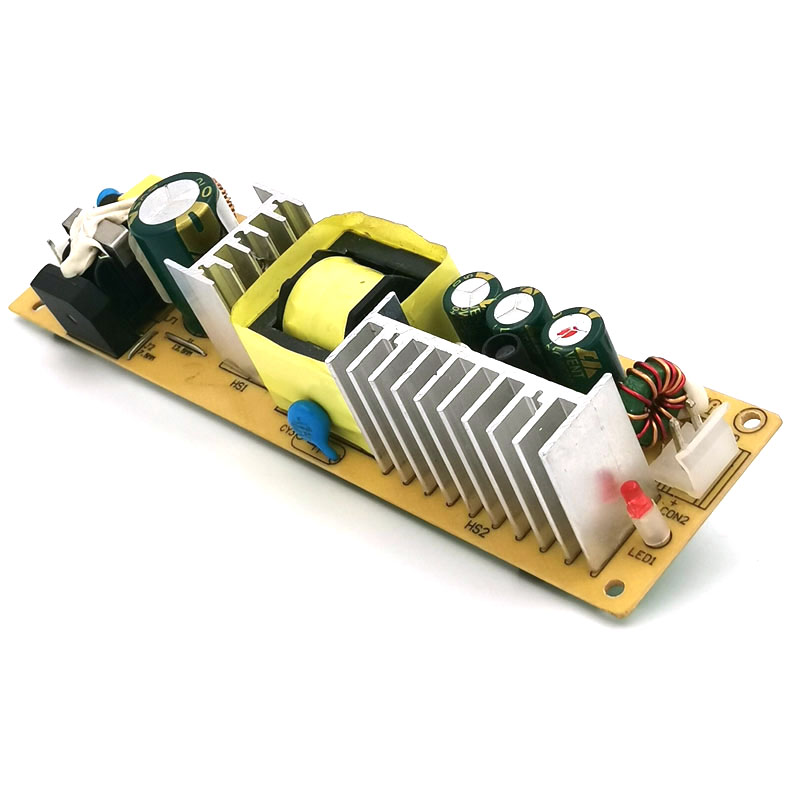

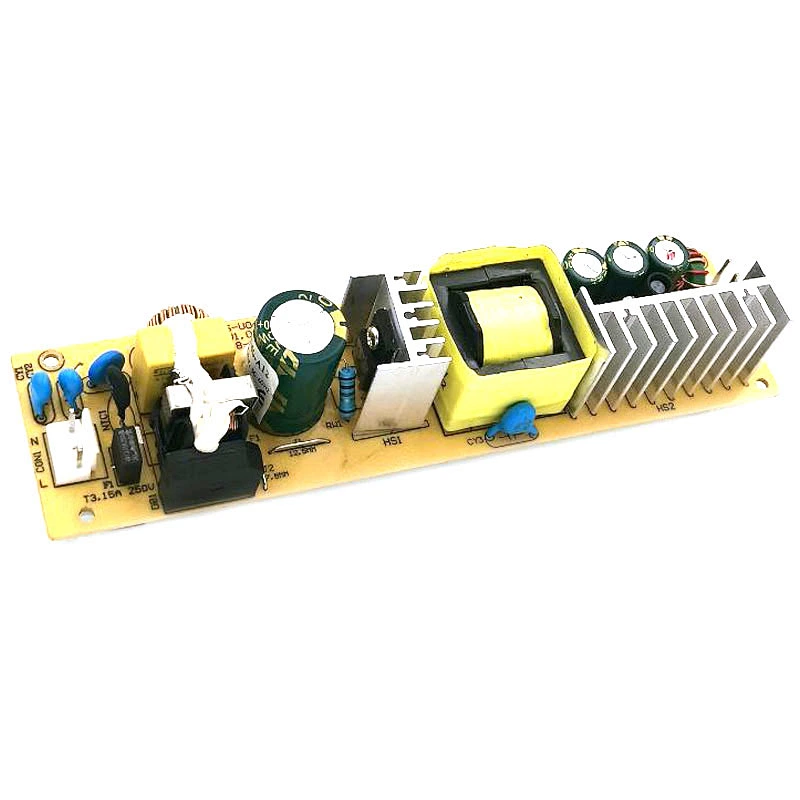

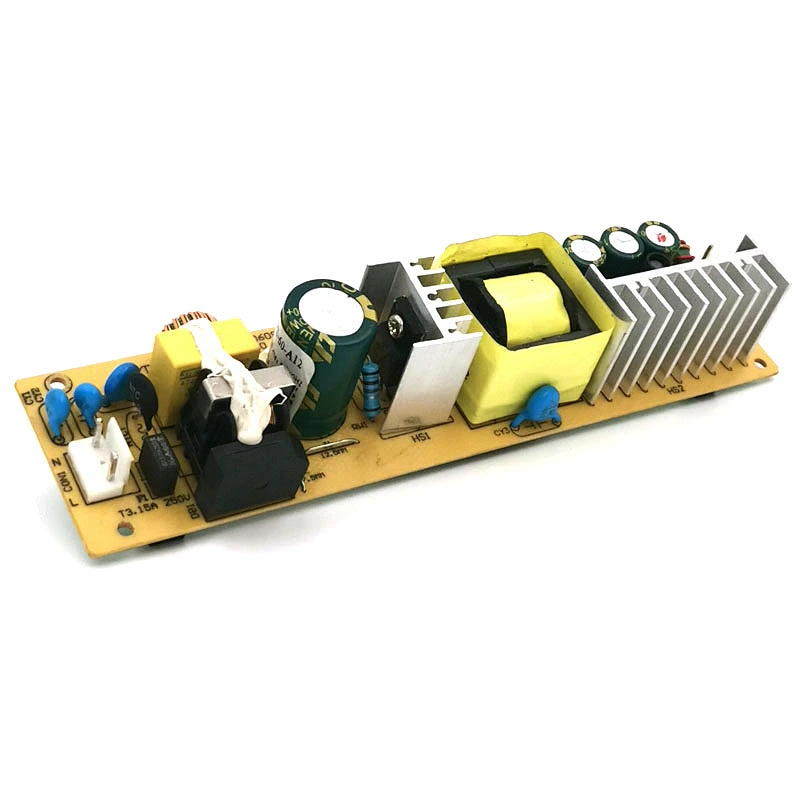

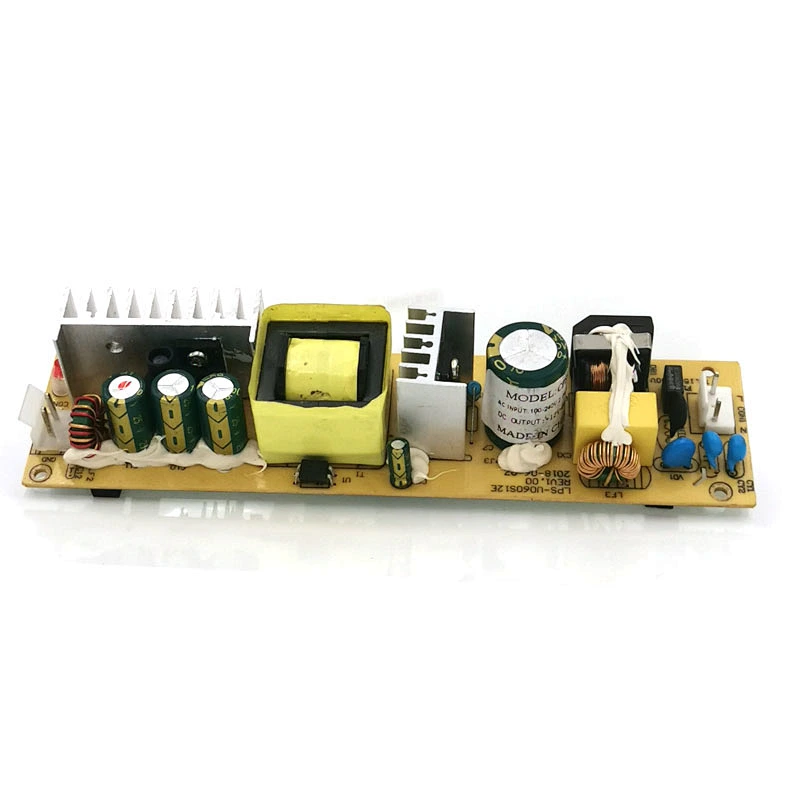

OEM ODM 60W 48W 12W 24W 48W open frame regulated class 2 power supply SMPS unit led module ac transformer switch power supplies

OEM ODM 60W 48W 12W 24W 48W open frame regulated class 2 power supply SMPS unit led module ac transformer switch power supplies

Model NO.: LPS-U060S12E
Price:: $ 4.53-4.85 / piece
Minimum order quantity: 1 piece
Country of Origin: Shenzhen

Quantity:

Product Description
Application Description

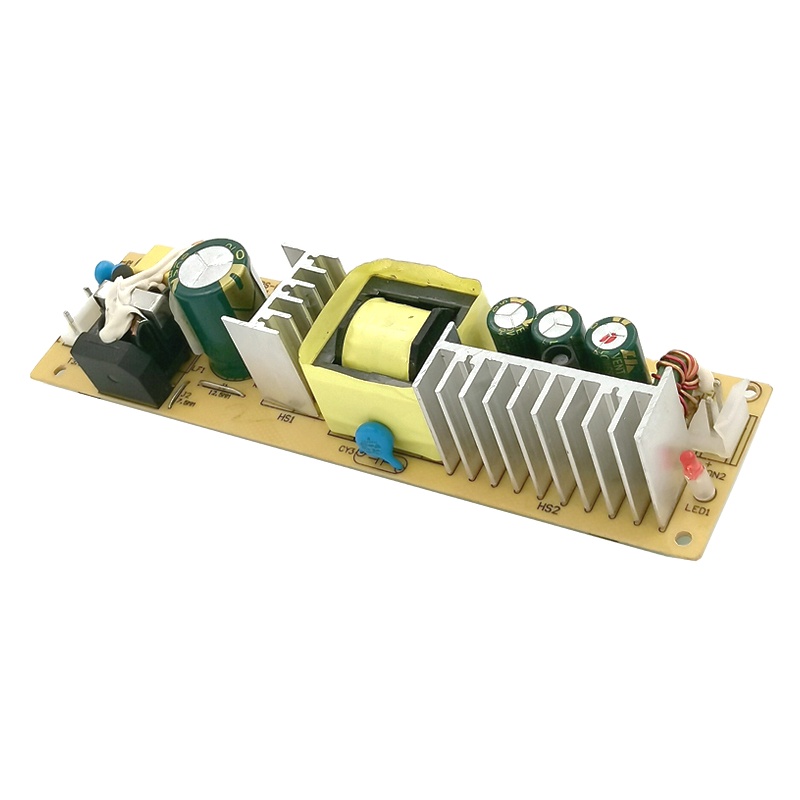

ac to dc 60W 48W 12W 24W 48W open frame switch power supply pcb circuit board smps psu Highly Reliable cctv camera power supply

Product Description

Our product series include

industrial power supply, power adaptor, LED driver etc., which are widely used in communication, power electronics,
automationcontrol, railway, military industry,medical care and a good deal
of others.

Specification

MODEL	OUTPUT	RIPPLE & NOISE (max.)	Voltage accuracy	Linear adjustment rate	Load Regulation	EFFICIENC
LPS-U048S12E	12V/4A	200mVp-p	±5%	±1%	±5%	80%
LPS-U048S24E	24V/2A	240mVp-p	±5%	±1%	±3%	85%
LPS-U048S48E	48V/1A	480mVp-p	±5%	±1%	±3%	87%
LPS-U060S12E	12V/5A	200mVp-p	±5%	±1%	±3%	80%
LPS-U060S24E	24V/2.5A	240mVp-p	±5%	±1%	±3%	85%
LPS-U060S48E	48V/1.25A	480mVp-p	±5%	±1%	±3%	87%

Input Voltage & Frequency	100-240VAC 47~63Hz
Input Current	0.8A/115VAC 0.5A/230VAC
Start inrush current	65A/230VAC
LEAKAGE CURRENT(max.)	0.75mA/240VAC
SETUP, RISE TIME	2000ms, 30ms/230VAC 3000ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.)	50ms/230VAC 15ms/115VAC at full load
WORKING TEMP., HUMIDITY	-10~+50°C(Refer to"Derating Curve") 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY	-25~+ 60°C , 10~95% RH
TEMP. COEFFICIENT	±3%/°C （0~50°C）
VIBRATION	10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
WITHSTAND VOLTAGE	I/p-0/P: 1.6KVAC I/p-PG: 1.0KVA O/p-PG: 0.5KVAC
MTBF	≥ 500K hrs. MIL-HDBK-217F (25°C )
DIMENSION	1674234mm (LWH)

Certifications

Product Certificates
Almost all of our products get CE/CCC/ROHS/FCC etc certificates,and if you have Special requirements of certificates,we can help to apply it for you.And our company pass ISO9001and ISO14001.

Packing & Delivery

Our Product Package

In order to protect products,the inner package is often use PP bags or Anti Static bags,and the use white box to pack each product,then put each one into the strong carton,at last finish packing.
Transportation ways of products
You can choose any way which you like to ship the goods,we will try our best tohelp you save shipping cost.
