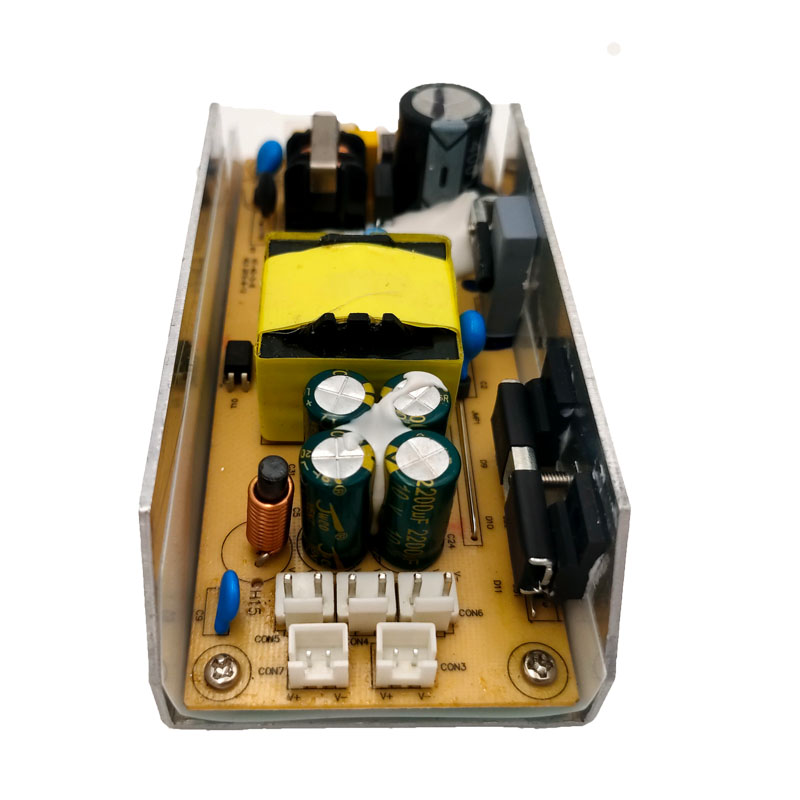

Factory Direct 40W Open Frame AC DC Converter 5V 8A Single Output Universal Class I Switching Power Supply
Product Description
| MODEL | output | RIPPLE & NOISE (max.) | Voltage accuracy | Linear adjustment rate | Load Regulation | efficiency |
| LPS-U040S05L | 5V/ 8A | 500mVp-p | ±5% | ±1% | ±5% | 71% |
| Input Voltage & Frequency | 100-240VAC 47~63Hz |
| Input Current | 2.0A/115VAC 0.5A/230VAC |
| SETUP, RISE TIME | 2000ms, 30ms/230VAC 3000ms, 30ms/115VAC at full load |
| HOLD UP TIME (Typ.) | 50ms/230VAC 15ms/115VAC at full load |
| WORKING HUMIDITY | 0~+40°C(Refer to"Derating Curve") 20 ~ 90% RH non-condensing |
| STORAGE TEMP., HUMIDITY | -25~+ 80°C , 10~95% RH |
| VIBRATION | 10 - 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes |
| MTBF | ≥ 500K hrs. MIL-HDBK-217F (25°C ) |
| DIMENSION | 126*58*35mm (L*W*H) |
