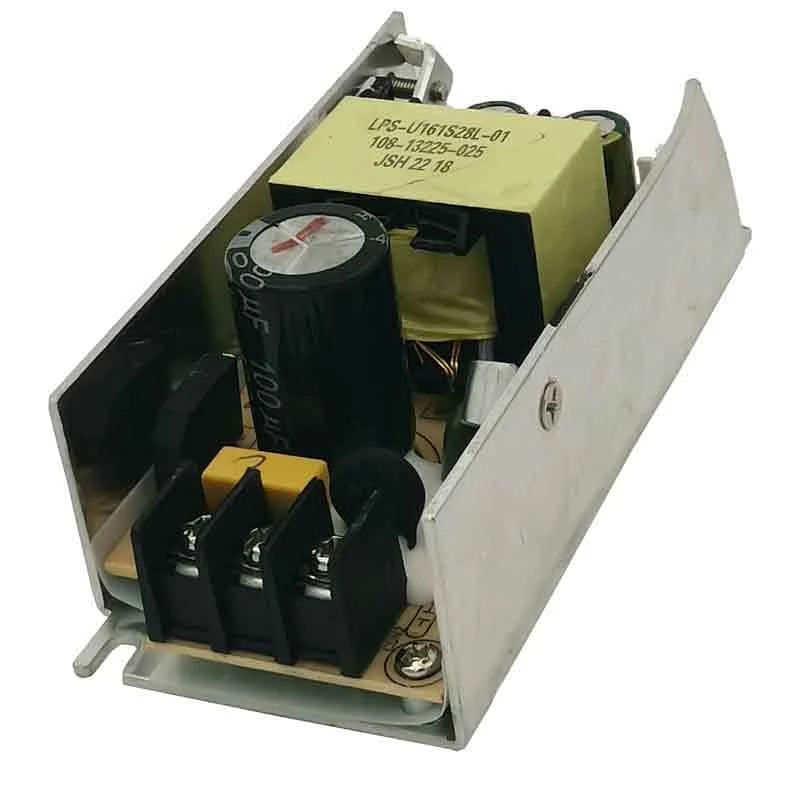

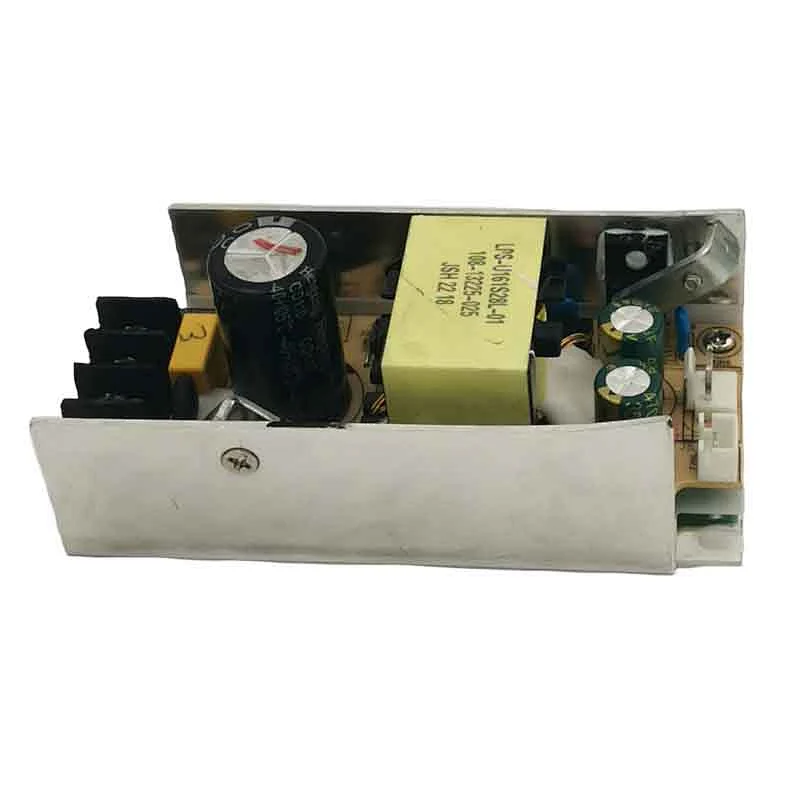

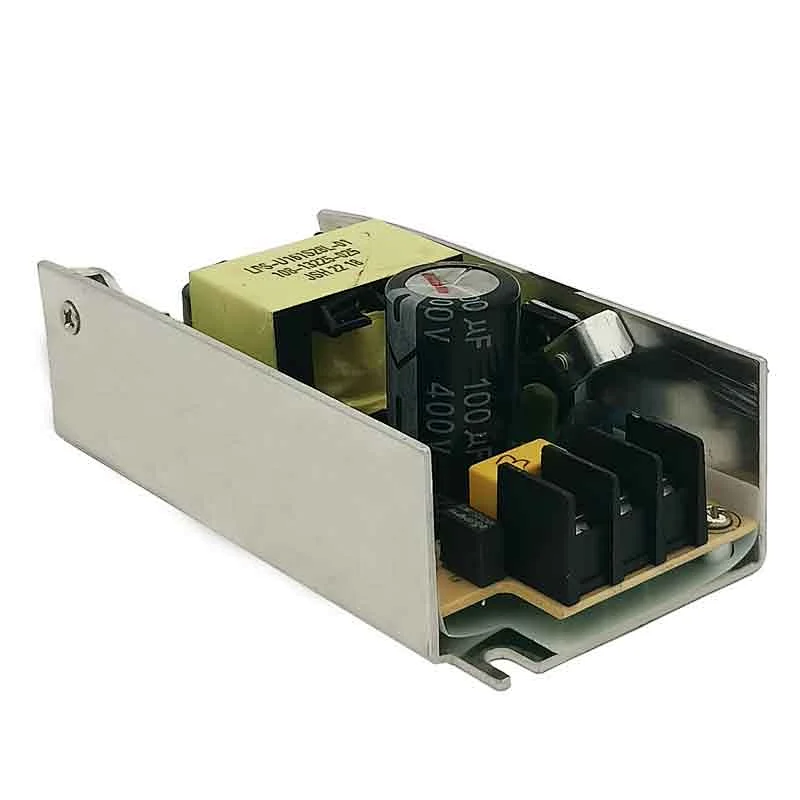

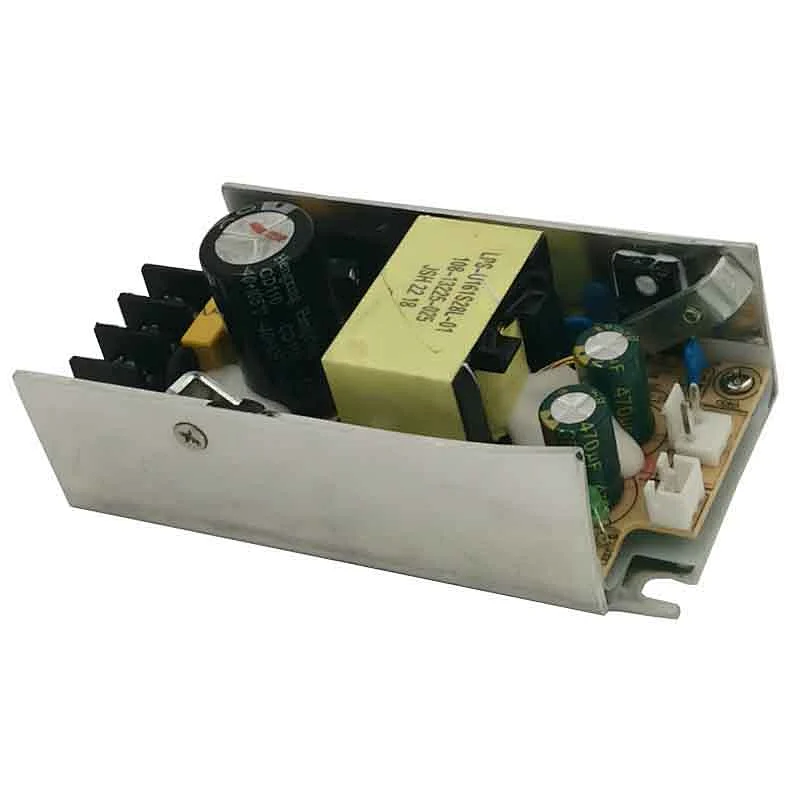

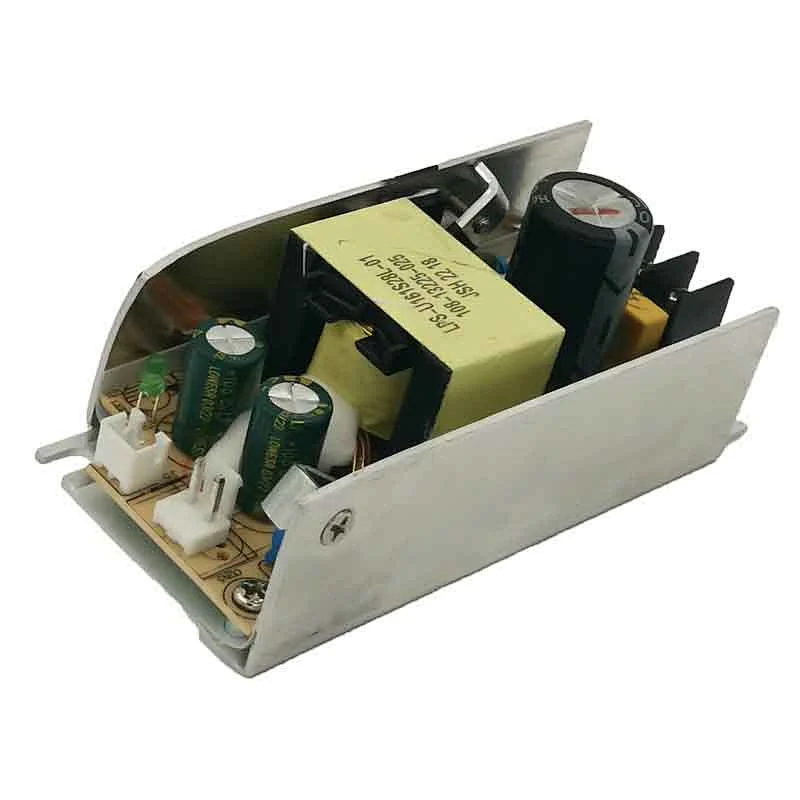

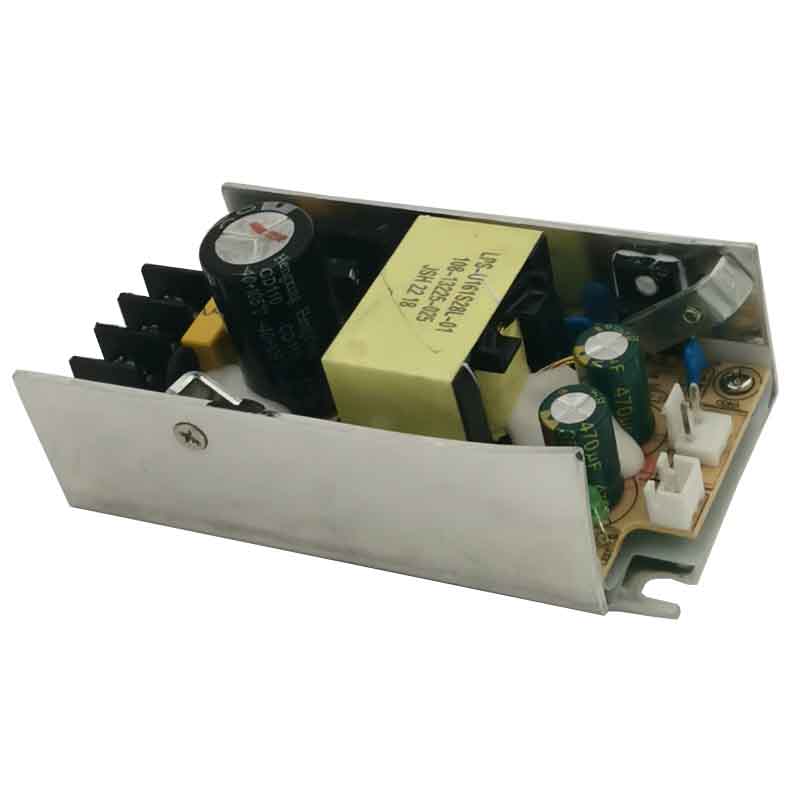

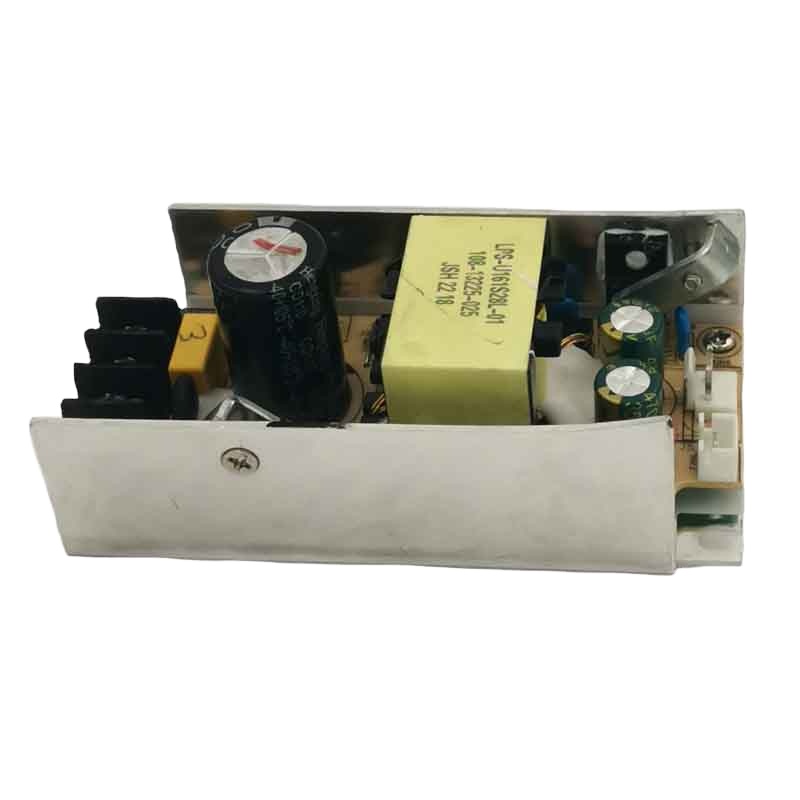

Manufacturers Wholesale 160W Open Frame Led Driver 28V 5.7A Universal U-shaped Radiator Switch Mode Power Supply

Manufacturers Wholesale 160W Open Frame Led Driver 28V 5.7A Universal U-shaped Radiator Switch Mode Power Supply

Model NO.: LPS-U161S28L-01
Price:: $ 3.02-3.16 / piece
Minimum order quantity: 1 piece
Country of Origin: Shenzhen

Quantity:

Product Description

Switching mode power supply Constant Voltage 160W 20V open frame smps universal power supply module for cctv camera

Product Description

Feature

1.100-240vac input range
2.100% full load burn-in test
3.low cost,small size,high reliability
4.constant voltage mode
5.LED indicator light
6.producitons: short circuit/over

load/over voltage

7.1 year warranty

Our product series include

industrial power supply, power adaptor, LED driver etc., which are widely used in communication, power electronics, automationcontrol, railway, military industry,medical care and a good deal of others.

Specification

MODEL	LPS-U161S20L
OUTPUT	DC VOLTAGE	21V
	DC VOLTAGE	7A
	CURRENT RANGE	0-7A
	RATED POWER	147W
	RIPPLE & NOISE (max.)	600mVp-p
	SETUP, RISE TIME	2000ms, 30ms/240VAC 3000ms, 30ms/110VAC at full load
	HOLD UP TIME (Typ.)	50ms/240VAC 15ms/110VAC at full load
INPUT	VOLTAGE RANGE	110-240VAC
	EFFICIENCY(Typ.)	85%
	AC CURRENT	2.4A/110VAC 1.2A/240VAC
	INRUSH CURRENT(max.)	60A/240VAC 30A/110VAC
	LEAKAGE CURRENT(max.)	0.75mA/240VAC
PROTECTION	OVER LOAD	110~ 200% rated output power
	OVER LOAD	Protection type : Hiccup mode, recovers automatically after fault condition is removed
	Short circuit protection	output impedance is less than 0.1 ohm, power supply will be protected, and there will be no danger of damage to components, connectors, etc.
	Short circuit protection	Protection type : Hiccup mode, recovers automatically after fault condition is removed
ENVIRONMENT	WORKING TEMP.	-10~+65°C(Refer to"Derating Curve")
	WORKING HUMIDITY	20 ~ 90% RH non-condensing
	STORAGE TEMP., HUMIDITY	-25~+ 75°C , 10~95% RH
	TEMP. COEFFICIENT	0~50°C
	VIBRATION	10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC	WITHSTAND VOLTAGE	I/p-0/P: 1.5KVAC
SAFETY & EMC	ISOLATION RESISTANCE	I/p-0/P:> 50M Ohms/500VDC
OTHERS	MTBF	≥ 100K hrs. MIL-HDBK-217F (25°C )
OTHERS	DIMENSION	1034635mm (LWH)

Certifications

Product Certificates
Almost all of our products get CE/CCC/ROHS/FCC etc certificates,and if you have Special requirements of certificates,we can help to apply it for you.And our company pass ISO9001and ISO14001.

Packing & Delivery

Our Product Package

In order to protect products,the inner package is often use PP bags or Anti Static bags,and the use white box to pack each product,then put each one into the strong carton,at last finish packing.
Transportation ways of products
You can choose any way which you like to ship the goods,we will try our best tohelp you save shipping cost.

00:00

02:12

Our advantage
1.Good and High efficiency Team:

our company have sales team,R&D team,purchase team,PMT team,production team and quality team etc.Our teams works hard together with highefficiency,and our teams have the same target--Excellent quality,the highest service !
2.OEM&ODM Services:
Our company have professional engineers,so we cancustomize products ccording to your detailed
requirements,your samples or your ideas.
3.High efficiency automatic SMT machine and production process:
it is fast,high-efficient and standard.Professional surface-mounting and trough-hole soldering technology.-our production process must through below steps to guarantee good quality Inspecting Raw Materials-Auto machine to SMT--Plug-in module--Pass wave-soldering (Auto solder)--Angle cutter cutting angles--Post-solder &Assembling--QC Inspection--FQC Testing Products--Ageing --Quality department spot-check goods--Packing--Shipping out.
