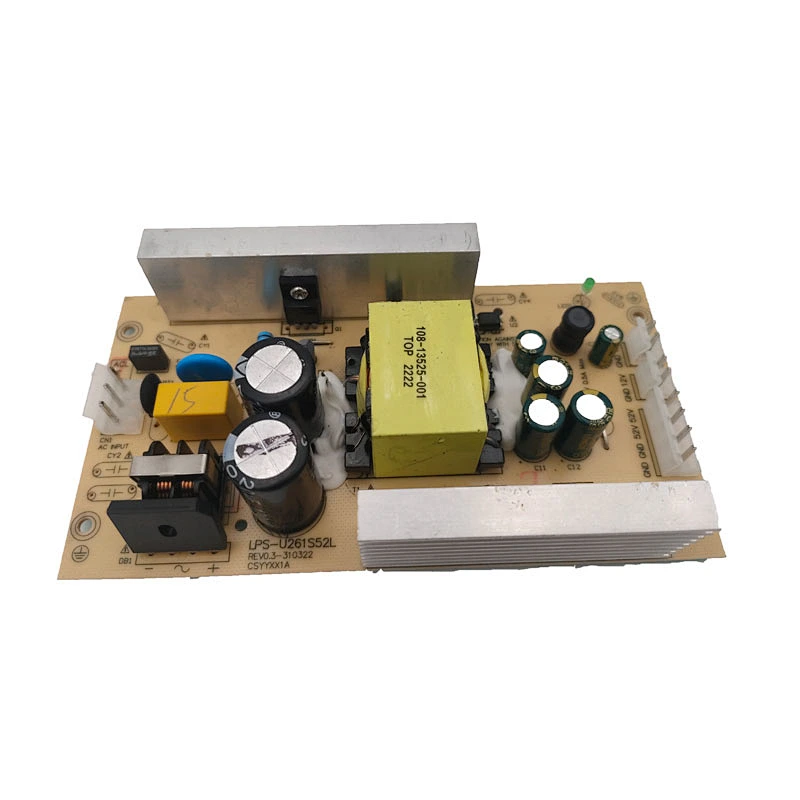

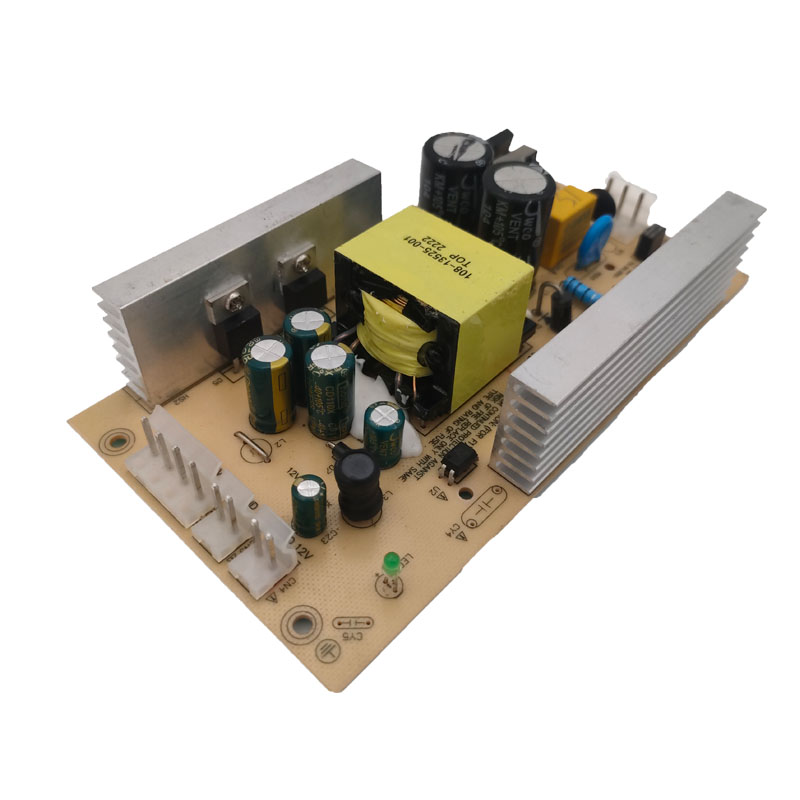

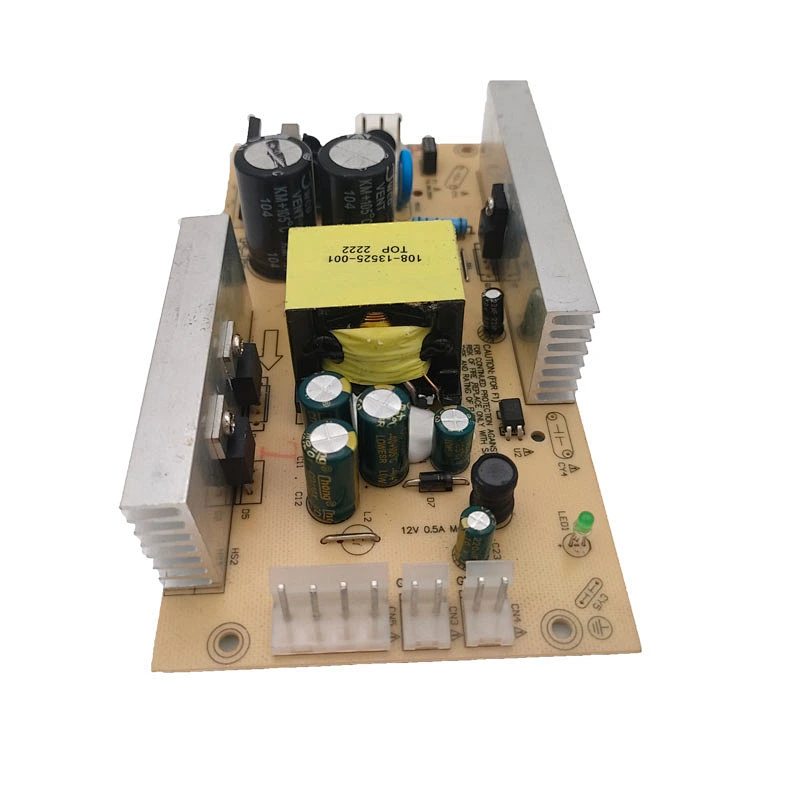

High Quality 260W Led Driver Open Frame Power Supply 52V/12V AC to DC Dual Output Class I Switch Mode Power Supply
Product Description
| MODEL | LPS-U261D5212L | ||
| OUTPUT | DC VOLTAGE | 52V | 12V |
| Rated voltage | 4.9A(CH1) | 0.3A(CH2) | |
| CURRENT RANGE | 0-4.9A | 0-0.3A | |
| RIPPLE & NOISE (max.) | 500mVp-p | 200mVp-p | |
| Voltage accuracy | ±5% | ±5% | |
| Linear adjustment rate | ±1% | ±1% | |
| Load Regulation | ±5% | ±5% | |
| SETUP, RISE TIME | 2000ms, 30ms/240VAC | ||
| HOLD UP TIME (Typ.) | 50ms/240VAC | ||
| INPUT | VOLTAGE RANGE | 200-240VAC | |
| FREQUENCY RANGE | 47~53Hz | ||
| EFFICIENCY(Typ.) | 89% | ||
| AC CURRENT | 1.2A/240VAC | ||
| INRUSH CURRENT(max.) | 60A/240VAC | ||
| LEAKAGE CURRENT(max.) | 0.75mA/240VAC | ||
| PROTECTION | OVER LOAD | 110~ 200% rated output power | |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||
| Short circuit protection | output impedance is less than 0.1 ohm, power supply will be protected, and there will be no danger of damage to components, connectors, etc. | ||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||
| ENVIRONMENT | WORKING TEMP. | -0~+40°C(Refer to"Derating Curve") | |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||
| STORAGE TEMP., HUMIDITY | -25~+ 80°C , 10~95% RH | ||
| TEMP. COEFFICIENT | ±0.03%/°C(0~50°C) | ||
| VIBRATION | 10 - 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||
| SAFETY & EMC | WITHSTAND VOLTAGE | I/p-0/P: 1.8KVAC | |
| ISOLATION RESISTANCE | I/p-0/P:> 50M Ohms/500VDC/25°C/70%RH | ||
| OTHERS | MTBF | ≥ 100K hrs. MIL-HDBK-217F (25°C ) | |
| DIMENSION | 160*84*30mm (L*W*H) | ||
