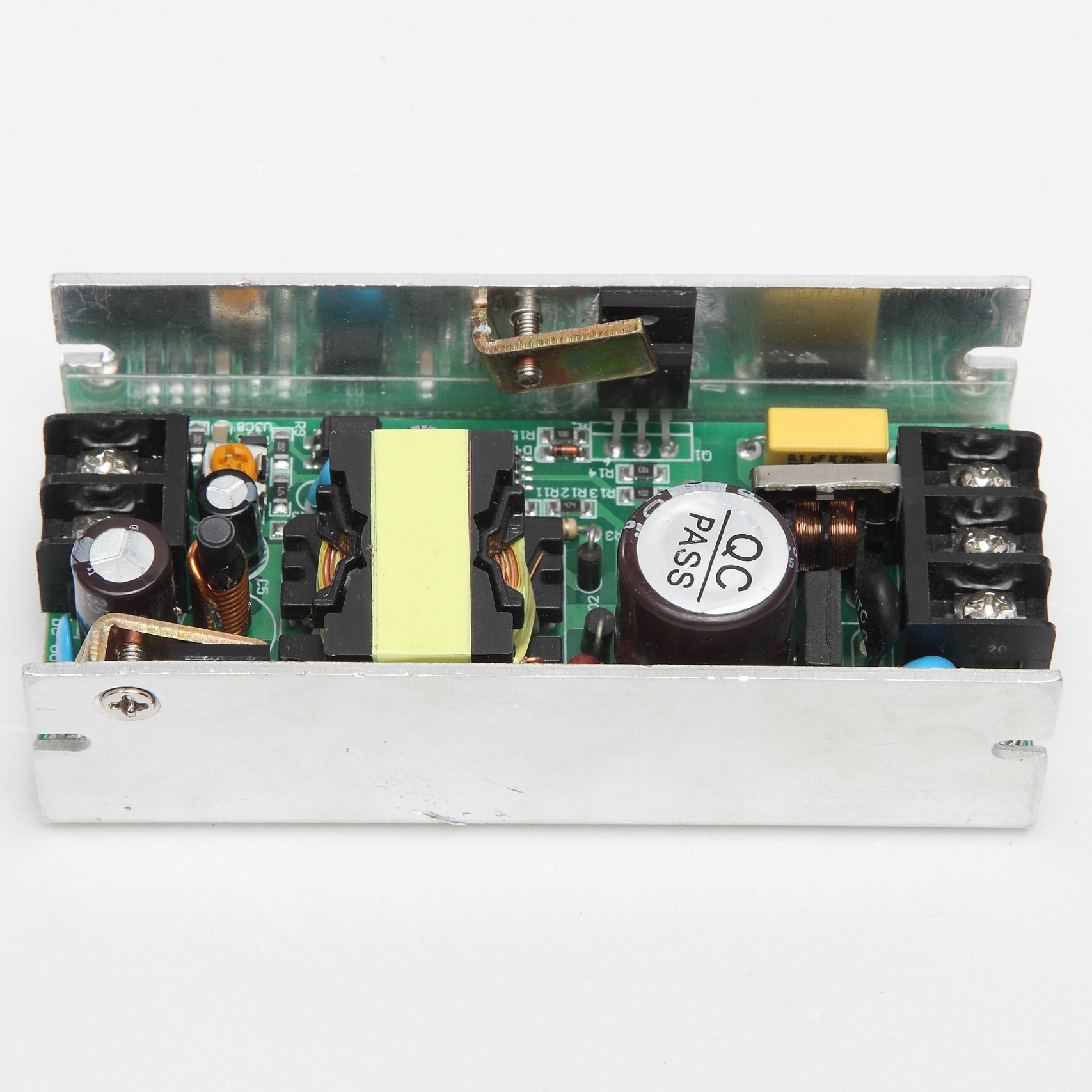

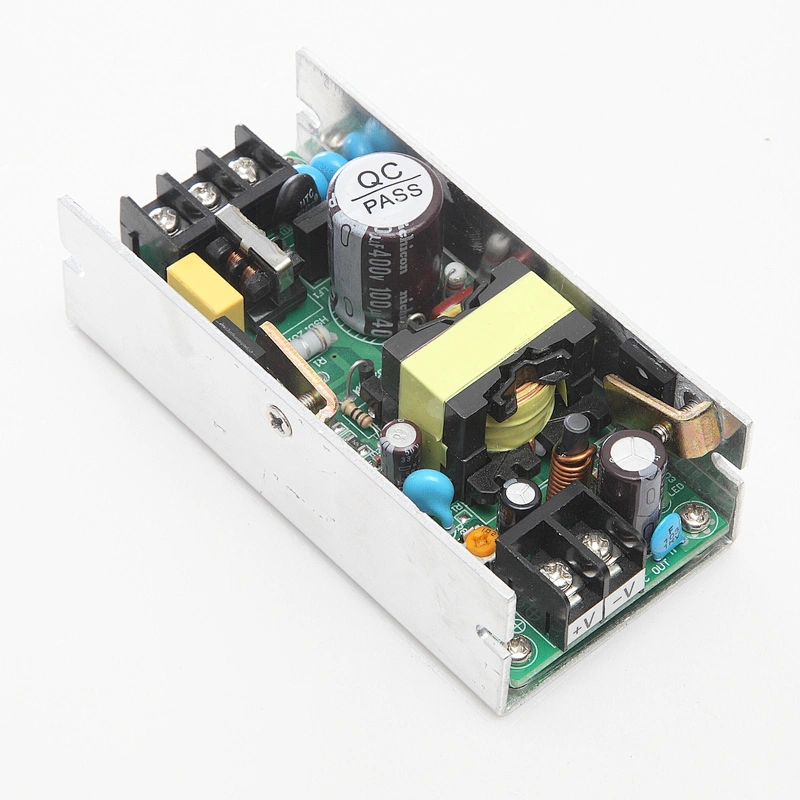

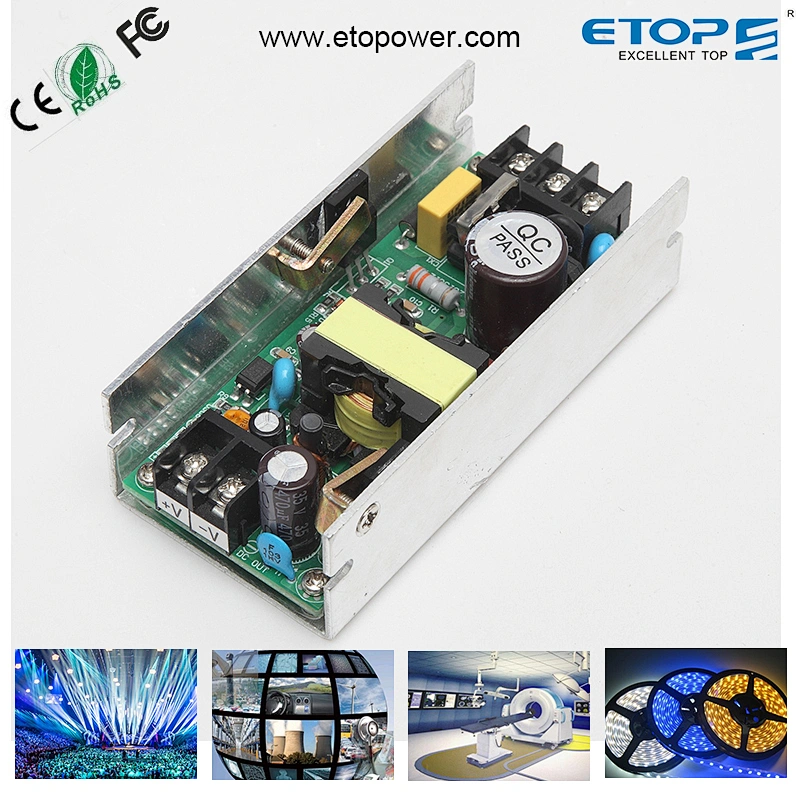

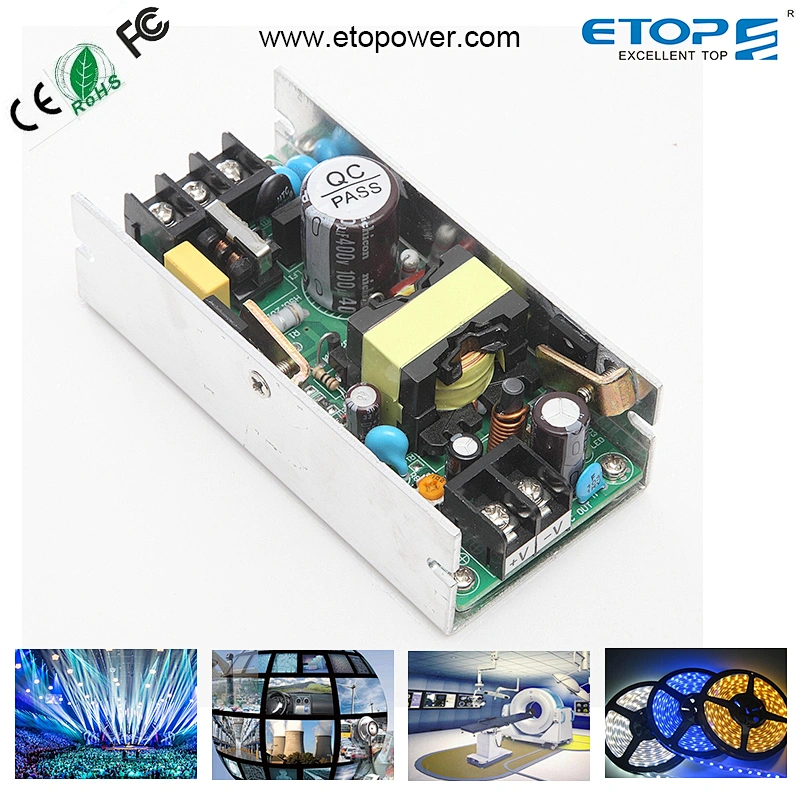

60w mini size single output switching power supply AC/DC Single output 5V 12V 24V
Specifications:
1.MOQ: 500pcs
2.Capacity: 100,000pcs/month
3.Lead time: 15 working days
4.Payment: TT, L/C.
5.Sample order is available
6.Packaging: Export standard carton box
7.OEM,ODM
Parameter table
Model | LPS-U060S24L | |
Input | Input Voltage(V) | 100-240V |
Input Current (A) | 1.6A Max | |
Frequency (Hz) | 47Hz–63Hz | |
Efficiency | 75% Typ(230VACFull Load) | |
Inrush current(A) | Cold star, <40A/230VAC | |
Leakage current(mA) | <3mA/240VAC | |
Output | Output Voltage(V) | 24V |
Voltage Regulation | 3% | |
Output Current(A) | 2.5A | |
Current Range (A) | 0~2.5A | |
Rated Power(W) | 60W | |
Start time, hold-up time(ms) | Ton≤1000ms,Td≥20ms @230Vac Full Load | |
Rise time(ms) | Typ:20ms @230Vac Full Load | |
Ripple/Noise(mVp-p) | 120mVp-p | |
Environment | working Temperature (°C) | -20°C - +70°C(refer derating curve) |
Storage Temperature(°C) | ‘-20°C - +80°C | |
Humidity(%) | 20% - 90% RH non condensing | |
Safety/ EMC | Withstand voltage(VAC) | I/P-O/P:3KVAC,I/P-FG:1.5KVAC,OP-FG:0.5KVAC 1min |
Safety Standard | EN/UL60950-1,GB4943 | |
EMC Standard | EN55022 Class B,EN61000-4-2,3,4,5,6,8,11 GB17626.5 Level3 | |
Protection | Over voltage Protection | >115%-135% Rated output voltage |
Over load Protection | >105%-150% ,Auto recovery | |
Short circuit Protection | Latched | |
Over Temperature Protection | Auto reboot | |
Others | MTBF | ≥280K hrs 25°C |
Dimension L*W*H(mm) | 143*59*38mm (could be modified) | |
Our certifications:Most of our producs have passed the certifications of ROHS CCC CE FCC.
Advantage of our products and our company:
(1) Provide customizing service
We are good at designing and developing various products.We can customize all kinds of power supples you expect as long as you can provide us your detailed comments .
(2)punctual delivery and various delivery methods(UPS Fedex DHL Air transportation)
About our company:
Shenzhen Excellent Top Electronics Co.,LTD is an excellent power solution provider ,with more than 10 years experiences in R&D and production of power suppliers.We committed to provide the products with the best quality and price, customer-satisfied service, and the most punctual delivery time.
Our products are 100% through high temperature ageing ,which accords with CCC, CE, UL and many other authoritative organization's security authentication standard. And we are also specialising in customizing all kinds of popwer supply .
