Product Description

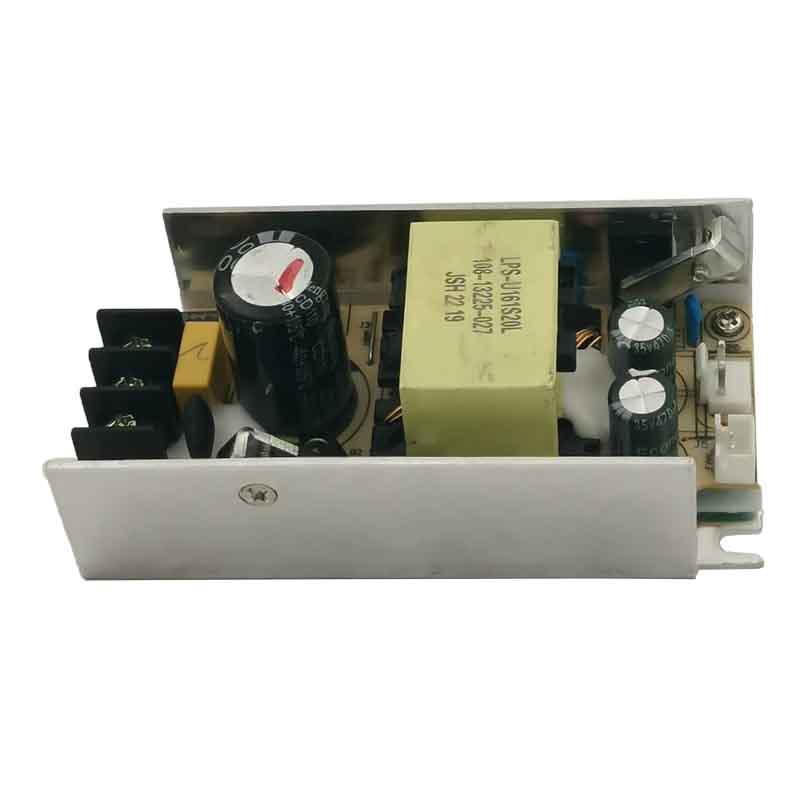

MODEL | LPS-U161S20L | |||
OUTPUT | DC VOLTAGE | 20V | ||
Output Current(A) | 8A | |||
CURRENT RANGE | 0-8A | |||
RATED POWER | 160W | |||
RIPPLE & NOISE (max.) | 600mVp-p | |||
SETUP, RISE TIME | 2000ms, 30ms/240VAC 3000ms, 30ms/110VAC at full load | |||
HOLD UP TIME (Typ.) | 50ms/240VAC 15ms/110VAC at full load | |||
INPUT | VOLTAGE RANGE | 110-240VAC | ||
FREQUENCY RANGE | 47~63Hz | |||
EFFICIENCY(Typ.) | 85% | |||
AC CURRENT | 2.4A/110VAC 1.2A/240VAC | |||
INRUSH CURRENT(max.) | 60A/240VAC 30A/110VAC | |||
LEAKAGE CURRENT(max.) | 0.75mA/240VAC | |||
PROTECTION | OVER LOAD | 110~ 200% rated output power | ||
Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||||
Short circuit protection | output impedance is less than 0.1 ohm, power supply will be protected, and there will be no danger of damage to components, connectors, etc. | |||
Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||||
ENVIRONMENT | WORKING TEMP. | -10~+65°C(Refer to"Derating Curve") | ||
WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||
STORAGE TEMP., HUMIDITY | -25~+ 75°C , 10~95% RH | |||
TEMP. COEFFICIENT | 0~50°C | |||
VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |||
SAFETY & EMC | WITHSTAND VOLTAGE | I/p-0/P: 1.5KVAC | ||
ISOLATION RESISTANCE | I/p-0/P:> 100M Ohms/500VDC | |||
OTHERS | MTBF | ≥ 100K hrs. MIL-HDBK-217F (25°C ) | ||

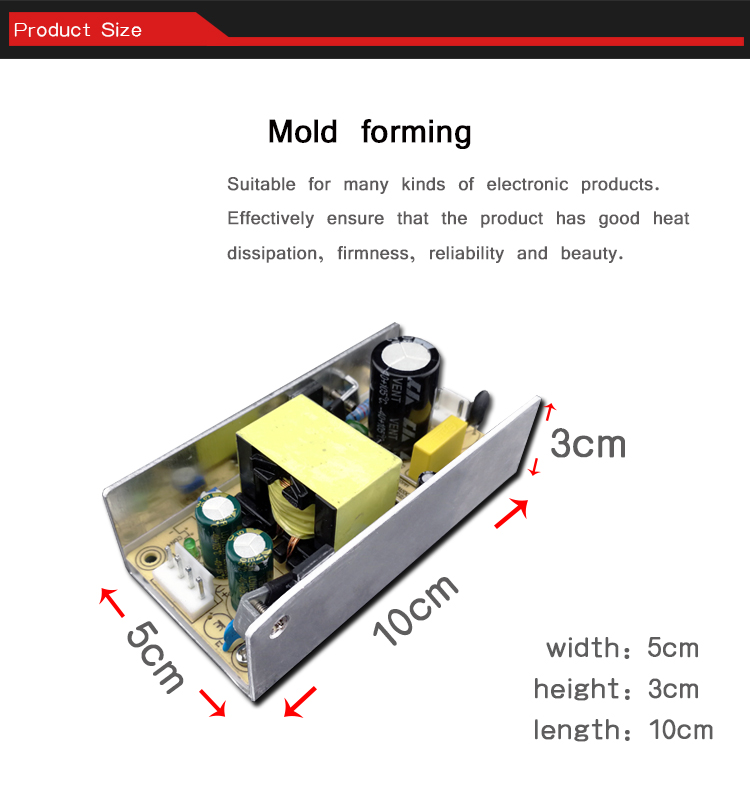

DIMENSION | 103*46*35mm (L*W*H) | |||
