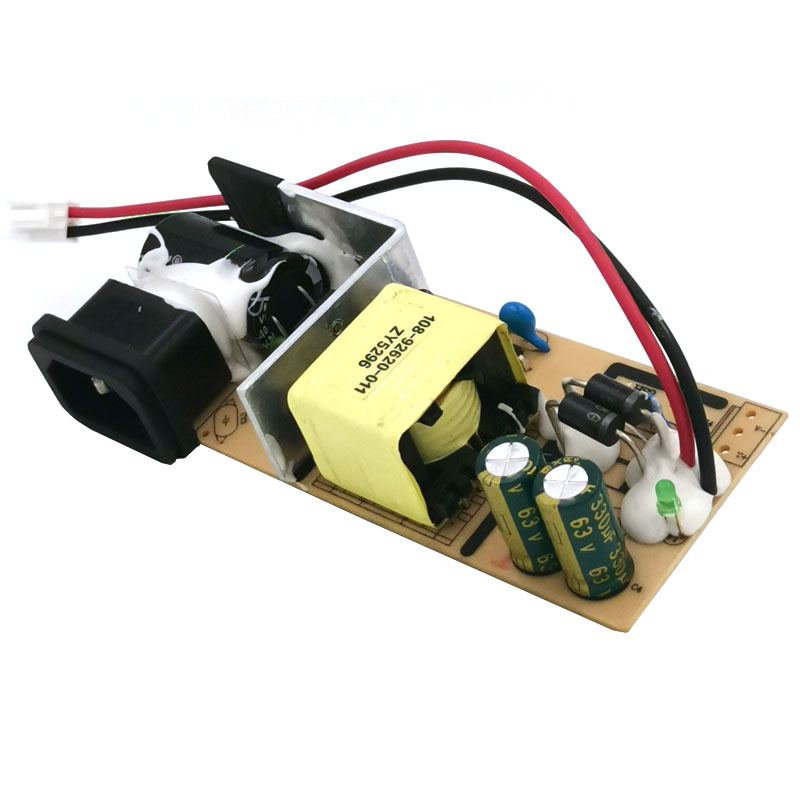

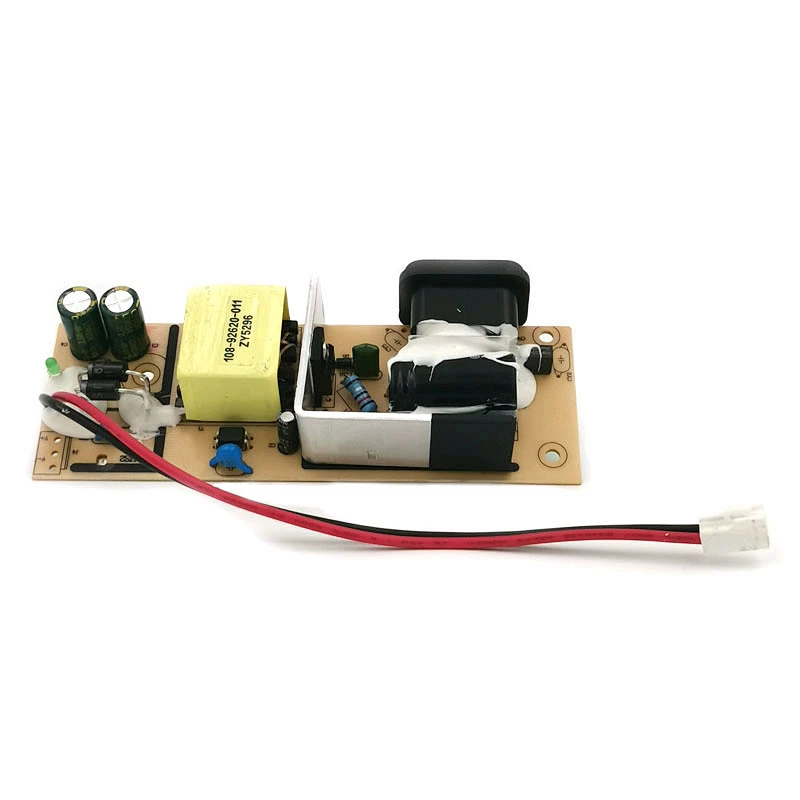

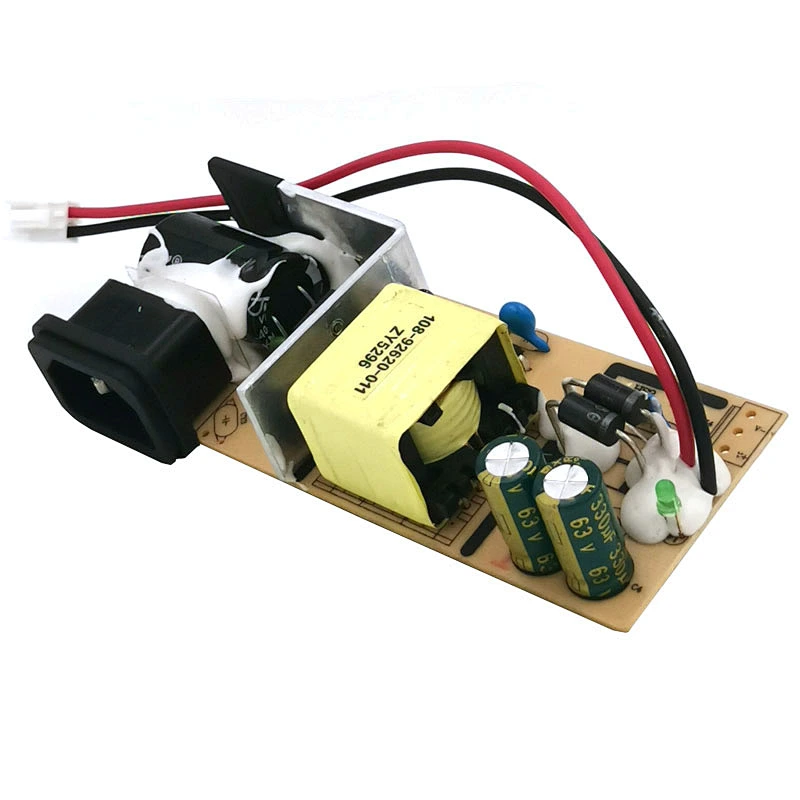

Top Selling Products 96W Open Frame Power Supply Constant Voltage Mode 52V 1.85A Single Group Output Switching Power Supply
Product Description
| MODEL | OUTPUT | RIPPLE & NOISE (max.) | Voltage accuracy | Linear adjustment rate | Load Regulation | EFFICIENC |
| LPS-U065S52L-E | 52V/1.25A | 520mVp-p | ±5% | ±1% | ±3% | 85% |
| LPS-U096S52L-E | 52V/1.85A | 520mVp-p | ±5% | ±1% | ±3% | 87% |
| LPS-U121S52L-E | 52V/2.3A | 520mVp-p | ±5% | ±1% | ±3% | 88% |
| Input Voltage & Frequency | 110-240VAC 47~63Hz |
| Input Current | 2.5A/115VAC 1.5A/230VAC |
| Start inrush current | 65A/230VAC |
| LEAKAGE CURRENT(max.) | 0.75mA/240VAC |
| SETUP, RISE TIME | 2000ms, 30ms/230VAC 3000ms, 30ms/115VAC at full load |
| HOLD UP TIME (Typ.) | 50ms/230VAC 15ms/115VAC at full load |
| WORKING TEMP., HUMIDITY | -10~+50°C(Refer to"Derating Curve") 20 ~ 90% RH non-condensing |
| STORAGE TEMP., HUMIDITY | -25~+ 60°C , 10~95% RH |
| TEMP. COEFFICIENT | ±3%/°C (0~50°C) |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes |
| WITHSTAND VOLTAGE | I/p-0/P: 1.8KVAC I/p-PG: 1.0KVA O/p-PG: 0.5KVAC |
| MTBF | ≥ 500K hrs. MIL-HDBK-217F (25°C ) |
| DIMENSION | 101(L)*51(W)*24(H) mm |
