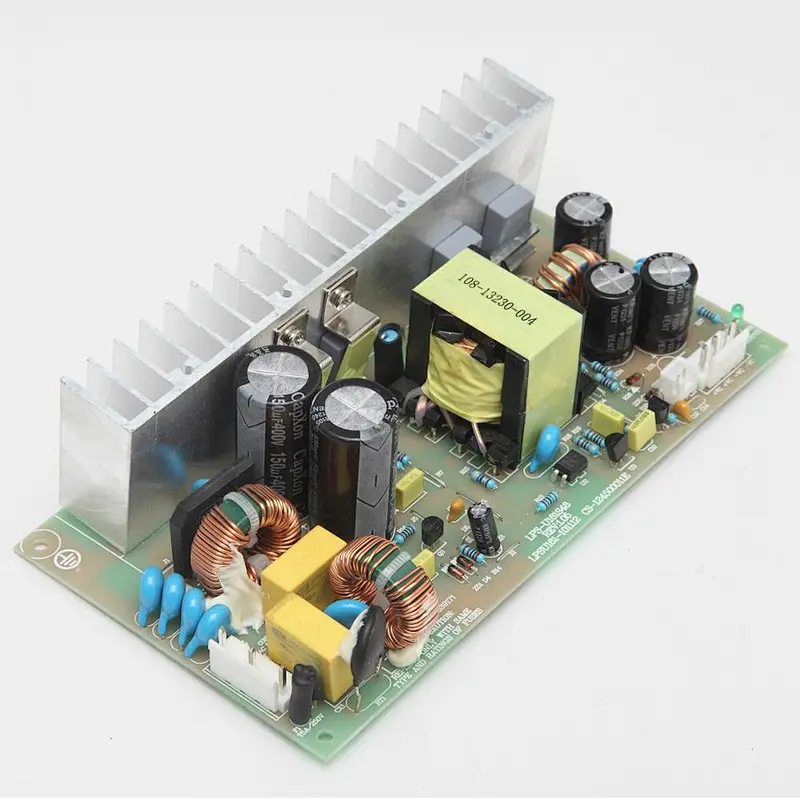

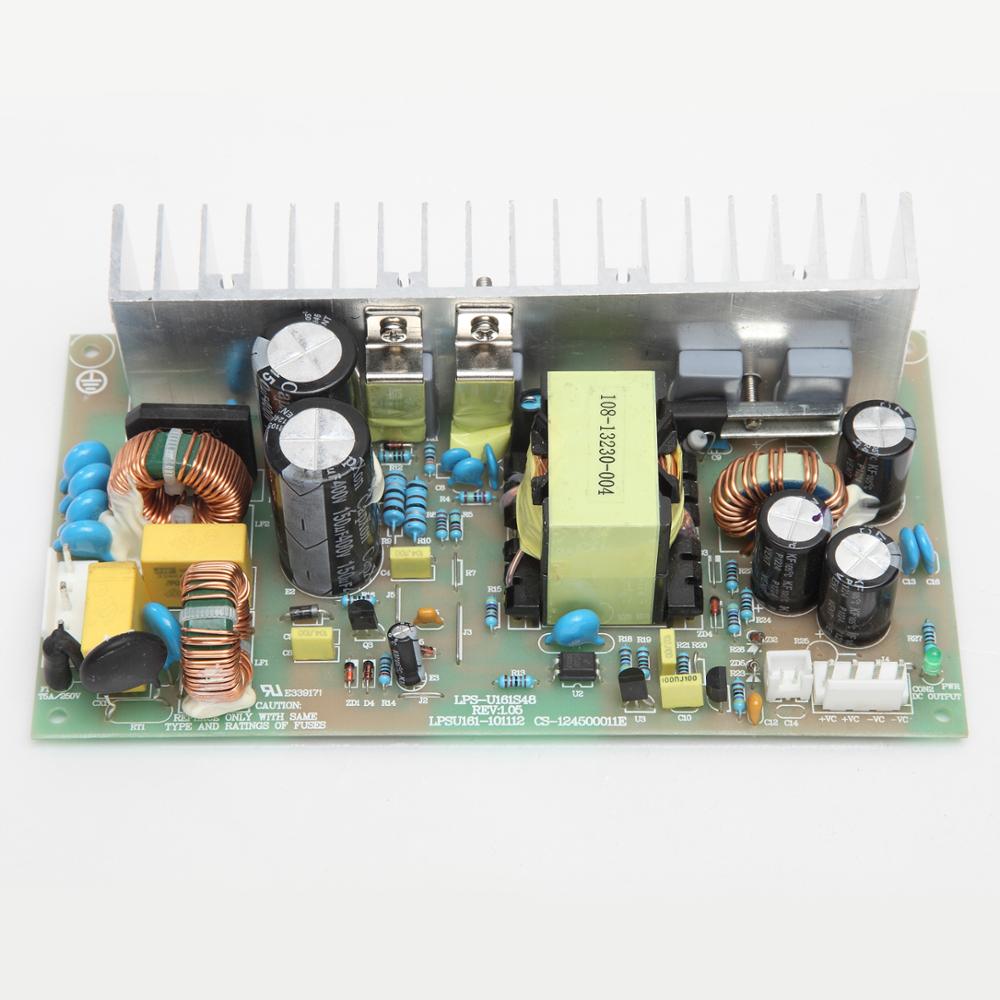

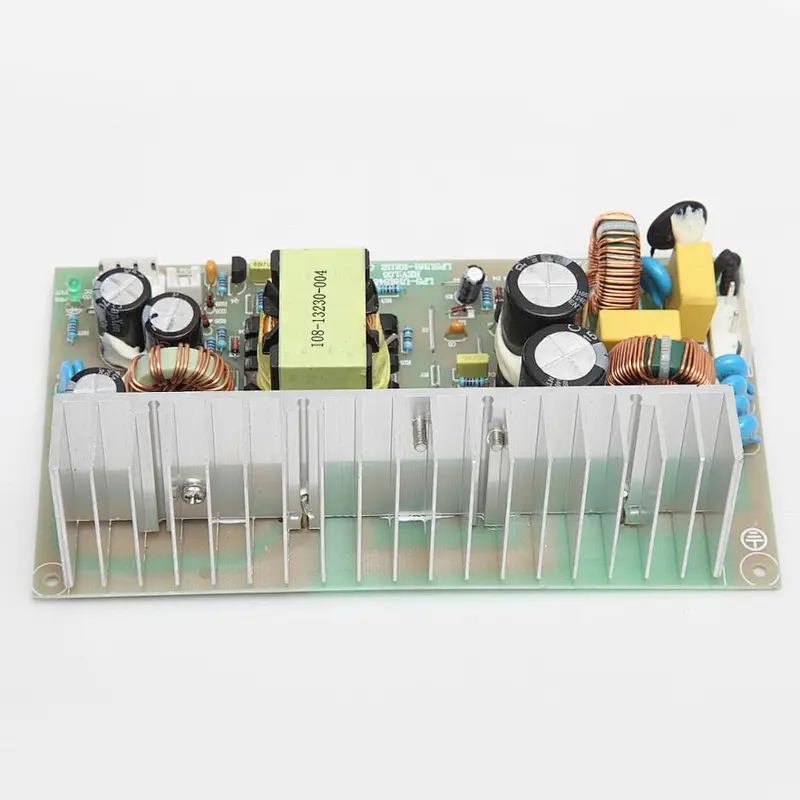

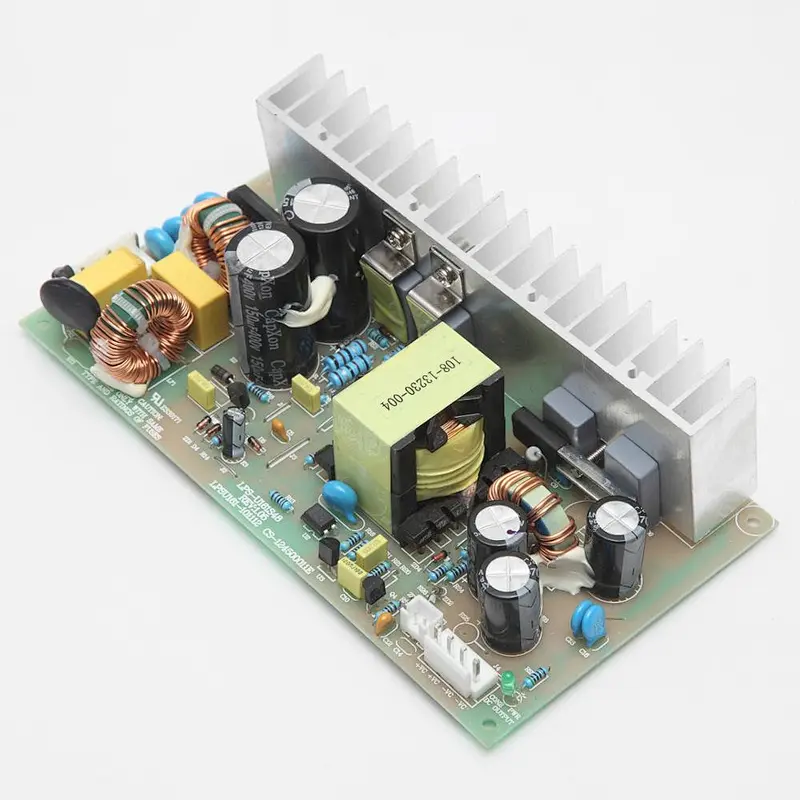

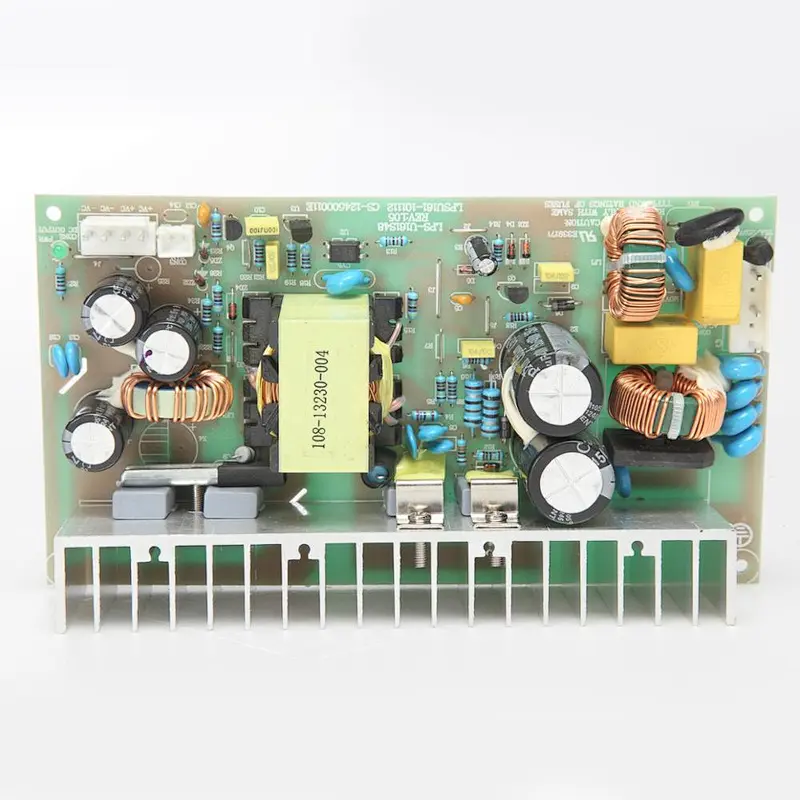

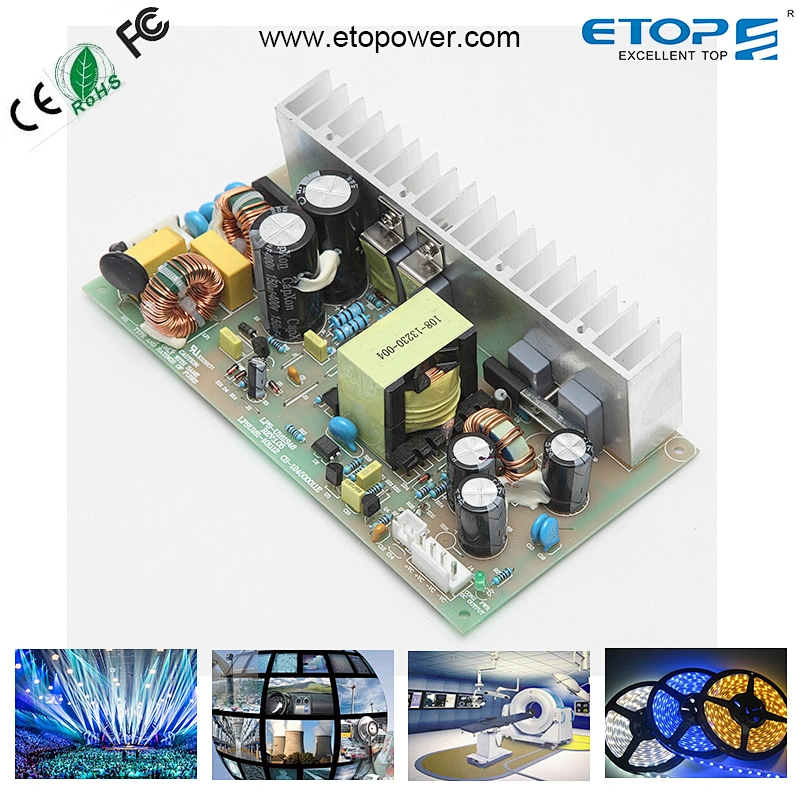

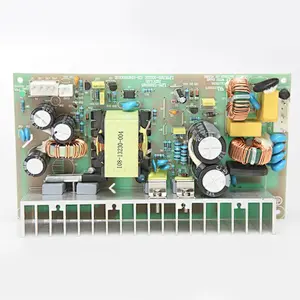

Standard Industrial 160W 48V DC Switching Power Supply
Featurer:
· Universal AC input/Full range(100-240VAC)
· Widely used in different field.
· Provide customizing service
· Protections:Short circuit/Over load/Over voltage/ Over temp
· 3 years warranty
· 100% full load burn-in test
· Use Imported machine to test,such as Chroma machine
· Lead time: 15 working days after receiving deposit
· Payment: TT,L/C,Paypal etc,
· Sample is available
· L/T of sample :7 days
Parameter table :
| MODEL | U161S12 | U161S15 | U161S24 | U161S27 | U161S48 | |||||
| OUTPUT | DC VOLTAGE | 12V | l5V | 24V | 28V | 52V | ||||
| RATED CURRENT | 12A | 10.6A | 6.7A | 5.7A | 3A | |||||
| CURRENT RANGE | 0~12A | 0~10.6A | 0~6.7A | 0~5.7A | 0~3A | |||||
| RATED POWER | 160W | 160W | 160W | 160W | 160W | |||||
| RIPPLE & NOISE (max.) | 100mVp-p | 100mVp-p | 150mVp-p | 150mVp-p | 250mVp-p | |||||
| VOLTAGE ADJ. RANGE | 1l.4~13.2V | 14.3~16.5V | 22.8~26.4V | 25.7~29.7V | 45.6~52.8V | |||||
| VOLTAGE TOLERANCE | ±2.0% | ±2.0% | ±1.0% | ±1.0% | ±1.0% | |||||
| LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |||||
| LOAD REGULATION | ±1.0% | ±1.0% | ±0.5% | ±0,5% | ±0.5% | |||||
| SETUP, RISE TIME | 600ms, 30ms at full load | |||||||||
| HOLD UP TIME (Typ.) | 30ms at full load | |||||||||
| INPUT | VOLTAGE RANGE | 85~264VAC or 120~370VDC | ||||||||
| FREQUENCY RANGE | 47~63Hz | |||||||||
| POWER FACTOR | PF≥0.96/230VAC PF≥0.98/115VAC at full load | |||||||||
| EFFICIENCY(Typ.) | 72% | 79% | 80% | 83% | 83% | |||||
| AC CURRENT (Typ.) | 2.5A/115VAC 1.2A/230VAC | |||||||||
| INRUSH CURRENT (Typ.) | COLD START 40A/230VAC | |||||||||
| LEAKAGE CURRENT | < 3.5mA/ 240VAC | |||||||||
| PROTECTION | OVERLOAD | 105 ~ 150% rated output power | ||||||||
| Protection type : Constant current limiting, recovers automatically after fault condition is removed | ||||||||||
| OVER VOLTAGE | 5.5~6.75V | 13.2~16.2V | 16.5~20.25V | 29.7~36.5V | 52.8~64.8V | |||||
| Protection type : Shut down o/p voltage, re-power on to recover | ||||||||||
| ENVIRONMENT | WORKING TEMP. | -10~+60°C with cooling FAN (Refer to"Derating Curve") | ||||||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||||||||
| STORAGE TEMP., HUMIDITY | -20~+ 85°C , 10~95% RH | |||||||||
| TEMP. COEFFICIENT | ±0.05%/°C (0~50°C) | |||||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |||||||||
| SAFETY & EMC | SAFETY STANDARDS | UL60950-1, TUV EN60950-1 approved | ||||||||
| WITHSTAND VOLTAGE | I/p-0/P: 3KVAC I/p-FG: 1 .5KVAC 0/p-FG: 0.5KVAC | |||||||||
| ISOLATION RESISTANCE | I/P-0/P, I/P-FG, 0/P-FG: 100M Ohms / 500VDC / 25°C/ 70% RH | |||||||||
| EMC EMISSION | Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3 | |||||||||
| EMC IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,8,11, light industry level, criteria A | |||||||||
| OTHERS | MTBF | ≥ 191.8Khrs. MIL-HDBK-217F { 25°C ) | ||||||||
| DIMENSION | 222*75*4lmm (L*W*H) | |||||||||
| Weight | 0.62Kg | |||||||||
About Our Factory :
ETOP:It has got ISO9001 certification in 2002. And in 2004, we finished renewing the ISO9001:2000 quality management system certification. Moreover, ETOP passed the ISO14001 environmental management system
certification and GB/T28001 occupational health and safety management system certification in 2005.
Our Certificates:

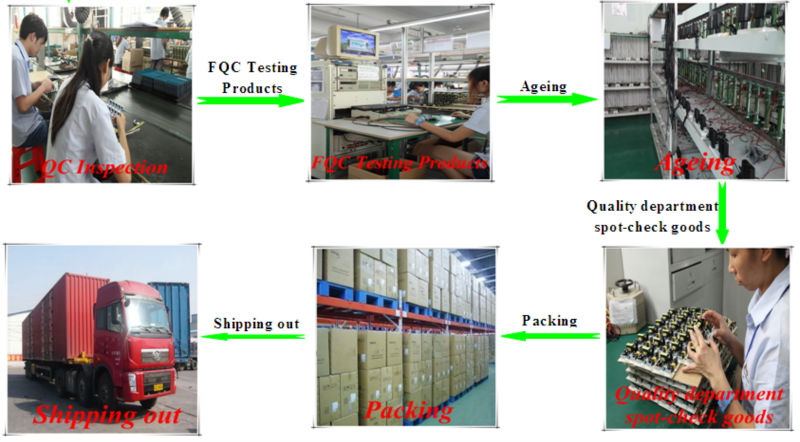

Our products are 100% through high temperature ageing, which accords with CCC, CE, FCC,Rohs and many
other authoritative organization security authentication standard.
Advantage of our products and company:
(1) Provide customizing service:We are good at designing and developing various products.We can
customize all kinds of power supples you expect as long as you can provide us your detailed comments .

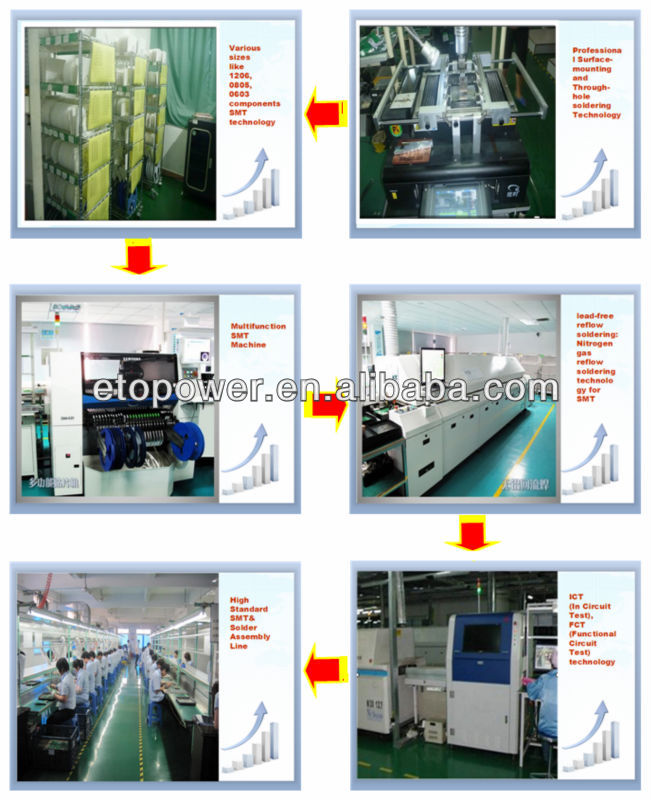

(2) SMT---High Efficiency & High Quality: largely adopt SMT components because of its tight mechanism,
small volume and exquisite appearance.

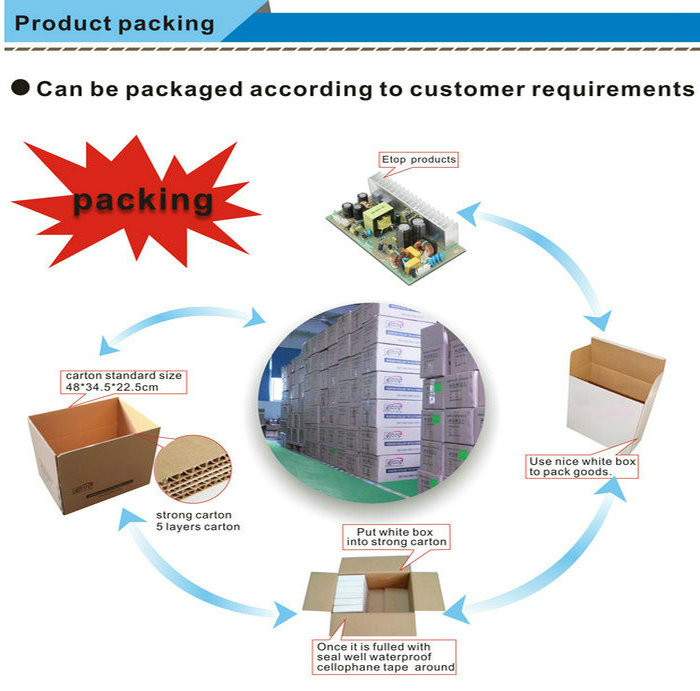

Our packaging:
with PP bag into small with box and then in to standard carton box
