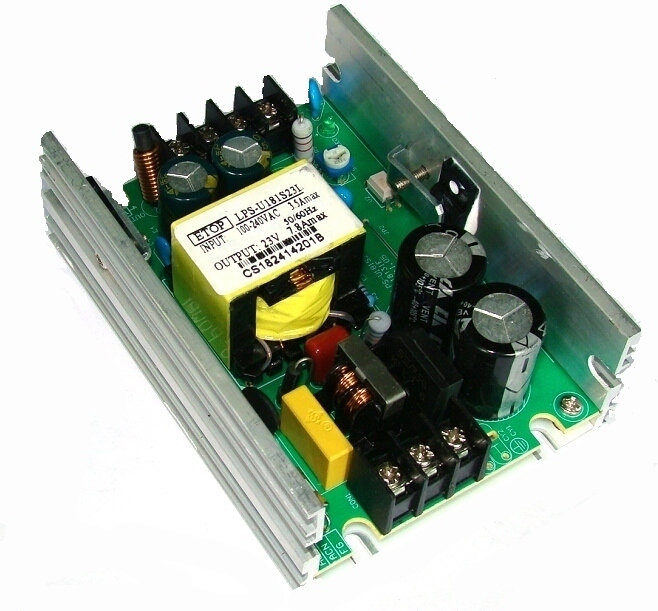

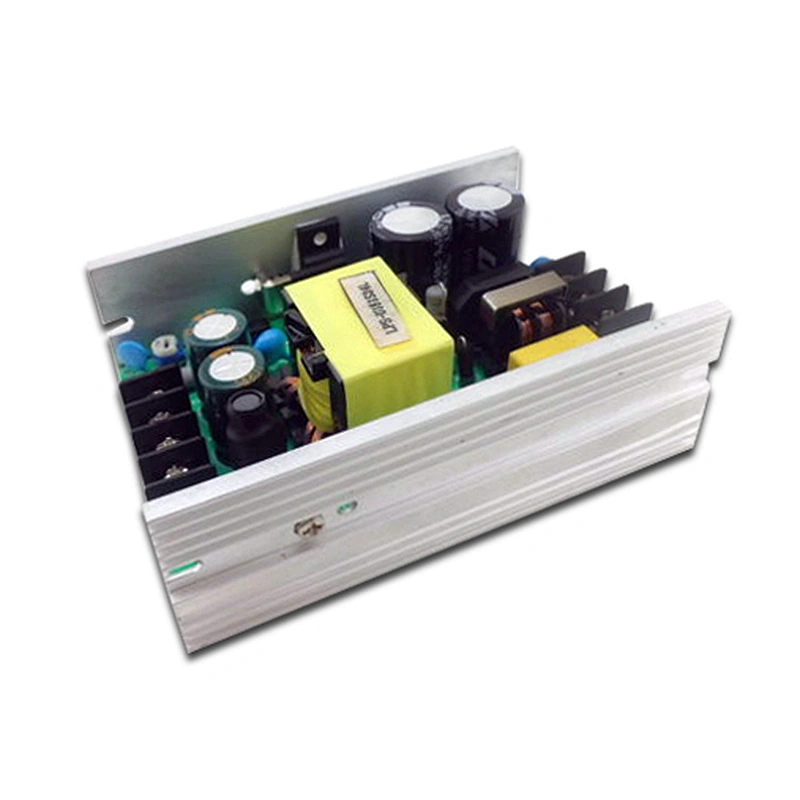

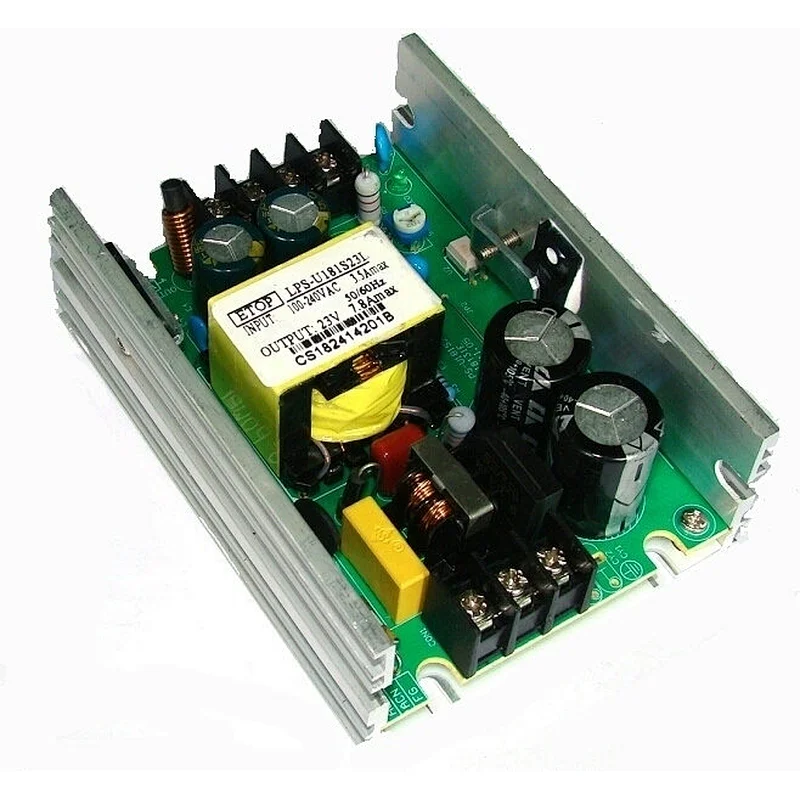

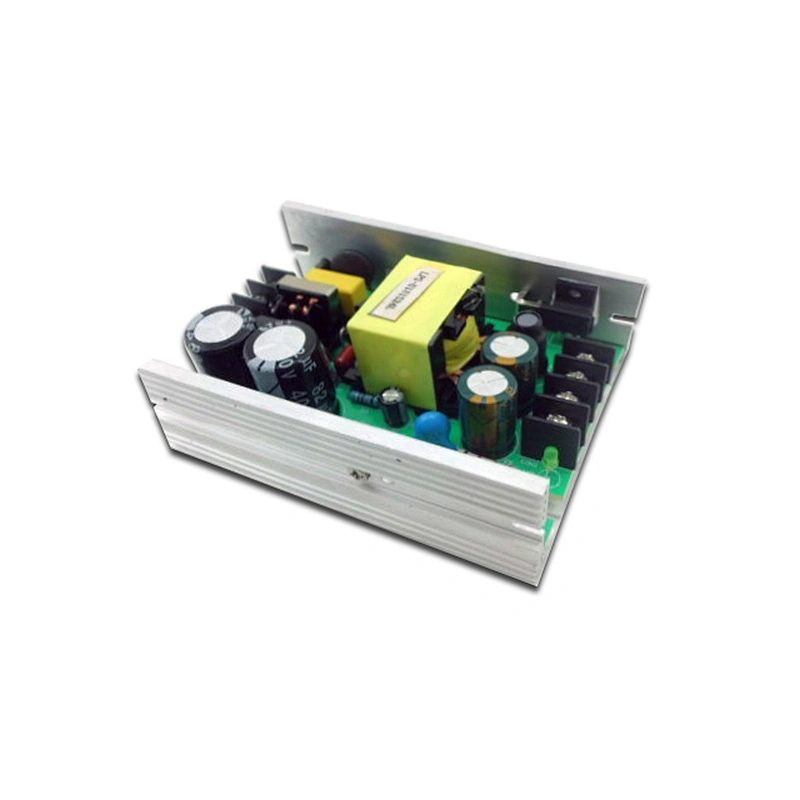

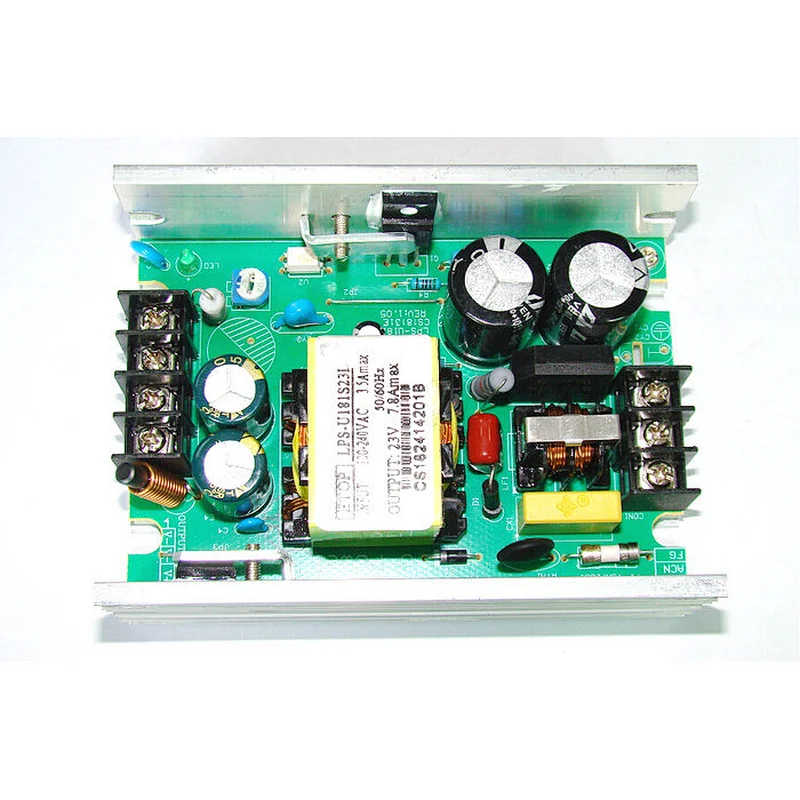

180W PCB Type AC To DC Power Supply 24V 7.5A 28V 6.4A 18 Volt 8 Amp Roller Shutter Power Supply
- Universal AC input/ Full range
- Constant voltage output
- Low consumption, long lifespan
- Samples available
- Business type: manufacturer
- Provide customize service, OEM/ODM

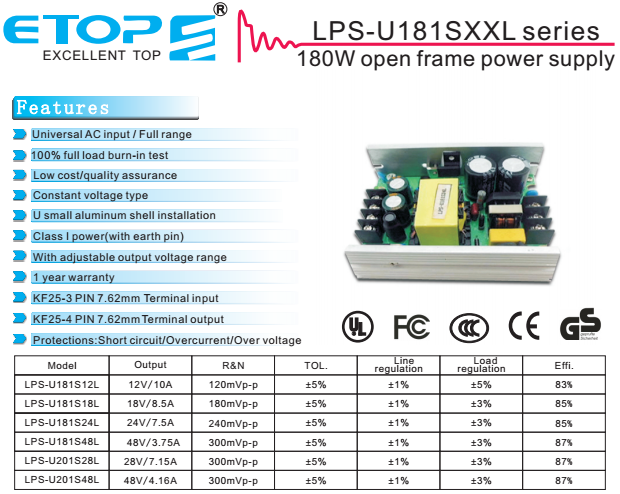

Parameter table:
| Model | LPS-U181S12L | LPS-U181S18L | LPS-U181S24L | LPS-U181S48L | |
| Input | Input Voltage(V) | 100-240VAC | |||
| Input Current (A) | 1.8A/115VAC 0.9A/230VAC | ||||
| Frequency (Hz) | 47Hz–63Hz | ||||
| Connector | KF25-3 PIN 7.62mm Terminal input | ||||
| Inrush current(Max.) | 30A/115VAC 60A/230VAC | ||||
| Leakage current(Max.) | 0.75mA /240Vac | ||||
| Output | Output Voltage(V) | 12Vdc | 18Vdc | 24Vdc | 48Vdc |
| Voltage Regulation | 5% | ||||
| Output Current(A) | 10A | 8.5A | 7.5A | 3.75A | |
| Current Range (A) | 0-10A | 0-8.5A | 0-7.5A | 0-3.75A | |
| Rated Power(W) | 180W | ||||
| Start time, Rise time(ms) | 2000ms,30ms/230VAC 3000ms,30ms/115VAC(at full load) | ||||
| Hold up time(ms) | 50mS/230VAC 15mS/115VAC(at full load) | ||||
| Ripple/Noise(mVp-p) | 120-300mVp-p | ||||
| Environment | Working tem.& Humidity | 0°C - +40°C, 20% ~ 90% RH non-condensing | |||
| Storage tem.& Humidity | - 25 ~ +75℃ , 10 ~ 95% RH | ||||
| Tem. coefficicient | ±0.03%/℃(0~50℃) | ||||
| Safety/ EMC | Withstand Voltage(VAC) | I/P-0/P: 1.5KVAC I/P-PG: 1.0KVA O/P-PG: 0.5KVAC | |||
| Safety Standard | EN60950-1,CCC GB4943,J60950-1 | ||||
| EMC Standard | En55022 classB EN61000-3-2.3 EN61000-4-2,3,4,5,6,8,11 | ||||
| Protection | Over Voltage Protection | >115%-135% Rated output voltage | |||
| Over load Protection | >110%-200% hiccup mode,Auto recovery | ||||
| Short Circuit Protection | >115%~135%,hiccup mode,Auto recovery | ||||
| MTBF | ≥ 30Khrs MIL-HDBK-217F ( 25℃ ) | ||||
| Others | Dimension L*W*H (mm) | 106*78.5*38mm | |||
Our product series include: industrial power supply, power adaptor, LED driver etc., which are widely used in
communication, power electronics, automation control, railway, military industry, medical care and a good deal of others.
Our Product Package:
Our Services
We provide quality switching power supply products and service:
- Open frame type power supply
- Enclosed type power supply
- LED driver waterproof series
- Power adapter
- ODM/OEM order
Company Information
Our advantage:
1.Good and High efficiency Team. OEM&ODM Services.
2. Transportation ways of products:
By air, By sea, By express, Pick up in factory.
You can choose any way which you like.
3. Product Certificates:
Almost all of our products get CE/CCC/ROHS/FCC etc certificates, and if you have Special requirements of certificates, we can help to apply it for you.And our company pass ISO9001and ISO14001.
4. We are maufacturer, with office and workshop in Shenzhen.

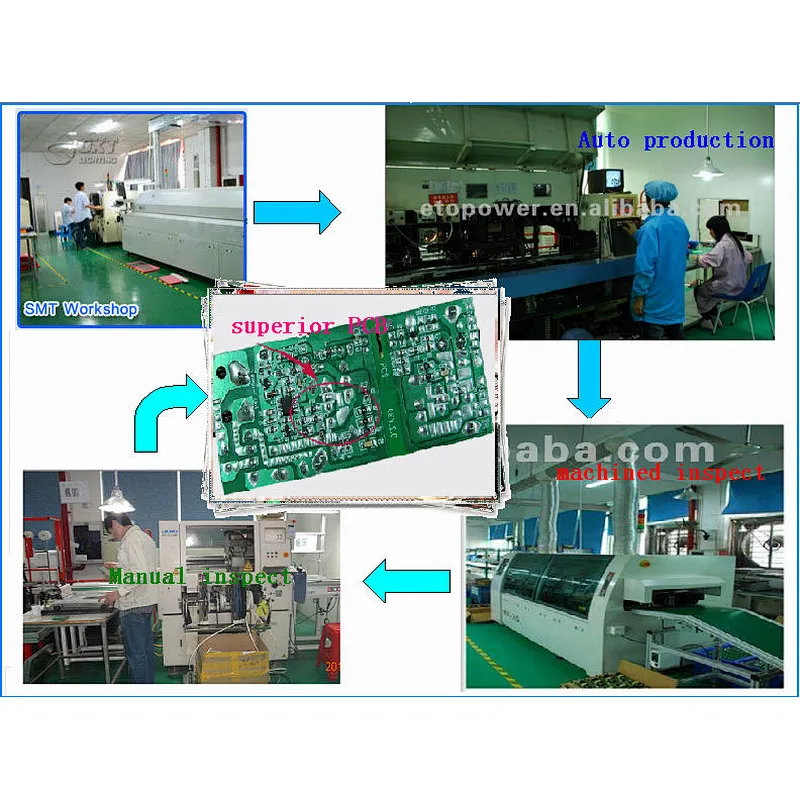

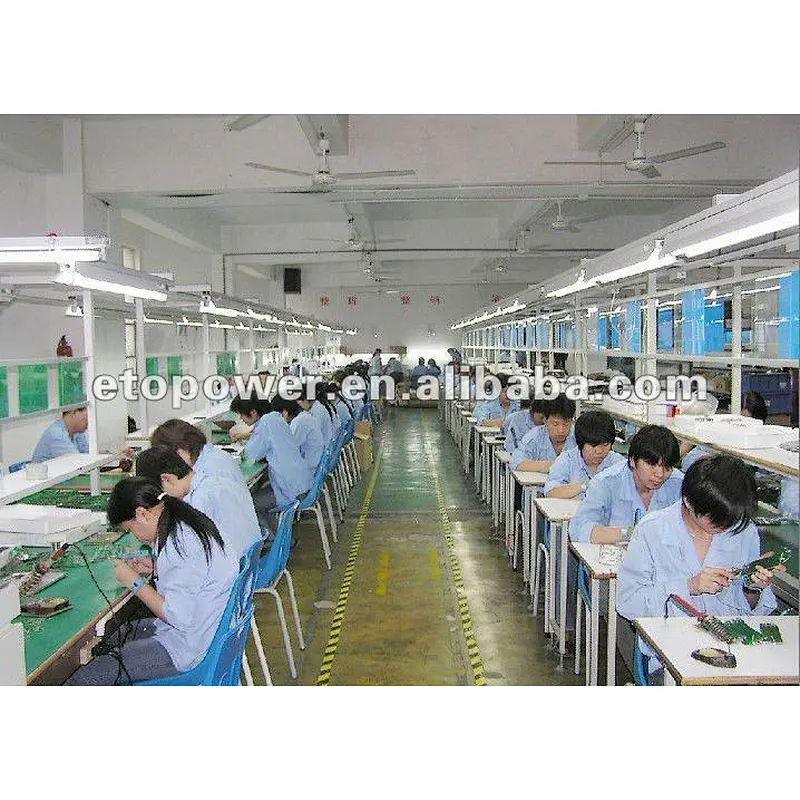

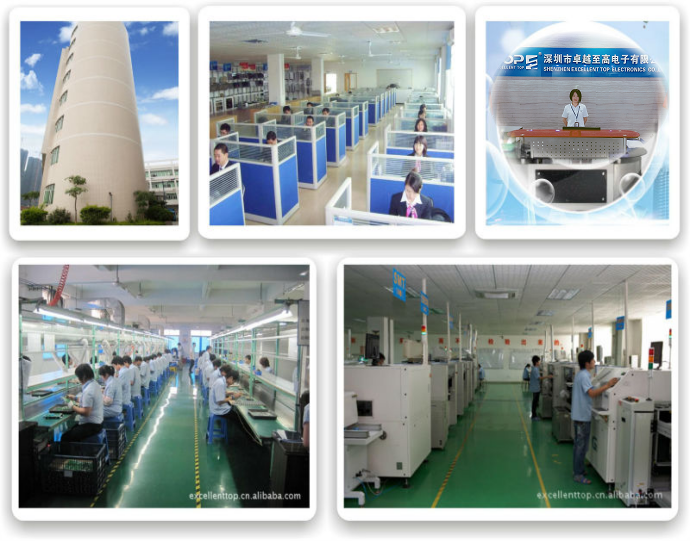

Our Teams and working place:
1. Q: Is sample available?
A: Yes, sample order is welcome.
2. Q: Can you factory provide ODM/OEM service?
A: ETOP factory have professional engineer team.
Your ODM/OEM order is welcome !
