- 3 pole AC inlet:IEC320-C14
- built-in active PFC function:PF>0.97
- output voltage:12V10A 24V5A 36V3.3A 48V2.5A..
- Warranty:2 years
- DC Connector:customized
- AC Cable:1.2m-1.5m
- Input:100-240VAC
- Type:Constant Voltage
- Packing:Window Box+ Carton
- Certificate:CE ROHS FCC UL
- Output Type:DC
- Connection:Desktop
- Place of Origin:CN
- Brand Name:ETOP
- Model Number:ADS-U121S19A

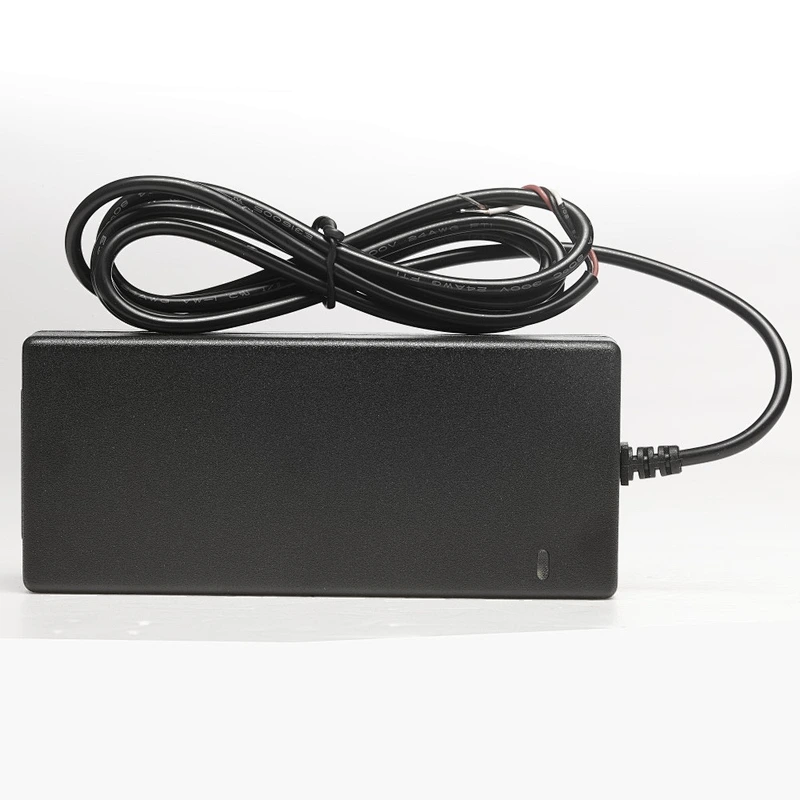

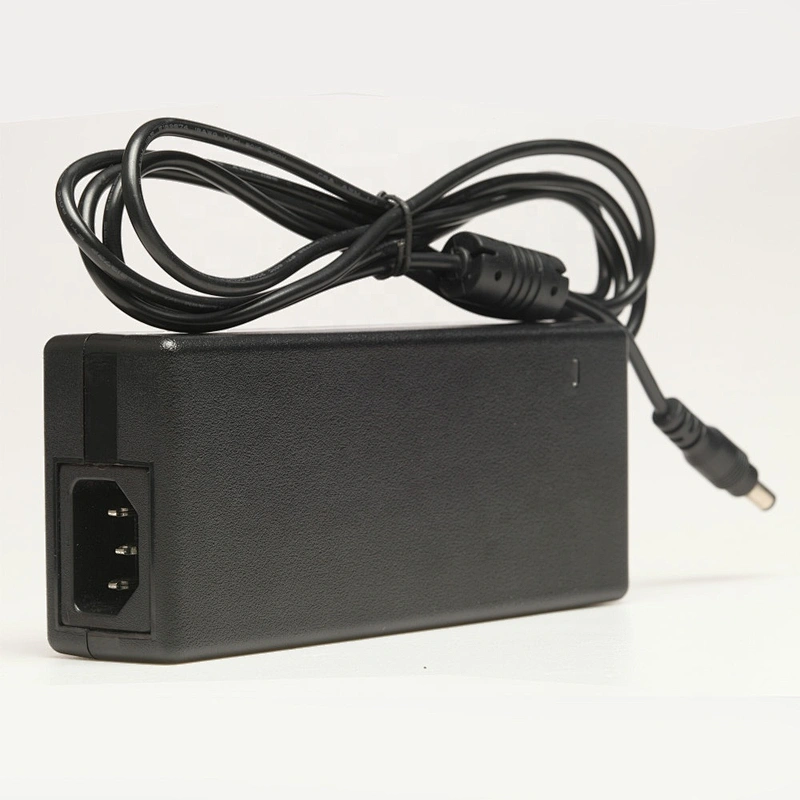

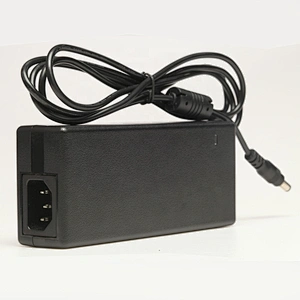

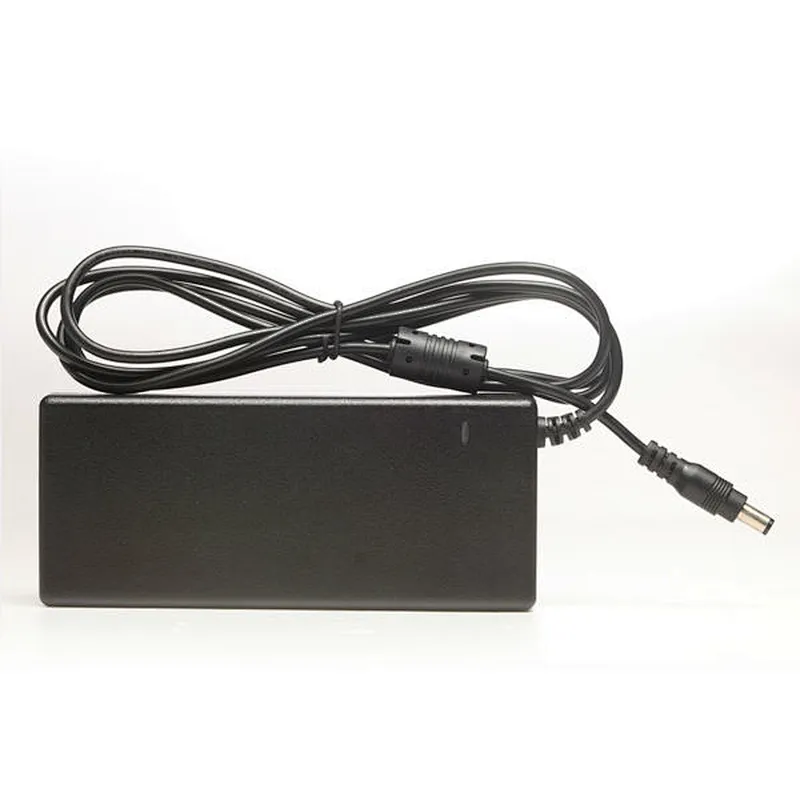

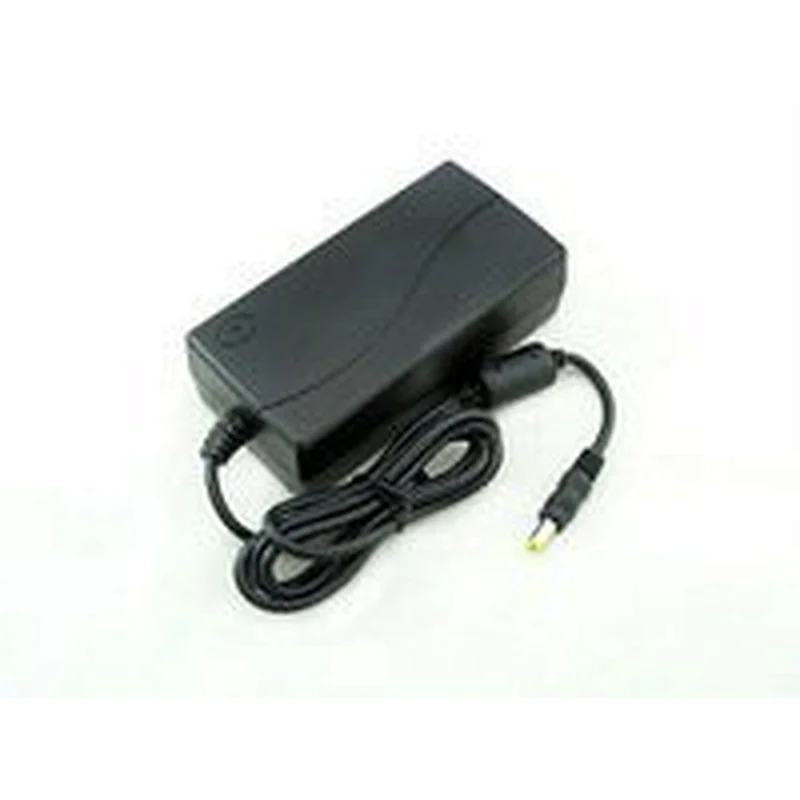

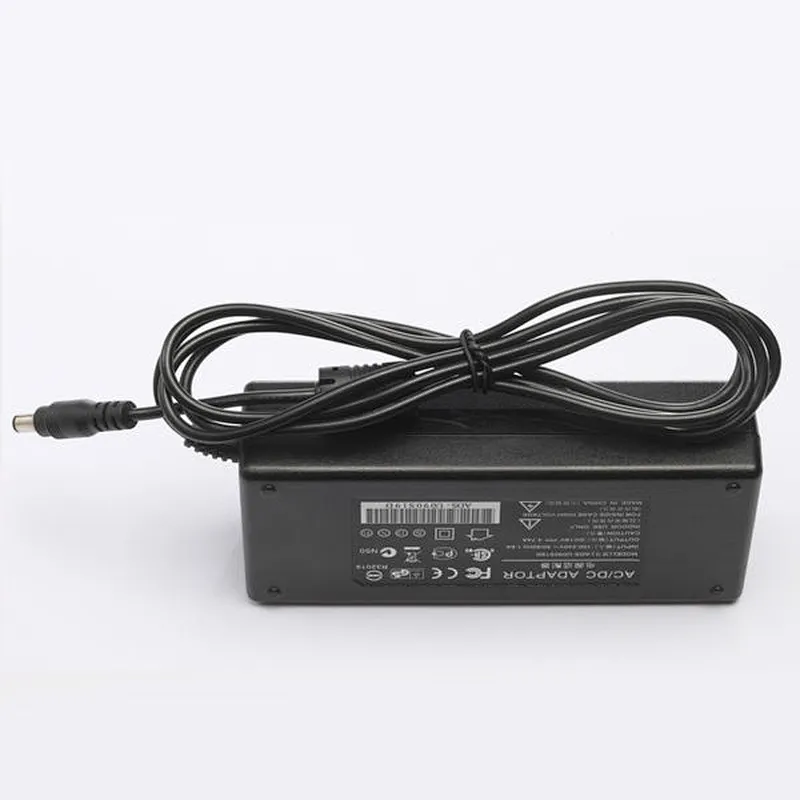

laptop ac adapter 19v 6.32a 120w
1.Feature:
· Universal AC input/Full range(90V-264V)
· Widely used in different field.
· Provide customizing service
· Protections:Short circuit/Over load/Over voltage/ Over temp
· 3 years warranty
· Passed CE ROHS CCC FCC test
· 100% full load burn-in test
· Use Imported machine to test,such as Chroma machine
· Lead time: 15 working days after receiving deposit
· Payment: TT,L/C,Paypal etc,
· Sample is available
· L/T of sample :7 days

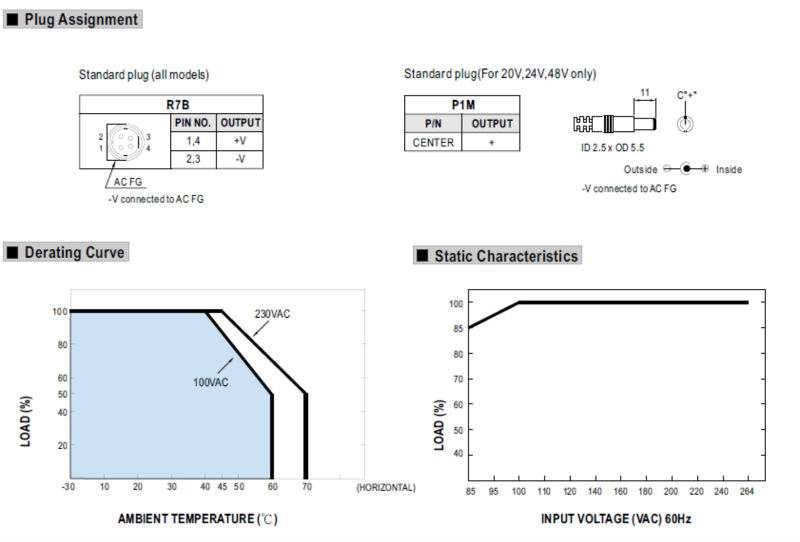

2.Parameter table :
| Model No. | ADP-U121S19A | |||||
| OUTPUT | DC VOLTAGE | 19V | ||||
| RATED CURRENT | 6.32A | |||||
| CURRENT RANGE | 0~6.32A | |||||
| RATED POWER | 120W | |||||
| RIPPLE & NOISE (max. | 150mVp-p | |||||
| VOLTAGE TOLERANCE | +/-5.0% | |||||
| LINE REGULATION | +/-1.0% | |||||
| LOAD REGULATION | +/-4.0% | |||||
| SETUP, RISE | 2000ms,30ms /230VAC 2500ms,30ms/ll5VAC(at full load) | |||||
| HOLD UP TIME | 20ms /230VAC 20ms/ll5VAC (at full load) | |||||
| INPUT | VOLTAGE RANGE | 100VAC--240VAC | ||||
| FREQUENCY RANGE | 47~63Hz | |||||
| POWER FACTOR (Typ.) | PF> 0.97 / 230VAC PF> 0.99 / 115VAC at full load | |||||
| EFFICIENCY (Typ.) R7B | 90% | |||||
| P1M | 88.5% | |||||
| AC CURRENT | 1.4A/ 115VAC 0.7A/ 230VAC | |||||
| INRUSH CURRENT (max.) | 70A/ 230VAC | |||||
| LEAKAGE CURRENT (max.) | 0.75mA/ 240VAC | |||||
| PROTECTION | OVERLOAD | 105 ~ 150% rated output power | ||||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||||||
| OVER VOLTAGE | 105 ~ 150% rated output power | |||||
| Protection type : Shut down o/p voltage, re-power on to recover | ||||||
| OVER TEMPERATURE | RTH2≥100'+/-10°C | |||||
| Protection type : Shut down o/p voltage, re-power on to recover | ||||||
| ENVIRONMENT | WORKING TEMP. | –10~+50°C | ||||
| WORKING HUMIDITY | 20~90%RH,non-condensing | |||||
| STORAGE TEMP., HUMIDITY | -40~+ 85°C , 10~95% RH | |||||
| TEMP. COEFFICIENT | +/-0.03%/°C(0~50°C) | |||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |||||
| SAFETY & EMC | WITHSTAND VOLTAGE | I/p-0/P: 3KVAC | ||||
| ISOLATION RESISTANCE | I/P-0/P: 100M Ohms / 500VDC / 25°C/ 70% RH | |||||
| EMC EMISSION | Compliance to EN55022(ClSPR22),EN61204-3 classB,CNSl3438 classB,GB9254-1 classB,FCCPART 15,EN61000-3-2,3,GBl7625.1 | |||||
| EMC IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,8,11, light industry level, criteria A | |||||
| OTHERS | MTBF | ≥ 400.7Khrs Ml L-H DBK-217F(25°C) | ||||

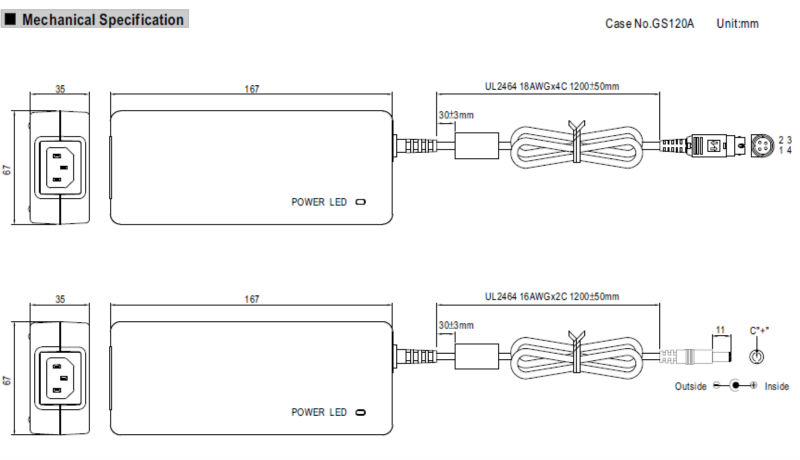

| DIMENSION | 167*67*35mm ( L* W* H) | |||||
| PACKING | 0.62Kg | |||||
About Our Factory :
ETOP:It has got ISO9001 certification in 2002. And in 2004, we finished renewing the ISO9001:2000 quality management system certification. Moreover, ETOP passed the ISO14001 environmental management system
certification and GB/T28001 occupational health and safety management system certification in 2005.
Our Certificates:

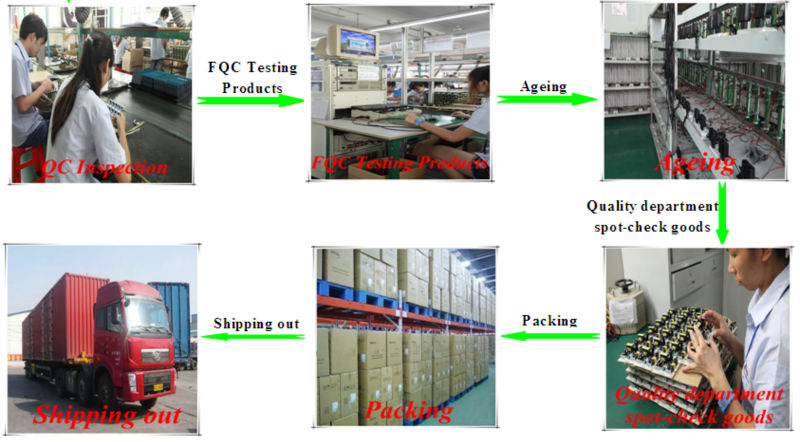

Our products are 100% through high temperature ageing, which accords with CCC, CE, FCC,Rohs and many
other authoritative organization security authentication standard.
Advantage of our products and company:
(1) Provide customizing service:We are good at designing and developing various products.We can
customize all kinds of power supples you expect as long as you can provide us your detailed comments .

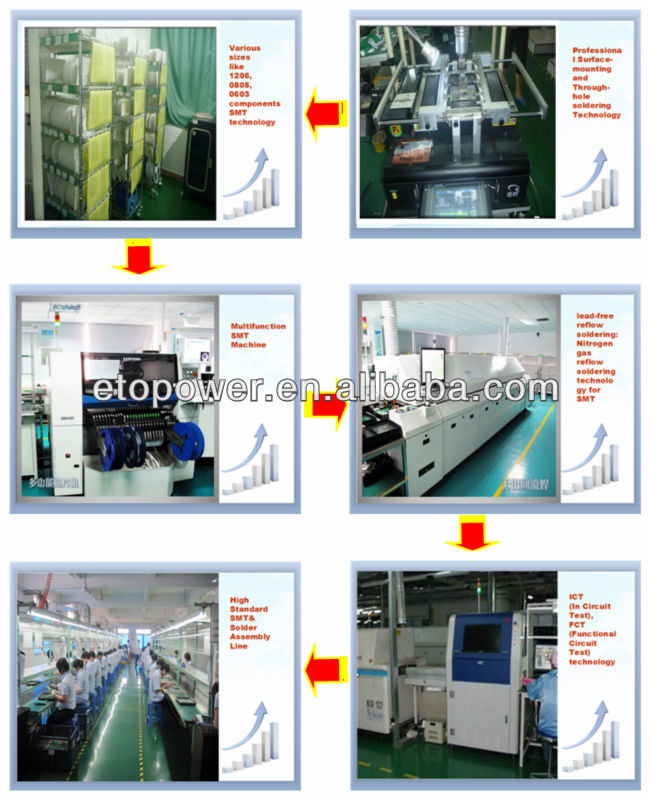

(2) SMT---High Efficiency & HighQuality: largely adopt SMT components because of its tight mechanism,
small volume and exquisite appearance.
(3) Punctual delivery and various delivery method:by sea or air, TNT, UPS, DHL, ARAMEX, EMS, FedeX
Our packaging:
with PP bag into small with box and then in to standard carton box
Our Team & Compay:
