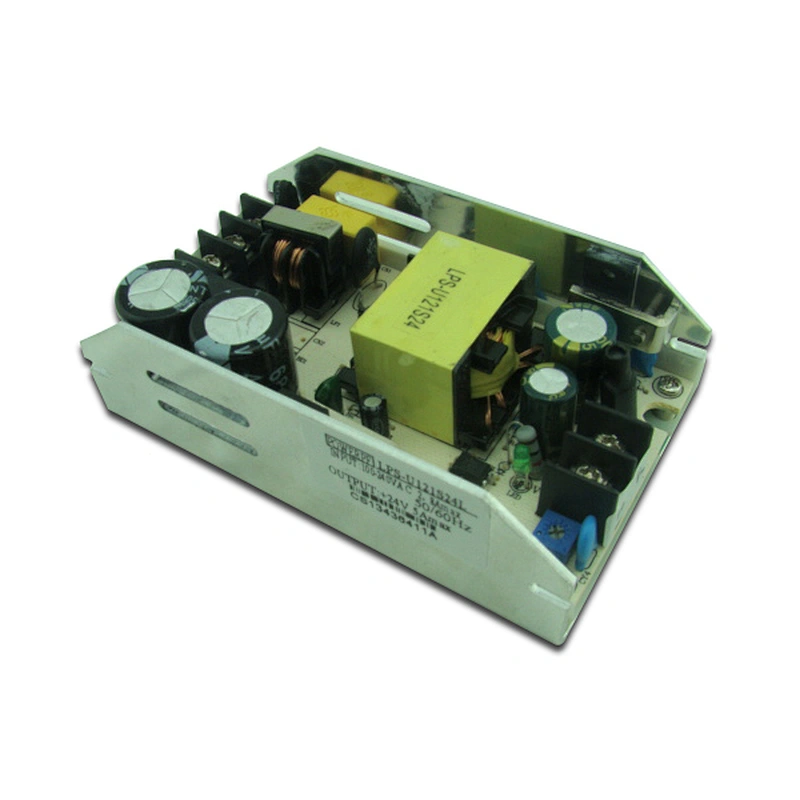

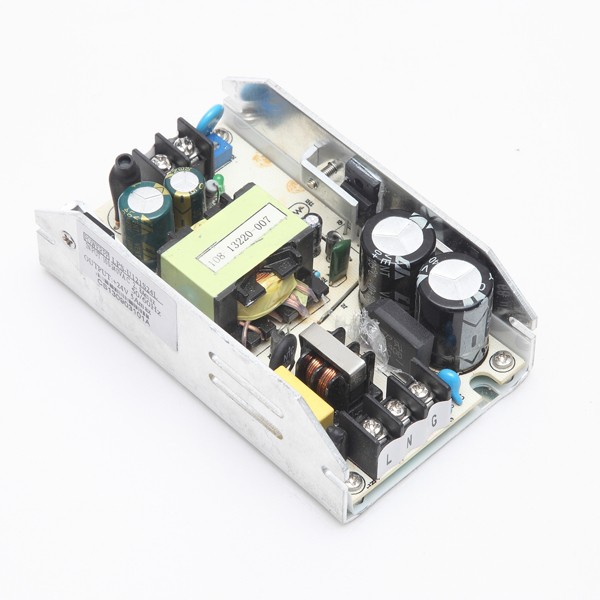

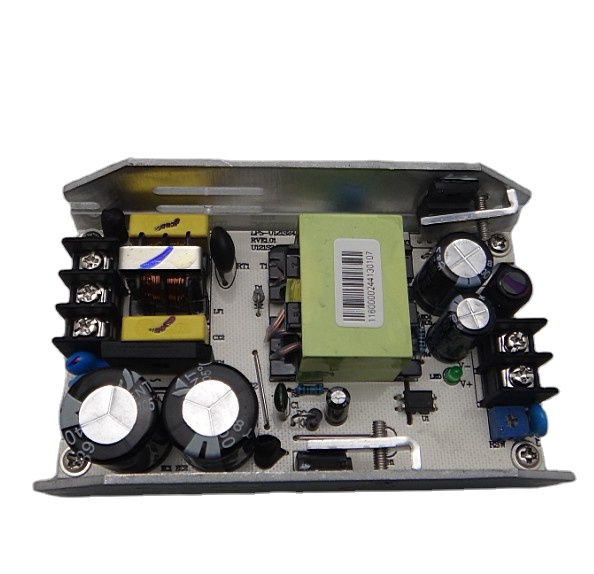

High Quality Industrial Equipment Universal 120W 150W 180W 200W 18V 20V 24V 28V 48V AC DC Converter Open Frame Power Supply
Product Description
| Model | LPS-U121S18L | LPS-U121S20L | LPS-U121S24L | LPS-U121S28L | LPS-U121S48L | |
| Input | Input Voltage(V) | 100-240VAC | ||||
| Input Current (A) | 2.5A Max | |||||
| Frequency (Hz) | 47Hz–63Hz | |||||
| Efficiency | 85% Typ(230VACFull Load) | |||||
| Inrush current(A) | Cold star <80A/230VAC | |||||
| Leakage current(mA) | <2mA/240VAC | |||||
| Output | Output Voltage(V) | 18Vdc | 20Vdc | 24Vdc | 28Vdc | 48Vdc |
| Voltage Regulation | 3% | |||||
| Output Current(A) | 3.5A | 4A | 3.3A | 2.86A | 1.67A | |
| Current Range (A) | 0-3.5A | 0-4A | 0-3.3A | 0-2.86A | 0-1.67A | |
| Rated Power(W) | 120W | |||||
| Start time, hold-up time(ms) | Ton≤3000ms,Td≥20ms @230Vac Full Load | |||||
| Rise time(ms) | Typ:80ms @230Vac Full Load | |||||
| Ripple/Noise(mVp-p) | 200mVp-p | |||||
| Environment | working Temperature (°C) | 0°C - +45°C | ||||
| Storage Temperature(°C) | -20°C - +80°C | |||||
| Humidity(%) | 20% - 90% RH non condensing | |||||
| Safety/ EMC | Withstand voltage(VAC) | I/P-O/P:1.5KVAC,I/P-FG:1.5KVAC,OP-FG:0.5KVAC 1min | ||||
| Safety Standard | EN/UL60950-1,GB4943 | |||||
| EMC Standard | EN55022 Class B,EN61000-4-2,3,4,5,6,8,11 GB17626.5 Level3 | |||||
| Protection | Over voltage Protection | >115%-135% Rated output voltage | ||||
| Over load Protection | >105%-150% Auto recovery | |||||
| Short circuit Protection | Latched | |||||
| Over Temperature Protection | Auto reboot | |||||
| Others | Dimension H *W*H(mm) | 107*60*35mm | ||||
