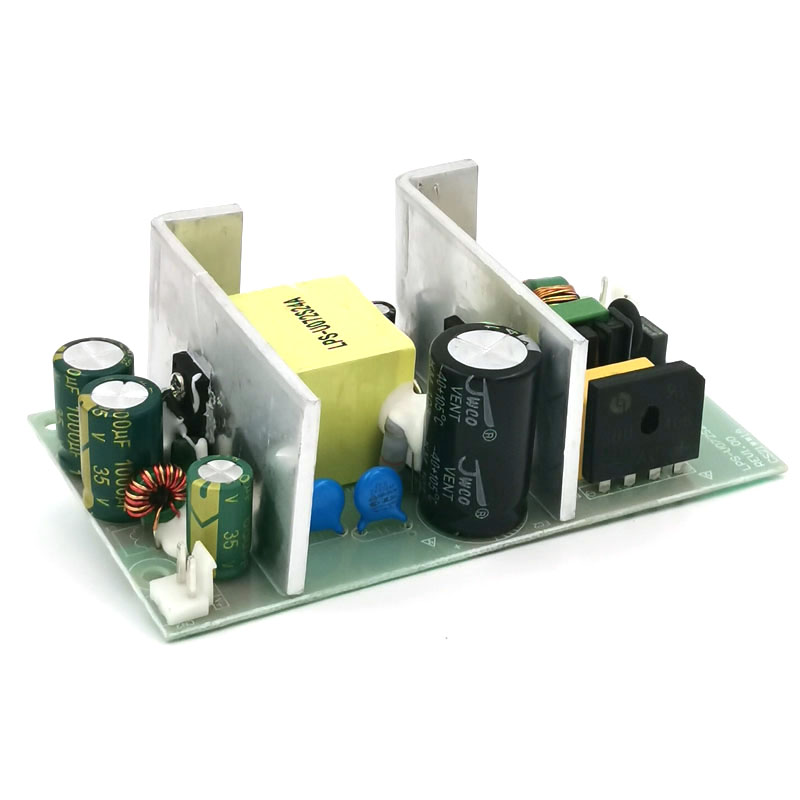

Best Selling 72W Led Driver High Efficiency Universal 24V 3A AC to DC Single Group Output Class I Base Plate Power Supply
Product Description
| MODEL | LPS-U072S24E-01 | |
| OUTPUT | DC VOLTAGE | 24V |
| Rated voltage | 3A | |
| CURRENT RANGE | 0-3A | |
| RIPPLE & NOISE (max.) | 100mVp-p | |
| Voltage accuracy | ±5% | |
| Linear adjustment rate | ±1% | |
| Load Regulation | ±5% | |
| SETUP, RISE TIME | 2000ms, 30ms/230VAC 3000ms, 30ms/115VAC at full load | |
| HOLD UP TIME (Typ.) | 20ms/230VAC 10ms/115VAC at full load | |
| INPUT | VOLTAGE RANGE | 100-240VAC |
| FREQUENCY RANGE | 47~63Hz | |
| EFFICIENCY(Typ.) | 87% @220VAC | |
| AC CURRENT | 1.4A/110VAC 0.64A/220VAC | |
| INRUSH CURRENT(max.) | 30A/230VAC 30A/115VAC | |
| LEAKAGE CURRENT(max.) | 0.5mA/240VAC | |
| PROTECTION | OVER LOAD | 150~ 200% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| Short circuit protection | output impedance is less than 0.1 ohm, power supply will be protected, and there will be no danger of damage to components, connectors, etc. | |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| ENVIRONMENT | WORKING TEMP. | -10~+65°C(Refer to"Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -25~+ 75°C , 10~95% RH | |
| TEMP. COEFFICIENT | ±0.03%/°C(0~50°C) | |
| VIBRATION | 10 - 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| SAFETY & EMC | WITHSTAND VOLTAGE | I/p-0/P: 3.0KVAC |
| ISOLATION RESISTANCE | I/p-0/P:> 50M Ohms/500VDC/25°C/70%RH | |
| OTHERS | MTBF | ≥ 100K hrs. MIL-HDBK-217F (25°C ) |
| DIMENSION | 115.8*66.9*44mm (L*W*H) | |
