1.Features
· Universal AC input/Full range,input voltage 90V-264V

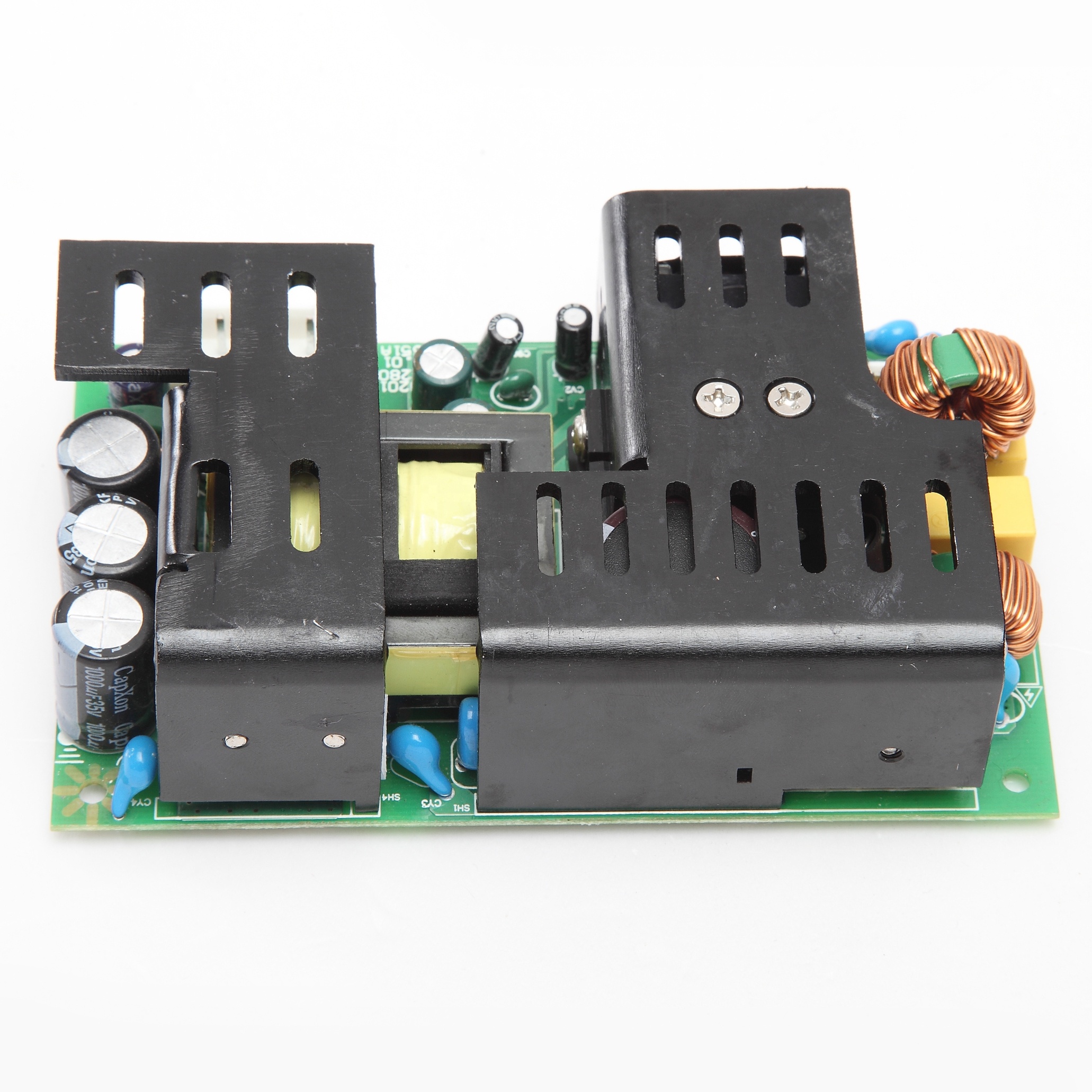

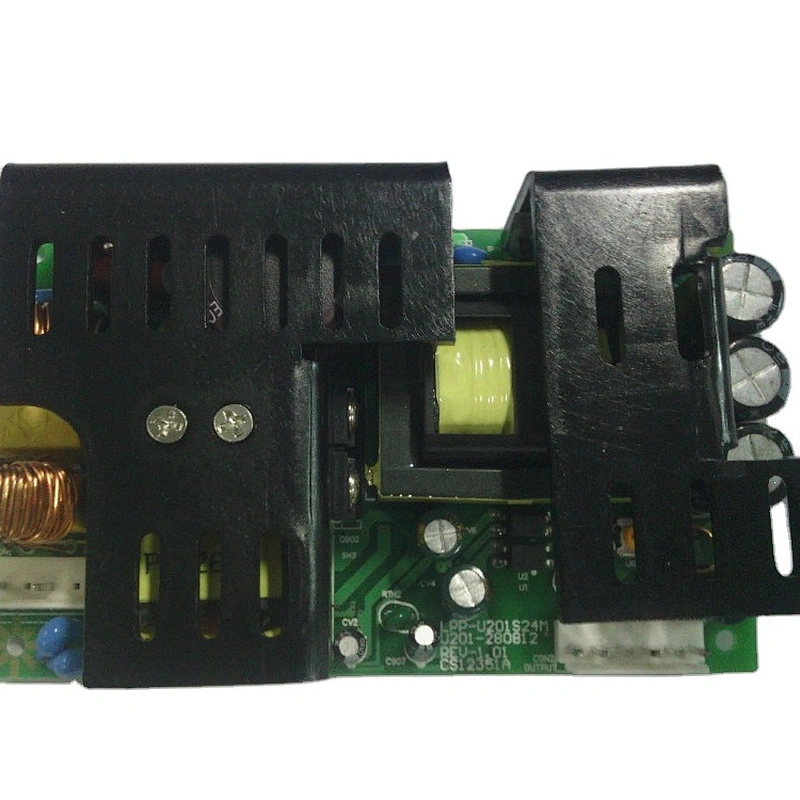

· Single output voltage open frame
· Widely used in different field.
· Provide customizing service
· Protections:Short circuit/Over load/Over voltage/ Over temp
· 3 years warranty
· Class I power(with earth pin)
· Passed CE ROHS CCC FCC test
· 100% full load burn-in test
· Use Imported machine to test,such as Chroma machine
· Capacity: 100,000pcs/month
· Lead time: 15 working days after receiving deposit
· Various kinds of transportation . By sea ,by air ,by express etc.
· Payment: TT,L/C,Paypal etc,
· Sample is available
· L/T of sample :5 days
2.Parameter Table
| Model | LPP-U201SXX | ||||||
| OUTPUT | DC VOLTAGE | 24V | 48V | 54V | |||
| RATED CURRENT | 8.3A | 4.2A | 3.7A | ||||
| CURRENT RANGE | 0~8.3A | 0~4.2A | 0~3.7A | ||||
| RATED POWER(max) | 200W | 200W | 200W | ||||
| RIPPLE & NOISE (max.) | 200mVp-p | 200mVp-p | 200mVp-p | ||||
| VOLTAGE TOLERANCE | ±5.0% | ±5.0% | ±5.0% | ||||
| LINE REGULATION | ±1.0% | ±1.0% | ±1.0% | ||||
| LOAD REGULATION | ±5.0% | ±5.0% | ±5.0% | ||||
| SETUP, RISE TIME | lOOOms,30ms /230VAC lOOOms,30ms/ll5VAC(FULL LOAD) | ||||||
| HOLD UP TIME (Typ.) | 50ms /230VAC l5ms/ll5VAC (FILL LOAD) | ||||||
| INPUT | VOLTAGE RANGE | 90~264VAC OR l27~370VDC | |||||
| FREQUENCY RANGE | 47~63Hz | ||||||
| PF | PF ≥0.90 | ||||||
| EFFICIENCY (Typ.) | 82.00% | ||||||
| AC CURRENT | 2.1A/115VAC 1.06A/230VAC | ||||||
| INRUSH CURRENT(max.) | 65A/230VAC | ||||||
| LEAKAGE CURRENT(max) | 0.75mA/ 240VAC | ||||||
| PROTECTION | OVER LOAD | 110% ~ 130% OF RATED POWER | |||||
| Protection type : Shut off o/p voltage, clamping by zener diode | |||||||
| OVER VOLTAGE | 110% ~ 130% OF RATED VOLTAGE | ||||||
| Protection type : Shut off o/p voltage, clamping by zener diode | |||||||
| ENVIRONMENT | WORKING TEMP. | -30~+60℃(Refer to"Derating Curve") | |||||
| WORKING HUMIDITY | 20~90% RH,non-condensing | ||||||
| STORAGE TEMP., HUMIDITY | -40~+ 85℃ , 10~95% RH | ||||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0~50℃) | ||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||||
| SAFETY & EMC | SAFETY STANDARDS | UL60950-1,EN60950-1,BSMlCNSl4336,CCCGB4943,J60950-1 APPROVAL | |||||
| WITHSTAND VOLTAGE | I/p-0/P: 3KVAC I/p-FG: 1.5KVAC 0/p-FG: 0.5KVAC | ||||||
| ISOLATION RESISTANCE | I/P-0/P, I/P-FG, 0/P-FG: 100M Ohms/500VDC/25℃/70% RH | ||||||
| EMC EMISSION | COMPLIANCE TO EN55022 classB,EN61000.3-2,3,FCCPART 15/ClSPR22 classB,CNSl3438 classB,GB9254 classB,GBl7625.1 | ||||||
| EMC IMMUNITY | COMPLIANCE TO EN61000-4-2,3,4,5,6,8,11,A class light industrial standard | ||||||
| OTHERS | MTBF | ≥ 311 Khrs MIL-HDBK-217F(25℃) | |||||
| DIMENSION | 127*76*35mm(L*W*H) | ||||||
