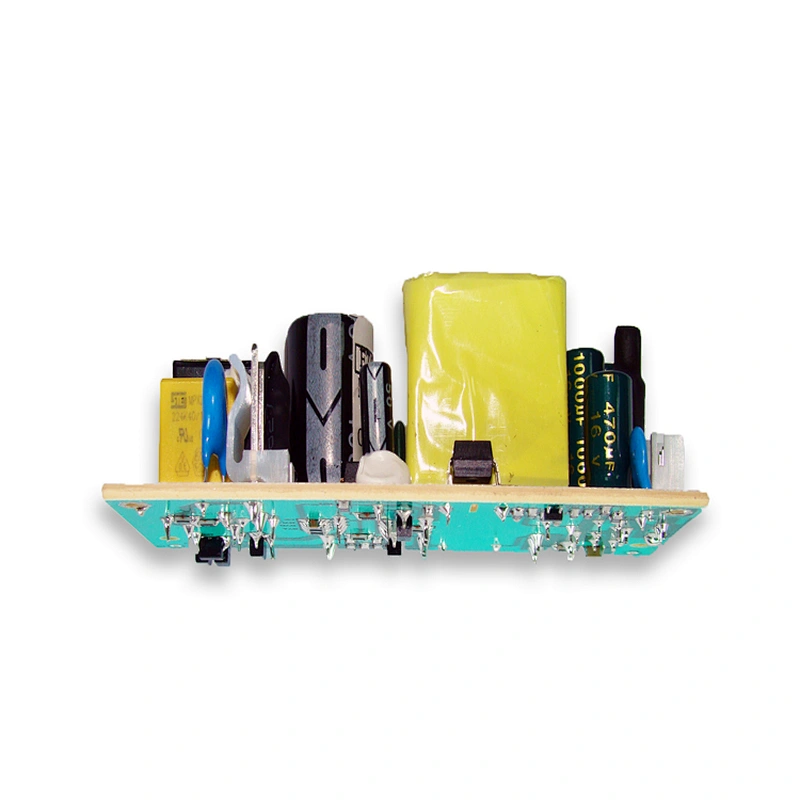

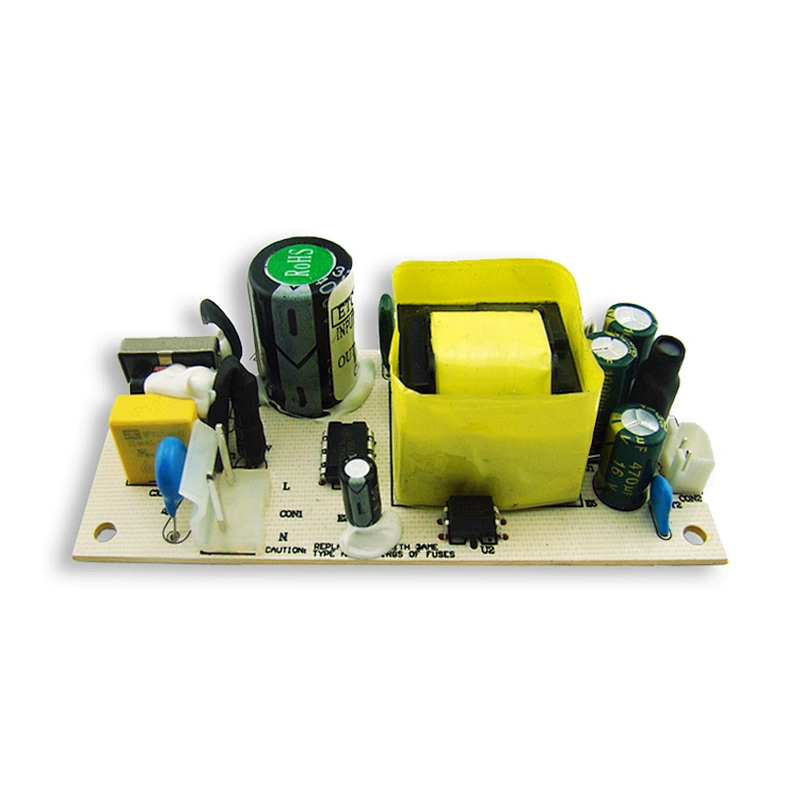

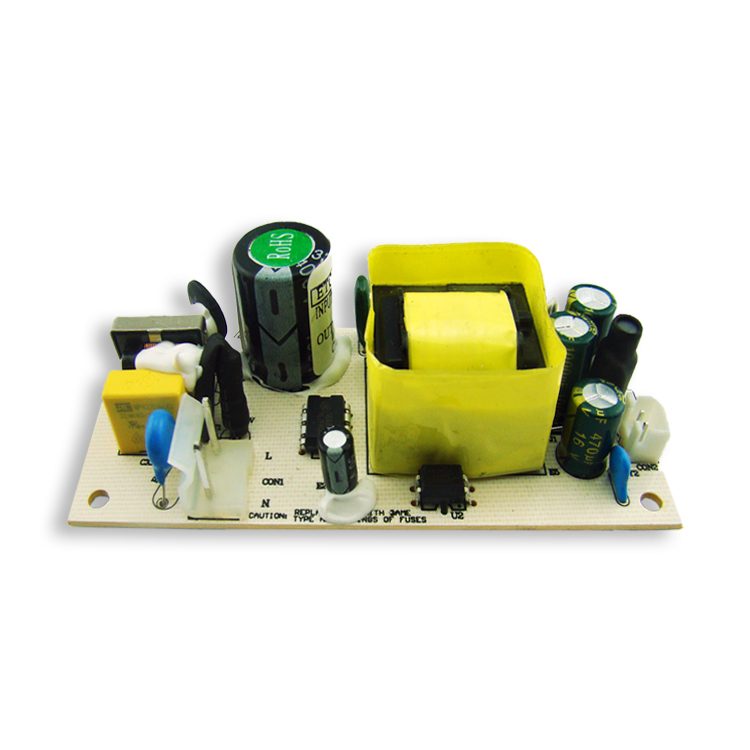

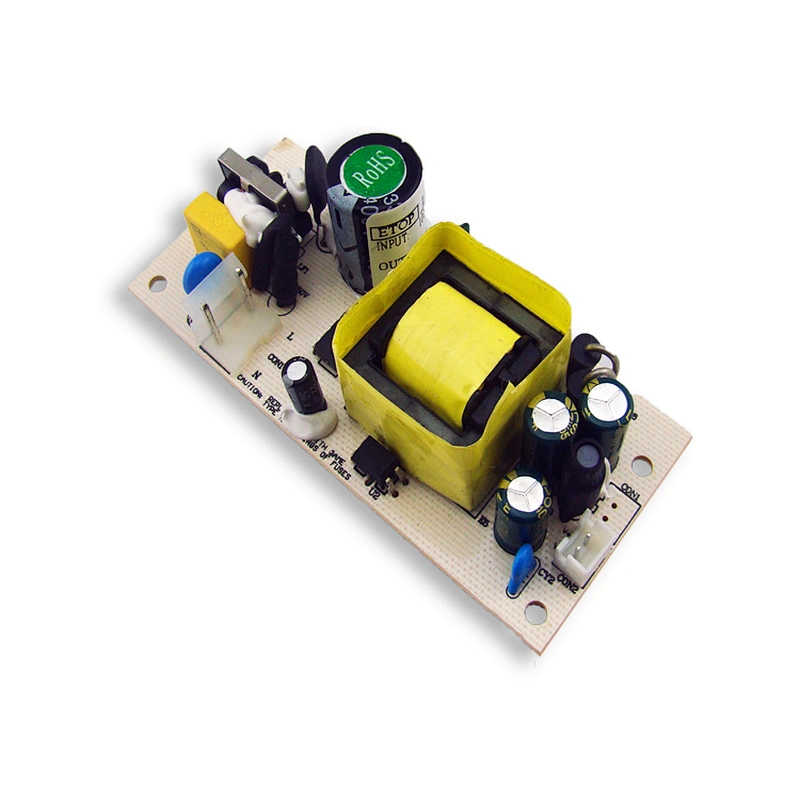

230v ac open frame 24W 12v2A switching power supply SMPS 24V1A
Feature
1.Universal AC Input/full range
2.100% full load burn-in test
3.Low cost,Long life
4.Constant voltage type
5.Led indicator
6.Protection:Short circuit/over load/over voltage
7.Cooling by free air conversion
8.3-year warranty
Model | LPS-U024S12A | |
Input | Input Voltage(V) | 90VAC~264VAC |
Input Current (A) | 0.5A Max | |
Frequency (Hz) | 47Hz–63Hz | |
Efficiency | 86% Typ(230VACFull Load) | |
Inrush current(A) | Cold star <80A/230VAC | |
Leakage current(mA) | <0.75mA/240VAC | |
Output | Output Voltage(V) | 12Vdc |
Voltage Regulation | 2% | |
Output Current(A) | 2A | |
Current Range (A) | 0-2A | |
Rated Power(W) | 24W | |
Start time, hold-up time(ms) | Ton≤3000ms,Td≥20ms @230Vac Full Load | |
Rise time(ms) | Typ:80ms @230Vac Full Load | |
Ripple/Noise(mVp-p) | 180mVp-p | |
Environment | working Temperature (°C) | -20°C - +60°C(refer derating curve) |
Storage Temperature(°C) | ‘-20°C - +80°C | |
Humidity(%) | 20% - 90% RH non condensing | |
Safety/ EMC | Withstand voltage(VAC) | I/P-O/P:3KVAC,I/P-FG:1.5KVAC,OP-FG:0.5KVAC 1min |
Safety Standard | EN/UL60950-1,GB4943 | |
EMC Standard | EN55022 Class B,EN61000-4-2,3,4,5,6,8,11 GB17626.5 Level3 | |
Protection | Over voltage Protection | >115%-135% Rated output voltage |
Over load Protection | >105%-150% Auto recovery | |
Short circuit Protection | Latched | |
Over Temperature Protection | Auto reboot | |
Others | Dimension *W*H(mm) | 78*37*22mm |
