Subwoofer Amplifier Board Mono Sound 250W High Power Audio Amplifiers Board For Home Speakers DIY Amp Module
Features:
1. Universal AC input/ Full range
2. Low consumption
3. Long lifespan
4. Monthly Output: 100,000pcs
5. Business type: manufacturer
6. Samples available
7. Payment: TT, LC, etc.
8. Provide customizing service, OEM/ODM
9. Lead time: 3-7 working days for sample, 15-30 working days for bulk.

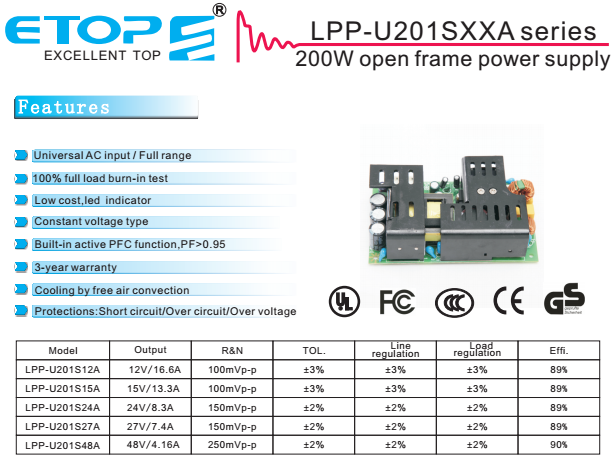

Parameter table:
| Model | LPP-U201SXXA | |
| Input | Input Voltage(V) | 90VAC~264VAC |
| Input Current (A) | 2.3A Max | |
| Frequency (Hz) | 47Hz–63Hz | |
| Efficiency | 82% Typ(230VACFull Load) | |
| Inrush current(A) | Cold star <70A/230VAC | |
| Leakage current(mA) | <2mA/240VAC | |
| Output | Output Voltage(V) | 24V/27V/48V/52V DC |
| Voltage Regulation | 4% | |
| Output Current(A) | 8.3A/7.4A/4.16A/3.85A | |
| Current Range (A) | 3% | |
| Rated Power(W) | 200W | |
| Start time, hold-up time(ms) | Ton≤3000ms,Td≥20ms @230Vac Full Load | |
| Rise time(ms) | Typ:70ms @230Vac Full Load | |
| Ripple/Noise(mVp-p) | 100/ 180mVp-p | |
| Environment | working Temperature (°C) | -20 +70°C |
| Storage Temperature(°C) | -20°C - +80°C | |
| Humidity(%) | 20% - 90% RH non condensing | |
| Safety/ EMC | Withstand voltage(VAC) | I/P-O/P:3KVAC,I/P-FG:1.5KVAC,OP-FG:0.5KVAC 1min |
| Safety Standard | EN/UL60950-1,GB4943 | |
| EMC Standard | EN55022 Class B,EN61000-4-2,3,4,5,6,8,11 GB17626.5 Level3 | |
| Protection | Over voltage Protection | >115%-135% Rated output voltage |
| Over load Protection | >105%-150% Auto recovery | |
| Short circuit Protection | Latched | |
| Over Temperature Protection | Auto reboot | |
| Others | Dimension L*W*H(mm) | 127*76.5*38 |
| Weight | 650g/pcs | |
Our product series include: industrial power supply, power adaptor, LED driver etc., which are widely used in
communication, power electronics, automation control, railway, military industry, medical care and a good deal of others.
Our Product Package:
In order to protect products, the inner package is often use PP bags or Anti Static bags, and use white box to
pack each product, then put each one into the strong carton, at last finish packing.
