- Type:Power Supply Adapter
- Brand Name:ETOP
- Model Number:ADS-U090SxxA
- Usage:Medical
- Output Type:AC DC
- Connection:Desktop
- Condition:BRAND NEW
- Protection:Short Circuit Protection, OLP, ocp, ovp, OTP, Short Circuit Overload Overvolt Overtemp
- Material:PC Fireproof Material
- Place of Origin:Guangdong, China
- Color:Black
- Warranty:12 Months
- Dimension:173*72*35mm (L*W*H)
- OEM/ODM:support
- Using for:computer laptop LED lights security camera
- Product Name:desktop adapter
- Output:5V 12V 24V 48V
- Input:100-240v 50-60hz
- Certification:CE FCC ROHS

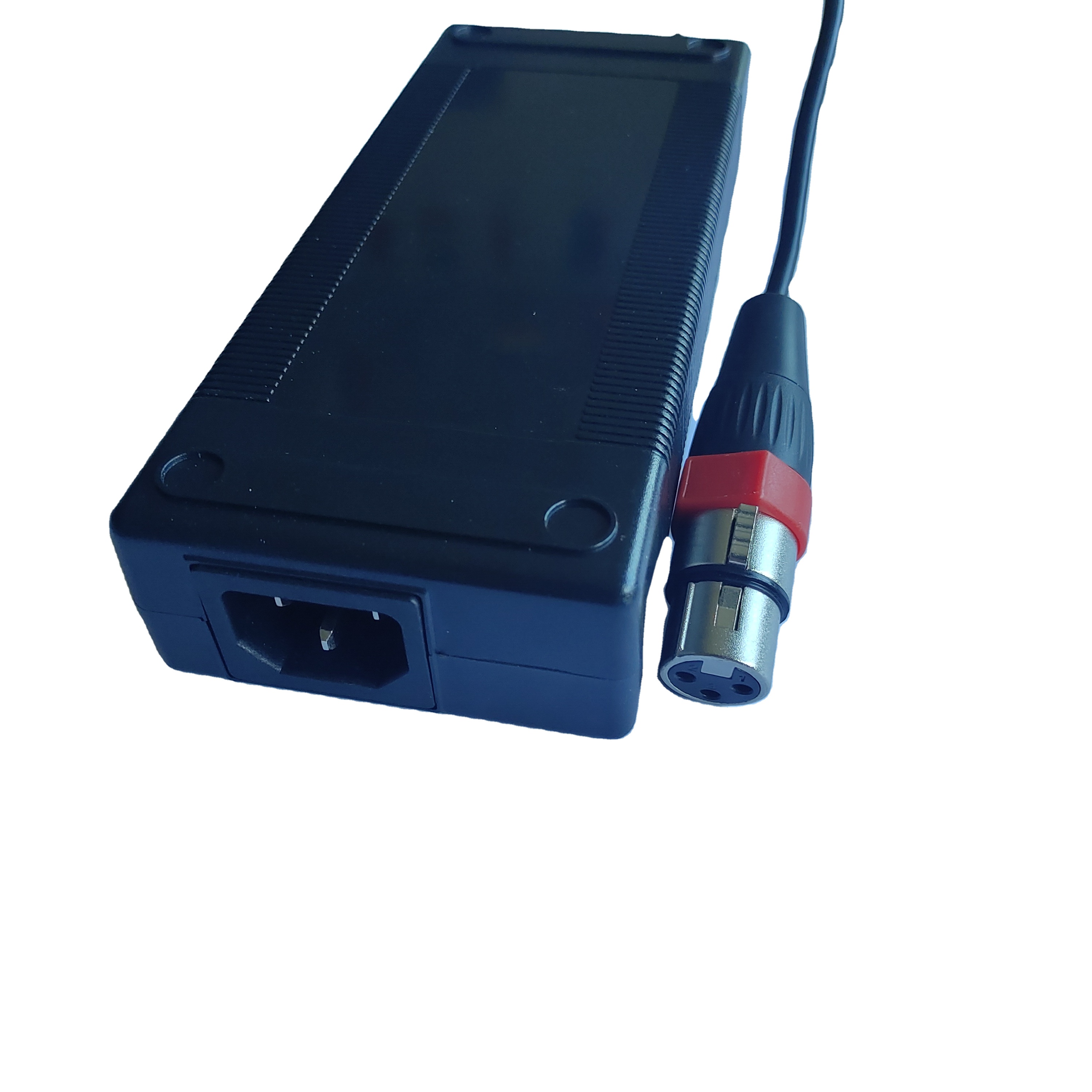

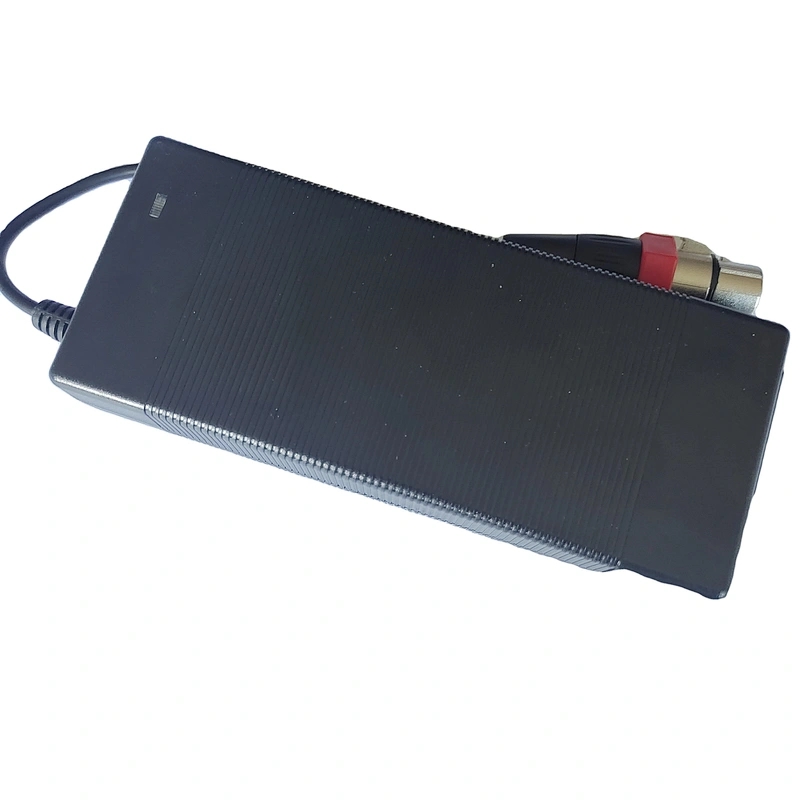

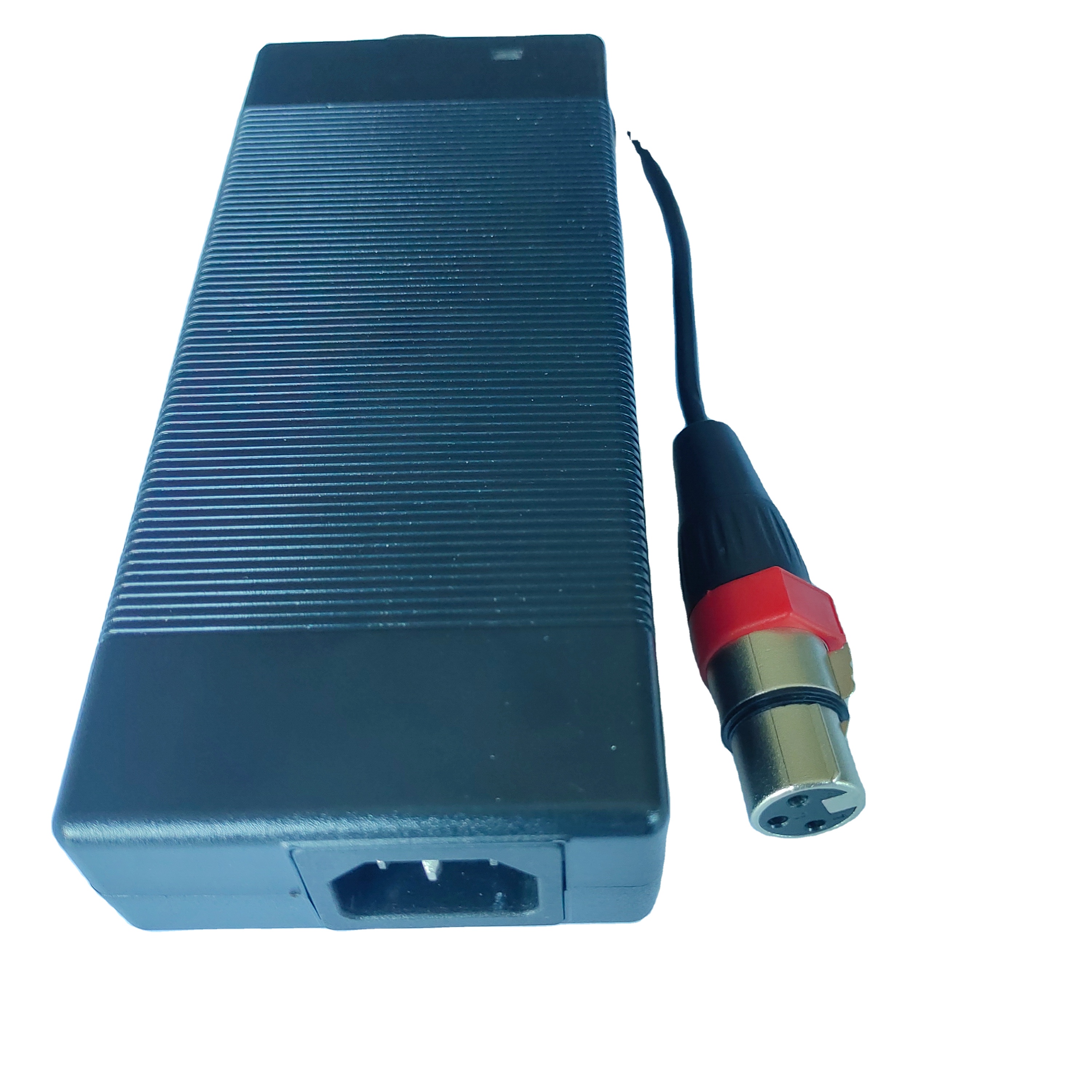

150W 15V 22V 24V 26V 36V High Efficiency Reliable Solution CE ROHS REACH ERP VI DOE VI Switching Power Adapter
| ADP-U150S15A | ADP-U150S22A | ADP-U150S36A |
| 15V 10A | 22V 6.8A | 36V 4.16A |
Features:
1. Universal AC input/full range;
2. 100% full load burn-in testing;
3. Constant voltage type;
4. Waterproof fully enclosed plastic case;
5. IEC60601, 62368 approved;
6. DOE level VI approved;
7. FCC ROHS REACH approved;
8. 3-year warranty;
10. Widely used for medical machines devices instruments, beauty apparatus, industrial motors
household electrical appliance, outdoor electronic products, etc.
Parameters:
| Model | Output | R&N | TOL. | Line regulation | Load regulation | Effi. |
| ADP-U150S12A | 12V/12.5A | 80mVp-p | ±5% | ±1% | ±5% | 92% |
| ADP-U150S15A | 15V/10A | 100mVp-p | ±5% | ±1% | ±5% | 92% |
| ADP-U150S22A | 22V/6.82A | 150mVp-p | ±5% | ±1% | ±4% | 92% |
| ADP-U150S26A | 26V/5.77A | 180mVp-p | ±5% | ±1% | ±3% | 92% |
| ADP-U150S36A | 36V/4.17A | 240mVp-p | ±5% | ±1% | ±2% | 92% |
| Input | AC 100-240V (90-264V) 50/60Hz |
| output | Voltage can be 5V-48V |
| Protection | Over voltage protection |
| Over Current Protection | |
| Short circuit protection | |
| Certificates | CE, GS, BS, SAA, UL, CUL, EMC, LVD, FCC,ROHS,REACH |
| AC Plug | USA/UK/EU/AU/Korean/Japenese/Chinese optional |
| Outlet Way | with cable |
| Material | ABS+PC |
| Energy efficiency | VI |
| Color Available | Black, customize |
| Compatible | LED, Electronic Cigarette, Tablet, Water purifier, Router, CCTV camera, LCD, Motor, Fan, Toys, Medical Machines Devices Instruments, Beauty apparatus |
Medical machine, POS machine, Beauty & Health equipment, Humidifier, LED lights,Minitor,Fans, Xmas lights, landscape lighting | |
Our Product Package:
In order to protect products, the inner package is often use PP bags or Anti Static bags, and use white box to
pack each product, then put each one into the strong carton.
We provie quality power supply products and service:
- Open frame type power supply
- Enclosed type power supply
- LED driver waterproof series
- Power adapter
- ODM/OEM order
Our advantage:
1.Good and High efficiency Team. OEM&ODM Services.
2. Transportation ways of products:
By air, By sea, By express, Pick up in factory.
You can choose any way which you like.
3. Product Certificates:
Almost all of our products get CE/CCC/ROHS/FCC etc certificates, and if you have Special requirements of certificates, we can help to apply it for you.And our company pass ISO9001and ISO14001.
4. We are maufacturer, with office and workshop in Shenzhen.
Our Teams and working place:
1.Q: Is sample available?
A: Yes, sample order is welcome.
2.Q: Can you factory provide ODM/OEM service?
A: ETOP factory have professional engineer team.
Your ODM/OEM order is welcome !
Shenzhen Excellent Top Electronics Co., Ltd. We are professional manufacturer of Power Supplies, Adapters, Led Drivers in Shenzhen China with 12 years experience and we have got UL, CE, FCC, RoHS certificates. Offering high quality but competitive cost power supply is our long term goal. Best R&D
team can customize according to your requirement.
If you have any requirements regarding our products, pleasefeel free to contact us. We will send you more information!
Biliam +86 18575592531 (WhatsApp/Wechat)
