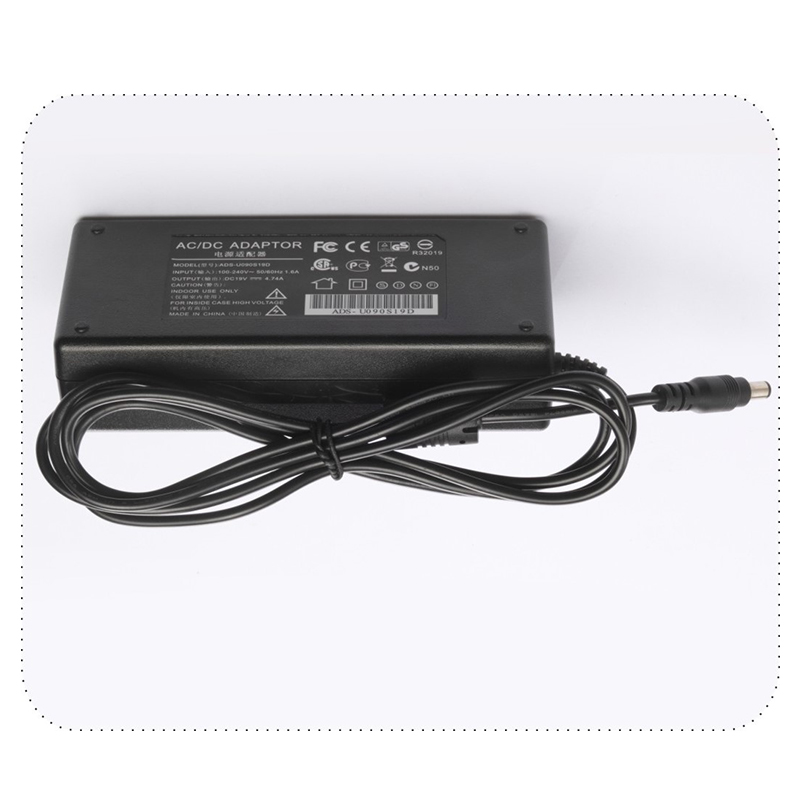

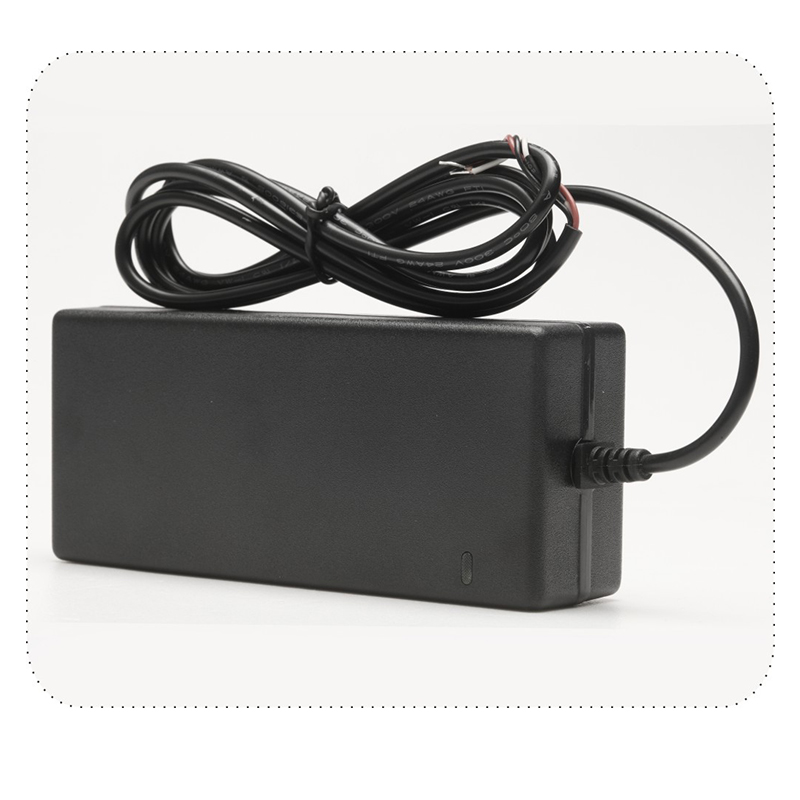

- Place of Origin:Guangdong, China
- Brand Name:ETOP
- Model Number:ADP-U090SXXL
- Output Type:DC
- Connection:Desktop
- Dimension:140*60.5*35mm (L*W*H)
- Output voltage:12V/15V/19V/24V/48V
- Output current:6.67A /6A/4.74A/3.75A/1.87A
- Output power:90W

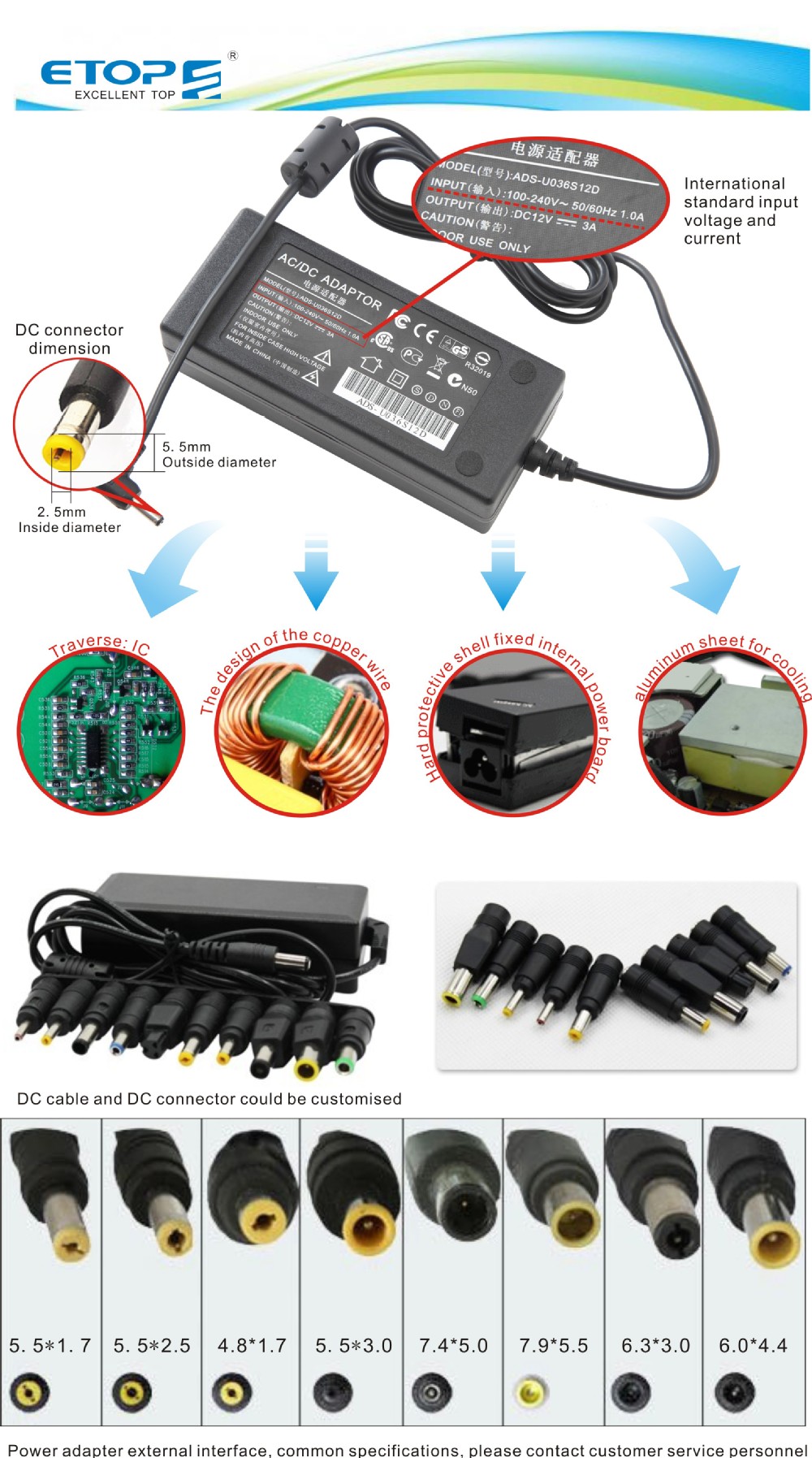

- DC connector:5.5*2.5mm / 5.5*2.1mm etc
- Input voltage:100V-240V
- Protection:Over Voltage/Over Current/Short Circuit
- Application:Medical Device , Laptop.computer
- Certification:CE,ROHS,FCC,C-tick
- Warranty:2 years
Model | Output | R&N | TOL. | Line Regulation | Load Regulation | Effi. |
ADS-U090S12L | 12V/6.67A | 80mVp-p | ±5% | ±1% | ±5% | 88% |
ADS-U090S15L | 15V/6.0A | 100mVp-p | ±5% | ±1% | ±5% | 89% |
ADS-U090S19L | 19V/4.74A | 150mVp-p | ±4% | ±1% | ±4% | 89% |
ADS-U090S24L | 24V/3.75A | 180mVp-p | ±3% | ±1% | ±3% | 89.5% |
ADS-U090S48L | 48V/1.87A | 240mVp-p | ±2% | ±1% | ±2% | 91% |
Input voltage range & frequency range | 100~240VAC47-63Hz |
Input current | 1.3A/115VAC 0.6A/230VAC |
Inrush current (Max.) | 30A/115VAC 65A/230VAC |
Leakage current(Max) | Touch current < 100 A/264VAC |
Set up ,rise time | 1000mS,50mS/230VAC1500mS,50mS/115VAC(atfullload) |
Hold up time | 50mS/230VAC 15mS/115VAC(at full load) |
Working tem.& Humidity | -20 ~ +50℃(Refer to"Derating Curve"),20% ~ 90% RH non-condensing |
storage tem.& Humidity | -25 ~ +75℃, 10 ~ 95% RH |
Tem.Coefficient | ±0.03%/℃(0~40℃) |
Vibration resistance | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes |
Withstand voltage | I/P-0/P:3 KVAC I/P-PG: 2 KVA O/P-PG: 0.5 KVACC |
Safety standards | Compliance toEN60950-1,CCC GB4943,J60950-1 |
EMC standard | Compliance toEN 55022 classB EN61000-3-2.3 EN61000-4-2,3,4,5,6,8,11 |
Over temp. | Shut down o/p voltage, re-power on to recover |
Over load | >110%-150% hiccup mode,Auto recovery |
Over voltage | >115%~135%, hiccup mode,Auto recovery |
MTBF | 405.6KhrsMIL-HDBK-217F( 25℃) |
Size | 140*60.5*35mm (L*W*H) |
Packing | 0.45Kg |
1.Good and High efficiency Team:
our company have sales team,R&D team,purchase team,PMT team,production team and quality team etc.Our teams
works hard together with highefficiency,and our teams have the same target--Excellent quality,the highest service !
2.OEM&ODM Services:
Our company have professional engineers,so we cancustomize products ccording to your detailed requirements,your samples or your ideas.
Our Promise:
Provide good quality and reasonable price to meet customers satisfaction.
Payment term:
1.T/T 30% in advance, T/T 70% before delivery for bulk order.
2.Others: Paypal, Western union, L/C
Lead time:
1. About big order: Our producing capacity is 100,000pcs each month, your order will according to real producing planning, be finished in 20-25 days after we get the deposit.
2. About sample order: if do not have stock for sample or it is customized type, we will take 5-12 days to prepair, include time for purchaing material, producing and delivery.
If sample just is in stock, sample delivery time is 5-7 days to destination.
What is MOQ ?
We will have different MOQ for each models, from 500pcs to 5000pcs. But for waterproof adapter, we had enough quantity in stock, small order are available for quick delivery.
