- Type:Power Supply Adapter
- Brand Name:ETOP
- Model Number:ADS-U121SxxL
- Usage:LAPTOP
- Output Type:DC
- Connection:Desktop
- Condition:BRAND NEW
- Protection:Short Circuit Protection, OLP, ocp, ovp, OTP, OVP OCP OTP SCP
- Material:PC Fireproof Material
- Place of Origin:Guangdong, China
- Product Name:Switching laptop ac adapter
- Rated Power:120W
- Input:100~240VAC 47-63Hz
- Output Current:0-10A
- Output Voltage:5-48V
- Dimension:120*52*31.5mm (L*W*H)
- Packing:0.32Kg
- Certification:CE FCC ROHS
- Warranty:3 Years

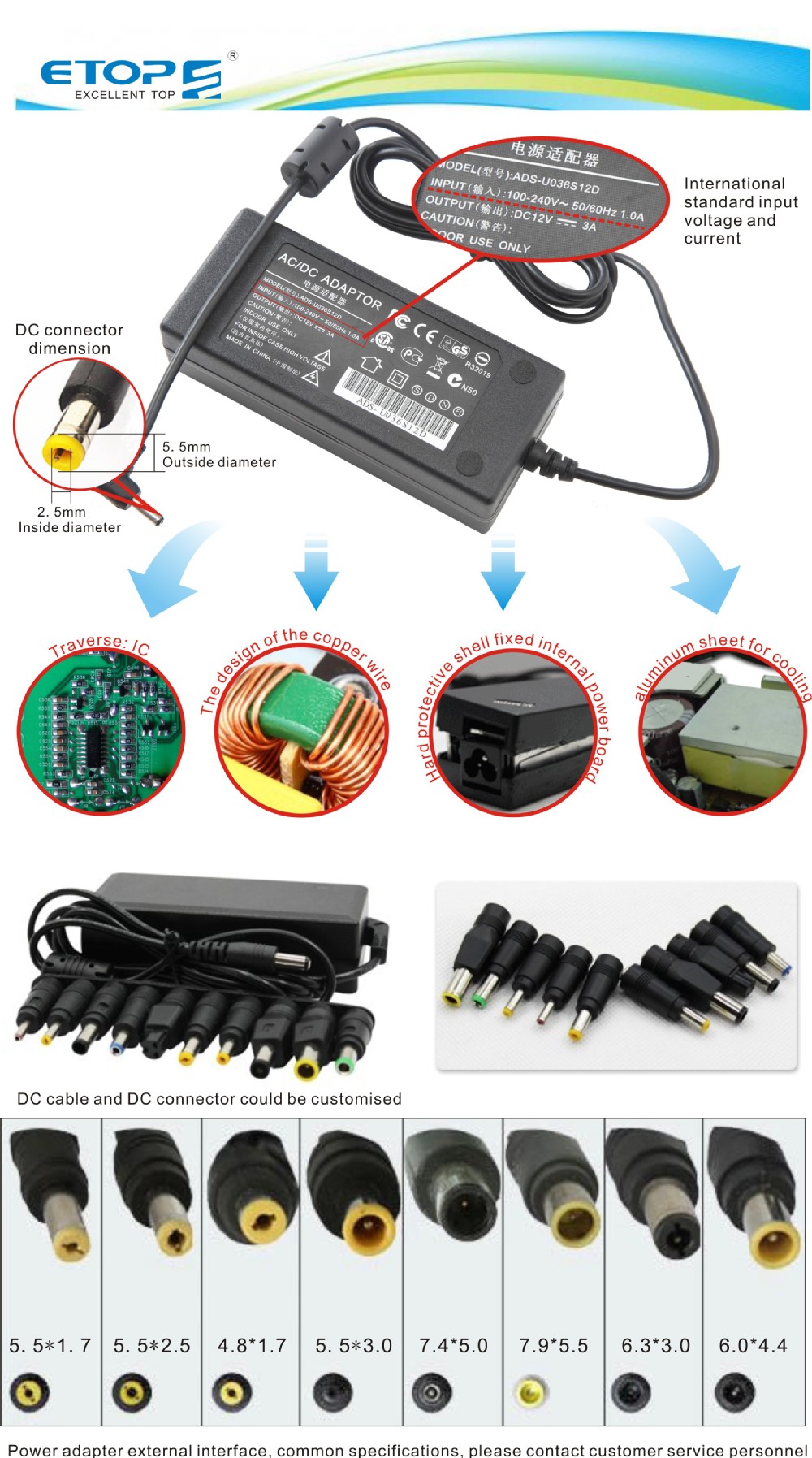

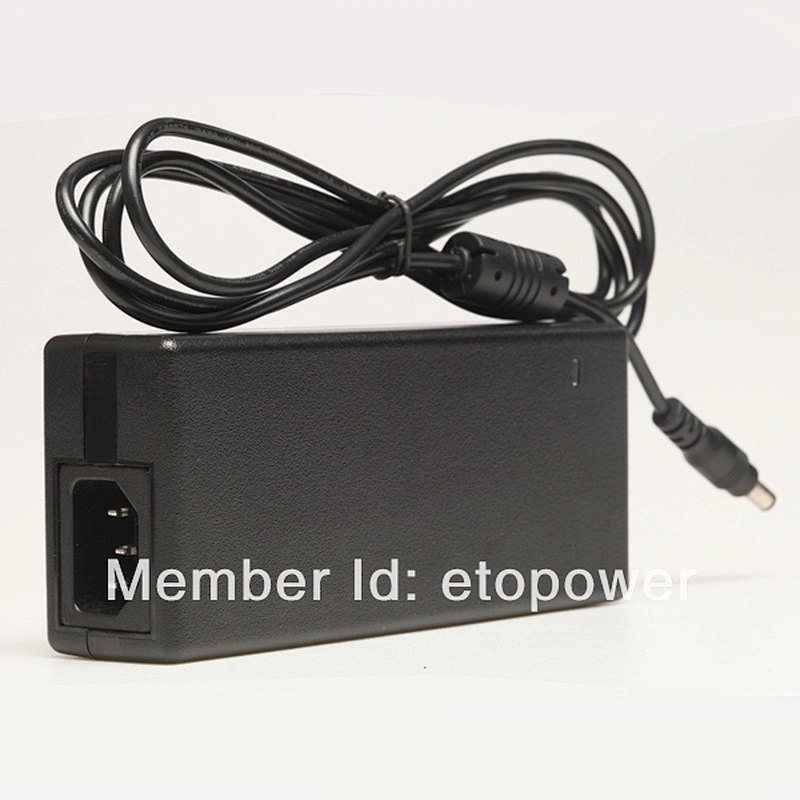

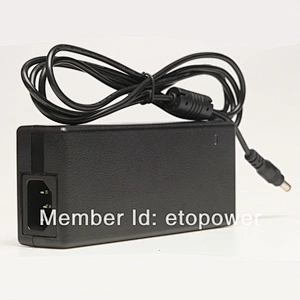

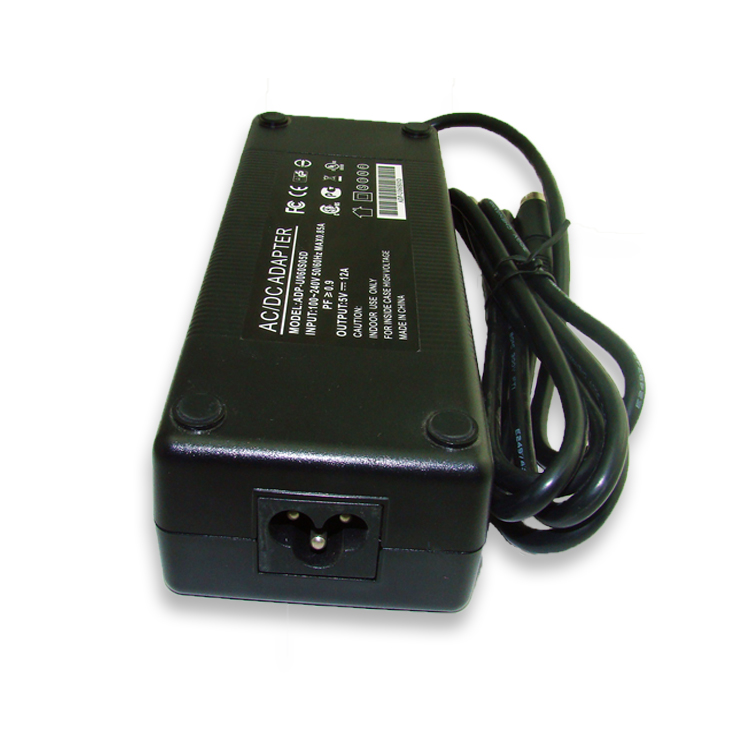

12V DC 10A Desktop Power Supply 120W Power Adaptor with Charging Cable 2.1MM DC Plug AC Cord
| ADS-U121S12A | ADS-U121S24A |
| 12V 10A | 24V 5A |
Features:
- Universal AC input / Full range
- 100% full load burn-in test
- LED indicator for power on
- Constant voltage type
- Fully enclosed plastic case
- 3-year warranty
- No load consumption<0.3W
- Class I power
- Three pole IEC320-C14 Communication interface
- Protections:Short circuit/Over load/Over voltage/over temp
| Model | ADP-U121SXXA | ||||||
| OUTPUT | DC VOLTAGE | 20V | 24V | 48V | |||
| RATED CURRENT | 11A | 9.2A | 4.6A | ||||
| CURRENT RANGE | 0~5A | 0~3.3A | 0~2.5A | ||||
| RATED POWER(max) | 120W | 120W | 120W | ||||
| RIPPLE & NOISE (max.) | 200mVp-p | 200mVp-p | 200mVp-p | ||||
| VOLTAGE TOLERANCE | +/-5.0% | +/-5.0% | +/-5.0% | ||||
| LINE REGULATION | +/-1.0% | +/-1.0% | +/-1.0% | ||||
| LOAD REGULATION | +/-5.0% | +/-5.0% | +/-5.0% | ||||
| SETUP, RISE TIME | lOOOms,30ms /230VAC lOOOms,30ms/ll5VAC(FULL LOAD) | ||||||
| HOLD UP TIME (Typ.) | 50ms /230VAC l5ms/ll5VAC (FILL LOAD) | ||||||
| INPUT | VOLTAGE RANGE | 90~264VAC OR l27~370VDC | |||||
| FREQUENCY RANGE | 47~63Hz | ||||||
| PF | PF ≥0.9 | ||||||
| EFFICIENCY (Typ.) | 82.00% | ||||||
| AC CURRENT | 1.6A/115VAC 0.8A/230VAC | ||||||
| INRUSH CURRENT(max.) | 65A/230VAC | ||||||
| LEAKAGE CURRENT(max) | 0.75mA/ 240VAC | ||||||
| PROTECTION | OVER LOAD | 110%~ 130% OF RATED POWER | |||||
| Protection type : Shut off o/p voltage, clamping by zener diode | |||||||
| OVER VOLTAGE | 110%~ 130% OF RATED VOLTAGE | ||||||
| Protection type : Shut off o/p voltage, clamping by zener diode | |||||||
| ENVIRONMENT | WORKING TEMP. | 0~+40°C | |||||
| WORKING HUMIDITY | 20~90% RH,non-condensing | ||||||
| STORAGE TEMP., HUMIDITY | -20~+ 85°C , 10~95% RH | ||||||
| TEMP. COEFFICIENT | +/-0.03%/°C (0~50°C) | ||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||||
| SAFETY & EMC | SAFETY STANDARDS | UL60950-1,EN60950-1,BSMlCNSl4336,CCCGB4943,J60950-1 | |||||
| WITHSTAND VOLTAGE | I/p-0/P: 3KVAC I/p-FG: 1.5KVAC 0/p-FG: 0.5KVAC | ||||||
| ISOLATION RESISTANCE | I/P-0/P, I/P-FG, 0/P-FG: 100M Ohms/500VDC/25°C/70% RH | ||||||
| EMC EMISSION | COMPLIANCE TO EN55022 classB,EN61000.3-2,3,FCCPART 15/ClSPR22 classB,CNSl3438 classB,GB9254 classB,GBl7625.1 | ||||||
| EMC IMMUNITY | COMPLIANCE TO EN61000-4-2,3,4,5,6,8,11,A class light industrial standard | ||||||
| OTHERS | MTBF | ≥ 211 Khrs MIL-HDBK-217F(25°C) | |||||
| DIMENSION | 210*85*46mm(L*W*H) | ||||||
| CONNECTOR | Plug | CAN BE CUSTOMIZED BASE ON ACTUAL NEED | |||||
| wiring | CAN BE CUSTOMIZED BASE ON ACTUAL NEED | ||||||
We provie quality power supply products and service:
- Open frame type power supply
- Enclosed type power supply
- LED driver waterproof series
- Power adapter
- ODM/OEM order
Our advantage:
1.Good and High efficiency Team:our company have sales team, R&D team, purchase team, PMT team, production team and quality team etc. Our teams works hard together with highefficiency, and our teams have the same target -- Excellent quality, the highest service !
2.OEM&ODM Services:Our company have professional engineers, so we cancustomize products ccording to your detailed requirements, your samples or your ideas.

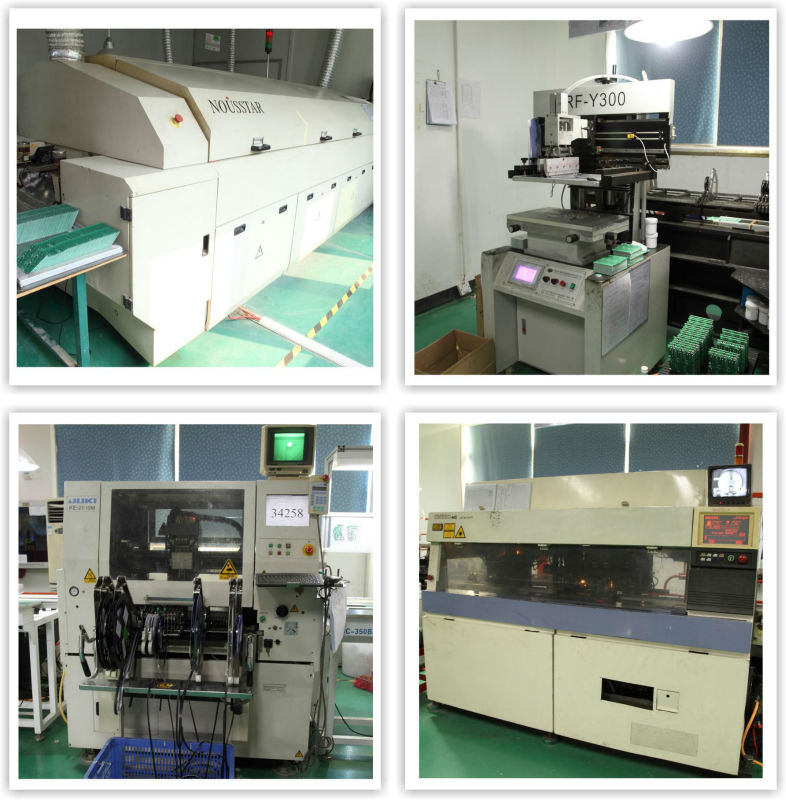

3.High efficiency automatic SMT machine and production process:it is fast, high-efficient and standard. Professional surface-mounting and trough hole soldering technology. Our production process must through below steps to guarantee good quality Inspecting Raw Materials-Auto machine to SMT--Plug-in module--Pass wave-soldering (Auto solder)--Angle cutter cutting angles--Post-solder & Assembling--QC Inspection--FQC Testing Products--Ageing --Quality department spot-check goods--Packing--Shipping out.
1. Transportation ways of products:
By air, By sea, By express, Pick up in factory.
You can choose any way which you like to ship the goods,we will try our best to help you save shipping cost.
2. Product Certificates:
Almost all of our products get CE/CCC/ROHS/FCC etc certificates, and if you have Special requirements of certificates, we can help to apply it for you.And our company pass ISO9001and ISO14001.
3. We are maufacturer, with office and workshop in Shenzhen.

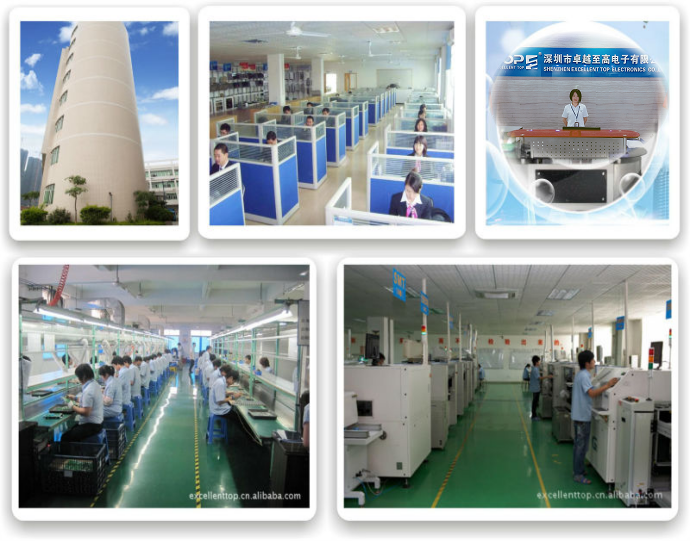

Our Teams and working place:
