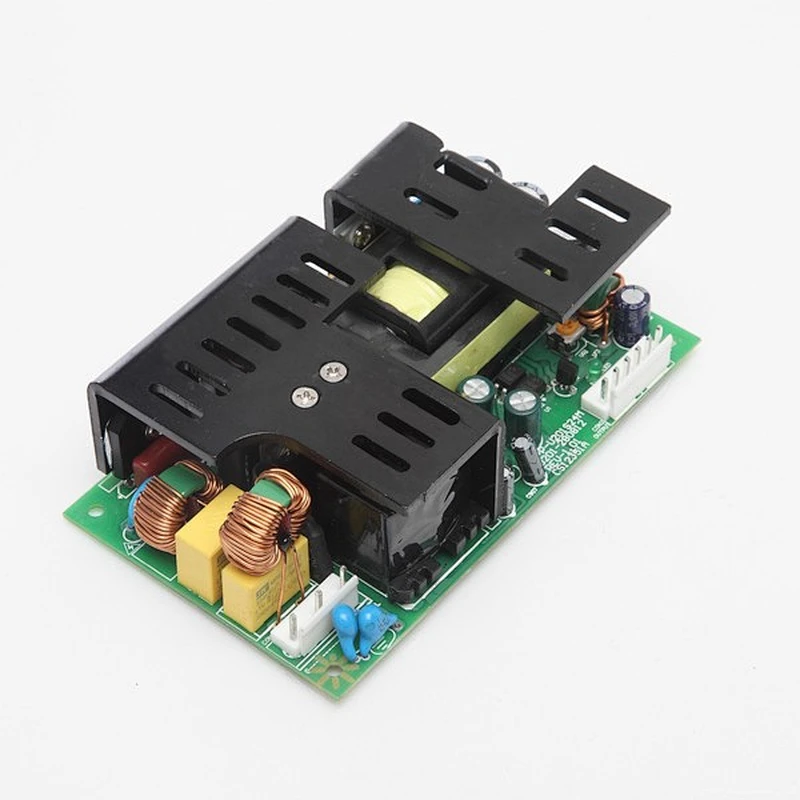

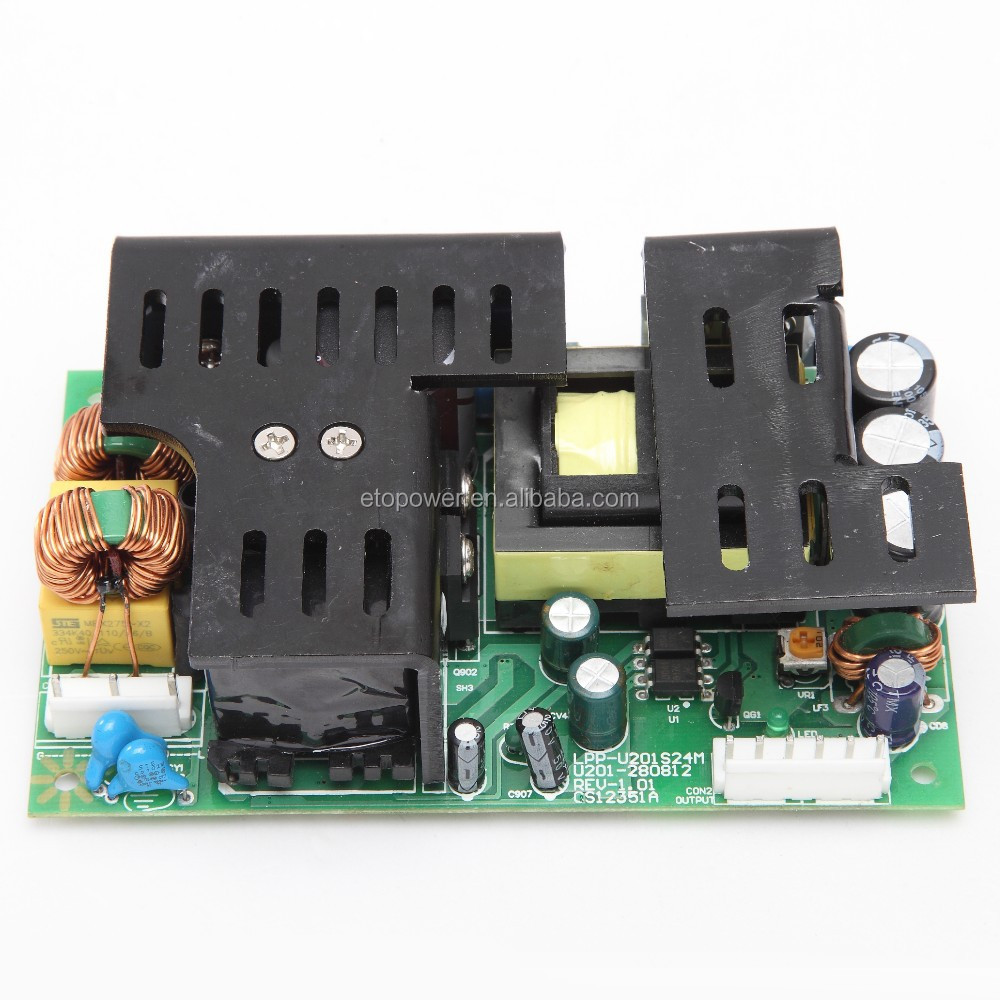

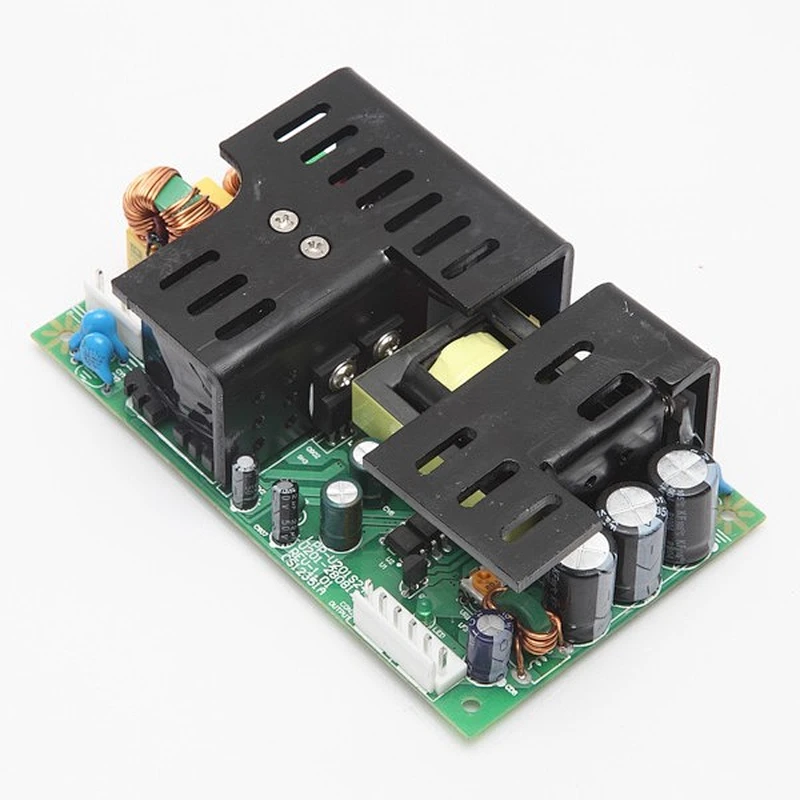

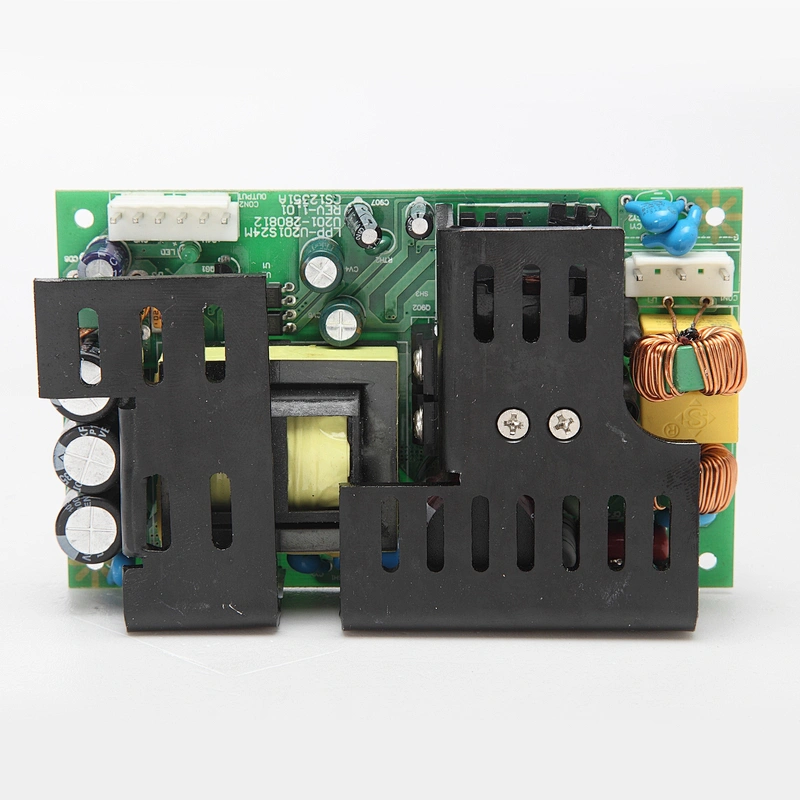

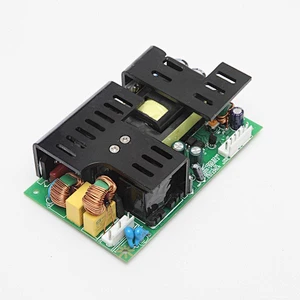

200W Internal Power Supply 54V 3.7A 24V 8.3A 110-240V 50/60Hz LED Medical Industrial Power Supplies
· Universal AC input/Full range,input voltage 100V-240V
· Single output voltage open frame
· Widely used in different field.
· Provide customizing service
· Protections:Short circuit/Over load/Over voltage/ Over temp
· 1 years warranty
· Class I power(with earth pin)
· Passed CE ROHS CCC FCC test
· 100% full load burn-in test
· Use Imported machine to test,such as Chroma machine
· Capacity: 100,000pcs/month
· Sample is available
Parameter Table

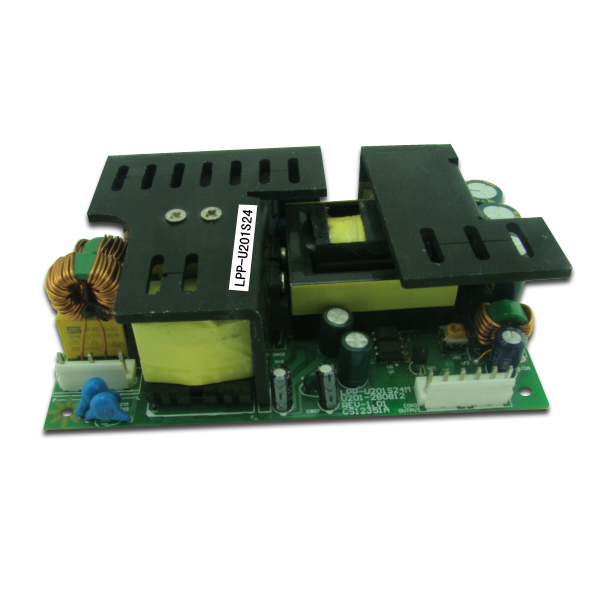

| Model | LPP-U201SXX | ||||||
| OUTPUT | DC VOLTAGE | 24V | 48V | 54V | |||
| RATED CURRENT | 8.3A | 4.2A | 3.7A | ||||
| CURRENT RANGE | 0~8.3A | 0~4.2A | 0~3.7A | ||||
| RATED POWER(max) | 200W | 200W | 200W | ||||
RIPPLE & NOISE (max.) | 200mVp-p | 200mVp-p | 200mVp-p | ||||
| VOLTAGE TOLERANCE | ±5.0% | ±5.0% | ±5.0% | ||||
| LINE REGULATION | ±1.0% | ±1.0% | ±1.0% | ||||
| LOAD REGULATION | ±5.0% | ±5.0% | ±5.0% | ||||
| SETUP, RISE TIME | lOOOms,30ms /230VAC lOOOms,30ms/ll5VAC(FULL LOAD) | ||||||
| HOLD UP TIME (Typ.) | 50ms /230VAC l5ms/ll5VAC (FILL LOAD) | ||||||
| INPUT | VOLTAGE RANGE | 90~264VAC OR l27~370VDC | |||||
| FREQUENCY RANGE | 47~63Hz | ||||||
| PF | PF ≥0.90 | ||||||
| EFFICIENCY (Typ.) | 82.00% | ||||||
| AC CURRENT | 2.1A/115VAC 1.06A/230VAC | ||||||
| INRUSH CURRENT(max.) | 65A/230VAC | ||||||
| LEAKAGE CURRENT(max) | 0.75mA/ 240VAC | ||||||
| PROTECTION | OVER LOAD | 110% ~ 130% OF RATED POWER | |||||
| Protection type : Shut off o/p voltage, clamping by zener diode | |||||||
| OVER VOLTAGE | 110% ~ 130% OF RATED VOLTAGE | ||||||
| Protection type : Shut off o/p voltage, clamping by zener diode | |||||||
| ENVIRONMENT | WORKING TEMP. | -30~+60℃(Refer to"Derating Curve") | |||||
| WORKING HUMIDITY | 20~90% RH,non-condensing | ||||||
| STORAGE TEMP., HUMIDITY | -40~+ 85℃ , 10~95% RH | ||||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0~50℃) | ||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||||
| SAFETY & EMC | SAFETY STANDARDS | UL60950-1,EN60950-1,BSMlCNSl4336,CCCGB4943,J60950-1 APPROVAL | |||||
| WITHSTAND VOLTAGE | I/p-0/P: 3KVAC I/p-FG: 1.5KVAC 0/p-FG: 0.5KVAC | ||||||
| ISOLATION RESISTANCE | I/P-0/P, I/P-FG, 0/P-FG: 100M Ohms/500VDC/25℃/70% RH | ||||||
| EMC EMISSION | COMPLIANCE TO EN55022 classB,EN61000.3-2,3,FCCPART 15/ClSPR22 classB,CNSl3438 classB,GB9254 classB,GBl7625.1 | ||||||
| EMC IMMUNITY | COMPLIANCE TO EN61000-4-2,3,4,5,6,8,11,A class light industrial standard | ||||||
| OTHERS | MTBF | ≥ 311 Khrs MIL-HDBK-217F(25℃) | |||||
| DIMENSION | 127*76*35mm(L*W*H) | ||||||
Our product series include: industrial power supply, power adaptor, LED driver etc., which are widely used in
communication, power electronics, automation control, railway, military industry, medical care and a good deal of others.

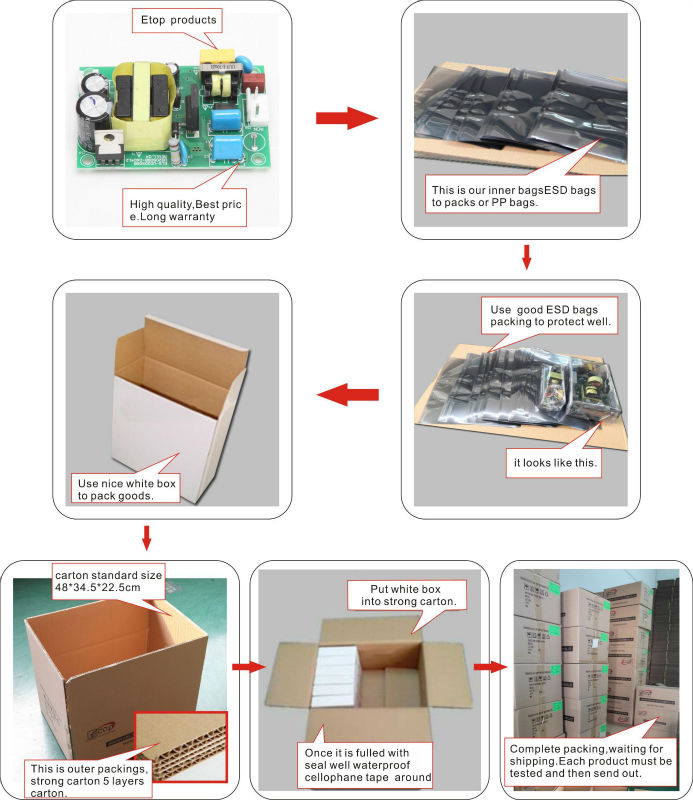

Our Product Package:
In order to protect products, the inner package is often use PP bags or Anti Static bags, and use white box to
pack each product, then put each one into the strong carton, at last finish packing.
We provide quality power supply products and service:
- Open frame type power supply
- Enclosed type power supply
- LED driver waterproof series
- Power adapter
- ODM/OEM order
Our advantage:
1.Good and High efficiency Team. OEM&ODM Services.
2. Transportation ways of products:
By air, By sea, By express, Pick up in factory.
You can choose any way which you like.
3. Product Certificates:
Almost all of our products get CE/CCC/ROHS/FCC etc certificates, and if you have Special requirements of certificates, we can help to apply it for you.And our company pass ISO9001and ISO14001.
4. We are maufacturer, with office and workshop in Shenzhen.
Our Teams and working place:
1. Q: Is sample available?
A: Yes, sample order is welcome.
2. Q: Can you factory provide ODM/OEM service?
A: ETOP factory have professional engineer team.
Your ODM/OEM order is welcome !
3. Q: What is the warranty time of your products?
A: Warranty is from 12 months to 60months, depend on product model.
ETOP provide good after-sale service.
