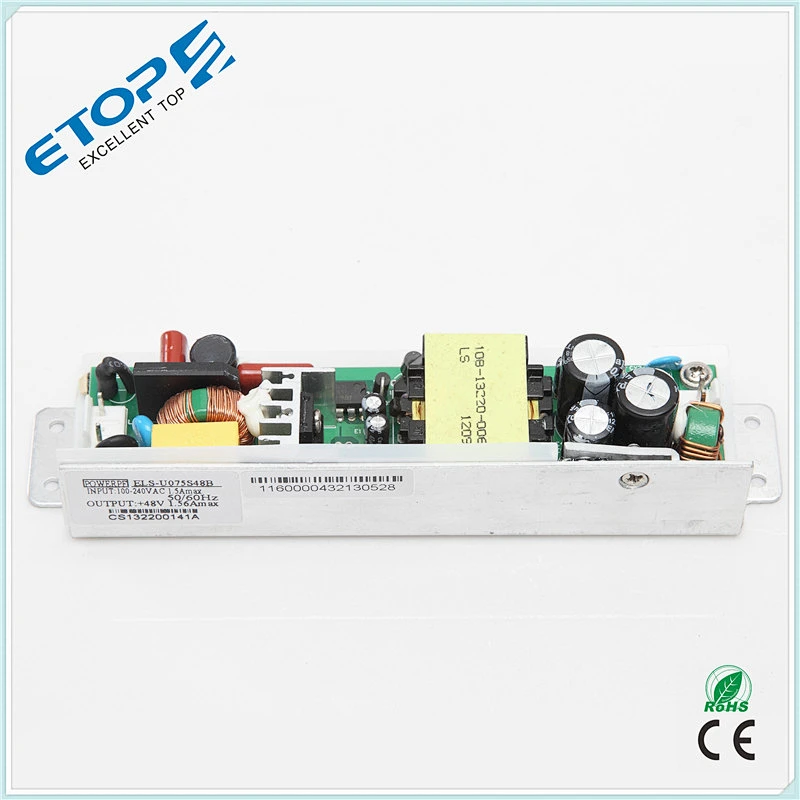

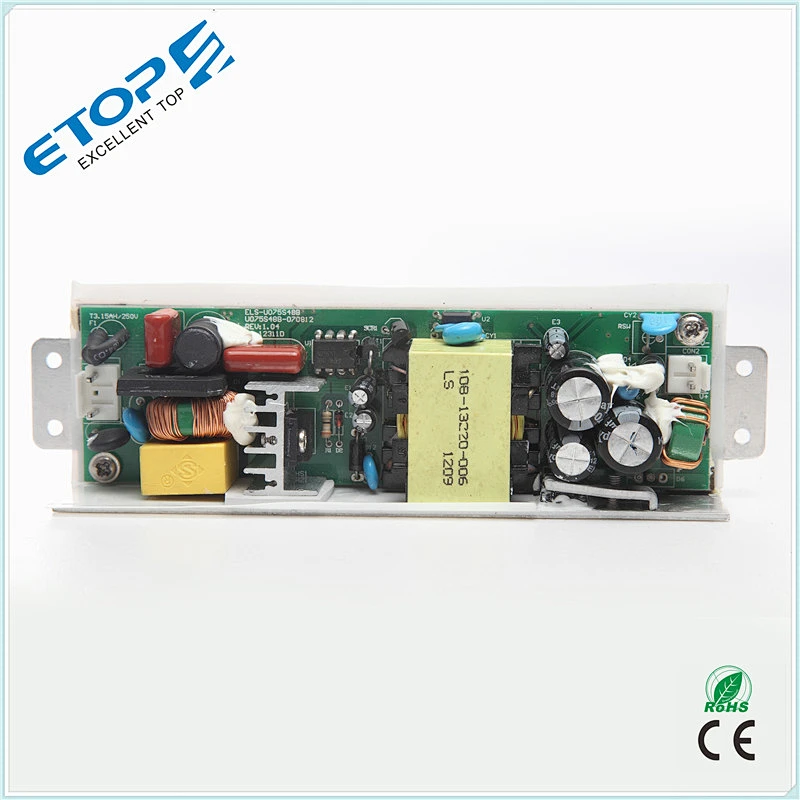

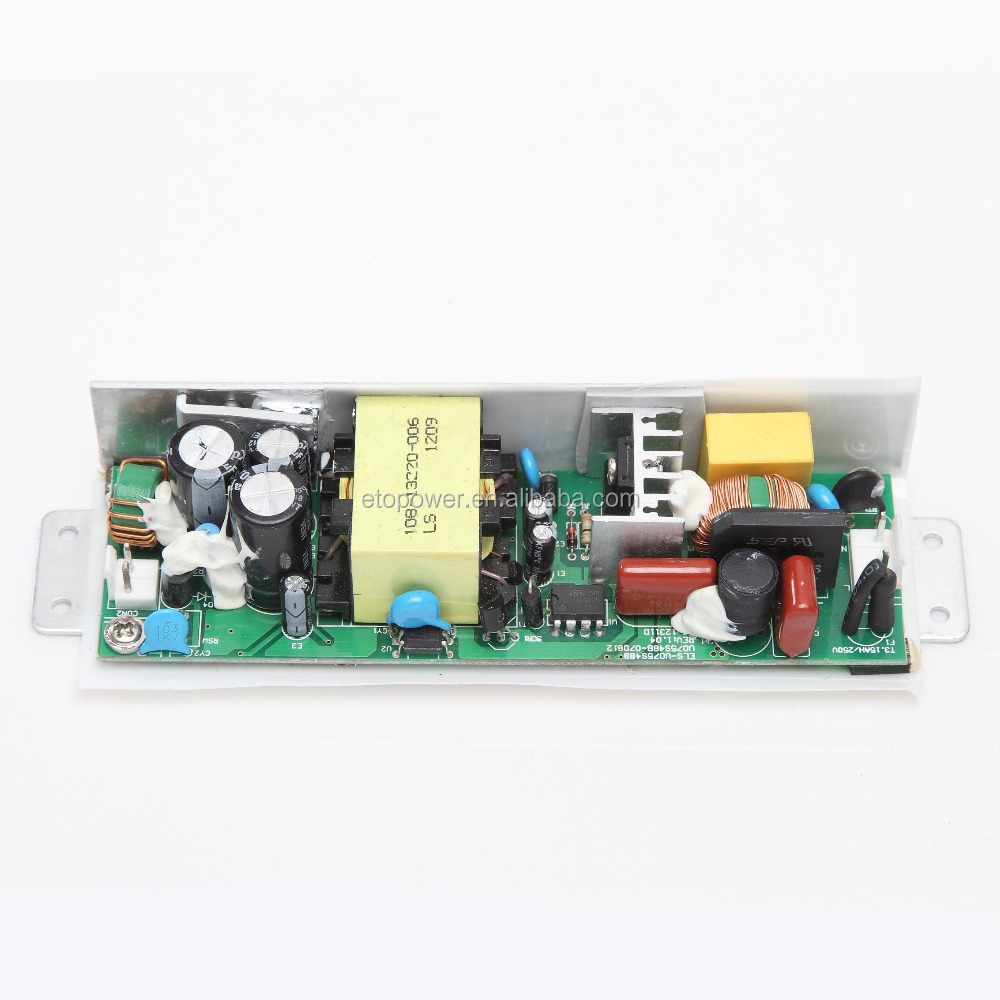

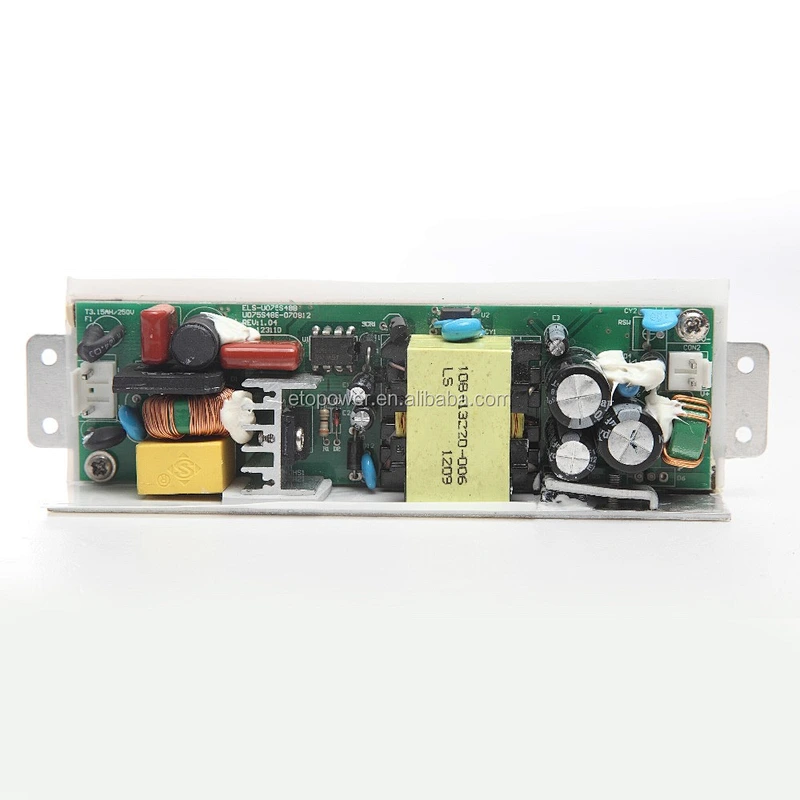

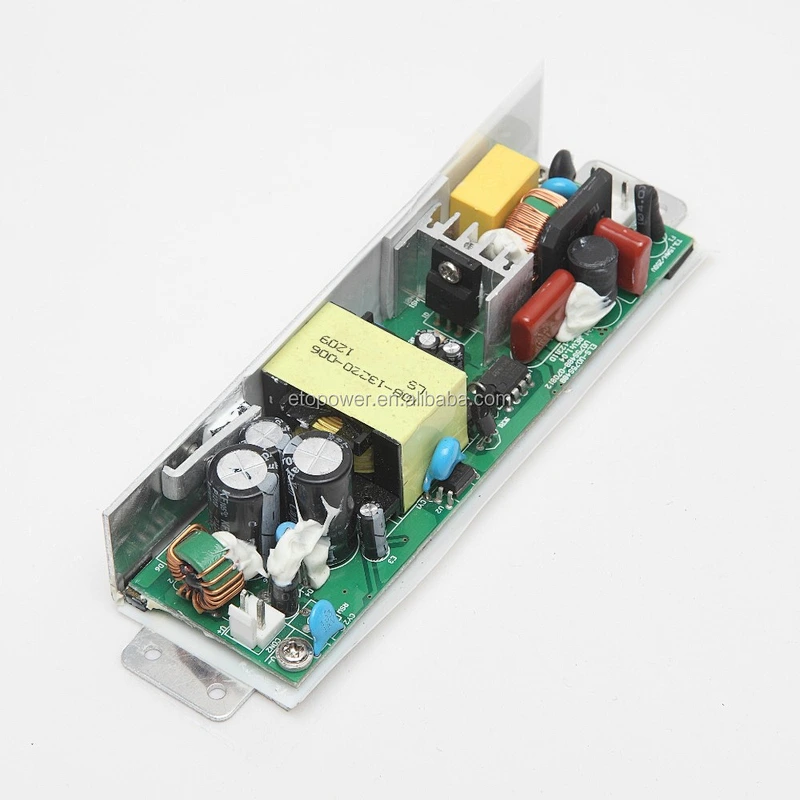

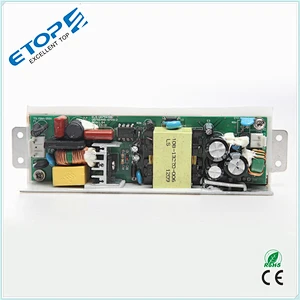

OEM Manufacturing 75W 24V Power Supply Pcb Control Board With PFC Constant Voltage
Feature:
1.MOQ: 100PCS, sample order is available
2.Production Capacity: 800pcs/day , 3000pcs/week
3.Payment:T/T, Western Union, Paypal, Escromer ...
4.Lead time: 3-7days for sample, 15-20days for mass production
5.Warranty:2 years warranty
6.Shipping method:DHL,UPS,FEDEX,TNT,EMS,Hongkong/china post, by air,by sea etc
7.Package: OPP bag or poly bag, white box, artistic bag, by customer' requirement.
Specification
| Model | Output | Power | Ripple&Noise | Tolerance | Line Regulation | Load Regulation | Efficiency |
EBP-U075S24 | 24V/3A | 72w | 100mvp-p | 1% | 0.5% | 1% | 81% |
EBP-U075S36 | 36V/2A | 75W | 100mvp-p | 1% | 0.5% | 0.5% | 83% |
EBP-U075S48 | 48V/1.65A | 75w | 120mvp-p | 1% | 0.5% | 0.5% | 83% |
EFP-U075S52 | 52V/1.45A | 75W | 200mvp-p | 1% | 0.5% | 0.5% | 83% |
| Input Volt & Freq | 100-240vac 47-63hz |
| Start ,Rise time | 500ms,80ms/230vac full load |
| Working enviroment | -20~+50 degree ,20~90% RH non considering |
| Temperature coefficient | +-0.03% |
| Protection | Over load >105%-150%,hiccup mode auto recovery |
Over voltage >115%-135%,hiccup mode auto recovery | |
Over temp | |
| EMC Standard | EN55022,ClassB, EN61000-3-2,EN61000-4-2,3.4,5.6,8.11 |
| Safety Standard | EN60950-1,CCC,GB4943,J60950 |
| Withstand voltage | I/P-O/P:1.5KVAC I/P-PG:1.5KVAC |
| Leakage current | 0.75mA/240vac |
| Dimesion | 160*41*23mm |
1.Products Series Offer: Enclosed type power supply,open frame power boards, power adapter( wall plug & desktop) led driver etc
2.Ouput voltage:5v 12v 15v 18v 20v 24v 36v 48v....
3.Power:open frame power supply 3w-400w, enclosed type 12w-600w is available
4.Input: 100-240vac, 90-264vac, 110vac,220vac, 230vac....
5.Widely use: it could be used in Home application,communication,industrial, automation control, led light, state light, LCD ,CCTV ,Monitor.Printer,TV ,air condition....
Tips: Take example for this model, other model products and OEM service is welcomed
View Factory of ETOP
High efficiency automatic SMT machine and production process: it is fast,high-efficient and standard.Professional surface-mounting and trough-hole soldering technology.-our production process must through below steps to guarantee good quality Inspecting Raw Materials-Auto machine to SMT--Plug-in module--Pass wave-soldering (Auto solder)--Angle cutter cutting angles--Post-solder &Assembling--QC Inspection--FQC Testing Products--Ageing --Quality department spot-check goods--Packing--Shipping out.
OEM&ODM Services: Our company have professional engineers,so we can customize products according to your detailed requirements,your samples or your ideas.
