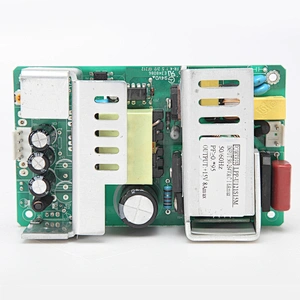

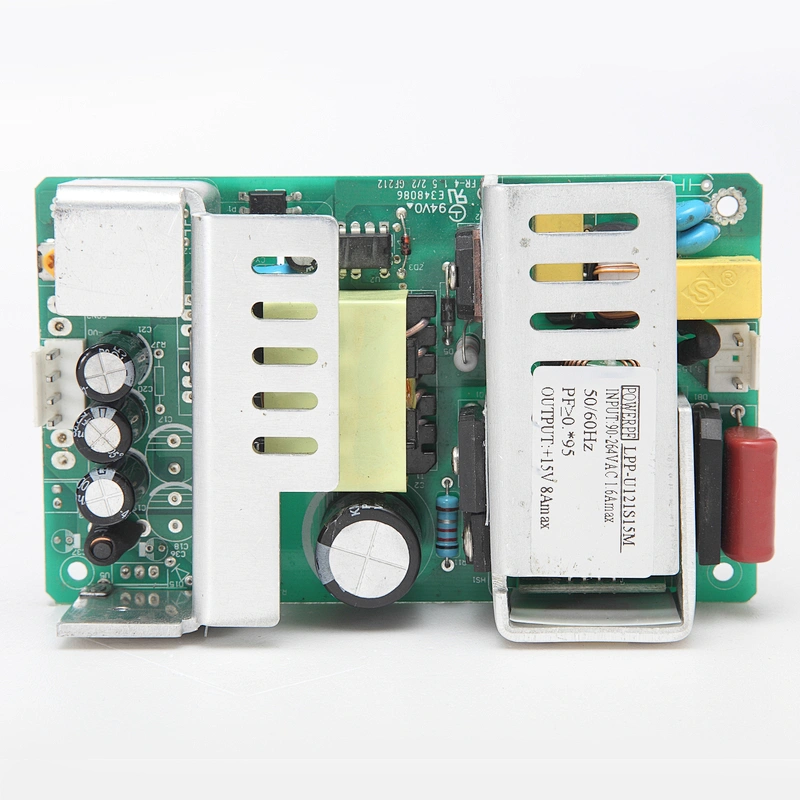

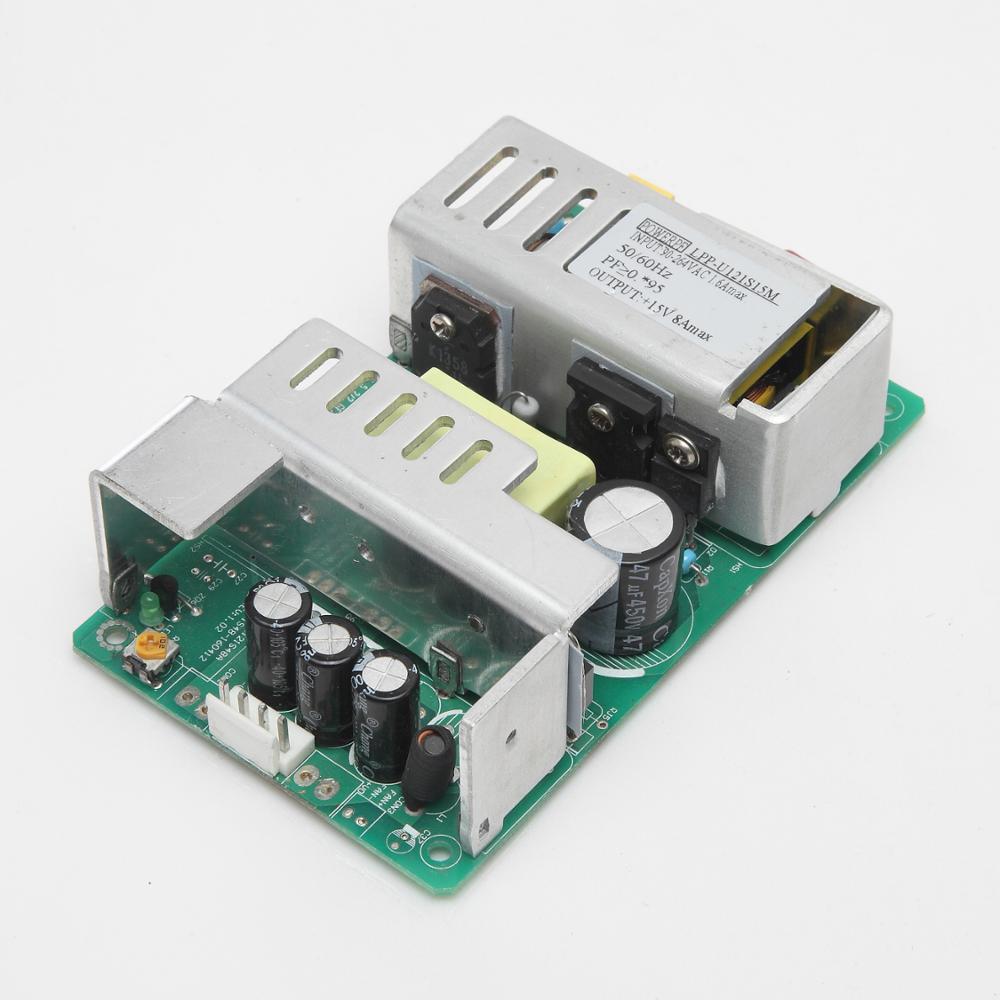

1.Universal AC Input/full range 2.With active PFC function,PFC>0.95 3.Protection:short circuit/over load/over temperature 4.output voltage and constant current level adjustable 5.Three on one dimming function,(1-10vdc or PWM signal) 6.Cooling by free air conversion 7.OCP point adjustable throght output cable or internal potentometer 8.Suitable for led lighting and street lighting application 9.3-year warranty
Parameters:
Model
LPP-U251S24A
Input
Input Voltage(V)
100VAC~240VAC
Input Current (A)
5.4A Max
Frequency (Hz)
47Hz–63Hz
Efficiency
85% Typ(230VACFull Load)
Inrush current(A)
Cold star <80A/230VAC
Leakage current(mA)
<0.75mA/240VAC
Output
Output Voltage(V)
+24Vdc
Voltage Regulation
0.03
Output Current(A)
10A
Current Range (A)
0-10A
Rated Power(W)
240w
Start time, hold-up time(ms)
Ton≤3000ms,Td≥20ms @230Vac Full Load
Rise time(ms)
Typ:20ms @230Vac Full Load
Ripple/Noise(mVp-p)
240mVp-p
Environment
working Temperature (°C)
-20°C - +60°C(refer derating curve)
Storage Temperature(°C)
'-20°C - +80°C
Humidity(%)
20% - 90% RH non condensing
Safety/ EMC
Withstand voltage(VAC)
I/P-O/P:3KVAC,I/P-FG:1.5KVAC,OP-FG:0.5KVAC 1min
Safety Standard
EN/UL60950-1,GB4943
EMC Standard
EN55022 Class B,EN61000-4-2,3,4,5,6,8,11 GB17626.5 Level3
