- Dimenssion:120X52X31.5mm
- Output:12v 3a
- DC Connector:5.5X2.1X11mm
- Warranty:2 years
- R&N:100mvp-p
- Protection:Short circuit/Over load/Over voltage/Over temp
- Input voltage:100V~240V 50~60Hz
- Certificate:CE FCC ROHS
- Packing:white box+carton
- Output Type:DC
- Connection:Desktop
- Place of Origin:CN;GUA
- Brand Name:ETOP
- Model Number:ADS-U36S12L
Welcome to ETOP !

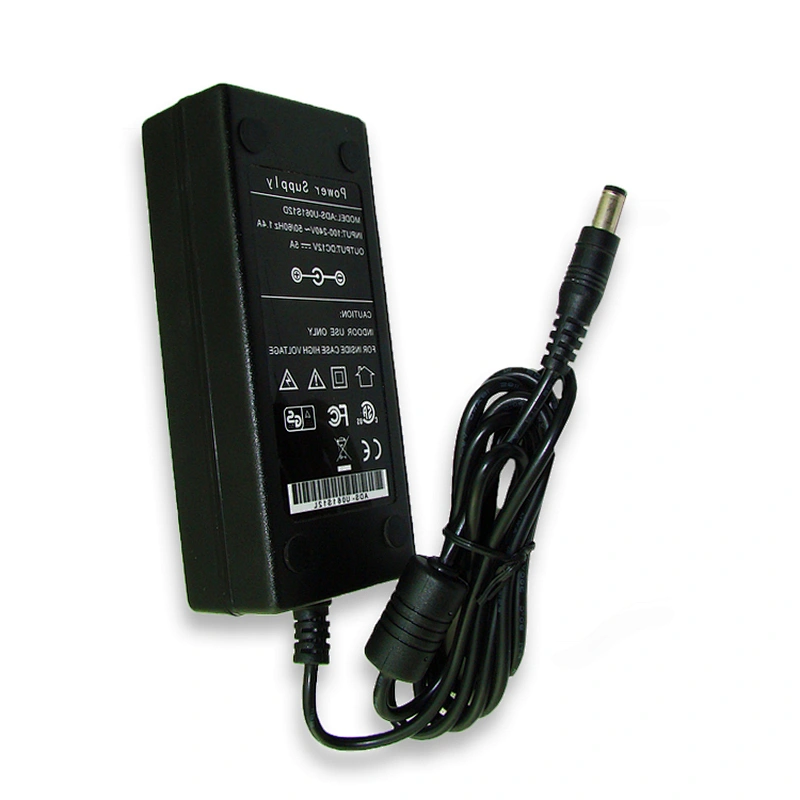

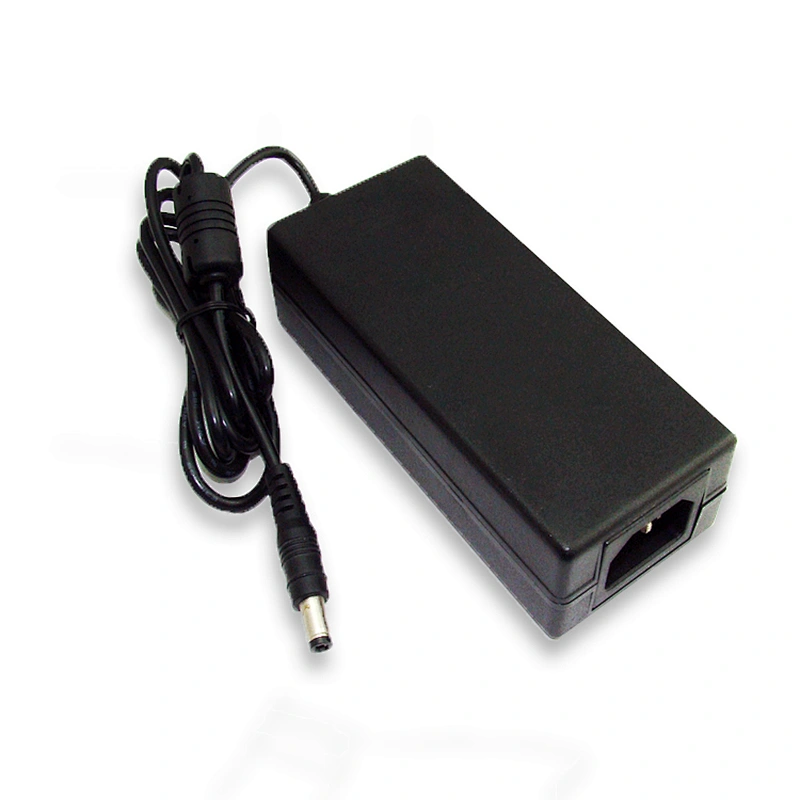

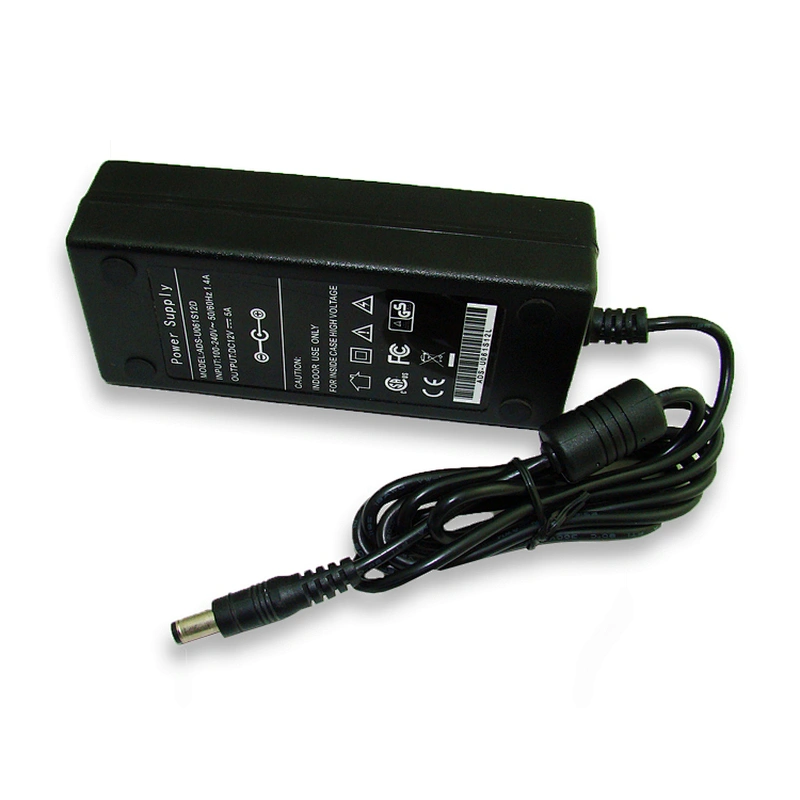

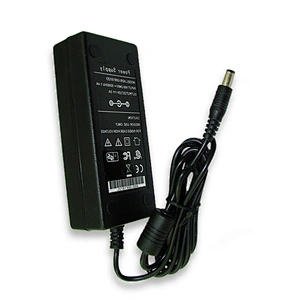

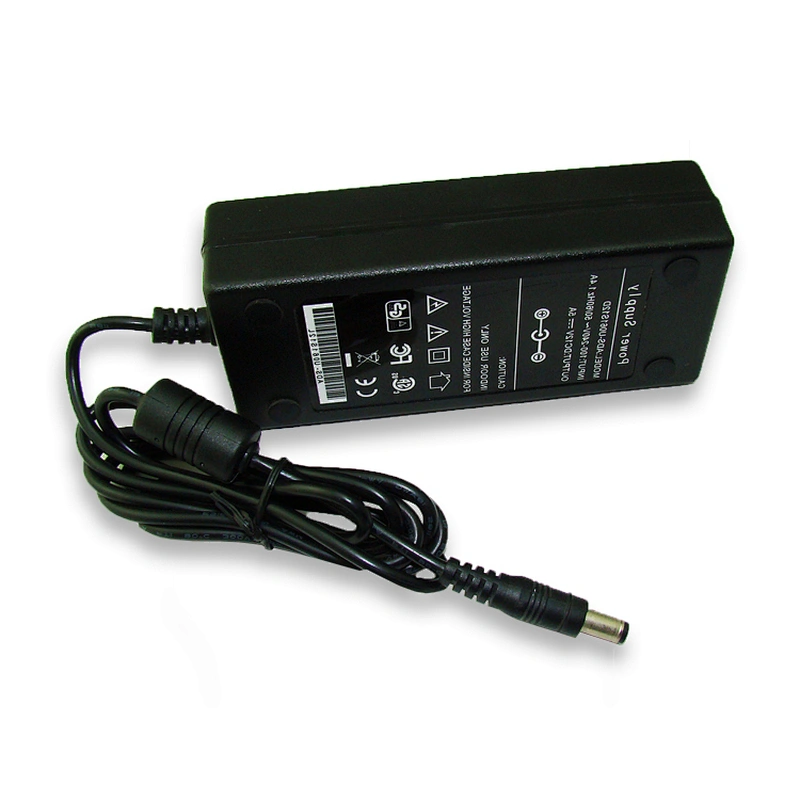

USB Power Adapter 230v Power Adapter 12V 3000MA SMPS Specification
| ORDER NO. | ADS-U036S05L | ADS-U036S12L | ADS-U060S12L | ADS-U060S15L | ADS-U060S24L | |
| OUTPUT | DC VOLTAGE | 5V | 12V | 12V | 15V | 24V |
| RATED CURRENT | 6A | 3A | 5A | 4A | 2.5A | |
| CURRENT RANGE | 0~6A | 0-3A | 0~5A | 0-4A | 0-2.5A | |
| RATED POWER | 30W 36w 60w 60w 60w | |||||
| RIPPLE & NOISE (max. | 100mVp-p | |||||
| VOLTAGE TOLERANCE | +/-5.0% | |||||
| LINE REGULATION | +/-1.0% | |||||
| LOAD REGULATION | +/-4.0% | |||||
| SETUP, RISE | 2000ms,30ms /230VAC 2500ms,30ms/ll5VAC(at full load) | |||||
| HOLD UP TIME | 20ms /230VAC 20ms/ll5VAC (at full load) | |||||
| INPUT | VOLTAGE RANGE | 100VAC--240VAC | ||||
| FREQUENCY RANGE | 47~63Hz | |||||
| POWER FACTOR (Typ.) | PF> 0.97 / 230VAC PF> 0.99 / 115VAC at full load | |||||
| EFFICIENCY (Typ.) R7B | 88% | |||||
| AC CURRENT | 1.4A/ 115VAC 0.7A/ 230VAC | |||||
| INRUSH CURRENT (max.) | 70A/ 230VAC | |||||
| LEAKAGE CURRENT (max.) | 0.75mA/ 240VAC | |||||
| PROTECTION | OVERLOAD | 105 ~ 150% rated output power | ||||
Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||||||
| OVER VOLTAGE | 105 ~ 150% rated output power | |||||
Protection type : Shut down o/p voltage, re-power on to recover | ||||||
| OVER TEMPERATURE | RTH2≥100'+/-10℃ | |||||
Protection type : Shut down o/p voltage, re-power on to recover | ||||||
| ENVIRONMENT | WORKING TEMP. | 0~+50℃ | ||||
| WORKING HUMIDITY | 20~90%RH,non-condensing | |||||
| STORAGE TEMP., HUMIDITY | -40~+ 85℃ , 10~95% RH | |||||
| TEMP. COEFFICIENT | +/-0.03%/℃(0~50℃) | |||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |||||
| SAFETY & EMC | WITHSTAND VOLTAGE | I/p-0/P: 1.5KVAC | ||||
| ISOLATION RESISTANCE | I/P-0/P: 100M Ohms / 500VDC / 25℃/ 70% RH | |||||
| EMC EMISSION | Compliance to EN55022 class B, EN61000-3-2,3, FCC PART 15 / CISPR22 class B, CNS13438 class B, GB9254, GB17625.1 | |||||
| EMC IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,8,11, light industry level, criteria A | |||||
| OTHERS | MTBF | ≥ 400.7Khrs Ml L-H DBK-217F(25℃) | ||||
| DIMENSION | 120*52*31.5mm ( L* W* H) | |||||
| PACKING | 0.62Kg | |||||
Our product series include: industrial power supply, power adaptor, LED driver etc., which are widely used in communication, power electronics, automation control, railway, military industry,medical care and a good deal of others.
Our advantage:
1.Good and High efficiency Team:our company have sales team,R&D team,purchase team,PMT team,production team and quality team etc.Our teams works hard together with highefficiency,and our teams have the same target--Excellent quality,the highest service !
2.OEM&ODM Services: Our company have professional engineers,so we cancustomize products ccording to your detailed requirements,your samples or your ideas.

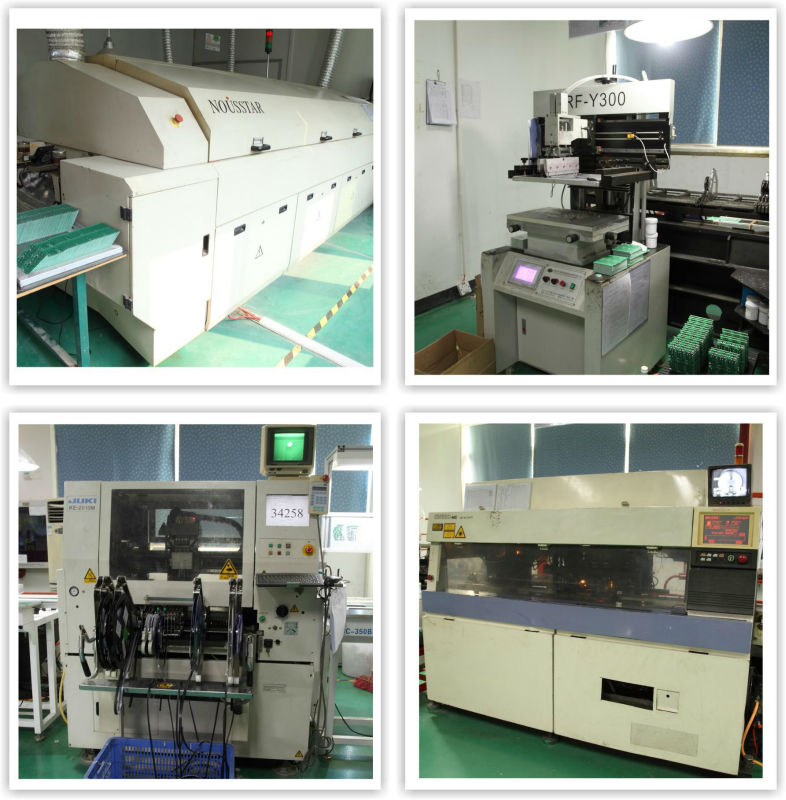

3.High efficiency automatic SMT machine and production process:itis fast,high-efficient and standard.Professionalsurface-mounting and trough-hole soldering technology.-our production process must through below steps to guarantee good quality Inspecting Raw Materials-Auto machine to SMT--Plug-in module--Pass wave-soldering (Auto solder)--Angle cutter cutting angles--Post-solder &Assembling--QC Inspection--FQC Testing Products--Ageing--Quality department spot-check goods--Packing--Shipping out.
4. Excellent geographical location: Our company locate in good place,the transportation isvery convenient.It takes short time to reach our company.
Our Product Package:
In order to protect products,the inner package is often use PP bags or Anti Static bags,and the use white box to pack each product,then put each one into the strong carton,at last finish packing.
Transportation ways of products:
You can choose any way which you like to ship the goods,we will try our best tohelp you save shipping cost.
Product Certificates:
Almost all of our products get CE/CCC/ROHS/FCC etc certificates,and if you have Special requirements of certificates,we can help to apply it for you.And our company pass ISO9001and ISO14001.
About our company
1.Company profile and contact information.

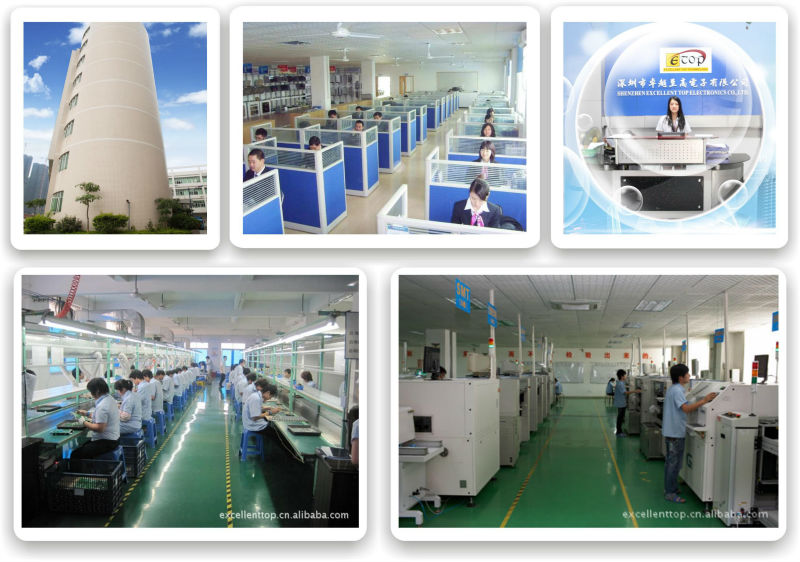

2.Our Teams and working place
