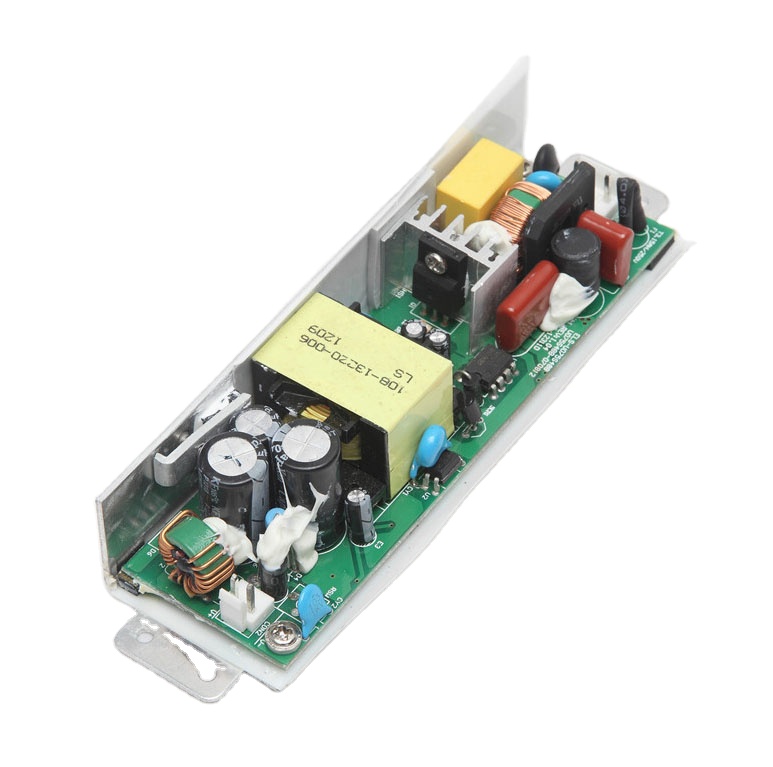

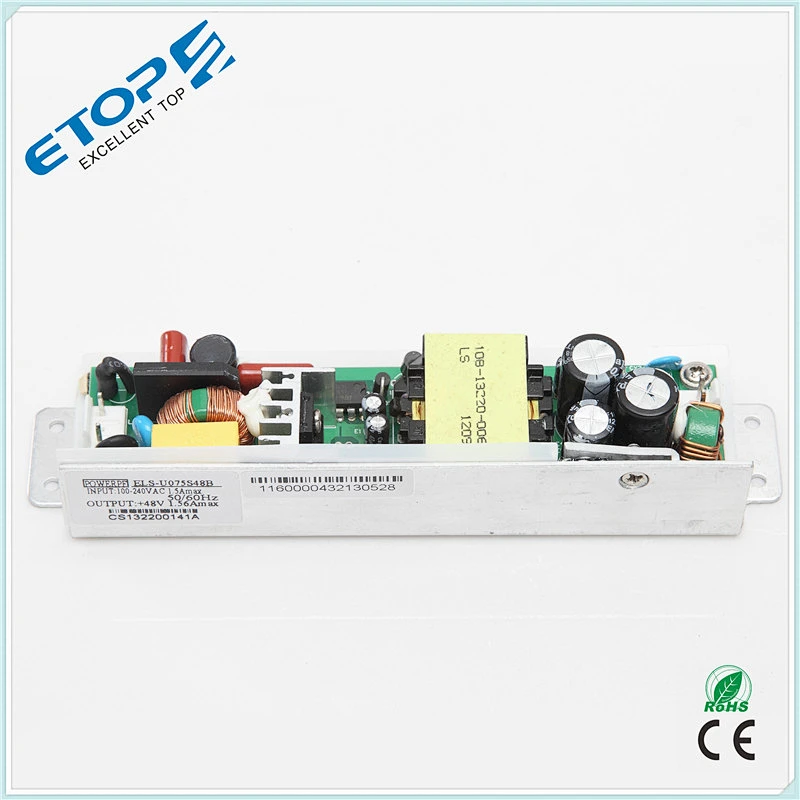

75W Power Supply Pcb Board 24V 12V Lcd Tv Power Supply Control Board
Feature:
1.MOQ: 100PCS, sample order is available
2.Production Capacity: 800pcs/day , 3000pcs/week
3.Payment:T/T, Western Union, Paypal, Escromer ...
4.Lead time: 3-7days for sample, 15-20days for mass production
5.Warranty:2 years warranty
6.Shipping method:DHL,UPS,FEDEX,TNT,EMS,Hongkong/china post, by air,by sea etc
7.Package: OPP bag or poly bag, white box, artistic bag, by customer' requirement.
Specification
| Model | Output | Power | Ripple&Noise | Tolerance | Line Regulation | Load Regulation | Efficiency |
EBP-U075S24 | 24V/3A | 72w | 100mvp-p | 1% | 0.5% | 1% | 81% |
EBP-U075S36 | 36V/2A | 75W | 100mvp-p | 1% | 0.5% | 0.5% | 83% |
EBP-U075S48 | 48V/1.65A | 75w | 120mvp-p | 1% | 0.5% | 0.5% | 83% |
EFP-U075S52 | 52V/1.45A | 75W | 200mvp-p | 1% | 0.5% | 0.5% | 83% |
| Input Volt & Freq | 100-240vac 47-63hz |
| Start ,Rise time | 500ms,80ms/230vac full load |
| Working enviroment | -20~+50 degree ,20~90% RH non considering |
| Temperature coefficient | +-0.03% |
| Protection | Over load >105%-150%,hiccup mode auto recovery |
Over voltage >115%-135%,hiccup mode auto recovery | |
Over temp | |
| EMC Standard | EN55022,ClassB, EN61000-3-2,EN61000-4-2,3.4,5.6,8.11 |
| Safety Standard | EN60950-1,CCC,GB4943,J60950 |
| Withstand voltage | I/P-O/P:1.5KVAC I/P-PG:1.5KVAC |
| Leakage current | 0.75mA/240vac |
| Dimesion | 160*41*23mm |
1.Products Series Offer: Enclosed type power supply,open frame power boards, power adapter( wall plug & desktop) led driver etc
2.Ouput voltage:5v 12v 15v 18v 20v 24v 36v 48v....
3.Power:open frame power supply 3w-400w, enclosed type 12w-600w is available
4.Input: 100-240vac, 90-264vac, 110vac,220vac, 230vac....
5.Widely use: it could be used in Home application,communication,industrial, automation control, led light, state light, LCD ,CCTV ,Monitor.Printer,TV ,air condition....
Tips: Take example for this model, other model products and OEM service is welcomed

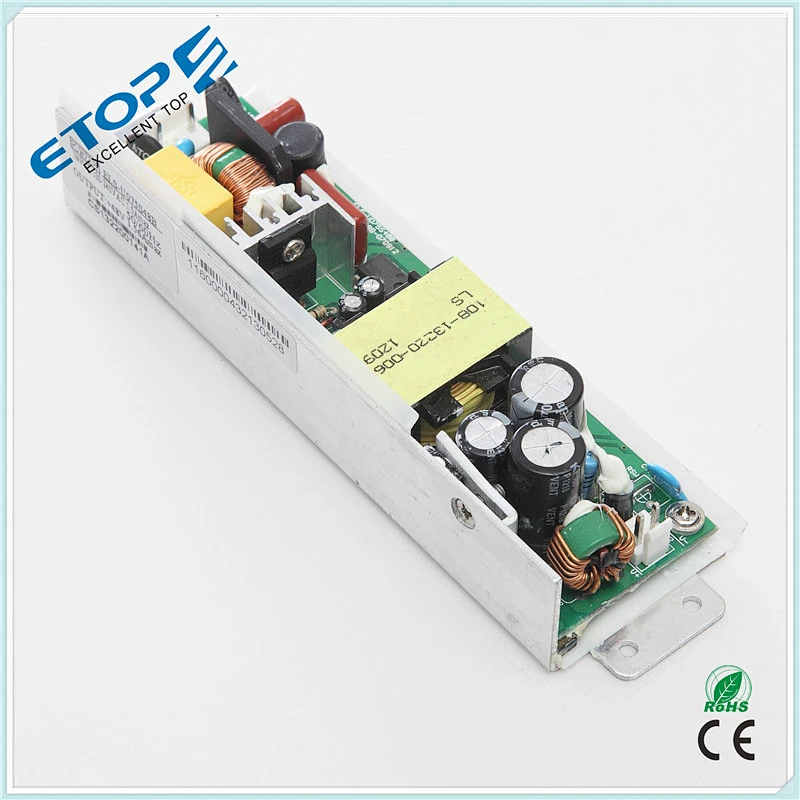

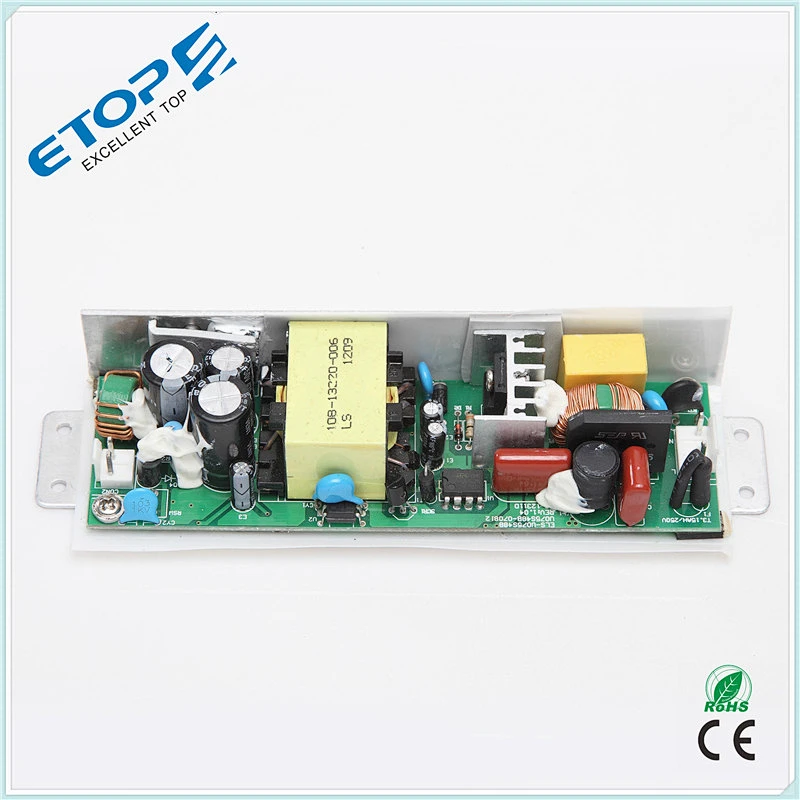

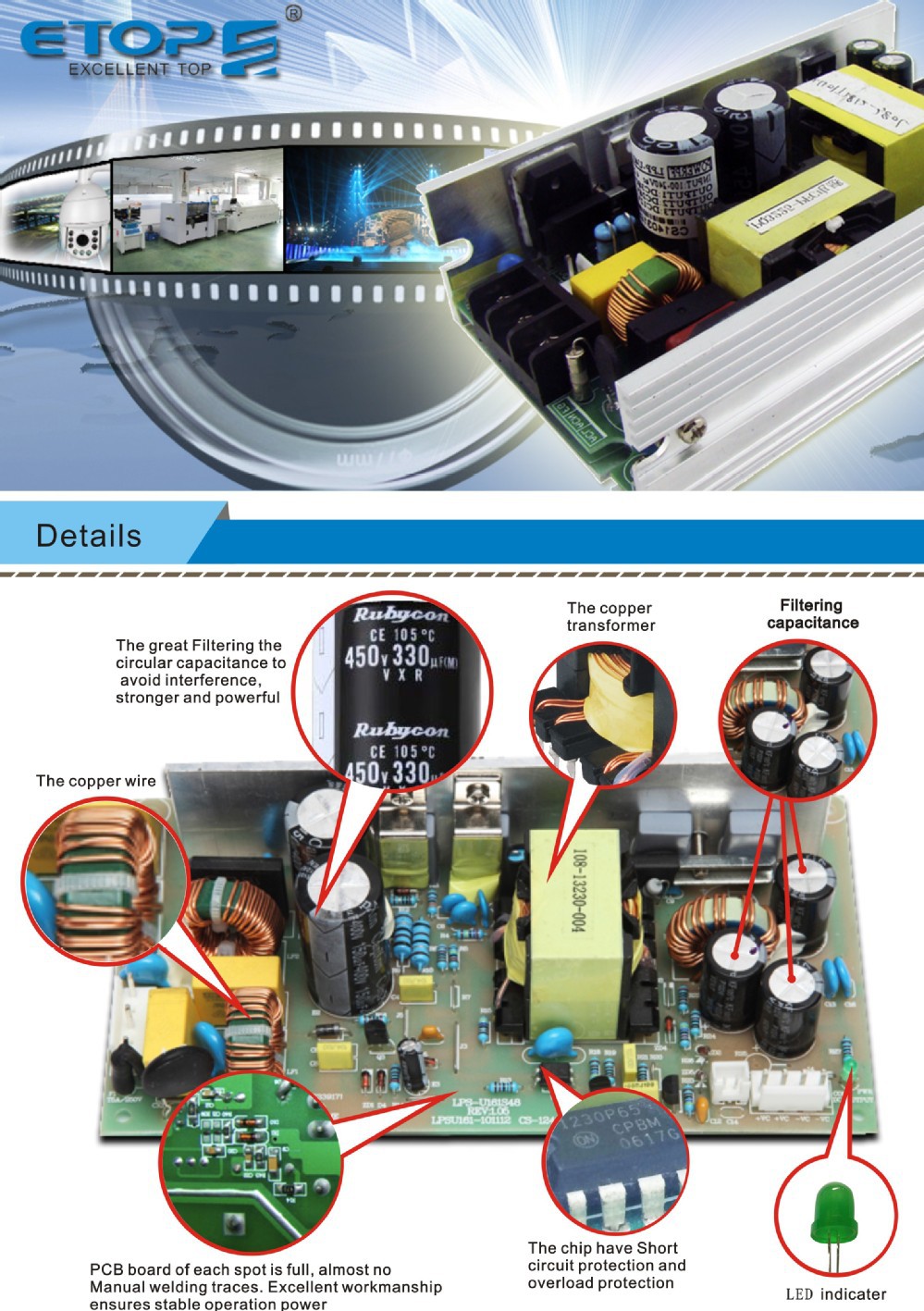

Detail of Product Show

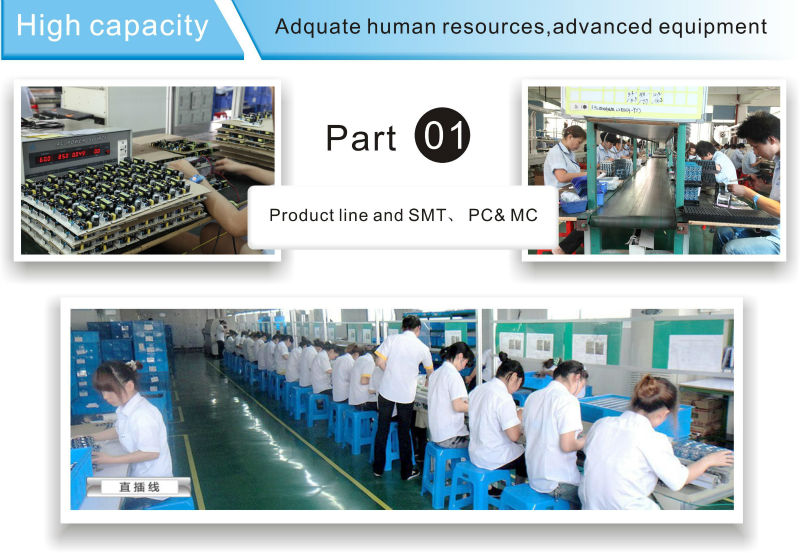

View Factory of ETOP

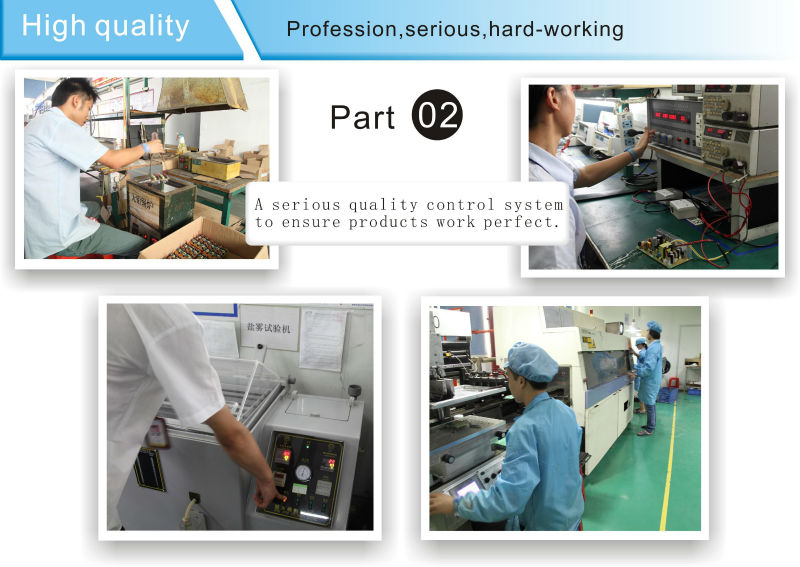

High efficiency automatic SMT machine and production process: it is fast,high-efficient and standard.Professional surface-mounting and trough-hole soldering technology.-our production process must through below steps to guarantee good quality Inspecting Raw Materials-Auto machine to SMT--Plug-in module--Pass wave-soldering (Auto solder)--Angle cutter cutting angles--Post-solder &Assembling--QC Inspection--FQC Testing Products--Ageing --Quality department spot-check goods--Packing--Shipping out.
OEM&ODM Services: Our company have professional engineers,so we can customize products according to your detailed requirements,your samples or your ideas.
Certification of ETOP
Normally, we will use white box packing and then put into standard carton box
Why us
1.Experience: ETOP is A professional factory that specialized in power supplies more than 10 years.have strong R&D team to support OEM service
2.Capable:ETOP is capable to manufacture different kinds of power supplies by customer' requirement, could be used in many field and exploring customers to win the market.
3.Quality :ETOP Factory have machine and complete production line for SMT sodering , high quality components to assembly power pcb board,100% burn in test, AOI test,
4.Protect your interest: ETOP will update new products and price list for promotion, 3 years warranty, make best solution of power. Turkirish angent to help you order.
