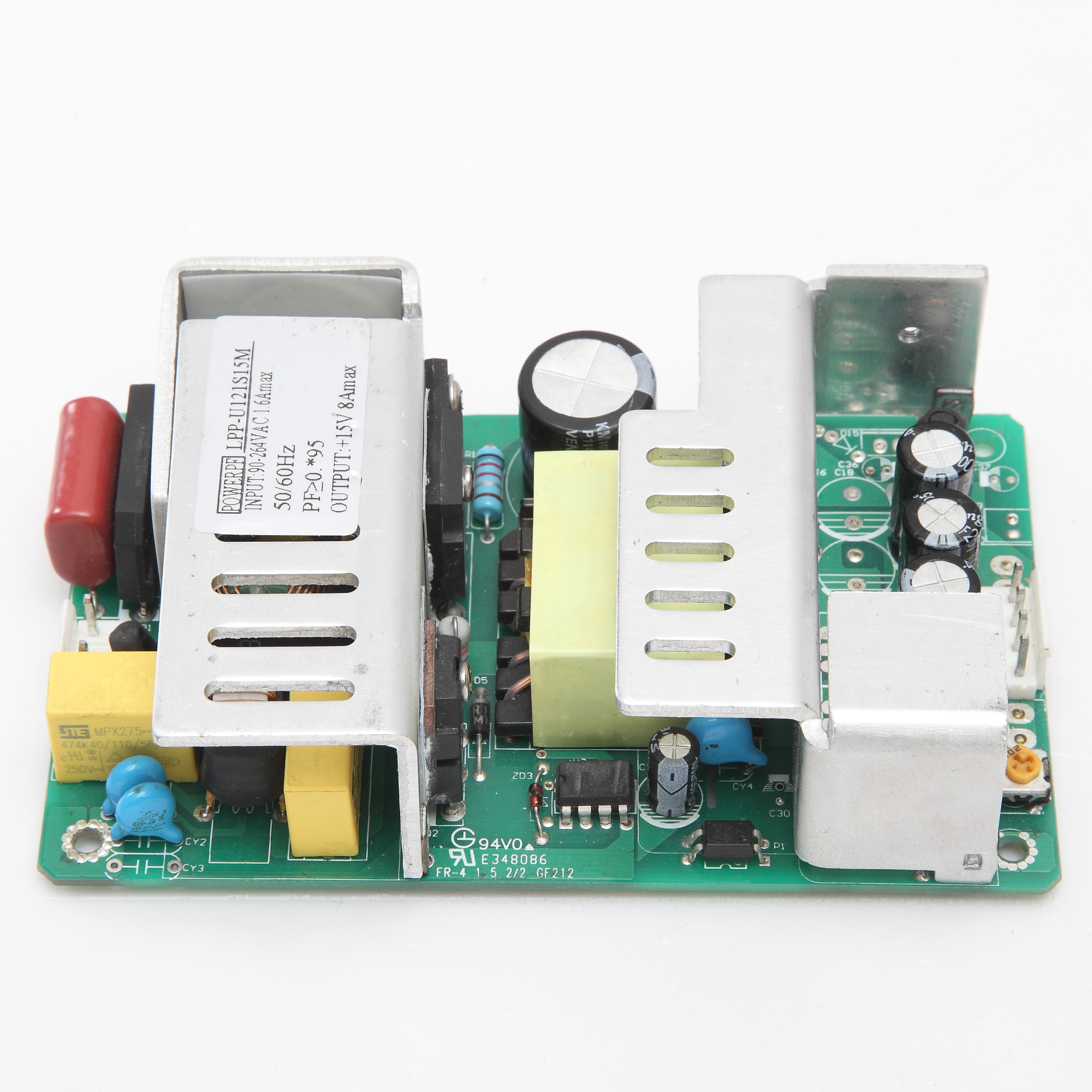

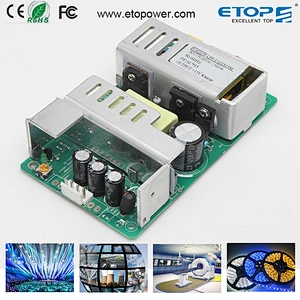

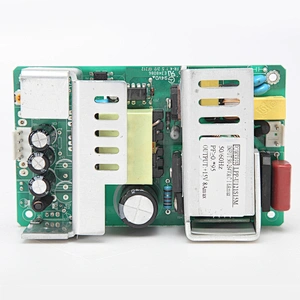

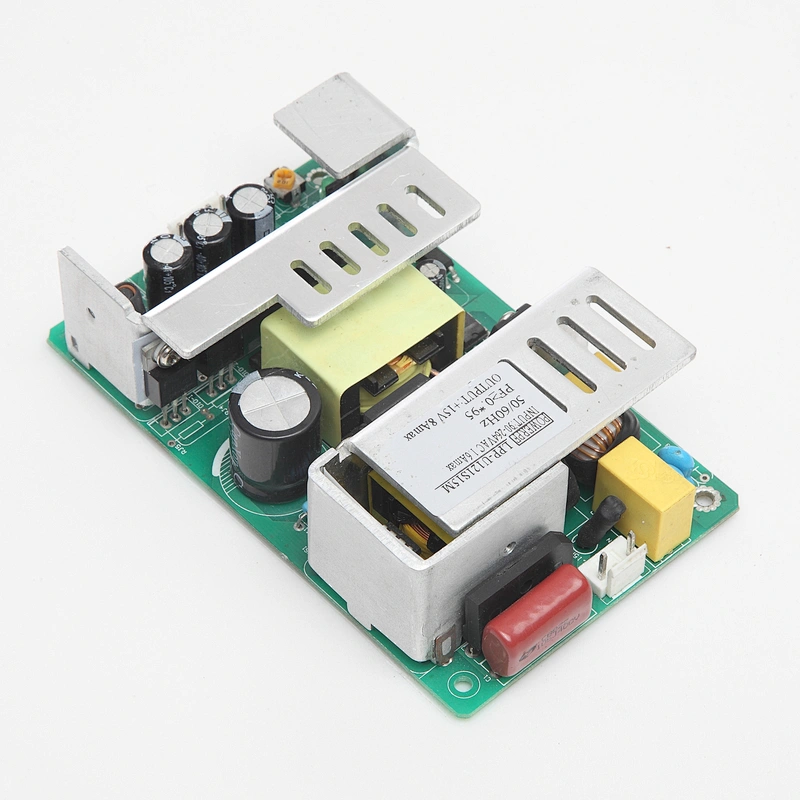

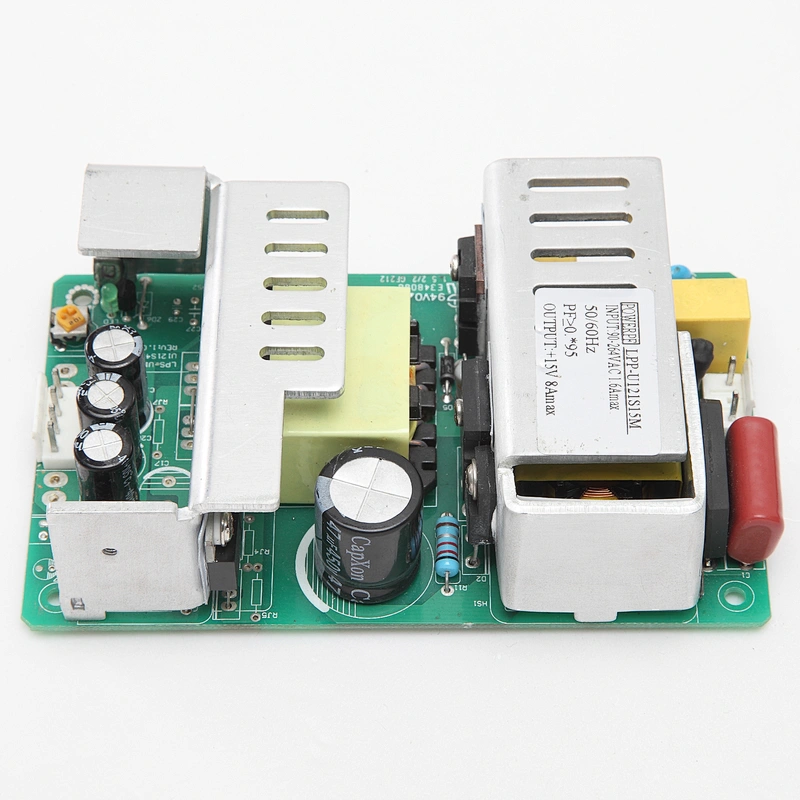

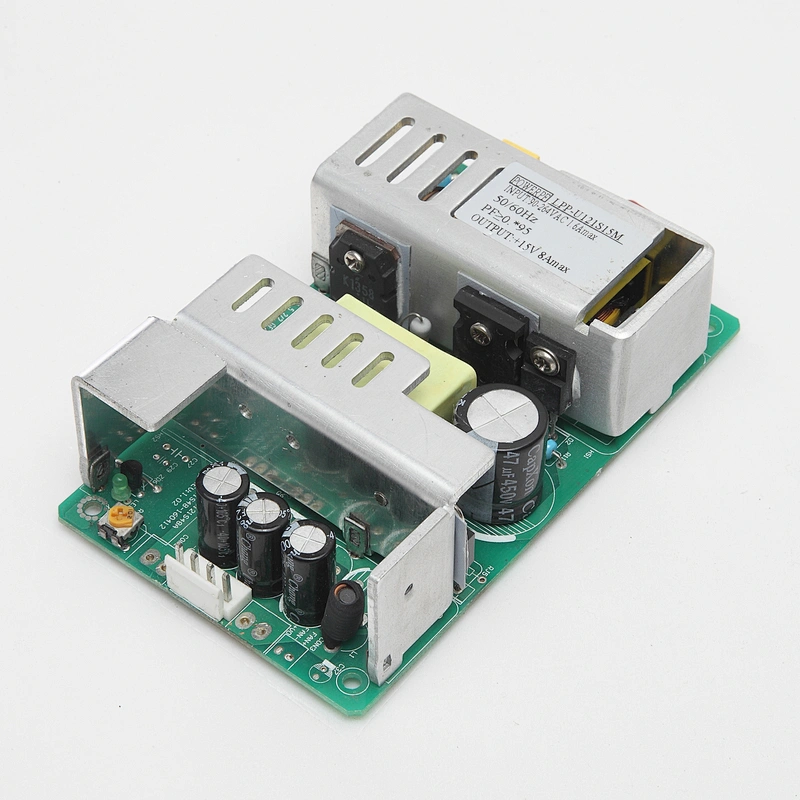

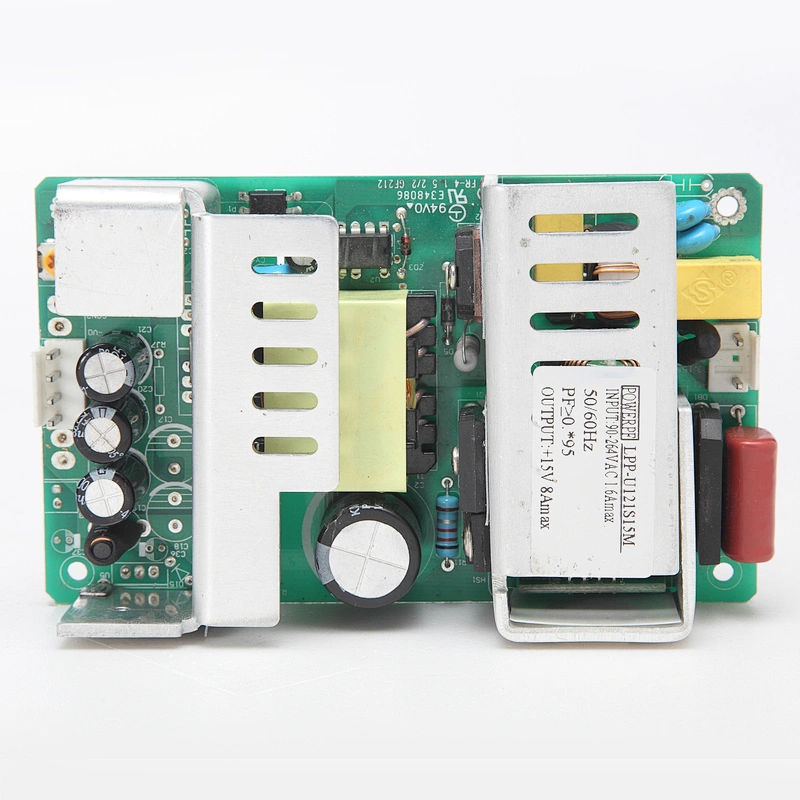

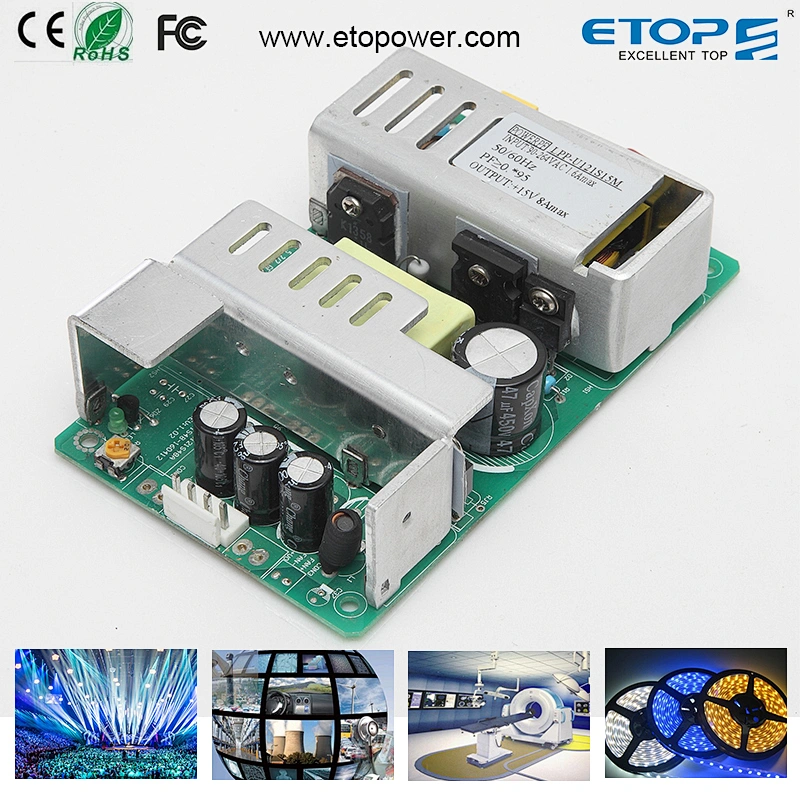

ETOP 120W 18V 24V 36V 48V Excellent Quality CE EMC Compliance Open Frame Dehumidifier Power Supply
Feature:
· Universal AC input/Full range(100-240VAC)
· Widely used in different field.
· Provide customizing service
· Protections:Short circuit/Over load/Over voltage/ Over temp
· 3 years warranty
· 100% full load burn-in test
· Use Imported machine to test,such as Chroma machine
· Lead time: 15 working days after receiving deposit
· Payment: TT,L/C,Paypal etc,
· Sample is available
· L/T of sample :7 days
Parameter table :
| Model | LPP-U121S24A | LPP-U121S28A | LPP-U121S48A | LPP-U121S52A | |
| Input | Input Voltage(V) | 85VAC~264VAC | |||
| Input Current (A) | 1.8A Max | ||||
| Frequency (Hz) | 47Hz–63Hz | ||||
| Efficiency | 85% Typ(230VACFull Load) | ||||
| Inrush current(A) | Cold star <80A/230VAC | ||||
| Leakage current(mA) | <2mA/240VAC | ||||
| Output | Output Voltage(V) | 24Vdc | 28Vdc | 48Vdc | 52Vdc |
| Voltage Regulation | 3% | 3% | 3% | 3% | |
| Output Current(A) | 5A | 4.3A | 2.5A | 2.3A | |
| Current Range (A) | 0-5A | 0-4.3A | 0-2.5A | 0-2.3A | |
| Rated Power(W) | 120W | ||||
| Start time, hold-up time(ms) | Ton≤3000ms,Td≥20ms @230Vac Full Load | ||||
| Rise time(ms) | Typ:80ms @230Vac Full Load | ||||
| Ripple/Noise(mVp-p) | 200mVp-p | ||||
| Environment | working Temperature (°C) | 0°C - +50°C | |||
| Storage Temperature(°C) | ‘-20°C - +80°C | ||||
| Humidity(%) | 20% - 90% RH non condensing | ||||
| Safety/ EMC | Withstand voltage(VAC) | I/P-O/P:3KVAC,I/P-FG:1.5KVAC,OP-FG:0.5KVAC 1min | |||
| Safety Standard | EN/UL60950-1,GB4943 | ||||
| EMC Standard | EN55022 Class B,EN61000-4-2,3,4,5,6,8,11 GB17626.5 Level3 | ||||
| Protection | Over voltage Protection | >115%-135% Rated output voltage | |||
| Over load Protection | >105%-150% Auto recovery | ||||
| Short circuit Protection | Latched | ||||
| Over Temperature Protection | Auto reboot | ||||
| Others | Dimension *W*H(mm) | 127*76.5*33mm | |||
About Our Factory :
ETOP:It has got ISO9001 certification in 2002. And in 2004, we finished renewing the ISO9001:2000 quality management system certification. Moreover, ETOP passed the ISO14001 environmental management system
certification and GB/T28001 occupational health and safety management system certification in 2005.
Our Certificates:

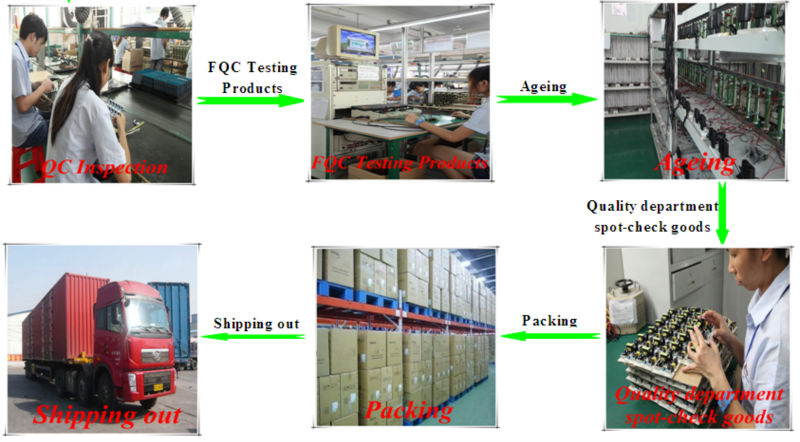

Our products are 100% through high temperature ageing, which accords with CCC, CE, FCC,Rohs and many
other authoritative organization security authentication standard.
Advantage of our products and company:
(1) Provide customizing service:We are good at designing and developing various products.We can
customize all kinds of power supples you expect as long as you can provide us your detailed comments .

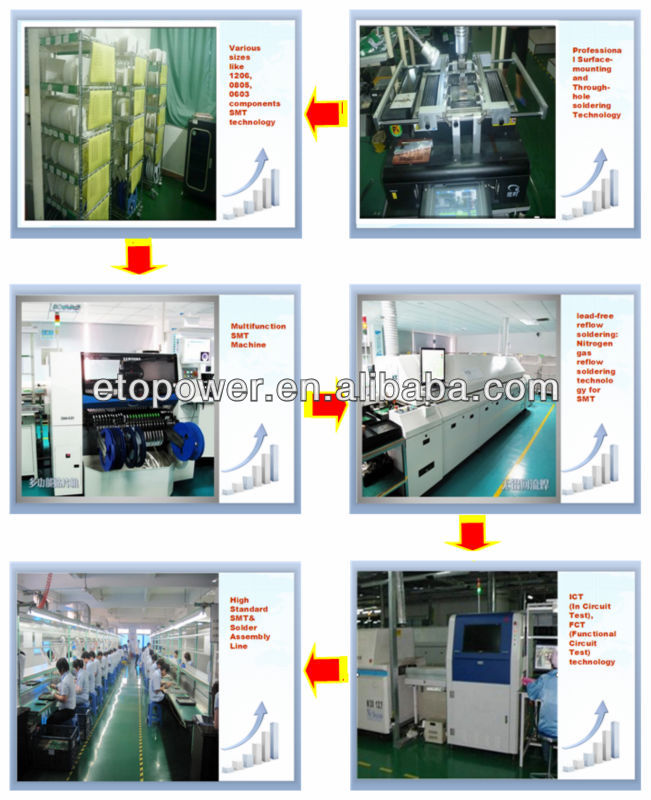

(2) SMT---High Efficiency & High Quality: largely adopt SMT components because of its tight mechanism,
small volume and exquisite appearance.
Our packaging:
with PP bag into small with box and then in to standard carton box
