- Output:12v/10a 15v/9.6a 20v/8a 24v/6.67a
- Output power:120w-160w
- Input voltage:100-240Vac
- DC connector:5.5*2.5mm / 5.5*2.1mm etc
- DC Cable:1.2m 1.5m 1.8m 2m etc
- Dimension:167*65*38mm
- Protection:Over Voltage/Over Current/Short Circuit
- PFC:>0.97
- Certification:CE ROHS cUL FCC KCC GS SAA BS CB
- Warranty:2 years
- Output Type:DC
- Connection:Desktop
- Place of Origin:CN;GUA
- Brand Name:ETOP
- Model Number:ADP-U121S24A
Welcome to ETOP !

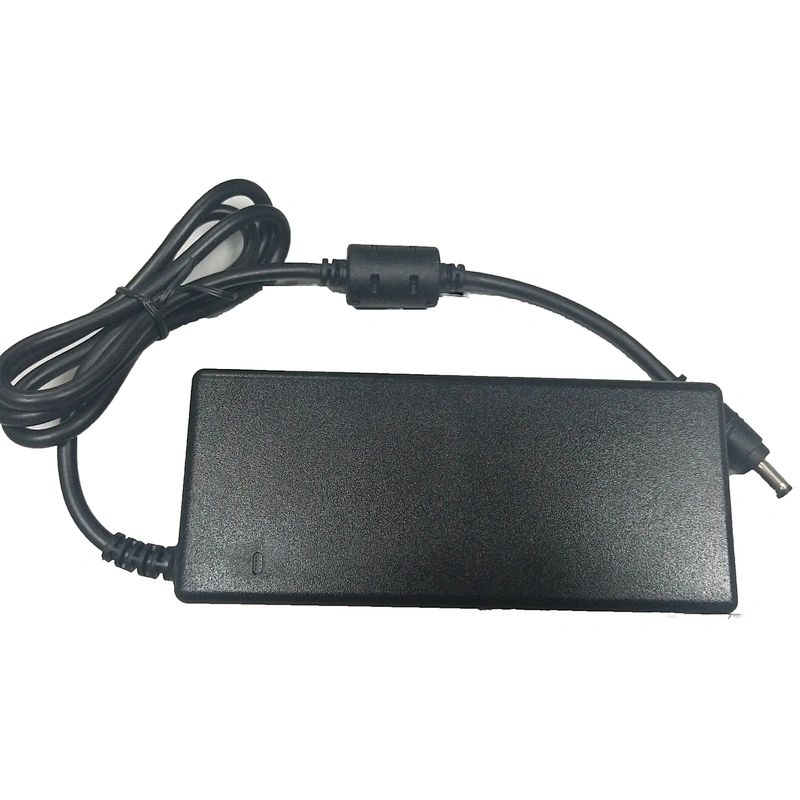

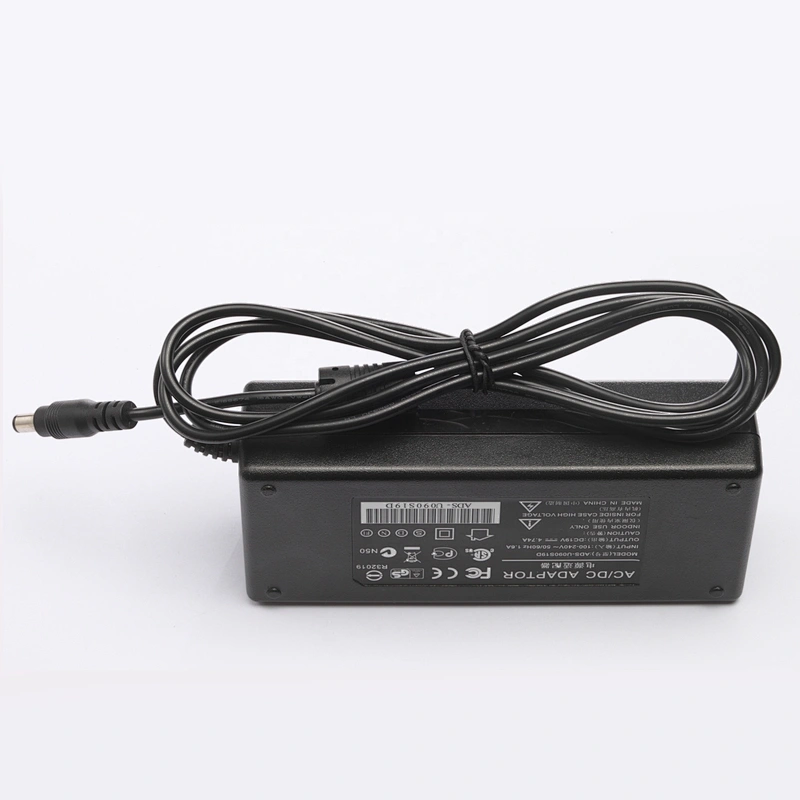

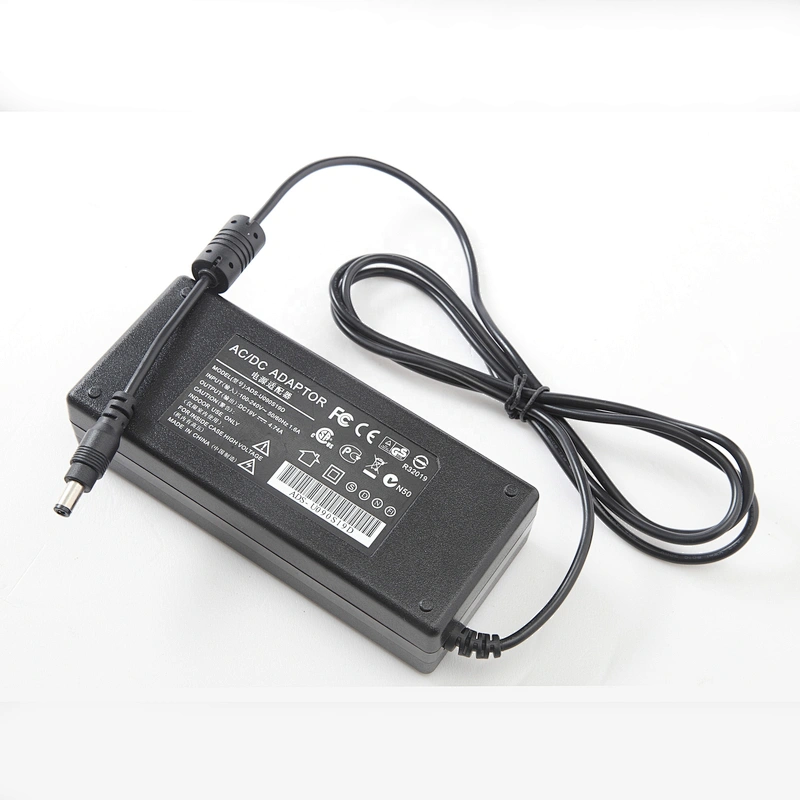

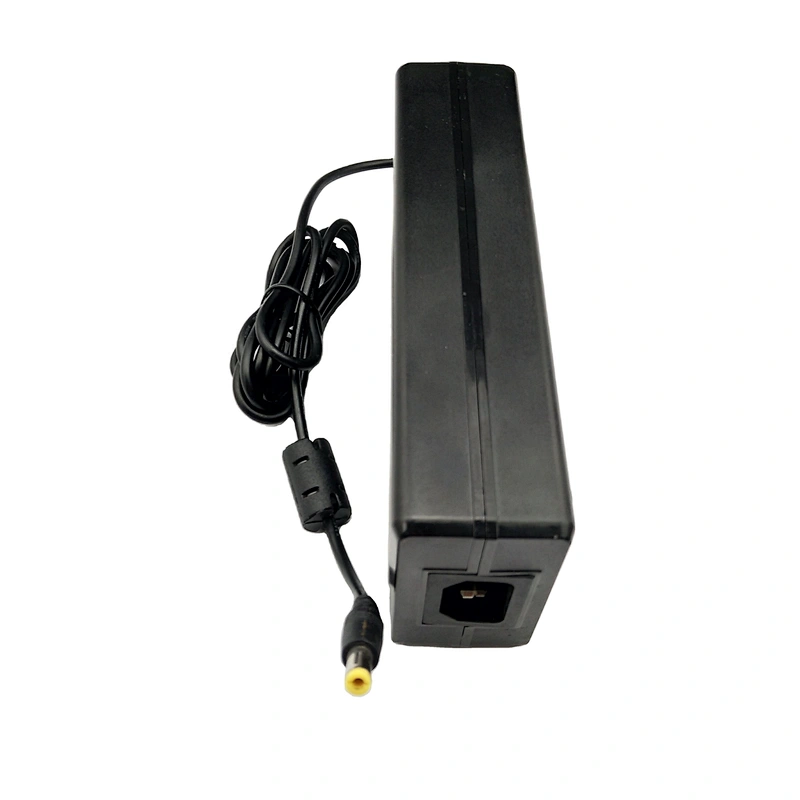

120W Desktop AC Adapter 12V 10 Amp Power Supply Manufacturer With CE RoHS FCC KCC Approved
Feature
1.MOQ: 100PCS, sample order is available
2.Production Capacity: 800pcs/day , 3000pcs/week
3.Payment:T/T, Western Union, Paypal, Escromer ...
4.Lead time: 3-7days for sample, 15-20days for mass production
5.Warranty:2 years
6.Shipping method:DHL,UPS,FEDEX,TNT,EMS,Hongkong/china post, by air,by sea etc
7.Package: OPP bag or poly bag, white box, artistic bag, by customer' requirement.
Specification
| ORDER NO. | ADP-U121S05L | ADP-U121S12L | ADP-U121S24L | ADP-U121S48L | ADP-U121S56L | |
| OUTPUT | DC VOLTAGE | 5V | 12V | 24V | 48V | 56V |
| RATED CURRENT | 12A | 10A | 5A | 2.5A | 2A | |
| CURRENT RANGE | 0~12A | 0-10A | 0~5A | 0-2.5A | 0-2A | |
| RATED POWER | 120W | |||||
| RIPPLE & NOISE (max. | 150mVp-p | |||||
| VOLTAGE TOLERANCE | +/-5.0% | |||||
| LINE REGULATION | +/-1.0% | |||||
| LOAD REGULATION | +/-4.0% | |||||
| SETUP, RISE | 2000ms,30ms /230VAC 2500ms,30ms/ll5VAC(at full load) | |||||
| HOLD UP TIME | 20ms /230VAC 20ms/ll5VAC (at full load) | |||||
| INPUT | VOLTAGE RANGE | 100VAC--240VAC | ||||
| FREQUENCY RANGE | 47~63Hz | |||||
| POWER FACTOR (Typ.) | PF> 0.97 / 230VAC PF> 0.99 / 115VAC at full load | |||||
| EFFICIENCY (Typ.) R7B | 89% | |||||
| AC CURRENT | 1.4A/ 115VAC 0.7A/ 230VAC | |||||
| INRUSH CURRENT (max.) | 70A/ 230VAC | |||||
| LEAKAGE CURRENT (max.) | 0.75mA/ 240VAC | |||||
| PROTECTION | OVERLOAD | 105 ~ 150% rated output power | ||||
Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||||||
| OVER VOLTAGE | 105 ~ 150% rated output power | |||||
Protection type : Shut down o/p voltage, re-power on to recover | ||||||
| OVER TEMPERATURE | RTH2≥100'+/-10℃ | |||||
Protection type : Shut down o/p voltage, re-power on to recover | ||||||
| ENVIRONMENT | WORKING TEMP. | 0~+50℃ | ||||
| WORKING HUMIDITY | 20~90%RH,non-condensing | |||||
| STORAGE TEMP., HUMIDITY | -40~+ 85℃ , 10~95% RH | |||||
| TEMP. COEFFICIENT | +/-0.03%/℃(0~50℃) | |||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |||||
| SAFETY & EMC | WITHSTAND VOLTAGE | I/p-0/P: 1.5KVAC | ||||
| ISOLATION RESISTANCE | I/P-0/P: 100M Ohms / 500VDC / 25℃/ 70% RH | |||||
| EMC EMISSION | Compliance to EN55022 class B, EN61000-3-2,3, FCC PART 15 / CISPR22 class B, CNS13438 class B, GB9254, GB17625.1 | |||||
| EMC IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,8,11, light industry level, criteria A | |||||
| OTHERS | MTBF | ≥ 400.7Khrs Ml L-H DBK-217F(25℃) | ||||
| DIMENSION | 167*67*35mm ( L* W* H) | |||||
| PACKING | 0.62Kg | |||||
Our product series include: industrial power supply, power adaptor, LED driver etc., which arewidely used in communication, power electronics, automation control, railway, military industry,medical care and a good deal of others.
Tips: Take example for this model, other model products and OEM service is welcomed
1.Good and High efficiency Team:our company have sales team,R&D team,purchase team,PMT team,production team and quality team etc.Our teams works hard together withhighefficiency,and our teams have the same target--Excellent quality,the highest service !
2.OEM&ODM Services: Our company have professional engineers,so we cancustomize products ccording to your detailed requirements,your samples or your ideas.

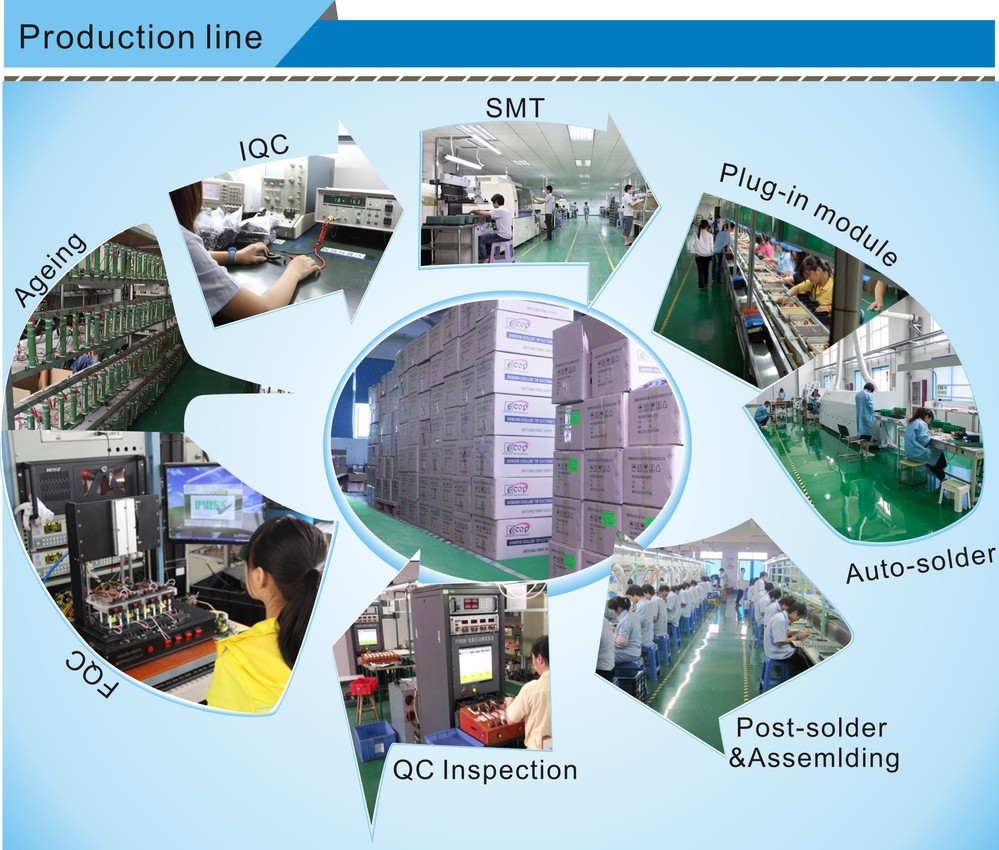

3.High efficiency automatic SMT machine and production process:it is fast,high-efficient and standard.Professional surface-mounting and trough-hole soldering technology.-our production process must through below steps to guarantee good quality Inspecting Raw Materials-Auto machine to SMT--Plug-in module--Pass wave-soldering (Auto solder)--Angle cutter cutting angles--Post-solder &Assembling--QC Inspection--FQC Testing Products--Ageing --Quality department spot-check goods--Packing--Shipping out.

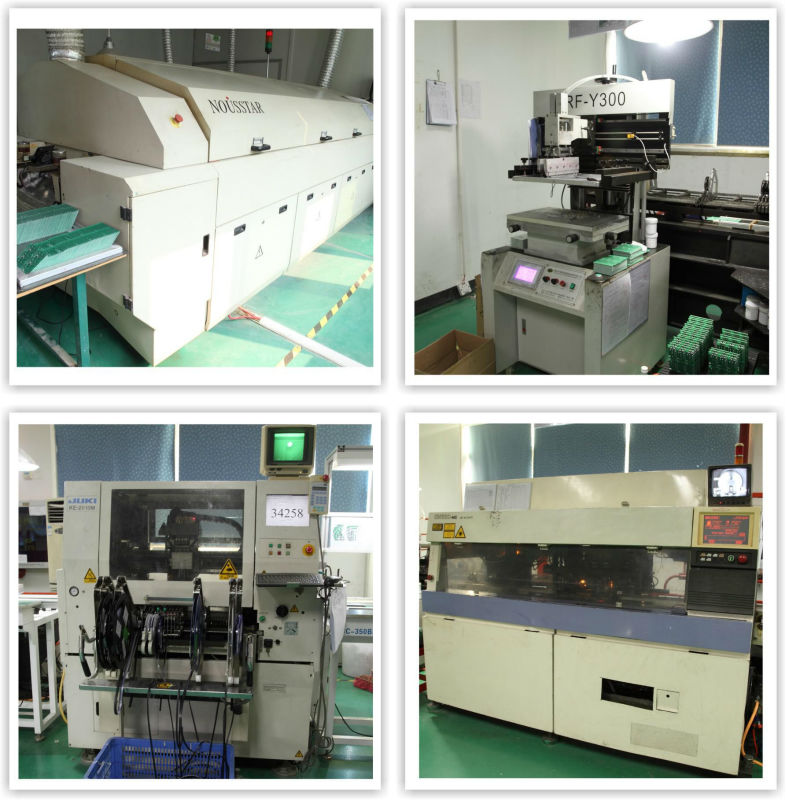

SMT Machine of ETOP
Certification
Why us
1.Experience: ETOP is A professional factory that specialized in power supplies more than 10 years.have strong R&D team to support OEM service
2.Capable:ETOP is capable to manufacture different kinds of power supplies by customer' requirement, could be used in many field and exploring customers to win the market.
3.Quality :ETOP Factory have machine and complete production line for SMT sodering , high quality components to assembly power pcb board,100% burn in test, AOI test,
4.Protect your interest: ETOP will update new products and price list for promotion, 3 years warranty, make best solution of power. Turkirish angent to help you order.
